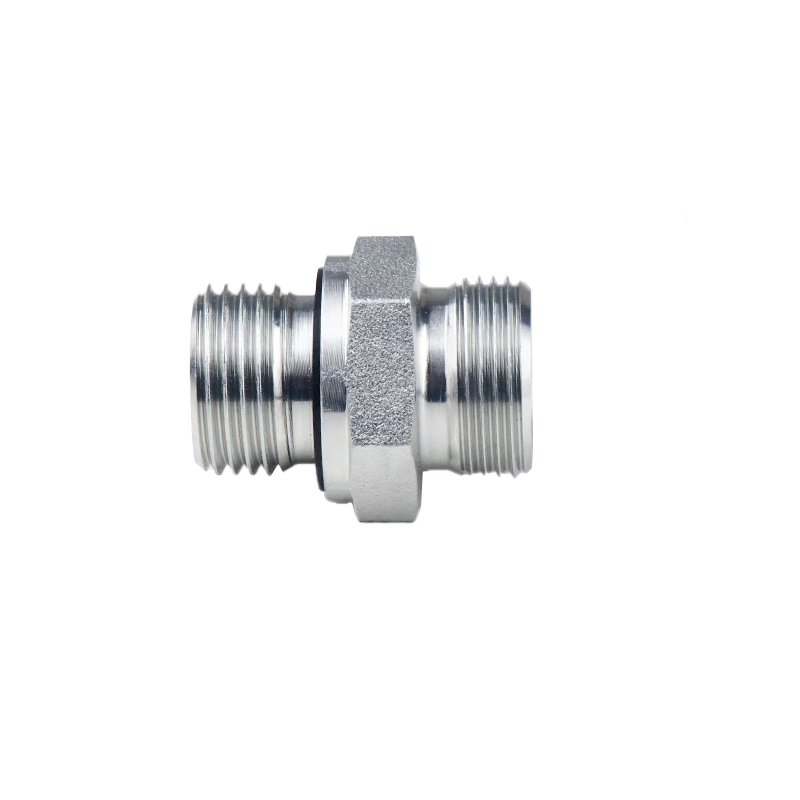

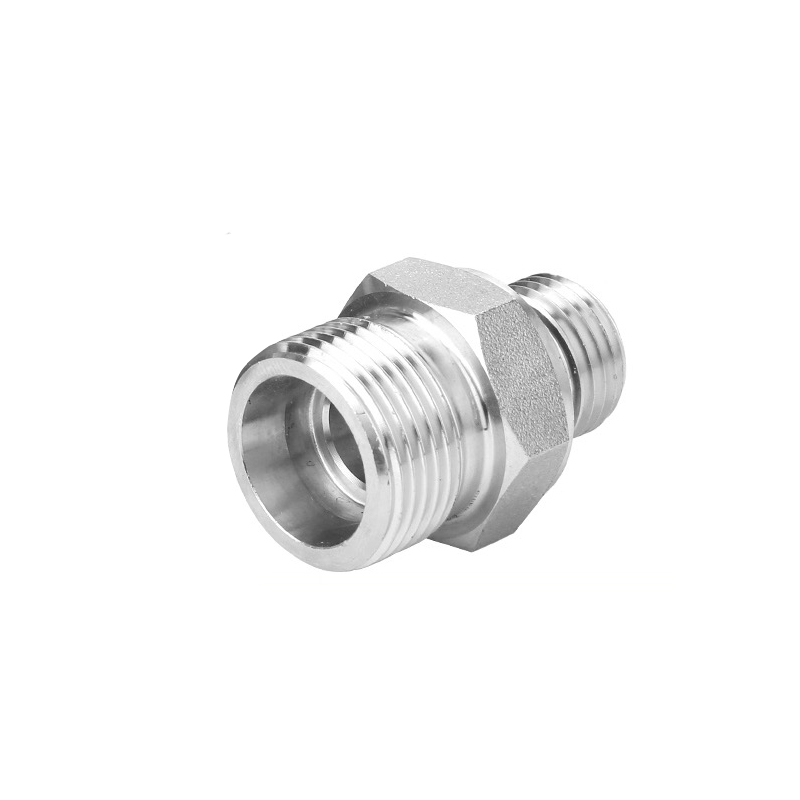

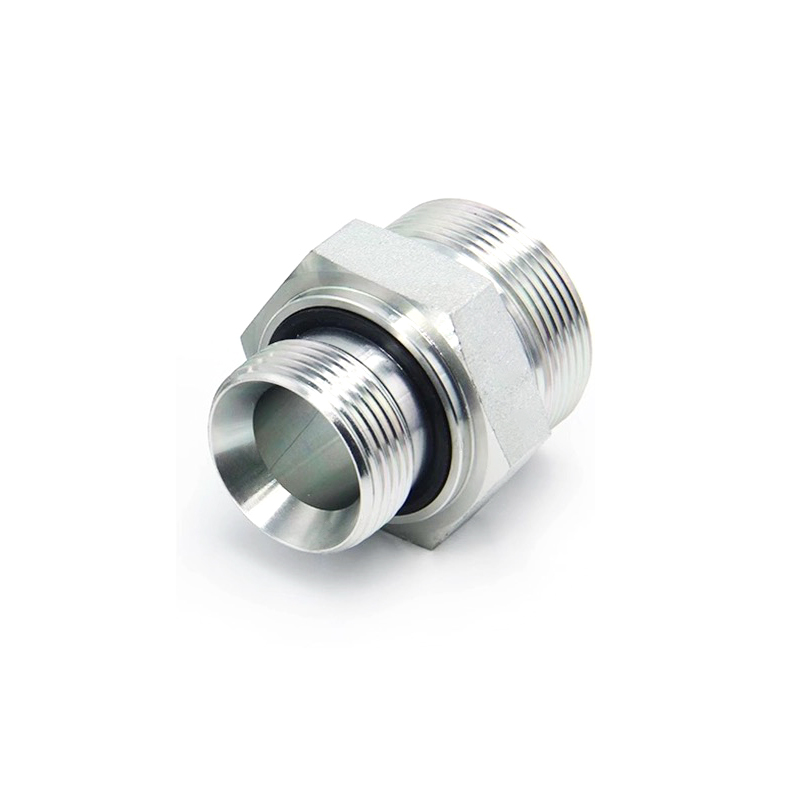

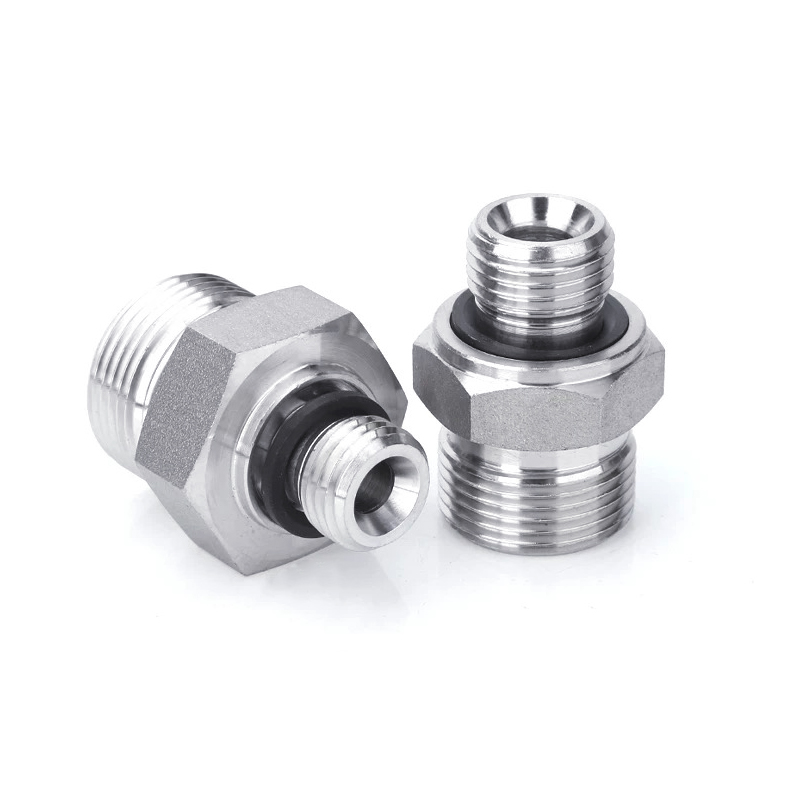

1 CM 1 DM Metric Thread With Captive Seal

The 1CM 1DM metric thread hydraulic fitting is a DIN/GB-compliant bite-type component with a captive O-ring seal. Available in 60° seat/24° cone, stainless steel-built, it ensures leak-proof connections for hydraulic/gas systems, ideal for mining (part numbers: 1CM-WD/1DM-WD, /RN for full sets)

Availability:

Quantity:



Inquire Add to Basket

Description

The 1CM metric thread hydraulic fitting is a precision-engineered component designed for leak-proof connections in hydraulic and gas systems, featuring a metric thread and integrated captive sealing washer (typically an O-ring). Classified as a "bite type" (DIN bite type) fitting, it secures tubes via a biting mechanism, ensuring robust attachment while complying with DIN and GB standards for universal compatibility.

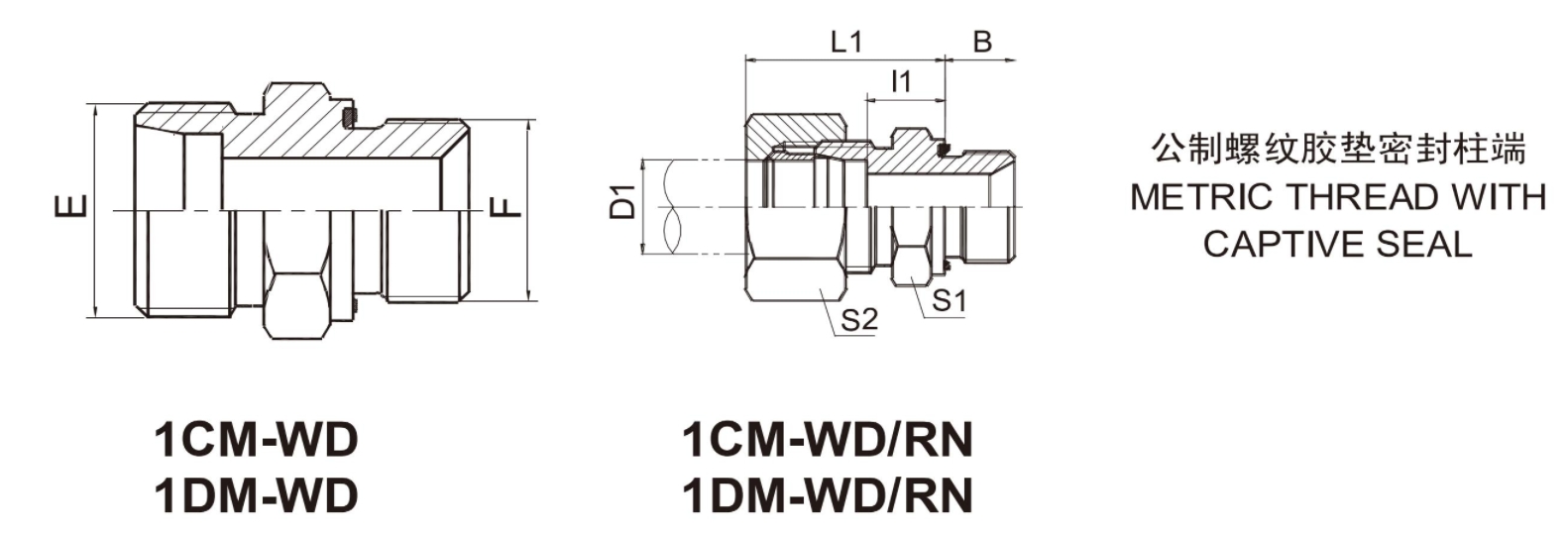

1CM 1DM图纸

Available with either a 60-degree seat or 24-degree cone seating, the fitting forms a tight seal against mating surfaces, eliminating fluid leakage even in demanding operating conditions. Crafted from high-quality stainless steel, it offers exceptional corrosion resistance and durability, making it suitable for harsh environments like mining. Common part number variants include 1CM-WD (male) and 1DM-WD (male), with the "/RN" suffix indicating complete sets supplied with a ferrule and nut for ready installation.

Ideal for hydraulic and fluid transport applications—particularly in mining and industrial settings where reliable, leak-free connections are critical—the 1CM fitting balances precision engineering, standardized performance, and rugged construction. It seamlessly connects hoses and pipes, delivering consistent sealing reliability to support the efficient operation of hydraulic and gas systems.

PART NO.	THREAD		TUBE O . D .	DIMENSIONS					MPa
PART NO.	E	F	D1	B	I1	L1	S1	S2	MPa
1CM-12-10WD	M12X1.5	M10X1	6	8	8.5	23	14	14	31.5 L series
1CM-14-12WD	M14X1.5	M12X1.5	8	12	10	25	17	17
1CM-16-12WD	M16X1.5	M12X1.5	10	12	11	25	17	19
1CM-16-14WD	M16X1.5	M14X1.5	10	12	11	26	19	19
1CM-16-18WD	M16X1.5	M18X1.5	10	12	12.5	27	24	19
1CM-18-16WD	M18X1.5	M16X1.5	12	12	12.5	27	22	22
1CM-18WD	M18X1.5	M18X1.5	12	12	12.5	27	24	22
1CM-18-22WD	M18X1.5	M22X1.5	12	14	14	29	27	22
1CM-22-18WD	M22X1.5	M18X1.5	15	12	13.5	29	24	27
1CM-22WD	M22X1.5	M22X1.5	15	14	15	30	27	27
1CM-26-22WD	M26X1.5	M22X1.5	18	14	14.5	31	27	32
1CM-30-26WD	M30X2	M26X1.5	22	16	16.5	33	32	36	16 L series
1CM-30-27WD	M30X2	M27X2	22	16	16.5	33	32	36
1CM-36-33WD	M36X2	M33X2	28	18	17.5	34	41	41
1CM-45-42WD	M45×2	M42×2	35	20	17.5	39	50	50
1CM-52-48WD	M52X2	M48X2	42	22	19	42	55	60
1DM-14-12WD	M14X1.5	M12X1.5	6	12	13	28	17	17	63 S series
1DM-16-14WD	M16X1.5	M14×1.5	8	12	15	30	19	19
1DM-18-16WD	M18X1.5	M16X1.5	10	12	15	31	22	22
1DM-20-18WD	M20X1.5	M18X1.5	12	12	17	33	24	24
1DM-22-20WD	M22X1.5	M20X1.5	14	14	19	37	27	27
1DM-24-22WD	M24X1.5	M22X1.5	16	14	18.5	37	27	30	40 S series
1DM-30-27WD	M30X2	M27X2	20	16	20.5	42	32	36
1DM-36-33WD	M36X2	M33X2	25	18	23	47	41	46
1DM-42WD	M42X2	M42X2	30	20	23.5	50	50	50
1DM-52-48WD	M52X2	M48X2	38	22	26	57	55	60	31.5 S series
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut it is necessary to insert suffix "RN"after our part no.,for example 1DM-20-18WD/RN.
