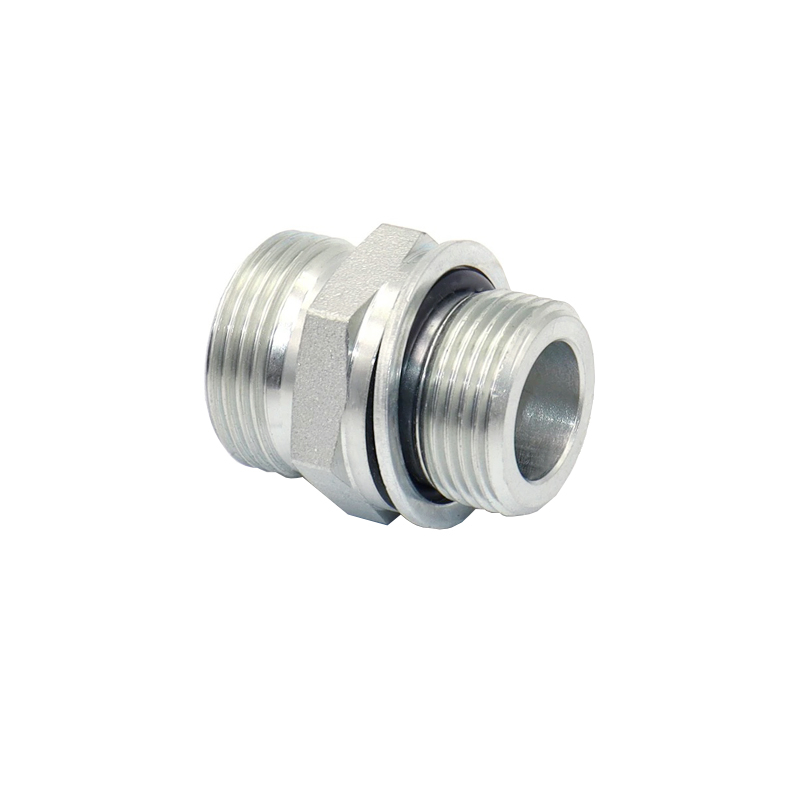

1CG 1DG BSP Thread Stud Ends with O-ring Sealing

1CG & 1DG BSP thread stud ends are specialized hydraulic fittings connecting BSP female ports to male stud ends. Featuring O-ring sealing, carbon/medium carbon steel construction (galvanized), and compliance with DIN 2353/ISO 8434, they ensure leak-proof, high-pressure reliability for industrial/construction hydraulic systems.

Availability:

Quantity:



Inquire Add to Basket

Description

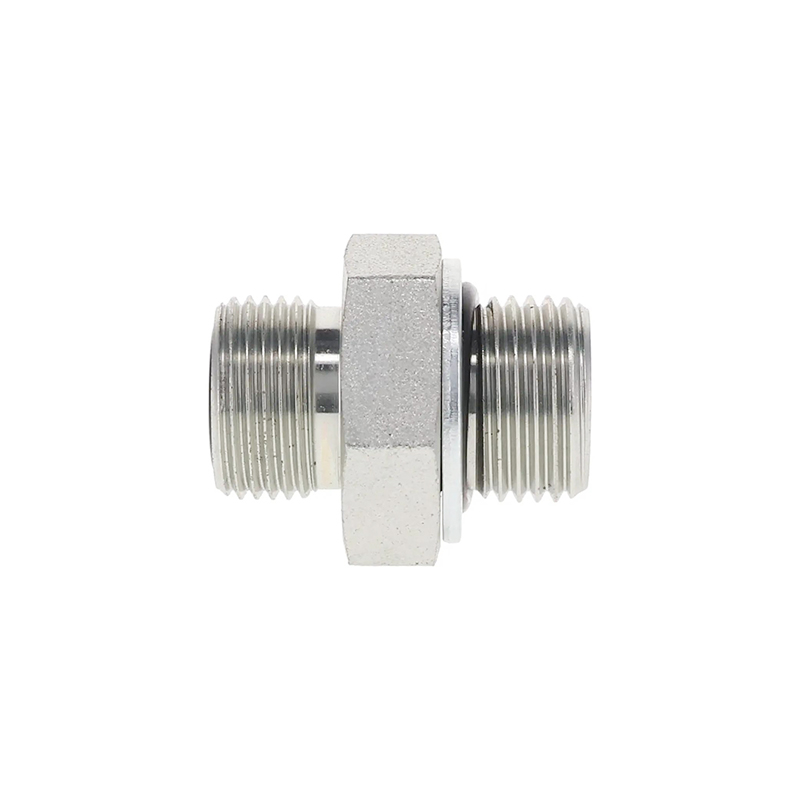

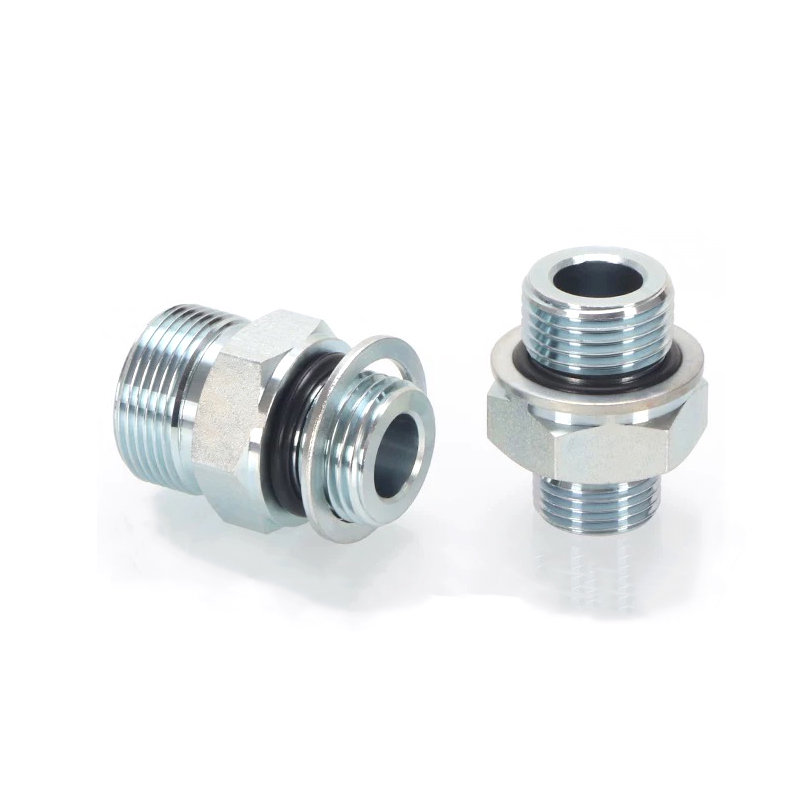

The 1CG and 1DG BSP thread stud ends are specialized hydraulic fittings engineered to connect BSP female ports to male stud ends, featuring O-ring sealing for exceptional leak-proof performance. Designed for hydraulic fluid systems, their "1CG" and "1DG" designations denote distinct series, while the core functionality revolves around reliable BSP male thread adaptation with O-ring compression sealing.

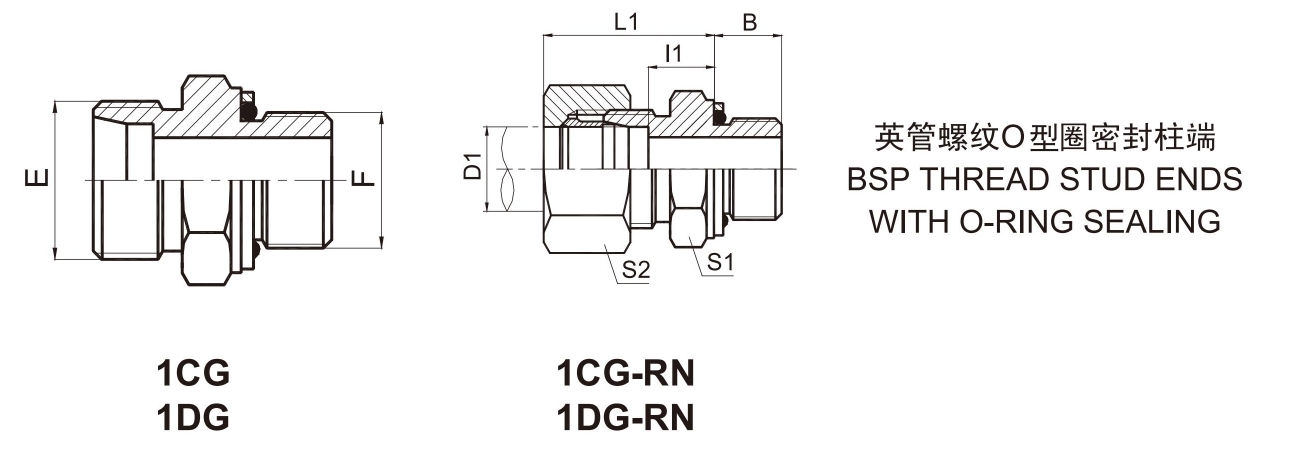

微信截图_20251124170007

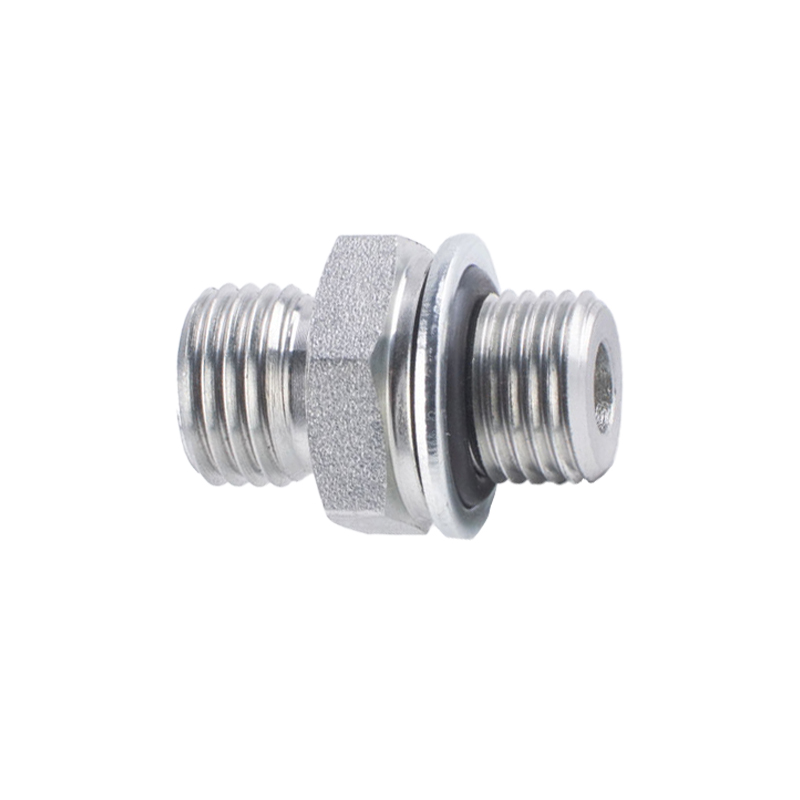

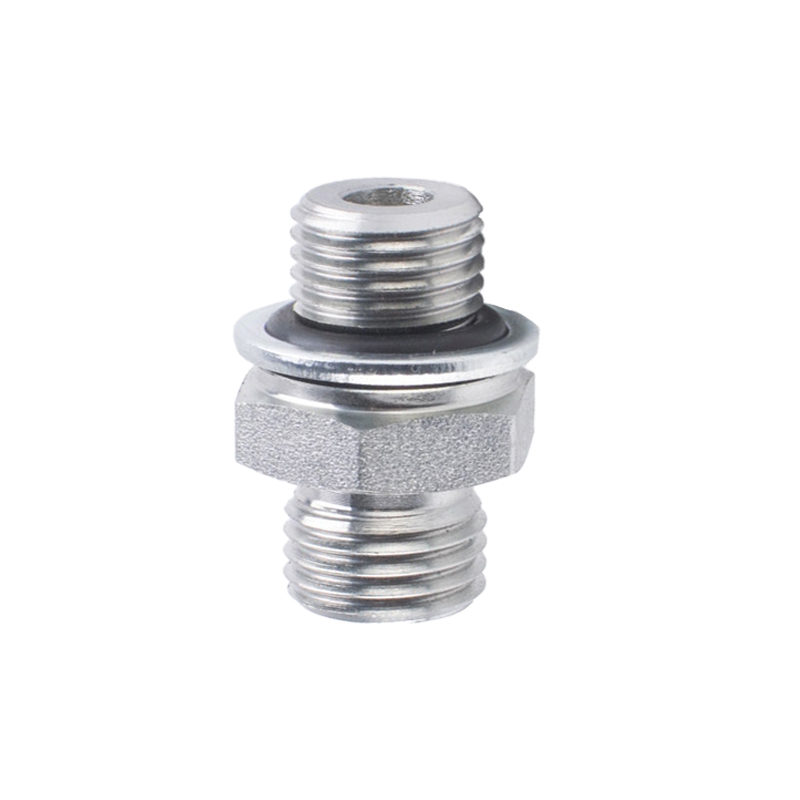

Crafted primarily from carbon steel or medium carbon steel (often galvanized for corrosion resistance), these fittings comply with industry standards like DIN 2353 and ISO 8434, ensuring compatibility and high-pressure durability. The O-ring is compressed against the port face during assembly, creating a tight seal that prevents fluid leakage even in demanding operating conditions.

Ideal for hydraulic systems where secure sealing is critical—such as hose connections and component integrations in industrial machinery, construction equipment, and fluid power setups—these stud ends balance robust construction, standardized compatibility, and leak-proof reliability. Whether for heavy-duty or precision hydraulic applications, the 1CG and 1DG BSP thread stud ends deliver consistent performance for critical system connections.

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D1	B	11	L1	S1	S2	MPa
1CG-12-02	M12X1.5	G1/8"X28	6	9.5	8.5	23	14	14	31.5 L series
1CG-12-04	M12X1.5	G1/4"X19	6	10	10	25	19	14
1CG-14-04	M14x1.5	G1/4"×19	8	10	10	25	19	17
1CG-14-06	M14x1.5	G3/8"×19	8	11.5	11.5	26	22	17
1CG-14-08	M14x1.5	G1/2"×14	8	14	13	27.5	27	34
1CG-16-04	M16x1.5	G1/4"×19	10	10	11	26	19	19
1CG-16-06	M16x1.5	G3/8"×19	10	11.5	12.5	27	22	19
1CG-16-08	M16x1.5	G1/2"×14	10	14	14	29	27	19
1CG-18-06	M18x1.5	G3/8"X19	12	11.5	12.5	27	22	22
1CG-18-08	M18x1.5	G1/2"×14	12	14	13	28	27	22
1CG-22-06	M22x1.5	G3/8"X19	15	11.5	13.5	29	24	27
1CG-22-08	M22x1.5	G1/2"X14	15	14	14	29	27	27
1CG-22-12	M22x1.5	G3/4"×14	15	15.5	20	30	32	32
1CG-26-08	M26x1.5	G1/2"×14	18	14	14.5	31	27	32
1CG-26-12	M26x1.5	G3/4"×14	18	15.5	14.5	32	32	32
1CG-30-12	M30x2	G3/4"×14	22	15.5	16.5	33	32	36	16 L series
1CG-30-16	M30x2	G1"×11	22	18	17.5	35	41	36
1CG-36-16	M36x2	G1"X11	28	18	17.5	34	41	41
1CG-45-20	M45x2	G1.1/4"×11	35	20	17.5	39	50	50
1CG-52-20	M52X2	G1.1/4"X11	42	20	19	42	55	60
1CG-52-24	M52x2	G1.1/2"X11	42	21.5	19	42	55	60
1CG-52-32	M52x2	G2"×11	42	24.5	25	44	70	60
1DG-14-04	M14X1.5	G1/4"×19	6	10	13	28	19	17	63 S series
1DG-16-04	M16X1.5	G1/4"×19	8	10	15	31	19	19
1DG-18-04	M18x1.5	G1/4"×19	10	10	14.5	31	19	22
1DG-18-06	M18x1.5	G3/8"X19	10	11.5	15	31	22	22
1DG-20-06	M20x1.5	G3/8"X19	12	11.5	17	32	22	24
1DG-20-08	M20x1.5	G1/2"X14	12	14	17.5	34	27	24
1DG-22-06	M22x1.5	G3/8"X19	14	11.5	19	37	24	27
1DG-22-08	M22x1.5	G1/2"×14	14	14	19	37	27	27
1DG-24-04	M24x1.5	G1/4"X19	16	11	18	37	27	30
1DG-24-08	M24x1.5	G1/2"X14	16	14	18.5	37	27	30	40 S series
1DG-30-12	M30x2	G3/4"X14	20	15.5	20.5	42	32	36
1DG-36-12	M36x2	G3/4"×14	25	15.5	23	47	41	46
1DG-36-16	M36x2	G1"X11	25	18	17.5	47	41	46
1DG-42-16	M42x2	G1"X11	30	18	23.5	48	46	50
1DG-42-20	M42×2	G1.1/4"X11	30	20	23.5	50	50	50
1DG-52-24	M52×2	G1.1/2"X11	38	21.5	26	57	55	60	31.5 S series
Note:In case if you are interested to order the adapter in complete set with cuting ring and nut it is necessary toinsert suffix "RN" after our part no.,for example 1DG-20-08RN.
