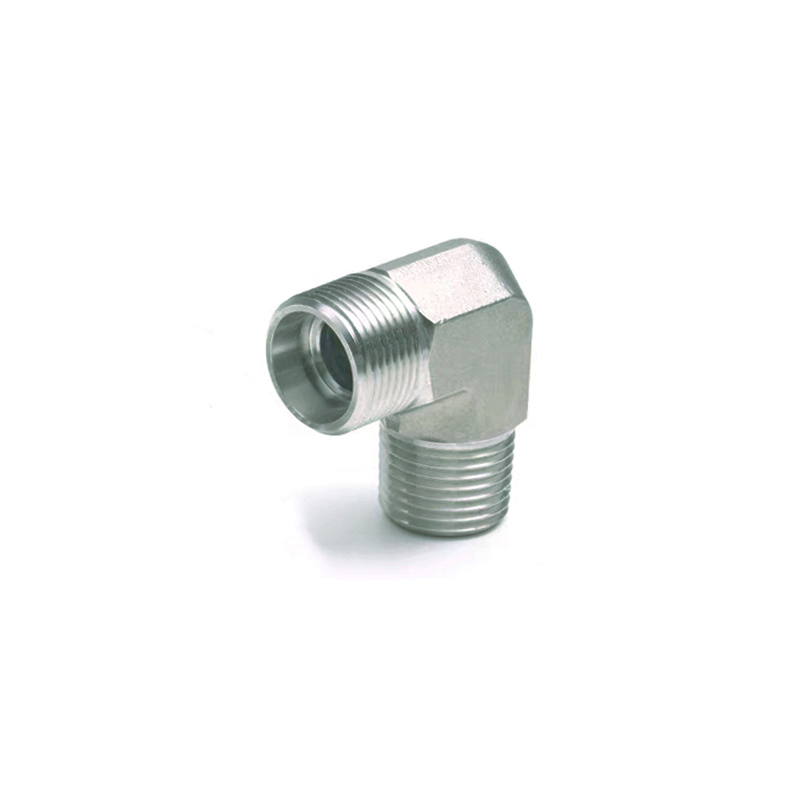

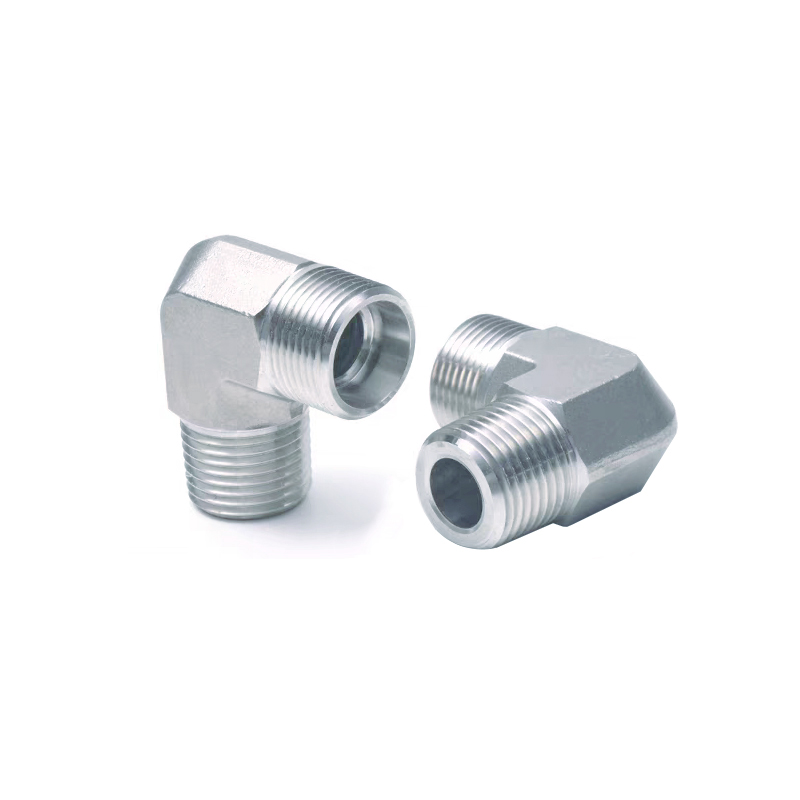

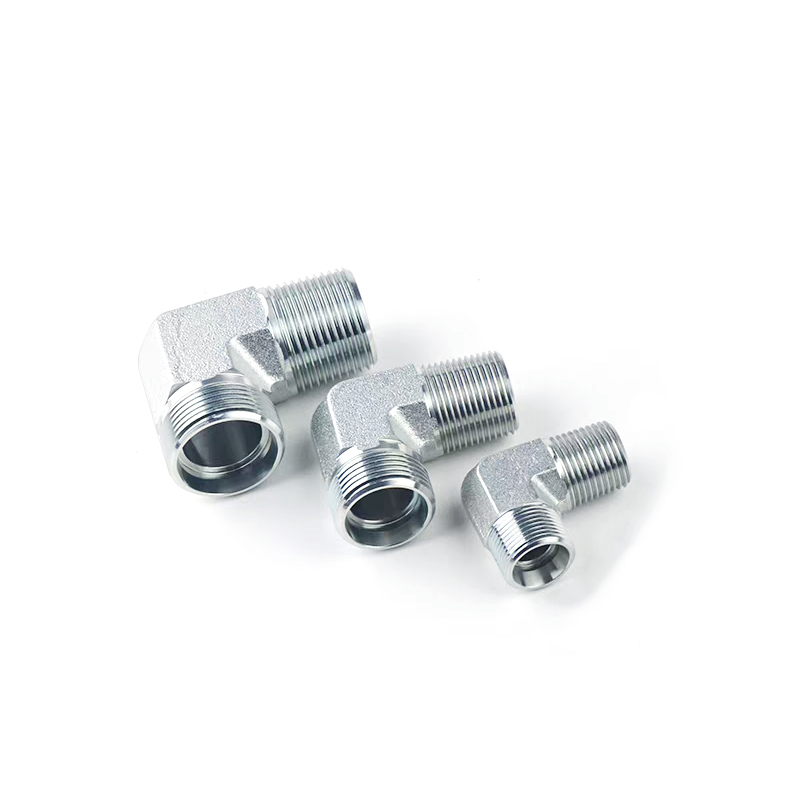

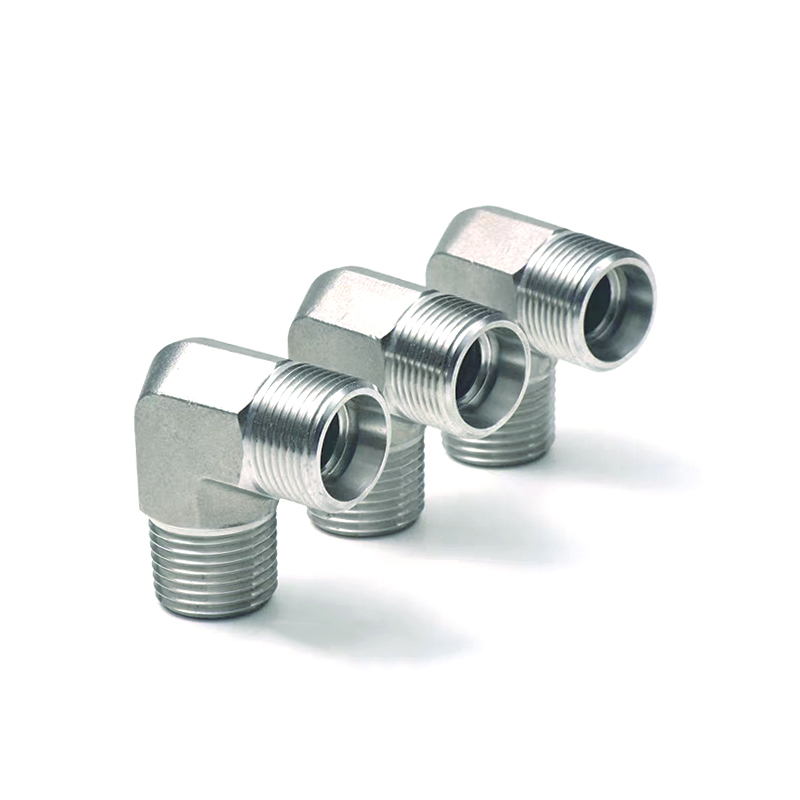

The 1CN9 and 1DN9 are precision 90° elbow hydraulic fittings engineered to redirect fluid flow by a right angle while bridging metric tubes and NPT-compatible components. Designed for seamless cross-standard connection, the metric side features a bite-type interface compliant with DIN 2353, ensuring secure tube attachment via a reliable sealing mechanism, while the opposing end is equipped with male NPT (National Pipe Taper) threads for easy integration with female NPT ports.
Crafted from versatile materials—carbon steel or stainless steel—these fittings adapt to diverse operating environments, balancing durability, corrosion resistance, and pressure-bearing capacity. Suitable for fluid and gas transfer across industries including hydraulics, manufacturing, agriculture, and oil and gas, they excel in handling water, oil, or gas media.
By combining directional flexibility, standardized compatibility, and robust construction, the 1CN9 and 1DN9 fittings deliver leak-proof performance and structural stability, making them indispensable for hydraulic systems requiring efficient flow redirection and cross-thread connectivity. Their precision engineering ensures consistent reliability in both industrial and agricultural applications, embodying practicality for diverse fluid transfer needs.

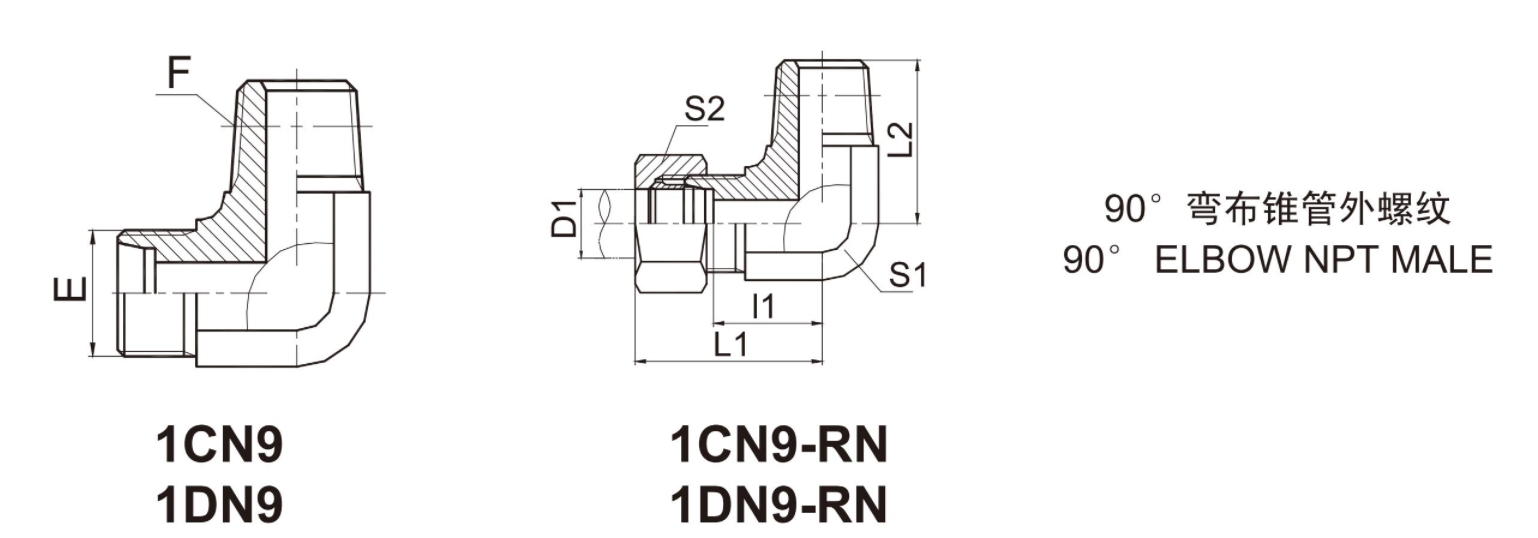

| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | |||||||
| E | F | D1 | I1 | L1 | L2 | S1 | S2 | ||||
| 1CN9-12-02 | M12X1.5 | Z1/8"X27 | 6 | 13 | 28 | 21 | 11 | 14 | 25 L series | ||
| 1CN9-12-04 | M12X1.5 | Z1/4"×18 | 6 | 15.5 | 30.5 | 25.5 | 14 | 14 | |||
| 1CN9-14-04 | M14X1.5 | Z1/4"X18 | 8 | 15.5 | 30.5 | 25.5 | 14 | 17 | |||
| 1CN9-16-06 | M16X1.5 | Z3/8"X18 | 10 | 17.5 | 32.5 | 29.5 | 16 | 19 | |||
| 1CN9-18-04 | M18X1.5 | Z1/4"X18 | 12 | 19 | 34 | 28 | 19 | 22 | |||
| 1CN9-18-06 | M18X1.5 | Z3/8"X18 | 12 | 19 | 34 | 31 | 19 | 22 | |||
| 1CN9-18-08 | M18X1.5 | Z1/2"X14 | 12 | 21 | 36 | 36.7 | 22 | 22 | |||
| 1CN9-22-06 | M22X1.5 | Z3/8"X18 | 15 | 22 | 37 | 32.5 | 22 | 27 | |||
| 1CN9-22-08 | M22X1.5 | Z1/2"X14 | 15 | 22 | 37 | 36.7 | 22 | 27 | |||
| 1CN9-26-08 | M26X1.5 | Z1/2"×14 | 18 | 25.5 | 42 | 40 | 27 | 32 | 16 L series | ||
| 1CN9-26-12 | M26X1.5 | Z3/4"X14 | 18 | 25.5 | 42 | 44 | 27 | 32 | |||
| 1CN9-30-12 | M30×2 | Z3/4"×14 | 22 | 29.3 | 45.8 | 45 | 30 | 36 | |||
| 1CN9-30-16 | M30X2 | Z1"X11.5 | 22 | 32 | 47 | 50 | 33 | 36 | |||
| 1CN9-36-16 | M36X2 | Z1"X11.5 | 28 | 33.3 | 49.8 | 51.5 | 36 | 41 | |||
| 1CN9-45-20 | M45X2 | Z1.1/4"×11.5 | 35 | 39.2 | 60.7 | 63 | 48 | 50 | |||
| 1CN9-52-24 | M52X2 | Z1.1/2"X11.5 | 42 | 44.8 | 67.8 | 65 | 55 | 60 | |||
| 1DN9-14-04 | M14×1.5 | Z1/4"×18 | 6 | 17.5 | 32.5 | 25.5 | 14 | 17 | 40 S series | ||
| 1DN9-16-04 | M16X1.5 | Z1/4"X18 | 8 | 18.5 | 33.7 | 26.5 | 16 | 19 | |||
| 1DN9-18-06 | M18X1.5 | Z3/8"X18 | 10 | 19.5 | 36 | 31 | 19 | 22 | |||
| 1DN9-20-04 | M20X1.5 | Z1/4"X18 | 12 | 19.5 | 36 | 28 | 19 | 24 | |||
| 1DN9-20-06 | M20X1.5 | Z3/8"×18 | 12 | 19.5 | 36 | 31 | 19 | 24 | |||
| 1DN9-22-06 | M22X1.5 | Z3/8"X18 | 14 | 23 | 41 | 32.5 | 22 | 27 | |||
| 1DN9-22-08 | M22X1.5 | Z1/2"X14 | 14 | 23 | 41 | 36.7 | 22 | 27 | |||
| 1DN9-24-06 | M24X1.5 | Z3/8"X18 | 16 | 24 | 42.5 | 33.5 | 24 | 30 | |||
| 1DN9-24-08 | M24×1.5 | Z1/2"×14 | 16 | 24 | 42.5 | 37.5 | 24 | 30 | |||
| 1DN9-30-08 | M30X2 | Z1/2"X14 | 20 | 28 | 49.8 | 41 | 30 | 36 | 25 S series | ||
| 1DN9-30-12 | M30X2 | Z3/4"×14 | 20 | 28 | 49.8 | 45 | 30 | 36 | |||
| 1DN9-36-12 | M36X2 | Z3/4"X14 | 25 | 32.8 | 56.8 | 49 | 36 | 46 | |||
| 1DN9-36-16 | M36×2 | Z1"X11.5 | 25 | 32.8 | 56.8 | 51.5 | 36 | 46 | |||
| 1DN9-42-16 | M42X2 | Z1"X11.5 | 30 | 36.2 | 62.7 | 54.5 | 41 | 50 | |||
| 1DN9-42-20 | M42X2 | Z1.1/4"X11.5 | 30 | 36.2 | 62.7 | 54.5 | 41 | 50 | |||
| 1DN9-52-20 | M52X2 | Z1.1/4"X11.5 | 38 | 45.8 | 76.8 | 65 | 55 | 60 | |||
| 1DN9-52-24 | M52X2 | Z1.1/2"X11.5 | 38 | 45.8 | 76.8 | 65 | 55 | 60 | |||
| Note:In case if you are interested to order the adapter in complete set with cutting ring and nut it is necessary toinsert sufix "RN"after our part no.,for example 1CN9-30-12RN. | |||||||||||
