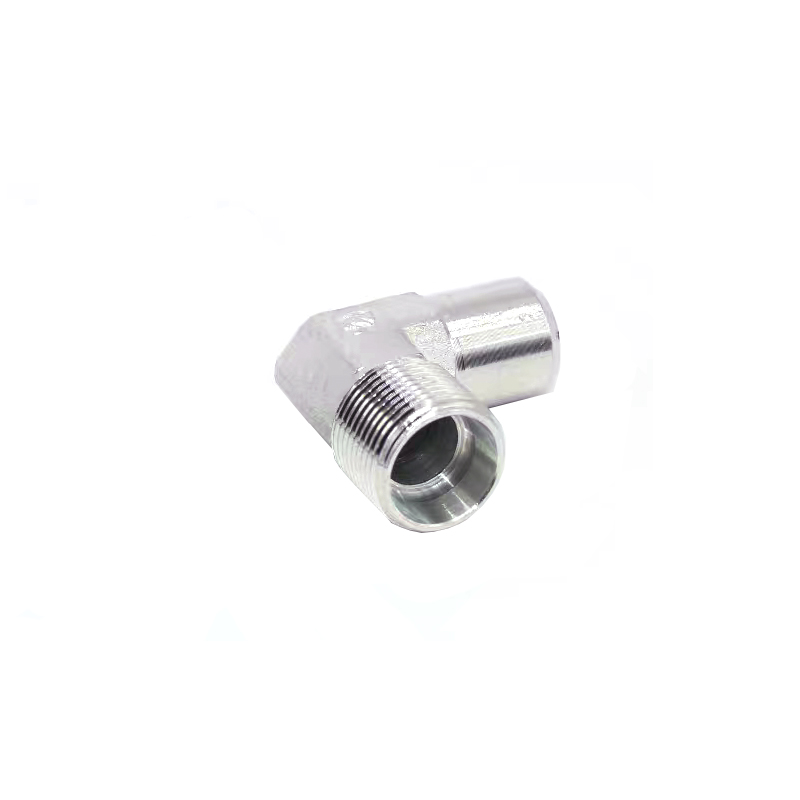

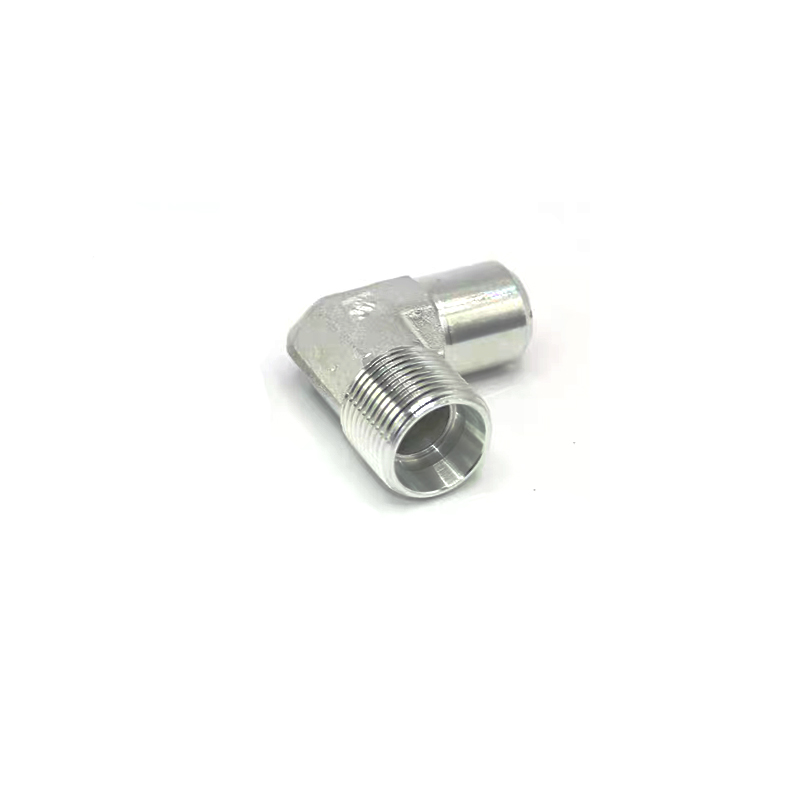

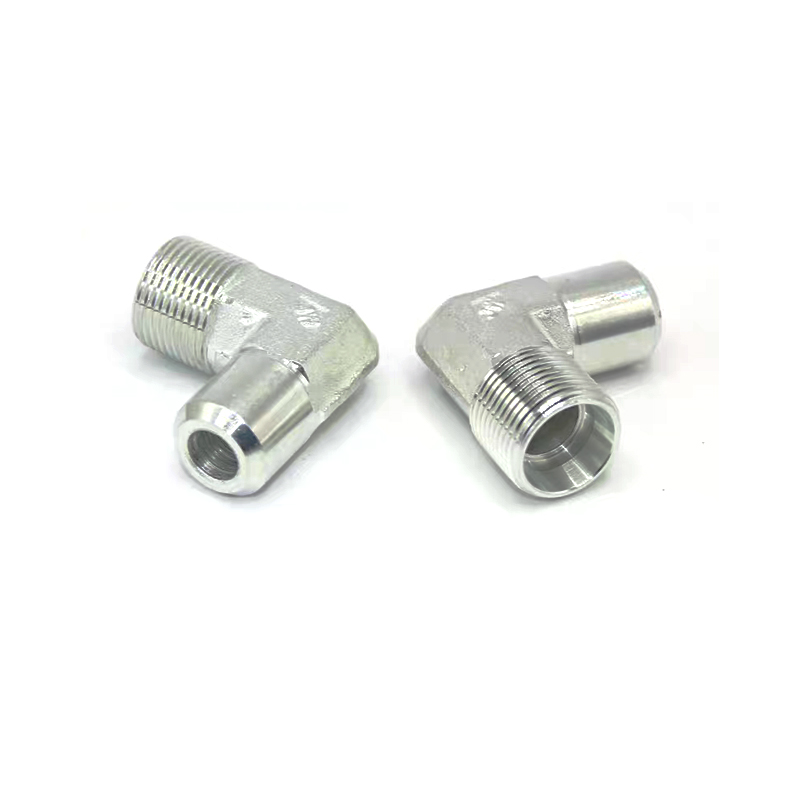

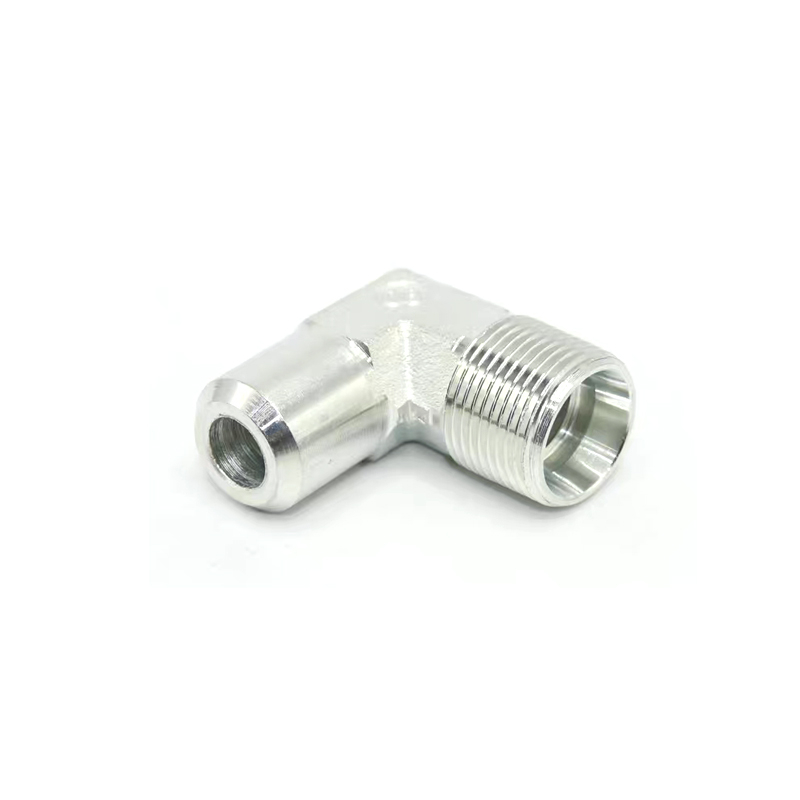

1CW9 and 1DW9 are precision 90° elbow hydraulic fittings compliant with DIN 2353 standards, engineered for permanent, high-pressure pipe connections. Designed to redirect fluid flow by a right angle (indicated by the suffix “9”), they feature a welded connection (signified by “W”) for secure, leak-proof integration with pipes.
Classified as male weld elbows, they boast a straight transition (denoted by “C” and “D”) and male threaded connectors for seamless system compatibility. Crafted from versatile materials—brass, carbon steel, or stainless steel—they adapt to diverse industrial demands, from hydraulic systems to fuel transfer and manufacturing equipment.
The welded design ensures structural rigidity and long-term reliability, while their ability to handle high pressure makes them ideal for critical applications. By combining standardized performance, durable construction, and directional flexibility, 1CW9 and 1DW9 fittings deliver consistent, secure connections, embodying practicality for demanding hydraulic and piping system integrations.
| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | ||||||||
| E | D1 | D2 | B | B1 | D | 11 | L1 | S1 | S2 | |||
| 1CW9-12-06 | M12x1.5 | 6 | 6 | 19 | 7 | 10 | 13 | 28 | 12 | 14 | 31.5 L series | |
| 1CW9-14-08 | M14x1.5 | 8 | 8 | 23 | 8 | 12 | 15.5 | 30.5 | 12 | 17 | ||
| 1CW9-16-10 | M16x1.5 | 10 | 10 | 24 | 8 | 14 | 17.5 | 32.5 | 14 | 19 | ||
| 1CW9-18-12 | M18x1.5 | 12 | 12 | 25 | 8 | 16 | 19 | 34 | 17 | 22 | ||
| 1CW9-22-15 | M22x1.5 | 15 | 15 | 30 | 10 | 19 | 22 | 37 | 19 | 27 | ||
| 1CW9-26-18 | M26X1.5 | 18 | 18 | 33 | 10 | 22 | 25.5 | 42 | 24 | 32 | ||
| 1CW9-26-22 | M26X1.5 | 18 | 22 | 37 | 10 | 27 | 25.5 | 42 | 24 | 32 | 16 L series | |
| 1CW9-30-22 | M30x2 | 22 | 22 | 37 | 12 | 27 | 29.3 | 45.8 | 27 | 36 | ||
| 1CW9-30-25 | M30x2 | 22 | 25 | 37 | 12 | 31 | 29.3 | 45.8 | 27 | 36 | ||
| 1CW9-36-28 | M36x2 | 28 | 28 | 42 | 12 | 32 | 36 | 52.8 | 36 | 41 | ||
| 1CW9-45-35 | M45X2 | 35 | 35 | 49 | 14 | 40 | 39.2 | 60.7 | 41 | 50 | ||
| 1CW9-52-42 | M52X2 | 42 | 42 | 57 | 16 | 46 | 40.5 | 63.5 | 50 | 60 | ||
| 1DW9-14-06 | M14x1.5 | 6 | 6 | 23 | 7 | 11 | 17.5 | 32.5 | 12 | 17 | 63 S series | |
| 1DW9-16-08 | M16x1.5 | 8 | 8 | 24 | 8 | 13 | 18.7 | 33.7 | 14 | 19 | ||
| 1DW9-18-10 | M18x1.5 | 10 | 10 | 25 | 8 | 15 | 19.5 | 36 | 17 | 22 | ||
| 1DW9-20-12 | M20x1.5 | 12 | 12 | 29 | 10 | 17 | 19.5 | 36 | 17 | 24 | ||
| 1DW9-22-14 | M22x1.5 | 14 | 14 | 30 | 10 | 19 | 23 | 41 | 19 | 27 | ||
| 1DW9-24-16 | M24x1.5 | 16 | 16 | 33 | 10 | 21 | 24 | 42.5 | 24 | 30 | 40 S series | |
| 1DW9-30-20 | M30x2 | 20 | 20 | 37 | 12 | 26 | 28 | 49.5 | 27 | 36 | ||
| 1DW9-36-25 | M36x2 | 25 | 25 | 42 | 12 | 31 | 32.8 | 56.8 | 36 | 46 | ||
| 1DW9-42-30 | M42x2 | 30 | 30 | 49 | 14 | 36 | 36.2 | 62.7 | 41 | 50 | ||
| 1DW9-52-38 | M52X2 | 38 | 38 | 57 | 16 | 44 | 41.5 | 72.5 | 50 | 60 | 31.5 S series | |
| Note:In case if you are interested to order the adapter in complete set with cutting ring and nut it is necessary to insert suffix "RN"after our part no.,for example 1DW9-20-12RN. | ||||||||||||
