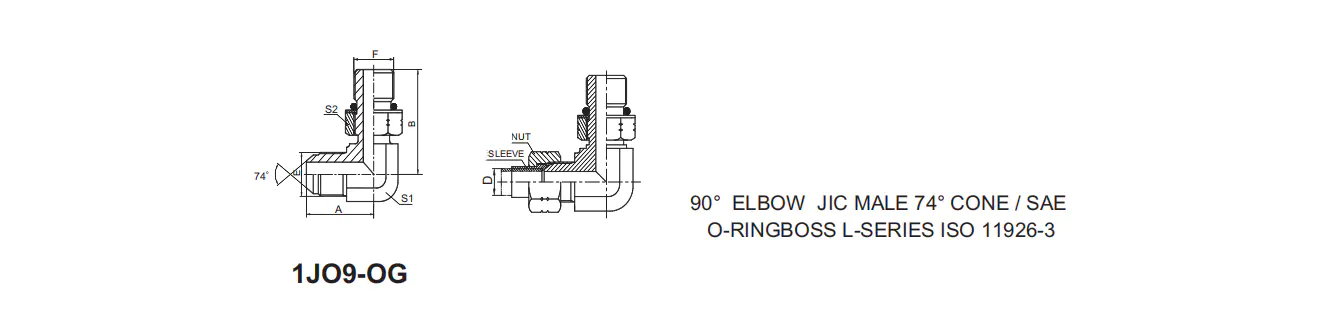

1JO9 ISO 11926-3 American Thread Right Angle Adjustable

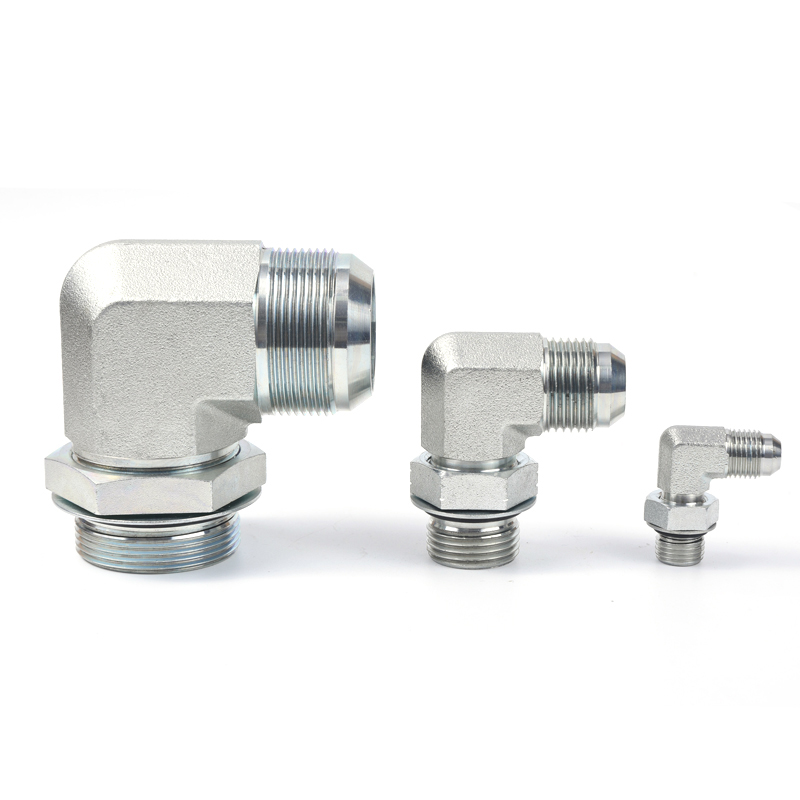

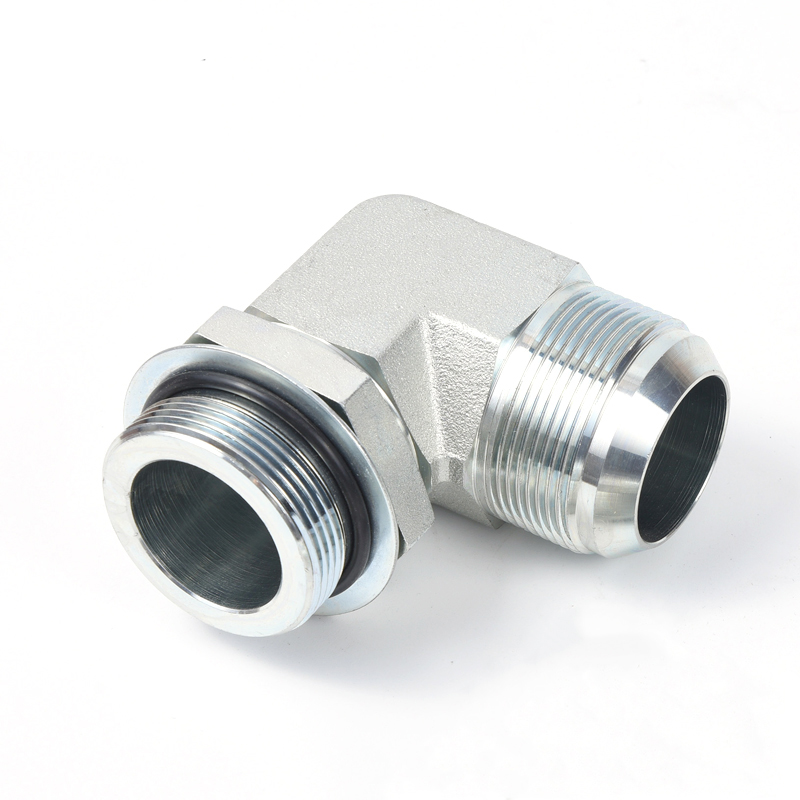

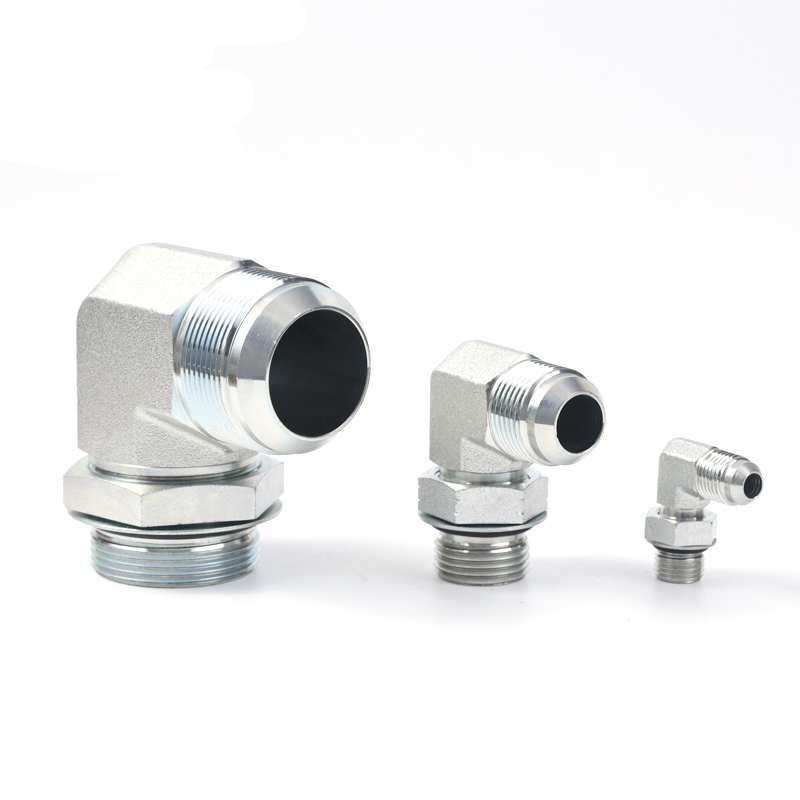

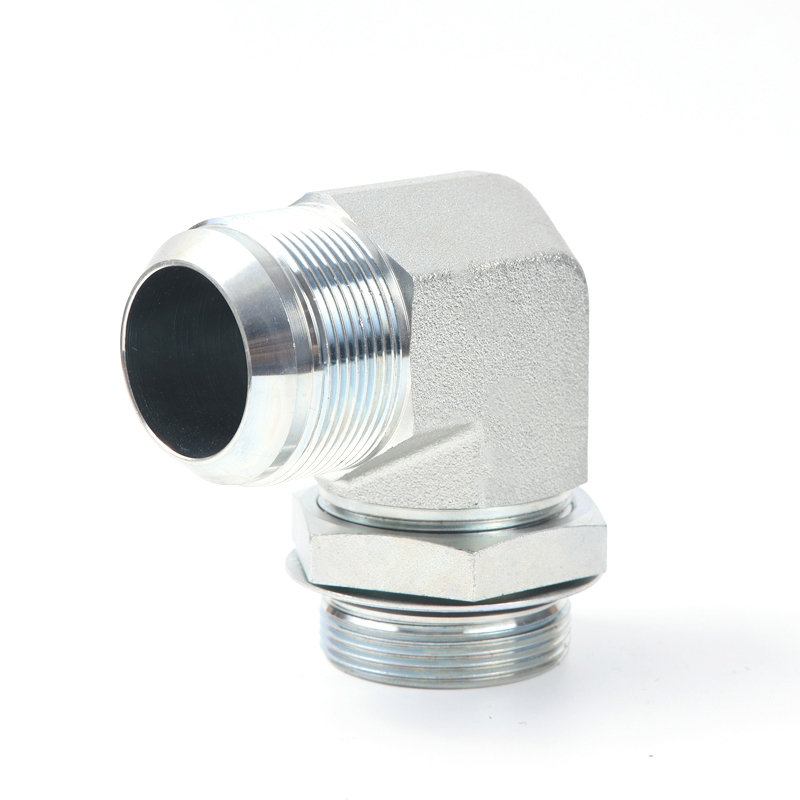

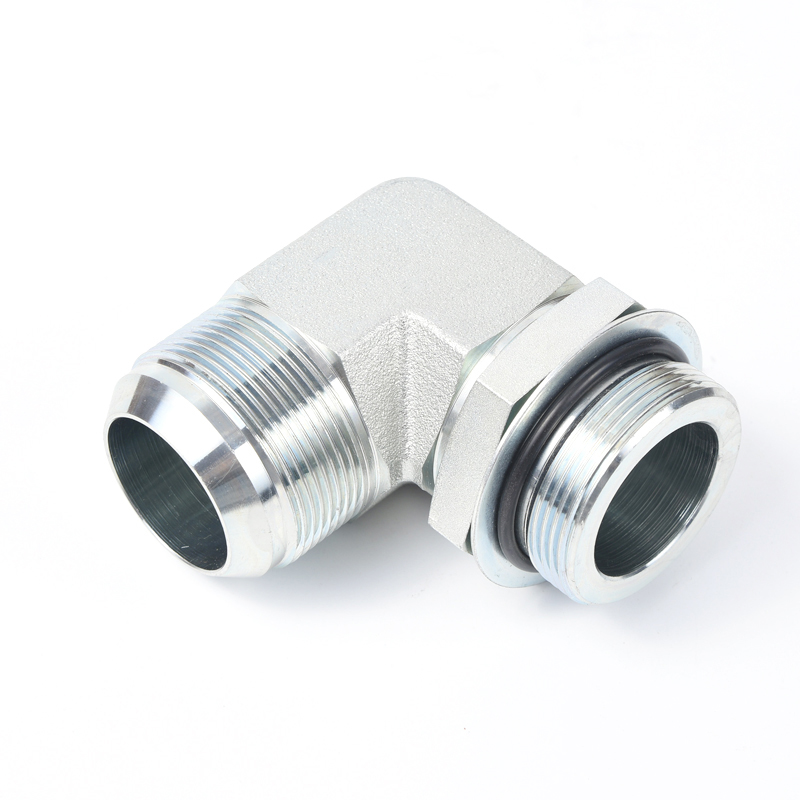

The 1JO9-OG 90° US JIC right angle adjustable coupling is a versatile, high-performance component engineered for flexible directional connections in hydraulic systems, ideal for industrial machinery, automotive hydraulics, and heavy-duty equipment where space constraints and precise alignment demand angled, adjustable joints.

Its defining strength lies in a dual-end, adjustable design optimized for compatibility and sealing reliability. One end features a US JIC male thread with a 74° male taper— a standard configuration for secure, leak-resistant mating with JIC-compatible components, ensuring tight integration into (US-style) hydraulic circuits. The opposite end is equipped with an adjustable SAE male thread paired with an O-ring seal (compliant with ISO11926-3), a key feature that allows for on-site alignment adjustments during installation. This adjustability eliminates the need for custom fittings to correct minor misalignments, simplifying assembly and reducing the risk of pipe damage, especially in complex system layouts.

Strict adherence to international standards—ISO8434-2, ISO11926, and SAE J514—guarantees global compatibility and consistent quality. Whether deployed in North American industrial setups or cross-border hydraulic projects, the coupling aligns with universal benchmarks, minimizing compatibility risks and streamlining procurement and maintenance processes.

Built to handle demanding operational conditions, the 1JO9-OG coupling supports a maximum pressure rating of 420bar (6000PSI), ensuring stable performance in high-stakes applications such as hydraulic power units, construction equipment, and industrial process lines. Its robust construction resists wear from hydraulic fluids and repeated adjustment, extending service life and reducing downtime.

To meet diverse application needs, the coupling offers broad compatibility with standard pipe sizes: 6 to 42 mm for metric steel pipes, and 1/8" to 2" for imperial pipes. This wide range covers most common hydraulic system requirements, from compact automation setups to large-scale heavy machinery.

Specification
