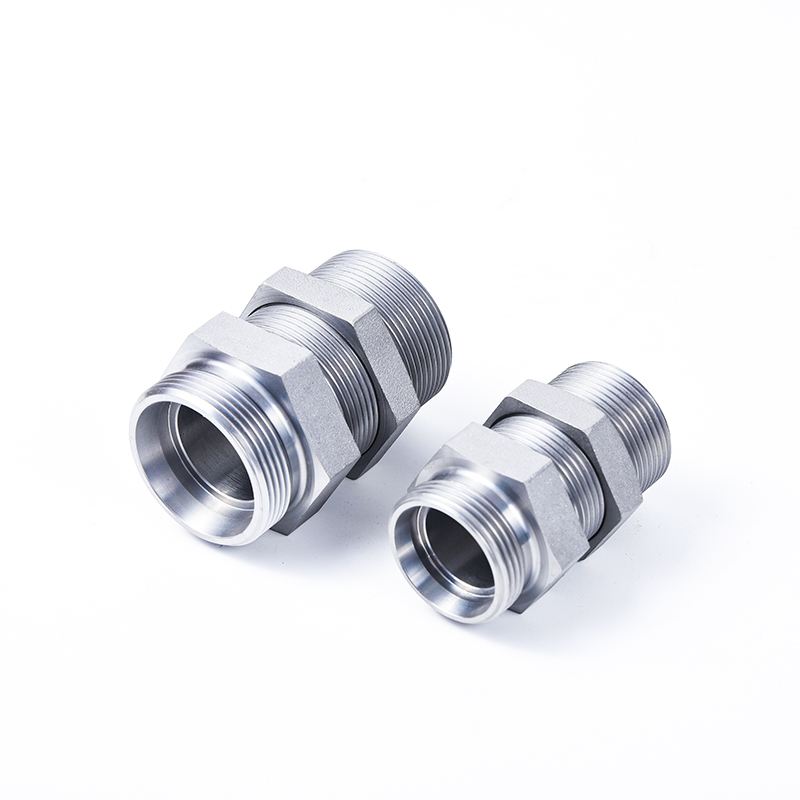

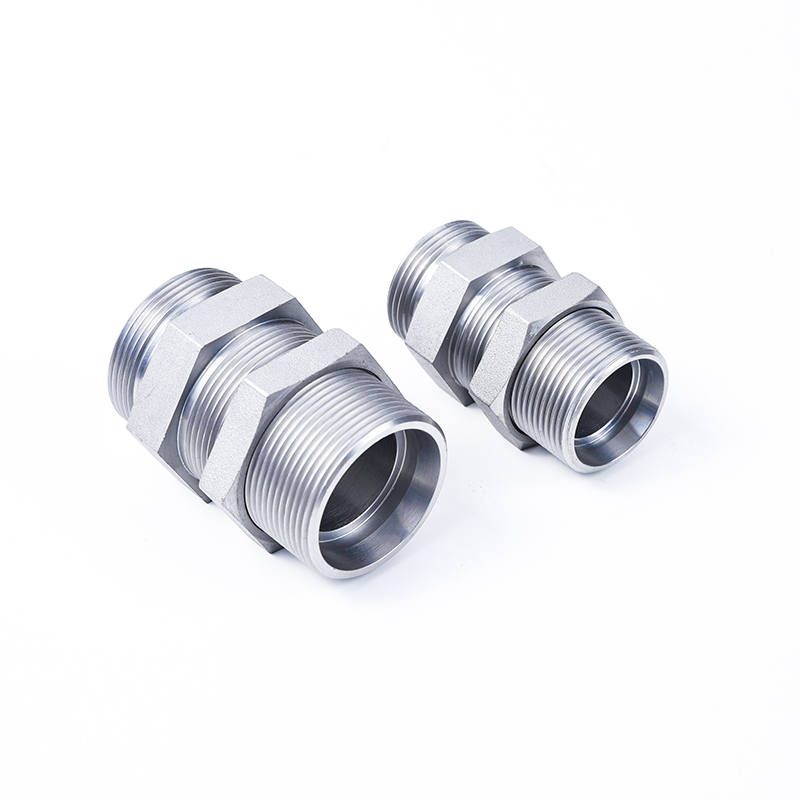

6C-LN SV Straight bulkhead fittings

6C-LN SV Straight bulkhead fittings

6C-LN 6D-LN SV Straight through plate coupling with 24° cone seal inside metric male thread on both ends, available with formed pipe ends, welded pipe, ferrule connections in accordance with international standards: DIN3861/ISO8434, available with standard pipe diameters 24° cone light connection (DIN2353)06L-42L, 24° cone heavy connection (DIN2353)06S-38S, pressure range up to 630bar/9000PSI.
+86-0574-62687101 / +86 13362460879 Contact Us
  • 6C-LN SV Straight bulkhead fittings
  • 6C-LN SV Straight bulkhead fittings
  • 6C-LN SV Straight bulkhead fittings
  • Description
  • Inquiry

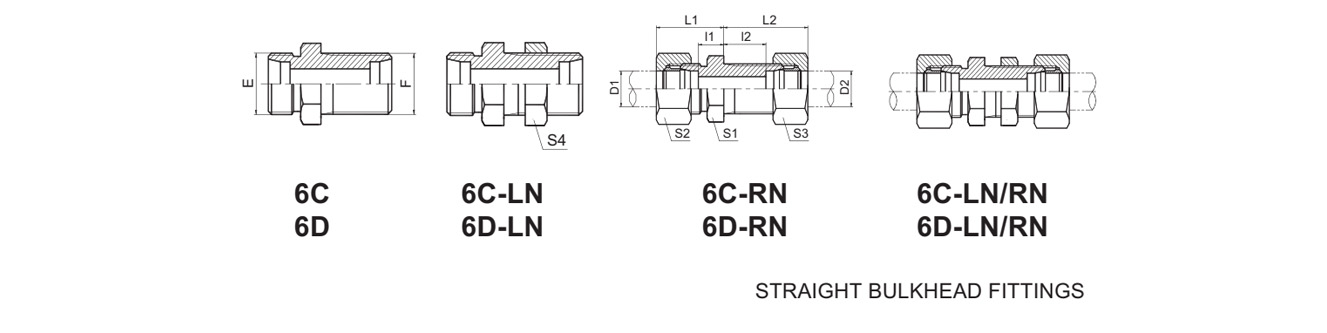

  • PART NO. THREAD TUBE O.D. DIMENSIONS MPa
    E F D1 D2 l1 l2 l3 L1 L2 S1 S2,S3 S4
    6C-12 M12x1.5 M12x1.5 6 6 27 12 14 42 27 12 14 17 31.5L
    6C-14 M14x1.5 M14x1.5 8 8 27 14 17 42 29 12 17 19
    6C-16 M16x1.5 M16x1.5 10 10 28 15 18 43 30 14 19 22
    6C-18 M18x1.5 M18x1.5 12 12 29 17 20 44 32 17 22 24
    6C-22 M22x1.5 M22x1.5 15 15 31 21 23 46 36 19 27 30
    6C-26 M26x1.5 M26x1.5 18 18 32.5 23.5 24 49 40 24 32 36
    6C-30 M30x2 M30x2 22 22 34.5 27.5 30 51 44 27 36 41 16L
    6C-36 M36x2 M36x2 28 28 35.5 30.5 34 52 47 36 41 46
    6C-45 M45x2 M45x2 35 35 36.5 34.5 39 58 56 41 50 55
    6C-52 M52x2 M52x2 42 42 36 40 43 59 63 50 60 65
    6D-14 M14x1.5 M14x1.5 6 6 29 16 17 44 31 12 17 19 63S
    6D-16 M16x1.5 M16x1.5 8 8 29 17 18 44 32 14 19 22
    6D-18 M18x1.5 M18x1.5 10 10 29.5 17.5 20 46 34 17 22 24
    6D-20 M20x1.5 M20x1.5 12 12 30.5 21.5 21 47 38 17 24 27
    6D-22 M22x1.5 M22x1.5 14 14 32 22 23 50 40 19 27 30
    6D-24 M24x1.5 M24x1.5 16 16 31.5 24.5 24 50 43 24 30 32 40S
    6D-30 M30x2 M30x2 20 20 33.5 26.5 30 55 48 27 36 41
    6D-36 M36x2 M36x2 25 25 35 30 34 59 54 36 46 46
    6D-42 M42x2 M42x2 30 30 37.5 35.5 39 64 62 41 50 50
    6D-52 M52x2 M52x2 38 38 37 41 43 68 72 50 60 65 31.5S
    Note˖In case if you are interestedto order the adapter with lock nut,please insert suffix "LN" after our part no.for example
    6C-30LN,order the adapter with cutting ring and nut,insert suffix "RN" after part no.,for example 6C-30RN,order the
    adapter with lock nut and cutting ring and nut,insert suffix "LN/RN" afterpart no.,for example 6C-30LN/RN.

Ningbo Fuke Hydraulic Machinery Co., Ltd.

Ningbo Fuke Hydraulic Machinery Co., Ltd. is a specialized company dedicated to the production and research and development of hydraulic fluid connectors and control valves. The company mainly provides hydraulic joints, high-precision hydraulic valve blocks, high-pressure ball valves, and single-phase valves that meet ISO, DIN, and SAE standards. As well known 6C-LN SV Straight bulkhead fittings suppliers in China, The company has experienced hydraulic system designers, who can provide customers with relevant technical support and all hydraulic accessories solutions to improve customer procurement efficiency.
The company earnestly implements the 1S09001:2000 quality system, and its products are widely used in metallurgical industry, drilling platform equipment manufacturing, construction machinery, wind power generation, petrochemical industry, machine tool manufacturing and other fields.
The company also OEM/ODM and wholesale 6C-LN SV Straight bulkhead fittings in bulk.
