| Product Standards: | DIN2353/ISO8434 |
| Product Materials: | Carbon steel/stainless steel |
| Surface Finish: | White zinc/zinc-nickel alloy |
| Thread: | Metric thread |
| Product Features: | Small size and easy installation, coupled with the special internal piston structure, make the medium pressure to the piston almost no more resistance interference, so as to achieve the excellent quality of fast switching and small pressure loss. |
| Application areas: | The hydraulic system is particularly suitable for construction machinery, agricultural machinery, mining machinery |
-
LOCATION
Tongguang Village, Fengshan Street, Yuyao City, Zhejiang Province, China

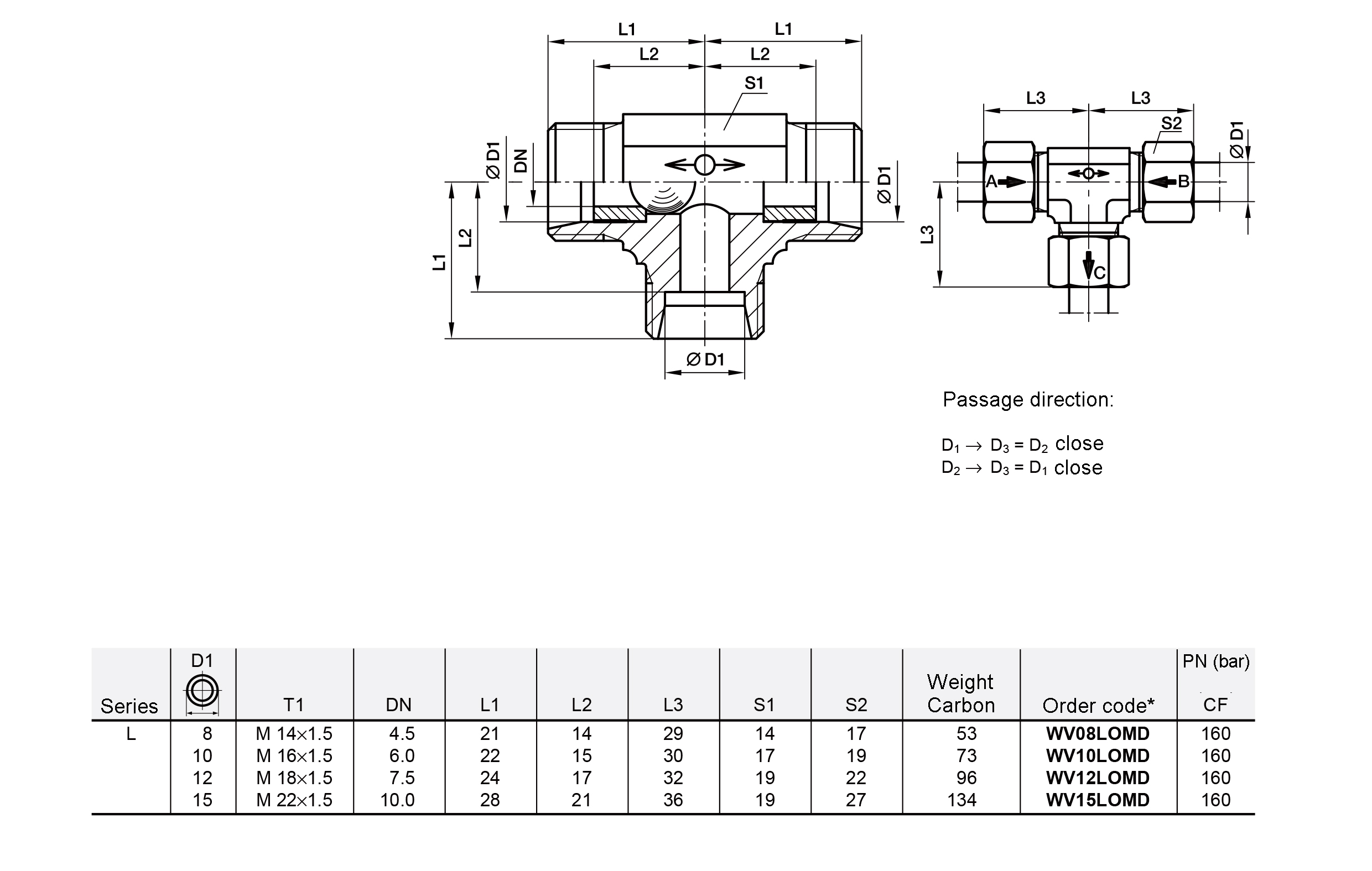

AC-SF AD-SF WV 3-way shuttle valve

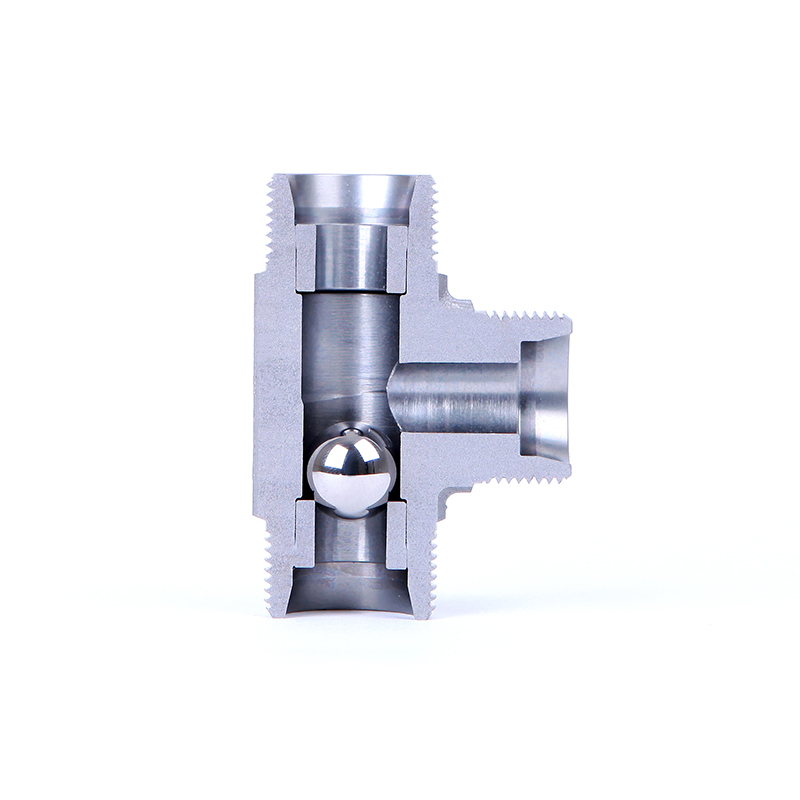

AC-SF AD-SF WV three-way shuttle valve with two sealable inlets and one outlet. The reversing valve connects connection A or B to C respectively, depending on the available pressure oil supply, while the other connection is sealed by a movable steel ball. The connections are available in 24° cone light connection (DIN2353)08L-15L, 24° cone heavy connection (DIN2353)06S-16S, pressure range up to 160 bar/2500 PSI, operating temperature range -40°C to +120°C.
+86-0574-62687101 / +86 13362460879
Contact Us
Ningbo Fuke Hydraulic Machinery Co., Ltd.
Ningbo Fuke Hydraulic Machinery Co., Ltd. is a specialized company dedicated to the production and research and development of hydraulic fluid connectors and control valves. The company mainly provides hydraulic joints, high-precision hydraulic valve blocks, high-pressure ball valves, and single-phase valves that meet ISO, DIN, and SAE standards. As well known Hydraulic Shuttle valve suppliers in China, The company has experienced hydraulic system designers, who can provide customers with relevant technical support and all hydraulic accessories solutions to improve customer procurement efficiency.
The company earnestly implements the 1S09001:2000 quality system, and its products are widely used in metallurgical industry, drilling platform equipment manufacturing, construction machinery, wind power generation, petrochemical industry, machine tool manufacturing and other fields.
The company also OEM/ODM and wholesale Three-way Shuttle valve in bulk.
