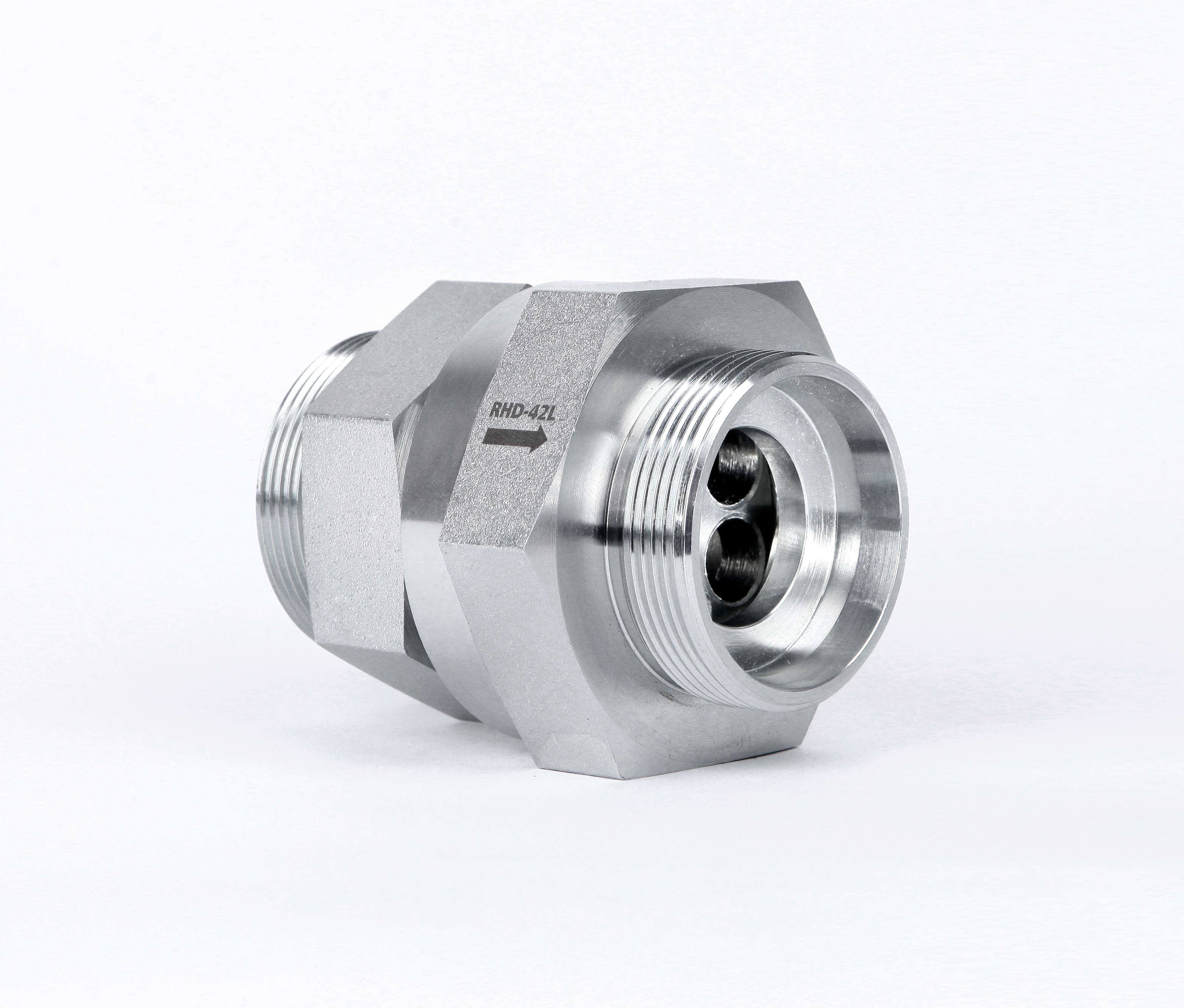

RHD Inch Male Thread BSPP-ED Seal (ISO1179)/EO 24° Cone

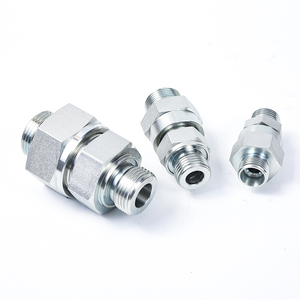

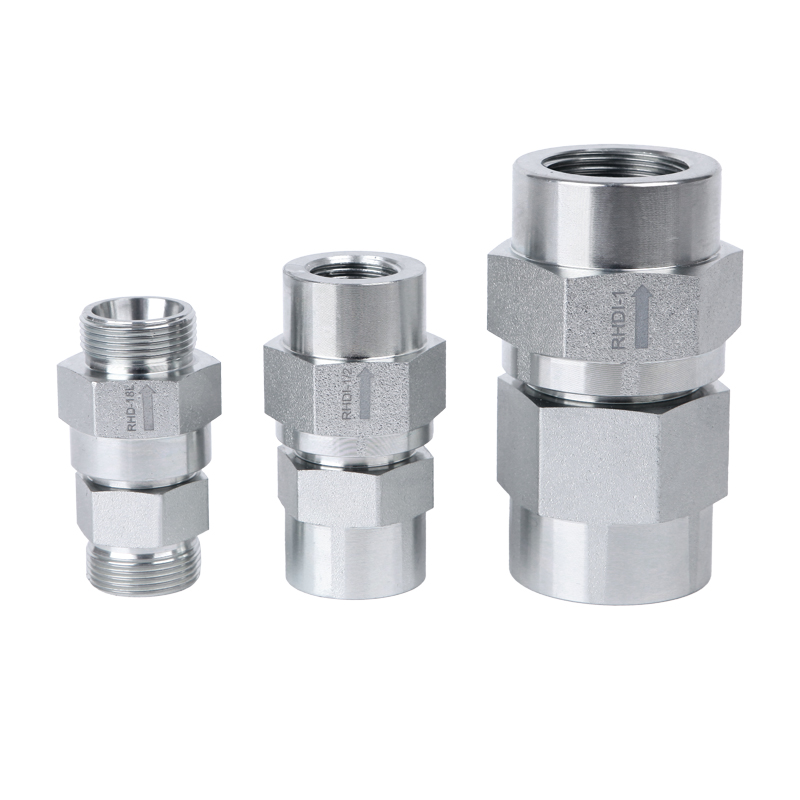

RHD check valves, part of the RHV, RHZ, and RHD series of high-pressure check valves, are engineered to deliver exceptional performance and versatility in demanding fluid systems. Designed to prevent backflow and ensure unidirectional fluid flow, these valves are a critical component in maintaining system efficiency and safety across various industrial applications.

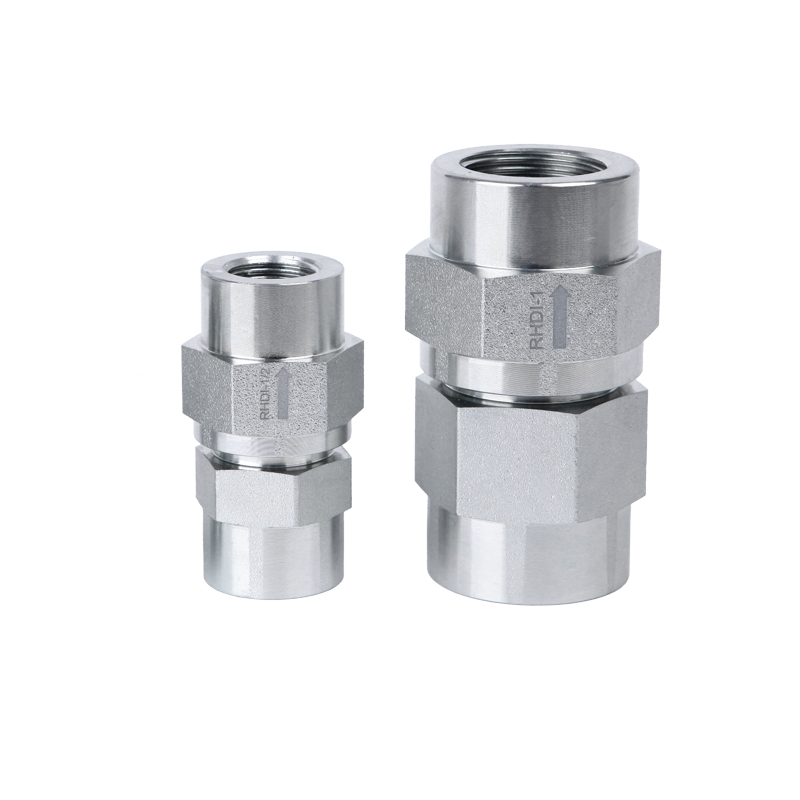

One of the key strengths of RHD check valves lies in their extensive range of connection options, making them compatible with a wide array of systems. They are available with BSP female threads (conforming to DIN ISO 228), BSPP threaded ED seals (in line with ISO 1179), and UN/UNF female threads (meeting SAE J 514 standards). For hose and tube connections, they also offer 24° tapered light connections (DIN 2353) in sizes 06L-42L and 24° tapered heavy connections (DIN 2353) in sizes 06S-38S, ensuring seamless integration into diverse setups.

Built to handle high-pressure environments, RHD check valves boast an impressive pressure range of up to 420 bar (6000 PSI), making them suitable for heavy-duty applications such as hydraulic systems, industrial machinery, and high-pressure fluid transfer lines. They also perform reliably across a broad working temperature range, from -20°C to +100°C, ensuring consistent operation in both cold and moderately high-temperature conditions.

In terms of functionality, RHD check valves come with a standard opening pressure of 1 bar, with a permissible variation of ±20%. Recognizing that different applications may have unique requirements, they also offer a wide range of custom opening pressures available upon request, providing flexibility to meet specific system needs.

In summary, RHD check valves combine robust high-pressure performance, versatile connection options, and adaptable opening pressures, making them an ideal choice for professionals seeking reliable backflow prevention in complex fluid systems. Whether in industrial, automotive, or manufacturing settings, these valves deliver the durability and precision needed to keep operations running.

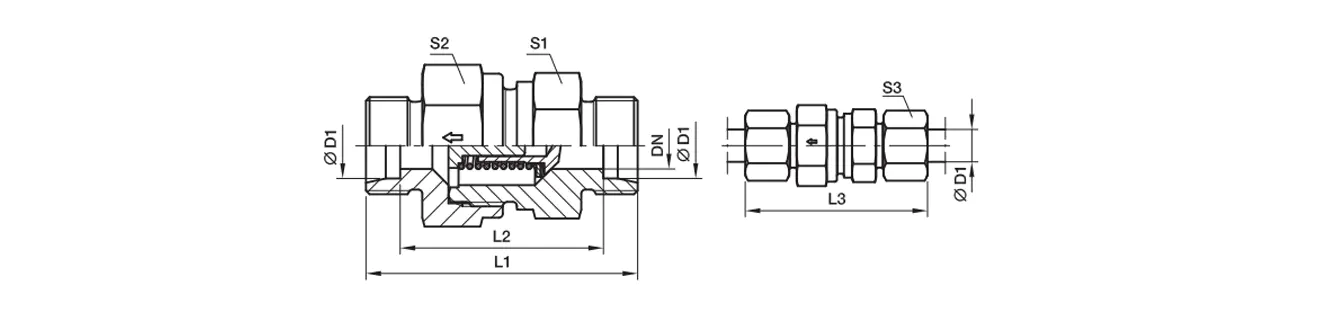

Specification
