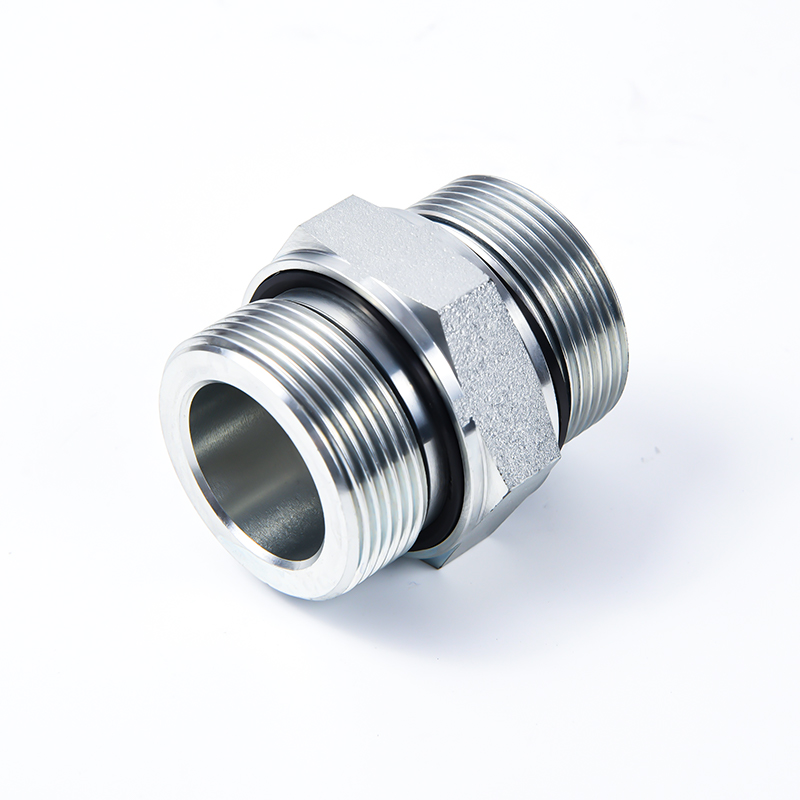

1B-2WD Bsp male 60° seat captive seal

1B-2WD Bsp male 60° seat captive seal

1B-2WD Inch thread ED seal end straight through, both ends inch male thread (ISO1179) with ED rubber soft seal, international standard: ISO 8434, pressure range up to 620bar/9000PSI, available in BSP 1/8"-4" threaded standard connections.
+86-0574-62687101 / +86 13362460879 Contact Us
  • 1B-2WD Bsp male 60° seat captive seal
  • 1B-2WD Bsp male 60° seat captive seal
  • 1B-2WD Bsp male 60° seat captive seal
  • 1B-2WD Bsp male 60° seat captive seal
  • 1B-2WD Bsp male 60° seat captive seal
  • Description
  • Inquiry

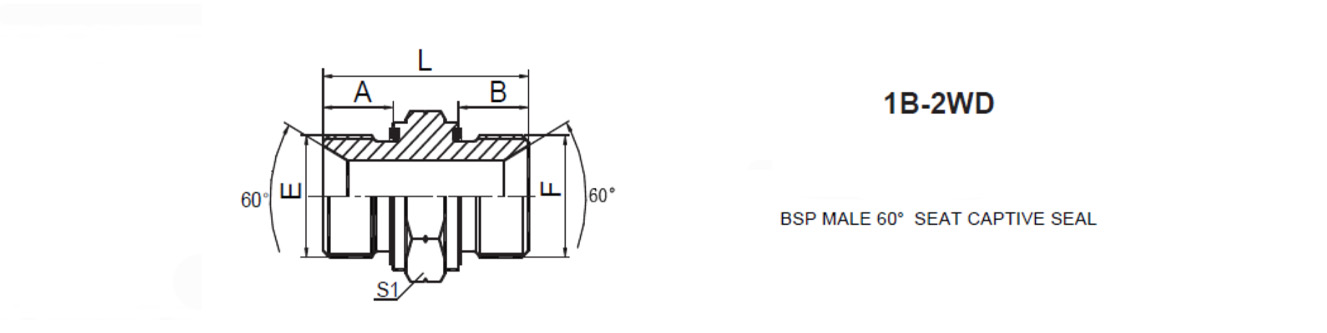

  • PART NO. THREAD CAPTIVE DIMENSIONS
    E F E F A B L S1
    1B一02/2WD G1/8"x28 G1/8"x28 WD-B02 WD-B02 8 8 25 14
    1B-02-04/2WD G1/8"x28 G1/4"x19 WD-B02 WD-B04 8 12 29.5 19
    1B-04/2WD G1/4"x19 G1/4"x19 WD-B04 WD-B04 12 12 34 19
    1B-04-06/2WD G1/4"x19 G3/8"x19 WD-B04 WD-B06 12 12 36.5 22
    1B-06/2WD G3/8"x19 G3/8"x19 WD-B06 WD-B06 12 12 37 22
    1B-06-08/2WD G3/8"x19 G1/2"x14 WD-BO6 WD-B08 12 14 41.5 27
    1B-08/2WD G1/2"x14 G1/2"x14 WD-B08 WD-B08 14 14 44 27
    1B-08-12/2WD G1/2"x14 G3/4"x14 WD-B08 WD-B12 14 16 46 32
    1B-12/2WD G3/4"x14 G3/4"x14 WD-B12 WD-B12 16 16 47 32
    1B一12-16/2WD G3/4"x14 G1"x11 WD-B12 WD-B16 16 18 52 41
    1B-16/2WD G1"x11 G1"x11 WD-B16 WD-B16 18 18 55 41
    1B-16-20/2WD G1"x11 G1.114"x11 WD-B16 WD-B20 18 20 57 50
    1B-20/2WD G1.1/4"x11 G1.1/4"x11 WD-B20 WD-B20 20 20 61 50
    1B-20-24/2WDl G1.1/4"x11 G1.1/2"x11 WD-B20 WD-B24 20 22 63 55
    1B-24/2WD G1.1/2"x11 G1.1/2"x11 WD-B24 WD-824 22 22 65 55
    1B-24-32/2wD G1.1/2"x11 G2"x11 WD-824 WD-B32 22 20 66 75
    1B-32/2WD G2"x11 G2"x11 WD-B32 WD-B32 20 20 65 75

Ningbo Fuke Hydraulic Machinery Co., Ltd.

Ningbo Fuke Hydraulic Machinery Co., Ltd. is a specialized company dedicated to the production and research and development of hydraulic fluid connectors and control valves. The company mainly provides hydraulic joints, high-precision hydraulic valve blocks, high-pressure ball valves, and single-phase valves that meet ISO, DIN, and SAE standards. As well known 1B-2WD Bsp male 60° seat captive seal suppliers in China, The company has experienced hydraulic system designers, who can provide customers with relevant technical support and all hydraulic accessories solutions to improve customer procurement efficiency.
The company earnestly implements the 1S09001:2000 quality system, and its products are widely used in metallurgical industry, drilling platform equipment manufacturing, construction machinery, wind power generation, petrochemical industry, machine tool manufacturing and other fields.
The company also OEM/ODM and wholesale 1B-2WD Bsp male 60° seat captive seal in bulk.
