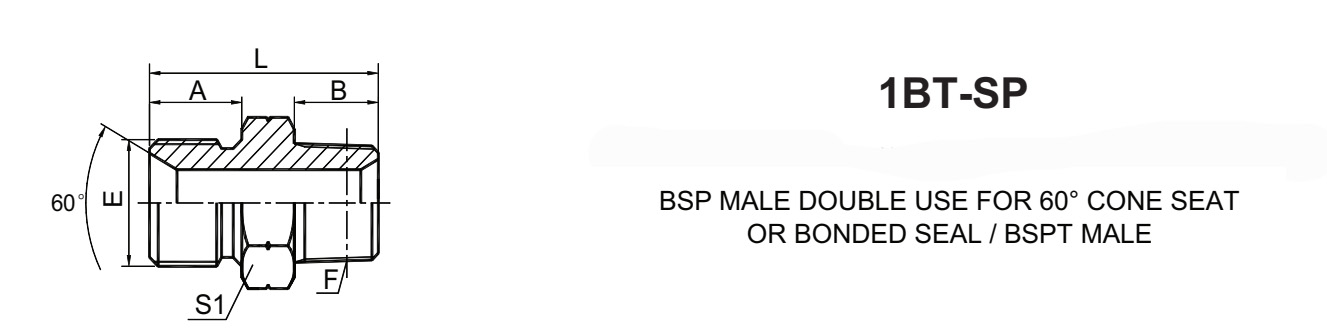

1BT 1BT9 Inch thread through ISO1179

PART NO

THREAD

DIMENSIONS

E

F

A

B

L

S1

1BT-02SP

G1/8"X28

R1/8"X28

10

10

26

14

1BT-02-04SP

G1/8"X28

R1/4"X19

10

14.5

30.5

14

1BT-04SP

G1/4"X19

R1/4"X19

12

14.5

32

19

1BT-04-02SP

G1/4"X19

R1/8"X28

12

10

28

19

1BT-04-06SP

G1/4"X19

R3/8"X19

12

15

32

19

1BT-04-08SP

G1/4"X19

R1/2"X14

12

20

40

24

1BT-06SP

G3/8"X19

R3/8"X19

13.5

15

35.5

22

1BT-06-04SP

G3/8"X19

R1/4"X19

13.5

14.5

35.5

22

1BT-06-08SP

G3/8"X19

R1/2"X14

13.5

20

40.5

24

1BT-08SP

G1/2"X14

R1/2"X14

16

20

45

27

1BT-08-04SP

G1/2"X14

R1/4"X19

16

14.5

40.5

27

1BT-08-06SP

G1/2"X14

R3/8"X19

16

15

40

27

1BT-08-12SP

G1/2"X14

R3/4"X14

16

20

45

30

1BT-10-06SP

G5/8"X14

R3/8"X19

17.5

15

41.5

30

1BT-10-08SP

G5/8"X14

R1/2"X14

17.5

20

46.5

30

1BT-10-12SP

G5/8"X14

R3/4"X14

17.5

20

46.5

30

1BT-10-16SP

G5/8"X14

R1"X11

17.5

25.5

54

36

1BT-12SP

G3/4"X14

R3/4"X14

18.5

20

48.5

32

1BT-12-08SP

G3/4"X14

R1/2"X14

18.5

20

49.5

32

1BT-12-16SP

G3/4"X14

R1"X11

18.5

25.5

53.5

36

1BT-12-20SP

G3/4"X14

R1.1/4"X11

18.5

26.5

58

46

18T-16SP

G1"X11

R1°X11

20.5

25.5

58

41

1BT-16-12SP

G1"X11

R3/4"X14

205

20

53

41

1BT-16-20SP

G1"X11

R1.1/4"X11

20.5

26.5

60

46

1BT-20SP

G1.1/4"X11

R1.1/4"X11

20.5

26.5

62

50

1BT-20-12SP

G1.1/4"X11

R3/4"X14

20.5

20.5

56

50

1BT-20-16SP

G1.1/4"X11

R1"X11

20.5

25.5

61

50

1BT-20-24SP

G1.1/4"X11

R1.1/2"X11

20.5

26.5

62

50

1BT-24SP

G1.1/2"X11

R1.1/2"X11

23

26.5

64.5

55

1BT-24-16SP

G1.1/2"X11

R1"X11

23

25.5

63.5

55

1BT-24-20SP

G1.1/2"X11

R1.1/4"X11

23

26.5

64.5

55

1BT-24-32SP

G1.1/2"X11

R2"X11

23

30

70

65

1BT-32SP

G2"X11

R2"X11

25.5

30

72.5

70

1BT-32-20SP

G2"X11

R1.1/4"X11

25.5

27

68.5

70

18T-32-24SP

G2"X11

R1.1/2"X11

25.5

26.5

68.5

70

1BT-40SP

G2.1/2"X11

R21/2"X11

32

34

83

90

1BT-48SP

G3"X11

R3"X11

36

38

94

100
