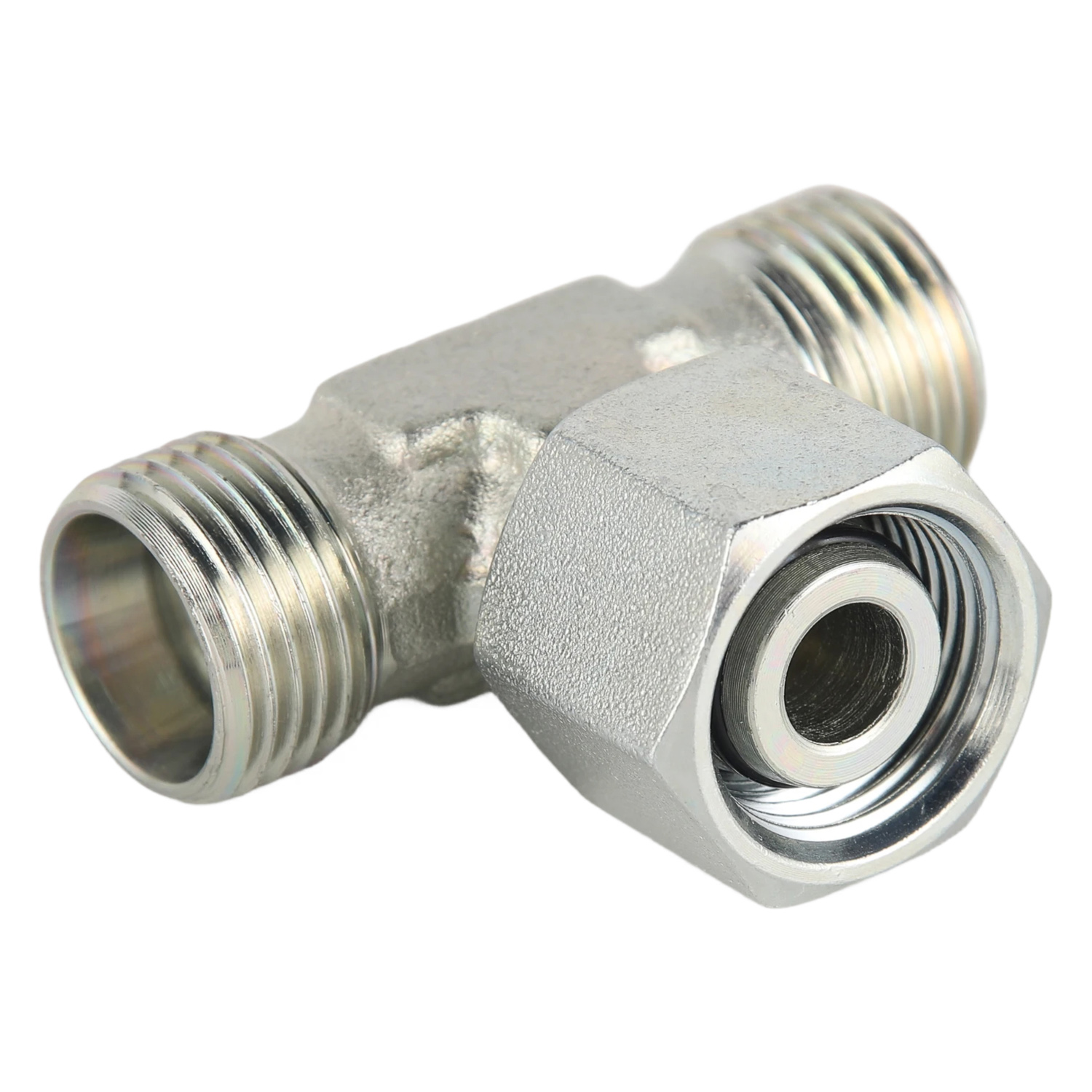

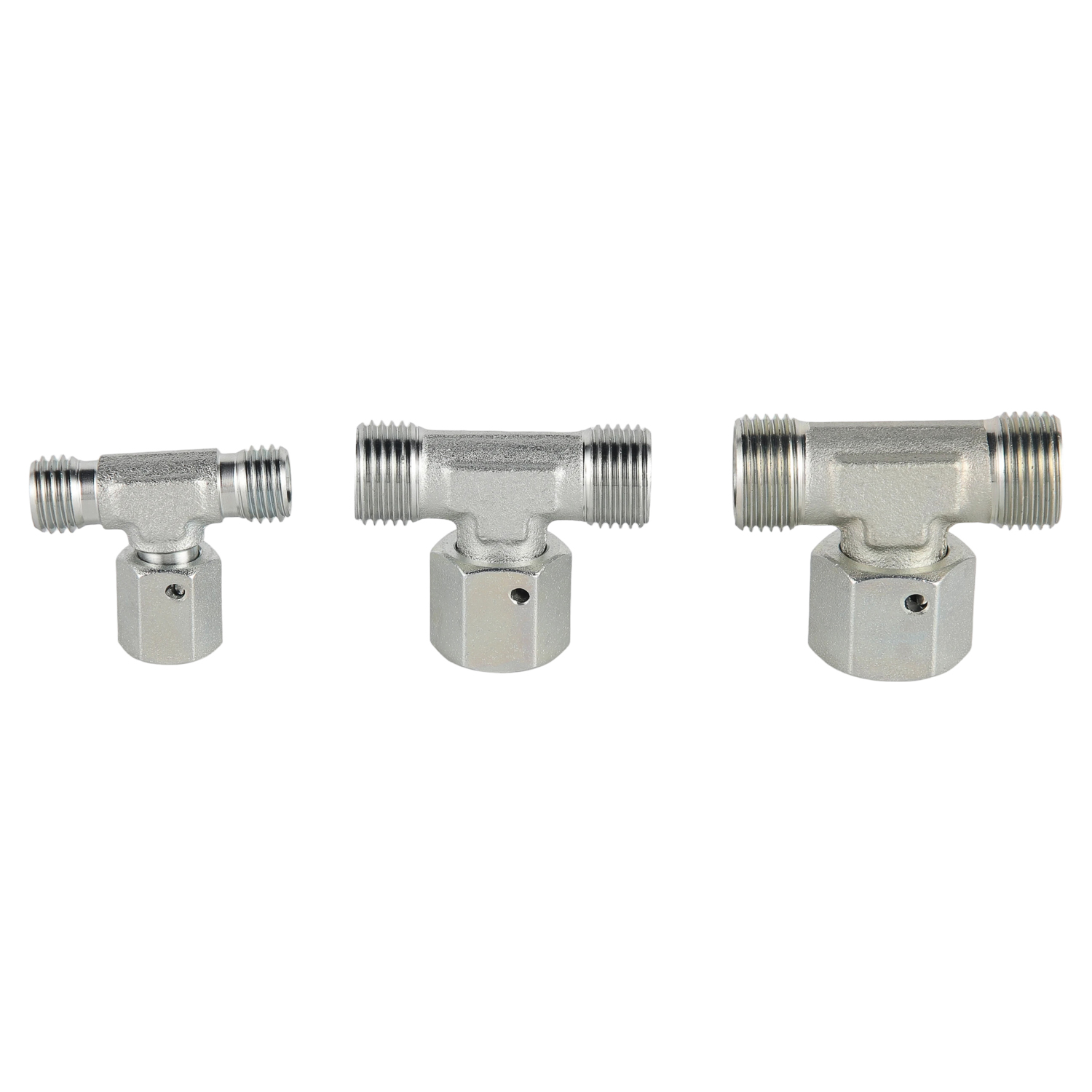

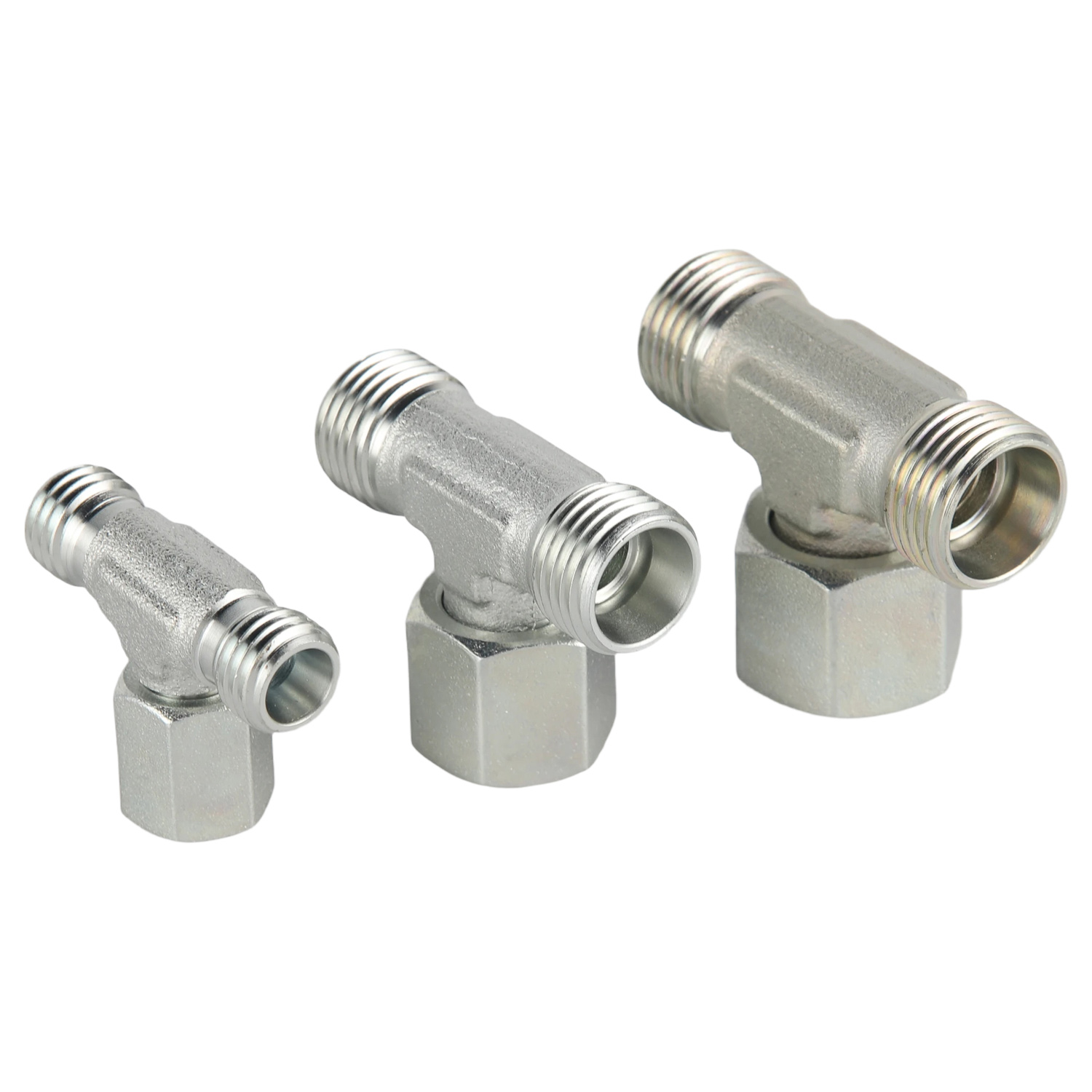

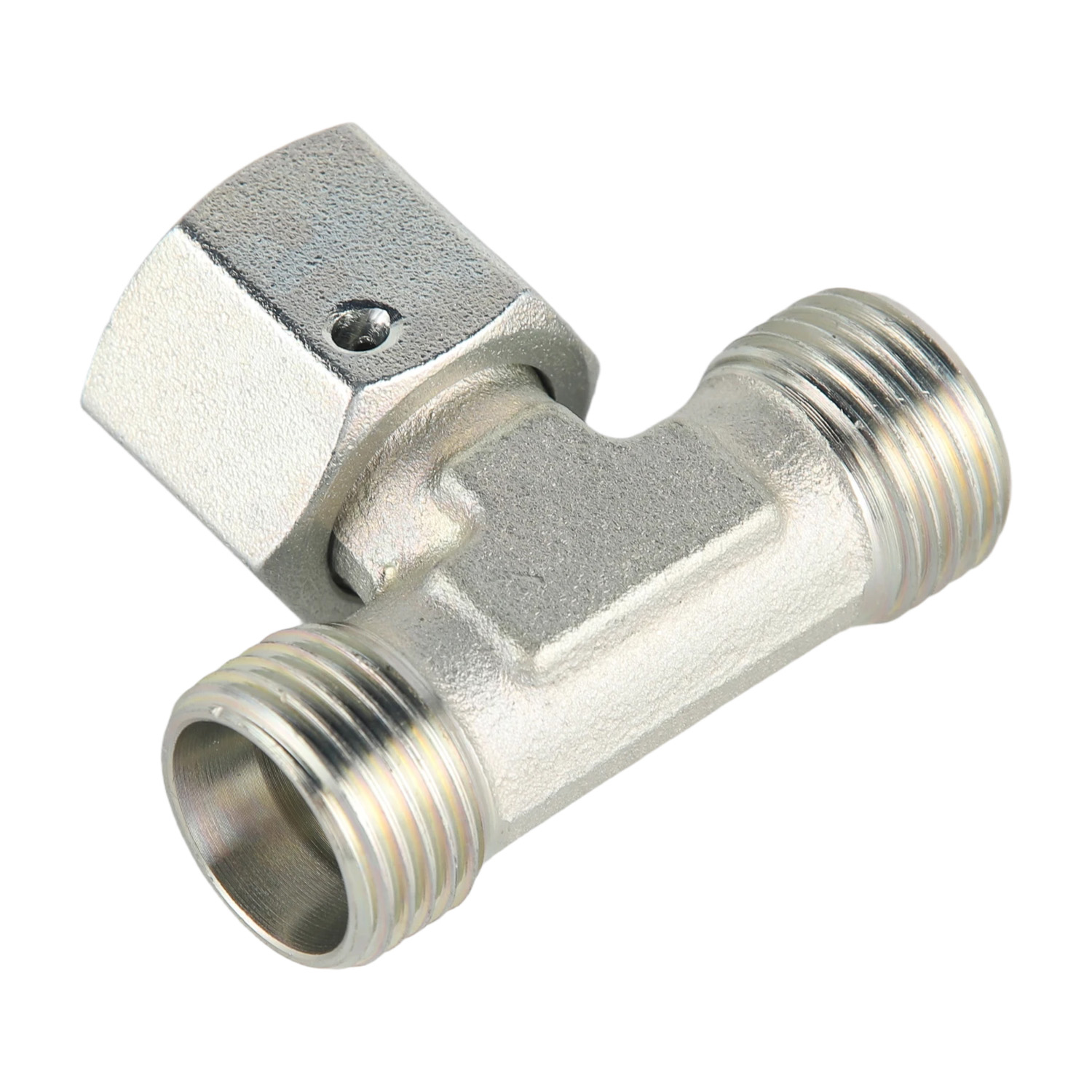

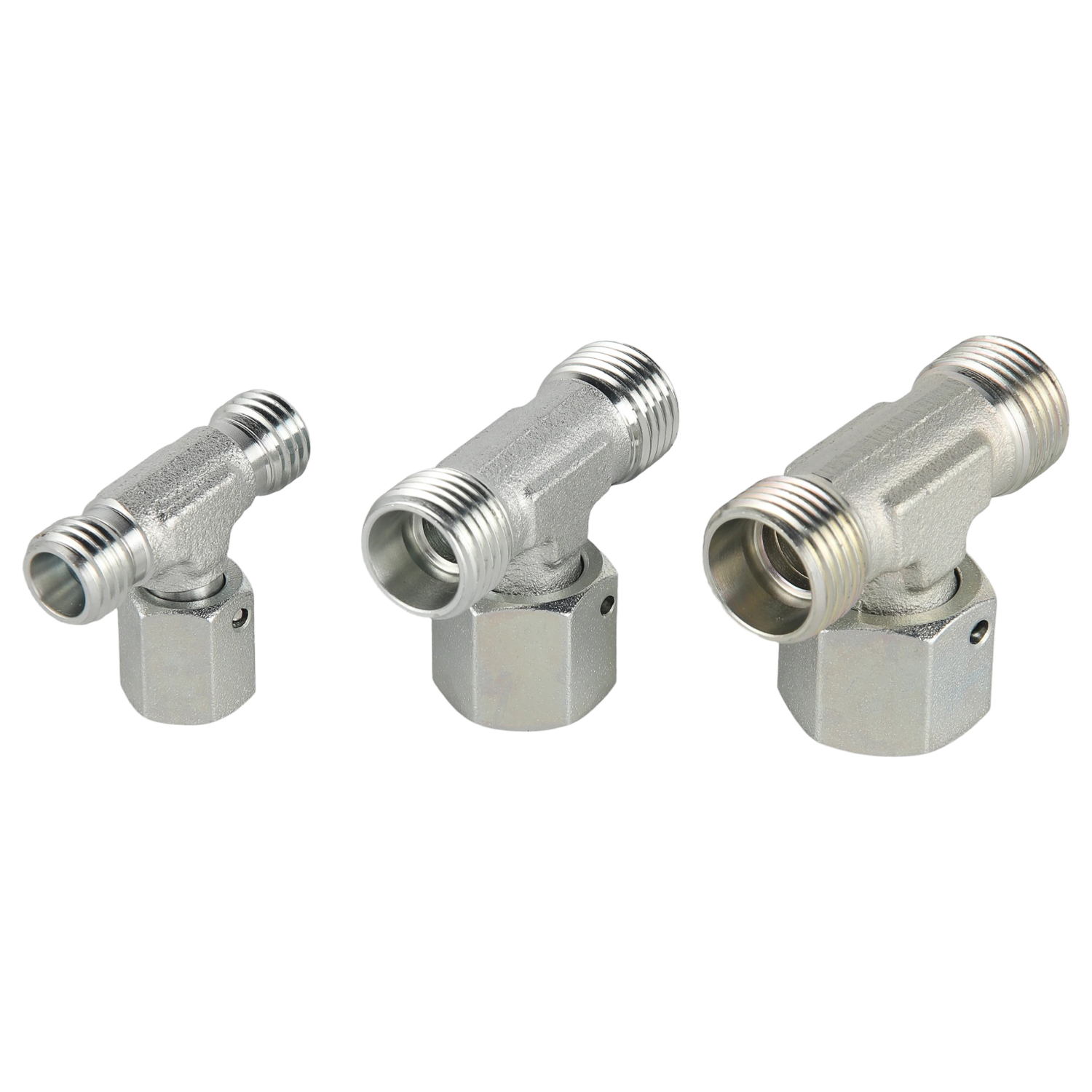

The BC / BD / BC-RN / BD-RN Series Branch Tee Fittings with Swivel Nut are designed to create three-way hydraulic tube connections while providing convenient installation through the swivel nut branch connection. The swivel nut enables quick assembly and simplifies maintenance by allowing tightening without rotating the tubing.
The BC and BD models provide standard branch tee connections, while the BC-RN and BD-RN versions incorporate an adjustable locknut structure, allowing orientation adjustment during installation to achieve the desired pipeline direction.
Manufactured with precision machining, these fittings provide secure hydraulic connections and dependable sealing performance under demanding operating conditions. Carbon steel and stainless steel material options are available, together with zinc-plated or other corrosion-resistant surface treatments to improve service life in industrial environments.
Branch tee design with swivel nut connection
Swivel nut allows easier installation and maintenance
Available in standard and RN locknut versions
Precision-machined connection surfaces for reliable sealing
Compact structure for hydraulic piping systems
Carbon steel and stainless steel material options
Zinc-plated surface for improved corrosion resistance
Suitable for medium and high-pressure hydraulic systems

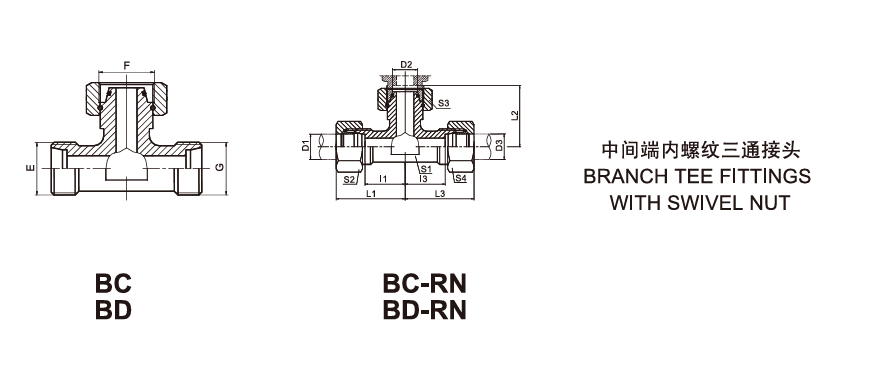

| PART NO. | T H R E A D | TUBE O.D. | DIMENSIONS | MPa | ||||||||
| E、G | F | D1,D3 | D2 | I1,I3 | L1,L3 | L2 | S1 | S2,S4 | S3 | |||
| BC-12 | M12X1.5 | M12X1.5 | 6 | 6 | 12 | 27 | 26 | 12 | 14 | 14 | 31.5 L | |
| BC-14 | M14X1.5 | M14X1.5 | 8 | 8 | 14 | 29 | 28 | 12 | 17 | 17 | ||
| BC-16 | M16X1.5 | M16X1.5 | 10 | 10 | 15 | 30 | 2g | 14 | 7g | 19 | ||
| BC-18 | M18X1.5 | M18X1.5 | 0 | 12 | 17 | 6 | 30 | 17 | 22 | 22 | ||
| BC-22 | M22X1.5 | M22X1.5 | 15 | 15 | 21 | 36 | 33 | 19 | 27 | 27 | ||
| BC-26 | M26X1.5 | M26X1.5 | 18 | 18 | 23.5 | 40 | 36 | 24 | 32 | 32 | ||
| BC-30 | M30X2 | M30X2 | 22 | 22 | 27.5 | 44 | 39 | 27 | 36 | 36 | 16 L | |
| BC-36 | M36X2 | M36X2 | 28 | 28 | 30.5 | 47 | 42 | 36 | 41 | 41 | ||
| BC-45 | M45X2 | M45X2 | 35 | 35 | 34.5 | 56 | 51 | 41 | 50 | 50 | ||
| BC-52 | M52X2 | M52X2 | 42 | 42 | 40 | 63 | 56 | 50 | 60 | 60 | ||
| BD-14 | M14X1.5 | M14X1.5 | 6 | 6 | 16 | 31 | 27 | 12 | 17 | 17 | 63 S | |
| BD-16 | M16X1.5 | M16X1.5 | 8 | 8 | 17 | 32 | 28 | 14 | 19 | 19 | ||
| BD-18 | M18X1.5 | M18X1.5 | 10 | 10 | 17.5 | 34 | 30 | 17 | 22 | 22 | ||
| BD-20 | M20X1.5 | M20X1.5 | 12 | 12 | 21.5 | 38 | 31 | 17 | 24 | 24 | ||
| BD-22 | M22X1.5 | M22X1.5 | 14 | 14 | 22 | 40 | 35 | 19 | 27 | 27 | ||
| BD-24 | M24X1.5 | M24X1.5 | 16 | 16 | 24.5 | 43 | 37 | 24 | 30 | 30 | 40 S | |
| BD-30 | M30X2 | M30X2 | 20 | 20 | 26.5 | 48 | 45 | 27 | 36 | 36 | ||
| BD-36 | M36X2 | M36X2 | 25 | 25 | 30 | 54 | 50 | 36 | 46 | 46 | ||
| BD-42 | M42X2 | M42X2 | 30 | 30 | 35.5 | 62 | 55 | 41 | 50 | 50 | ||
| BD-52 | M52X2 | M52X2 | 38 | 38 | 41 | 12 | 63 | 50 | 60 | 60 | 31.5S | |
| 注:如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如BC-30RN。 Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no., for example BC-3ORN. | ||||||||||||
BC / BD / BC-RN / BD-RN Series Branch Tee Fittings with Swivel Nut are widely used in hydraulic power units, construction machinery, industrial automation equipment, agricultural machinery, and fluid transmission systems. The swivel nut design improves installation efficiency while providing reliable three-way hydraulic connections for medium and high-pressure applications.
