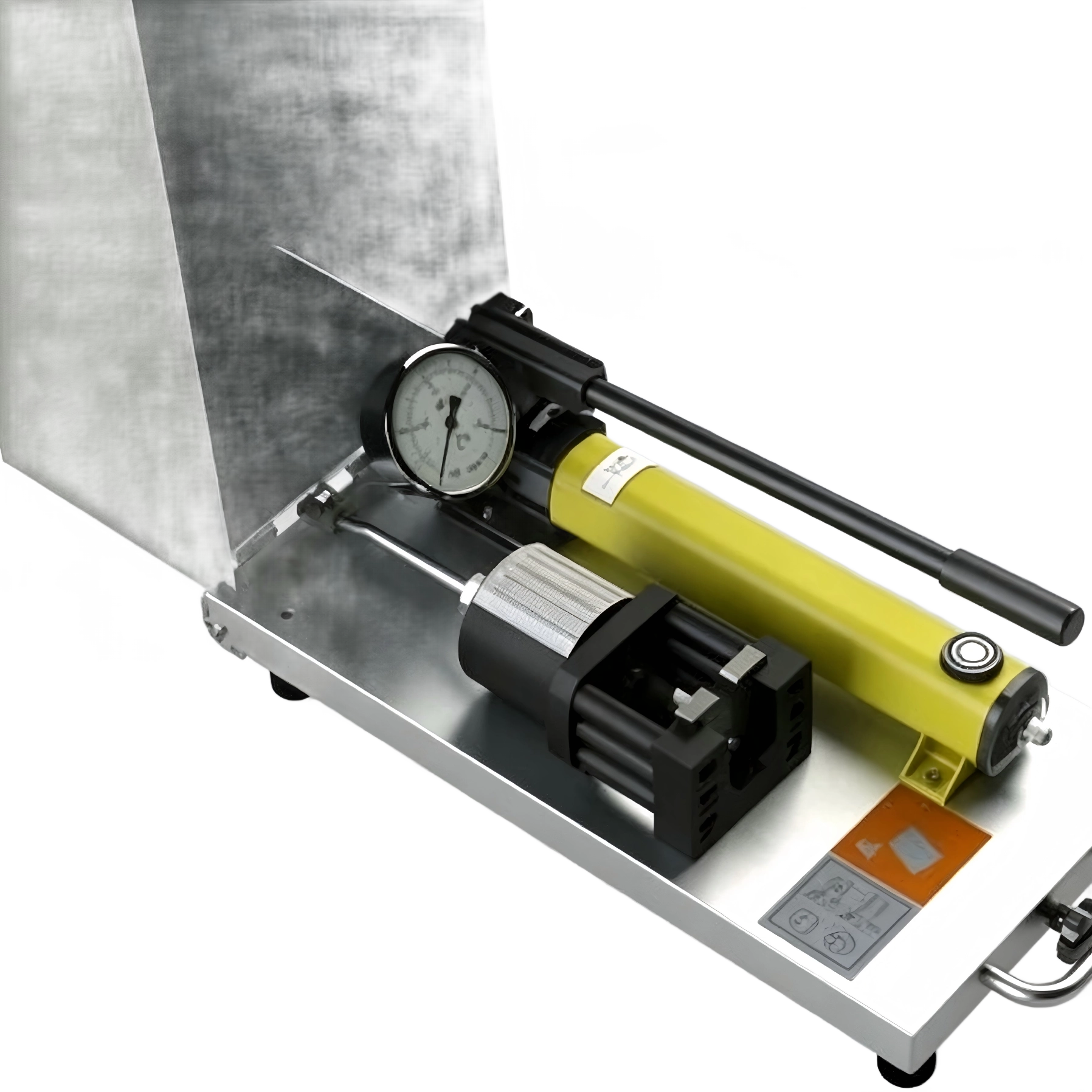

Product Overview

The Manual Ferrule Pre-Assembly Machine is specially designed for DIN 2353 hydraulic tube fittings and cutting ring installation. During hydraulic tube assembly, accurate ferrule positioning is essential for achieving reliable sealing performance and long service life.

The machine applies controlled mechanical force to install the ferrule onto the tube before the final fitting assembly. This pre-assembly process ensures the cutting ring is correctly positioned, reducing installation errors and improving the overall reliability of hydraulic tube connections.

Stable Hydraulic Pre-Assembly Performance

The manual hydraulic system provides consistent pre-assembly force during operation, ensuring stable and repeatable installation results. The controlled process helps avoid uneven installation caused by manual tightening and improves production quality.

The equipment is suitable for both workshop production and maintenance applications where precise hydraulic tube preparation is required.

Suitable for Various Hydraulic Tube Sizes

The machine supports hydraulic tube sizes from 6mm to 42mm, making it compatible with a wide range of DIN hydraulic tube fittings.

It can be used for different tube fitting applications in hydraulic systems, industrial machinery, construction equipment, and fluid power equipment.

Compact Design and Easy Operation

With a practical and compact design, the manual ferrule pre-assembly machine requires limited working space and is easy to operate.

The simple manual hydraulic structure allows users to complete ferrule pre-assembly efficiently without electrical power supply, making it suitable for workshops and field service applications.

Reliable Solution for Hydraulic Tube Assembly

Compared with traditional manual assembly methods, this equipment provides more consistent pre-assembly quality and improves working efficiency.

It helps manufacturers and maintenance teams achieve reliable hydraulic tube connections while reducing assembly time and improving overall productivity.

Features

• Designed for DIN 2353 bite type tube fittings

• Suitable for hydraulic tube ferrule pre-assembly

• Supports tube sizes from 6mm to 42mm

• Manual hydraulic operation without electrical power

• Stable and repeatable pre-assembly force

• Accurate cutting ring positioning

• Compact structure and easy operation

• Suitable for workshop and field applications

• Improves hydraulic tube assembly efficiency

• Supports hydraulic fitting manufacturers and maintenance applications

Specifications
