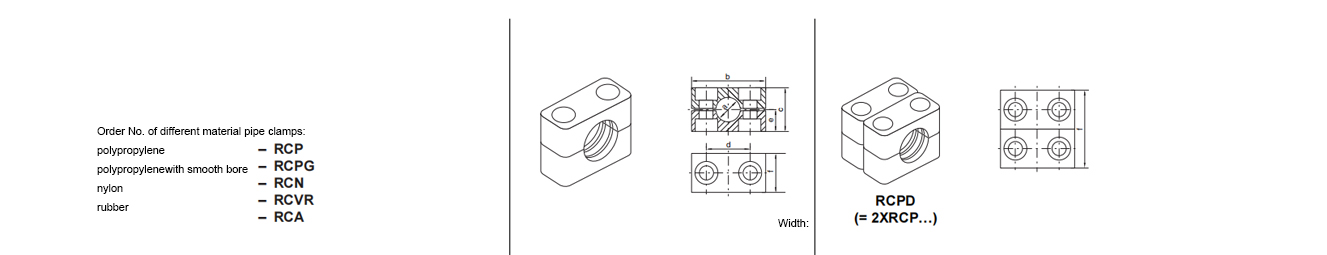

Pipe clip specifications
|
Tube outer diameter mm
a
|
Tube outer diameter
|
Tube outer diameter
|
2 pipe clamps
|
Welded Plate (Short)
|
||
|
|
Size
b c d e f
|
RCPD... order number
|
Size
b c d e f
|
||||
|
1 |
6 8 10 12 12.7 13.5 14 15 16 17.2 18 |
G /8 G 1/4 G 3/8 |
5/16 1/2 5/8 |
RCP106X RCP108X RCP110X RCP112X RCP112.7X RCP113.5X RCP114X RCP115X RCP116X RCP117.2X RCP118X |
55 32 33 16 30 |
RCPD106 RCPD108 RCPD110 RCPD112 RCPD112.7 RCPD113.5 RCPD114 RCPD115 RCPD116 RCPD117.2 RCPD118 |
55 32 33 16 60 |
|
2 |
19 20 21.3 22 23 25 26.9 28 30 |
GV/2 G3/4 |
3/4 1 |
RCP219X RCP220X RCP221.3X RCP222X RCP223X RCP225X RCP226.9X RCP228X RCP230X |
70 48 45 24 30 |
RCPD219 RCPD220 RCPD221.3 RCPD222 RCPD223 RCPD225 RCPD226.9 RCPD228 RCPD230 |
70 48 45 24 60 |
|
3 |
30 32 33.7 35 38 40 42 |
G1 G 1V4 |
1 1/4 1 1/2 |
RCP330X RCP332X RCP333.7X RCP335X RCP338X RCP340X RCP342X |
85 60 60 30 30 |
RCPD330 RCPD332 RCPD333.7 RCPD335 RCPD338 RCPD340 RCPD342 |
85 60 60 30 60 |
|
4
|
38 40 42 45 48.3 50 51 52 55 57 60.3 63 65 70 |
G 1/4 G1/2 G2 |
1 1/2 2 2 1/4 2 1/2 |
RCP438X RCP440X RCP442X RCP445X RCP448.3X RCP450X RCP451X RCP452X RCP455X RCP457X RCP460.3X RCP463X RCP465X RCP470X |
115 90 90 45 45 |
RCPD428 RCPD440 RCPD442 RCPD445 RCPD448.3 RCPD450 RCPD451 RCPD452 RCPD455 RCPD457 RCPD460.3 RCPD463 RCPD465 RCPD470 |
115 90 90 45 90 |
