Hydraulic check valves are essential components in many hydraulic systems. Their primary function is to allow hydraulic fluid to flow in one direction while preventing unwanted reverse flow. By controlling flow direction, a hydraulic check valve can help protect hydraulic components, maintain pressure in specific circuits, and support stable system operation.
However, not all hydraulic check valves have the same structure or operating characteristics. Different valve designs are suitable for different flow conditions, pressure requirements, installation spaces, and hydraulic applications. Understanding the differences between hydraulic check valve types can help engineers and system designers select a suitable solution for their equipment.

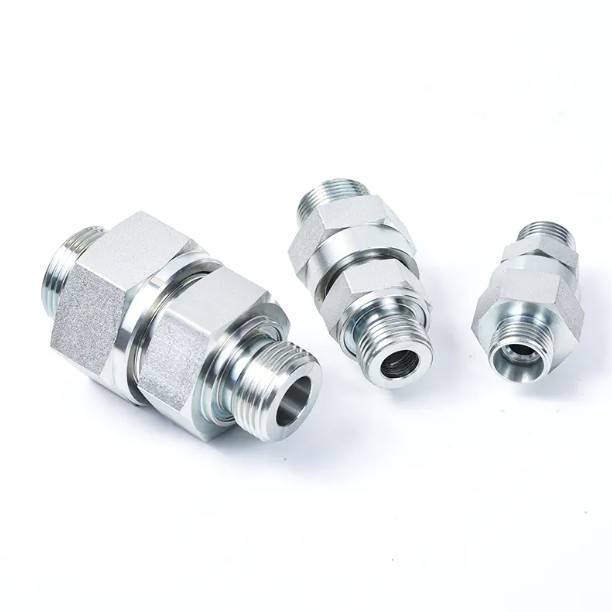

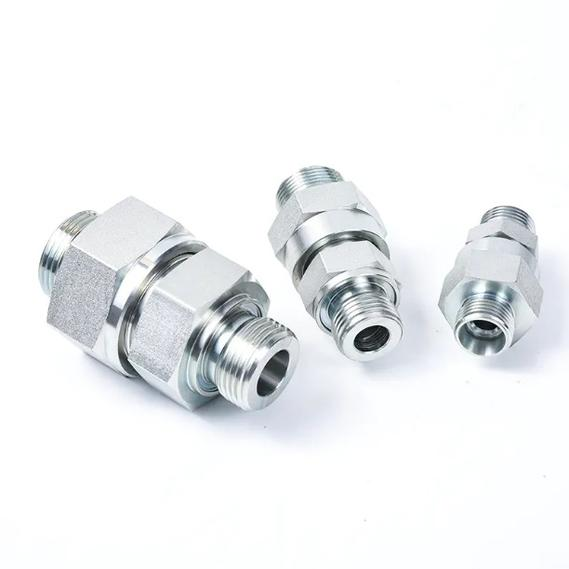

What Is a Hydraulic Check Valve?
A hydraulic check valve, also known as a one-way valve or non-return valve, is designed to control fluid flow in one direction.
When the hydraulic pressure at the inlet is sufficient to overcome the valve's opening resistance, the valve opens and allows fluid to pass through. When the flow attempts to move in the opposite direction, the valve closes to restrict reverse flow.
Depending on the valve design, this opening and closing action can be controlled by a ball, poppet, disc, diaphragm, spring, or pilot signal.
The basic purpose remains the same: to control the direction of hydraulic flow and prevent unwanted backflow.
Why Are Different Types of Hydraulic Check Valves Needed?
Hydraulic systems are used in a wide range of equipment, from mobile machinery and construction equipment to industrial hydraulic systems. These applications can have very different requirements for pressure, flow rate, installation space, response characteristics, and connection configuration.
For this reason, hydraulic check valves are available in several designs.
For example, a compact check valve may be suitable where installation space is limited, while a pilot-operated check valve can be used when controlled release of hydraulic pressure is required. Other designs may be selected according to flow rate, pressure requirements, connection type, or system configuration.
The most suitable valve should therefore be selected according to the actual requirements of the hydraulic circuit rather than simply choosing a valve based on its name or size.
Different Types of Hydraulic Check Valves
1. Ball Check Valves
Ball check valves use a spherical ball as the closing element. When the hydraulic fluid flows in the permitted direction, the ball moves away from its seat and allows flow to pass. When the flow direction reverses, the ball returns toward the seat and restricts reverse flow.
The simple internal structure makes ball check valves suitable for applications where straightforward one-way flow control is required.
Typical considerations include:
Hydraulic pressure
Required flow rate
Cracking pressure
Fluid compatibility
Connection size
Installation space
Ball check valves can be used in various hydraulic circuits where compact and straightforward flow-direction control is required.
2. Lift Check Valves
Lift check valves use a disc or poppet that moves away from its seat when the fluid flows in the permitted direction. When the flow stops or reverses, the closing element returns to the seat and restricts reverse flow.
This type of design can provide reliable one-way flow control when the valve is installed in a suitable orientation and operating condition.
When used in hydraulic systems, engineers should consider pressure drop, flow rate, valve orientation, and the operating pressure range before selecting a lift check valve.
3. Swing Check Valves
Swing check valves use a hinged disc or flap. Forward flow pushes the disc away from the seat, while reverse flow causes the disc to move back toward the closed position.
Swing check valves are commonly associated with fluid-handling systems, but the basic check-valve principle can also be applied where the hydraulic circuit and valve specifications are suitable.
When considering this design for hydraulic applications, factors such as flow velocity, installation orientation, pressure rating, and available space should be evaluated.
4. Diaphragm Check Valves
Diaphragm check valves use a flexible diaphragm as the moving element. The diaphragm responds to pressure differences to permit flow in one direction and restrict flow in the opposite direction.
This design can be useful in applications where the internal structure and fluid separation characteristics of the valve are important.
For hydraulic applications, selection should be based on the actual hydraulic fluid, pressure, temperature, flow rate, and compatibility of the diaphragm material with the operating medium.
5. Stop-Check Valves
Stop-check valves combine characteristics of a check valve with the ability to control or stop flow.
The check function helps prevent reverse flow, while the additional control function allows the flow path to be restricted or shut off when required.
Because of their combined functionality, stop-check valves can be considered in systems where both one-way flow protection and additional flow control are required.
The actual valve configuration, pressure rating, flow requirements, and installation conditions should be confirmed before selection.
6. Axial Check Valves
Axial check valves use a moving element that travels along the valve's flow axis. Depending on the design, the internal element moves away from the seat to allow forward flow and returns toward the seat to restrict reverse flow.
One advantage of an axial design can be its compact flow path and relatively streamlined internal configuration.
Axial check valves can therefore be considered for hydraulic systems where space, flow characteristics, and pressure requirements are important selection factors.
7. Dual-Plate Check Valves
Dual-plate check valves use two plates that respond to the direction of fluid flow. During forward flow, the plates open to allow the fluid to pass. When the flow decreases or reverses, the plates move toward the closed position.
The two-plate configuration can provide a compact valve design and can be useful where installation space is limited.
When selecting a dual-plate check valve, engineers should consider the required flow capacity, pressure rating, connection dimensions, installation orientation, and hydraulic medium.
How to Choose the Right Hydraulic Check Valve?
Choosing a hydraulic check valve should start with the requirements of the hydraulic circuit.
Several factors should be evaluated before selecting a valve.
1. Working Pressure
The valve's rated pressure should be suitable for the hydraulic system's operating conditions.
It is important to consider both normal operating pressure and possible pressure fluctuations within the system.
2. Flow Rate
The required hydraulic flow rate affects the appropriate valve size and design.
A valve that is too small for the required flow may create excessive pressure loss, while an incorrectly selected valve may affect the overall performance of the hydraulic circuit.
3. Cracking Pressure
Cracking pressure refers to the pressure difference required to begin opening a check valve.
Different hydraulic circuits may require different cracking pressure characteristics. Therefore, this parameter should be considered together with the system's operating pressure and flow requirements.
4. Installation Space
The available installation space can influence the choice of valve structure.
Compact designs may be preferred for systems with limited space, while other applications may allow larger valve configurations.
5. Connection Type and Size
The valve connection should match the hydraulic circuit.
Depending on the system, connection requirements may include different thread standards, port sizes, or other connection configurations.
Before ordering, the connection type, size, and sealing method should be confirmed to ensure compatibility with the hydraulic system.
6. Hydraulic Fluid and Temperature
The hydraulic medium and operating temperature can affect material selection and sealing performance.
The valve should be compatible with the hydraulic fluid used in the system and suitable for the expected operating temperature range.
7. Installation Direction
Some check valve designs have specific installation requirements.
The flow direction marked on the valve should be checked before installation to ensure that the valve operates as intended.
What Can Happen If the Wrong Check Valve Is Selected?
Choosing a check valve only according to its size or connection may not be sufficient.
If the valve is not suitable for the system's pressure or flow requirements, it may contribute to excessive pressure loss, unstable flow behavior, or insufficient reverse-flow protection.
Other factors, such as incorrect cracking pressure, unsuitable materials, incorrect installation direction, or incompatible connections, can also affect valve performance.
For this reason, the valve should be evaluated as part of the complete hydraulic circuit rather than as an isolated component.
Conclusion
Different types of hydraulic check valves are designed to meet different requirements in hydraulic systems. Ball check valves, pilot-operated check valves, lift check valves, swing check valves, diaphragm check valves, stop-check valves, axial check valves, and dual-plate check valves use different internal structures and operating principles to control fluid flow.
There is no single check valve design that is suitable for every hydraulic application. The appropriate choice depends on factors such as working pressure, flow rate, cracking pressure, hydraulic fluid, connection type, installation space, and the specific function required within the hydraulic circuit.
By evaluating these factors before selection, engineers and equipment manufacturers can choose a hydraulic check valve that better matches the requirements of their system and application.
NBFK provides hydraulic valves and hydraulic components for a range of industrial and mobile hydraulic applications. For specific valve requirements, customers can contact the NBFK team with details such as pressure, flow rate, connection size, hydraulic medium, and application conditions for further discussion.
Lift Check Valves: Lift check valves have a disc that lifts off the seat to allow forward flow and drops back to prevent reverse flow. They are suitable for applications with low to moderate flow rates and find use in steam and water systems.
Diaphragm Check Valves: Diaphragm check valves use a flexible diaphragm to control fluid flow. They are appropriate for applications where preventing contamination is crucial, such as in some chemical and pharmaceutical processes.
Stop-Check Valves: Stop-check valves combine features of a globe valve and a check valve, allowing manual control of fluid flow while preventing reverse flow. They are used in applications requiring intermittent flow control, such as boiler feedwater systems.
Pilot-Operated Check Valves: Pilot-operated check valves utilize an external pilot to control valve opening and closing. They are suitable for applications with high flow rates, providing precise control over reverse flow in large hydraulic systems.
Axial Check Valves: Axial check valves have a disc that moves axially to the seat, allowing forward flow and lifting off to prevent reverse flow. They are used in high-pressure applications and where a compact design is essential.
Dual-Plate Check Valves: Dual-plate check valves use two plates to open or close in response to fluid flow. They are compact and reliable, making them suitable for various applications, including those with high flow rates and limited space.
The diverse range of hydraulic check valves accommodates the specific demands of different hydraulic systems, ensuring optimal performance, reliability, and efficiency in a variety of industrial and commercial applications. Engineers and system designers can select the most suitable check valve type based on the unique characteristics and requirements of each hydraulic system.
