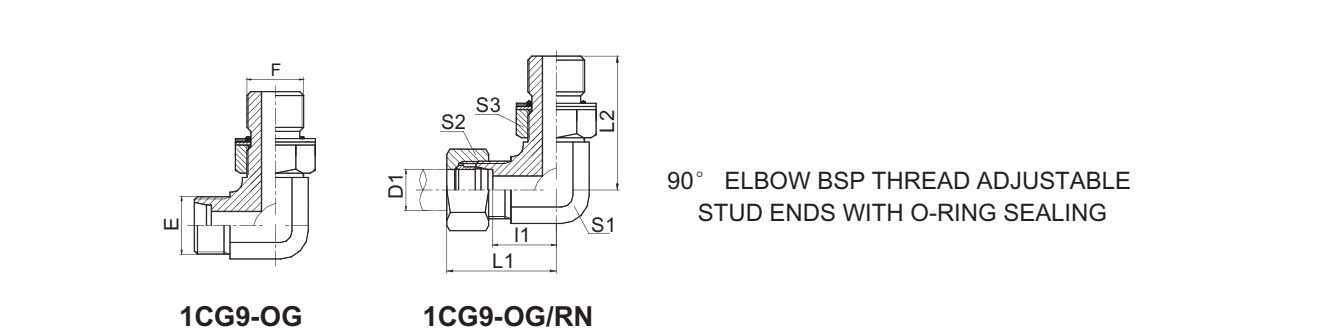

PART NO.
|
THREAD
|
TUBE O.D.
|
DIMENSIONS
|
MPa
|
||||||
|
E
|
F
|
D1
|
l1
|
L1
|
L2
|
s1
|
s2
|
s3
|
||
|
1CG9-12-02OG
|
M12X1.5
|
G1/8"X28
|
6
|
13
|
28
|
26.2
|
11
|
14
|
14
|
31.5L
|
|
1CG9-14-04OG
|
M14X1.5
|
G1/4"X19
|
8
|
15.5
|
30.5
|
31.3
|
14
|
17
|
19
|
|
|
1CG9-16-04OG
|
M16X1.5
|
G1/4"X19
|
10
|
17.5
|
32.5
|
32.5
|
16
|
19
|
19
|
|
|
1CG9-16-06OG
|
M16X1.5
|
G3/8"X19
|
10
|
17.5
|
32.5
|
35.8
|
16
|
19
|
22
|
|
|
1CG9-18-06OG
|
M18X1.5
|
G3/8"X19
|
12
|
19
|
34
|
36.8
|
19
|
22
|
22
|
|
|
1CG9-22-08OG
|
M22X1.5
|
G1/2"X14
|
15
|
22
|
37
|
43.2
|
22
|
27
|
27
|
|
|
1CG9-26-08OG
|
M26X1.5
|
G1/2"X14
|
18
|
25.5
|
42
|
46
|
27
|
32
|
27
|
|
|
1CG9-26-12OG
|
M26X1.5
|
G3/4"X14
|
18
|
25.5
|
42
|
49.3
|
27
|
32
|
32
|
|
|
1CG9-30-12OG
|
M30X2
|
G3/4"X14
|
22
|
29.3
|
45.8
|
52
|
30
|
36
|
32
|
16L
|
|
1CG9-30-16OG
|
M30X2
|
G1"X11
|
22
|
31.5
|
48
|
53
|
33
|
36
|
41
|
|
|
1cG9-36-16OG
|
M36X2
|
G1"X11
|
28
|
33
|
49.8
|
56
|
36
|
41
|
41
|
|
|
1CG9-36-20OG
|
M36X2
|
G1.1/4"X11
|
28
|
36
|
52.8
|
59
|
41
|
41
|
50
|
|
|
1CG9-45-20OG
|
M45X2
|
G1.1/4"X11
|
35
|
39.2
|
60.7
|
63
|
48
|
50
|
50
|
|
|
1cG9-52-24OG
|
M52X2
|
G1.1/2"X11
|
42
|
44.8
|
67.8
|
68.5
|
55
|
60
|
55
|
|
|
1DG9-14-04OG
|
M14X1.5
|
G1/4"X19
|
6
|
17.5
|
32.5
|
31.3
|
14
|
17
|
19
|
63S
|
|
1DG9-16-04OG
|
M16X1.5
|
G1/4"X19
|
8
|
18.7
|
33.7
|
32.5
|
16
|
19
|
19
|
|
|
1DG9-16-06OG
|
M16X1.5
|
G3/8"X19
|
8
|
18.7
|
33.7
|
35.8
|
16
|
19
|
22
|
|
|
1DG9-18-06OG
|
M18X1.5
|
G3/8"X19
|
10
|
19.5
|
36
|
36.8
|
19
|
22
|
22
|
|
|
1DG9-20-06OG
|
M20X1.5
|
G3/8"X19
|
12
|
19.5
|
36
|
36.8
|
19
|
24
|
22
|
|
|
1DG9-22-08OG
|
M22X1.5
|
G1/2"X14
|
14
|
23
|
41
|
43.2
|
22
|
27
|
27
|
|
|
1DG9-24-08OG
|
M24X1.5
|
G1/2"X14
|
16
|
24
|
42.5
|
43
|
24
|
30
|
27
|
40S
|
|
1DG9-30-12OG
|
M30X2
|
G3/4"X14
|
20
|
28
|
49.5
|
52
|
30
|
36
|
32
|
|
|
1DG9-36-16OG
|
M36X2
|
G1"X11
|
25
|
32.8
|
56.8
|
56
|
36
|
46
|
41
|
|
|
1DG9-42-20OG
|
M42X2
|
G1.1/4"X11
|
30
|
36.2
|
62.7
|
58
|
41
|
50
|
50
|
|
|
1DG9-52-24OG
|
M52X2
|
G1.1/2"X11
|
38
|
45.8
|
76.8
|
68.5
|
55
|
60
|
55
|
31.5S
|
|
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessaryto insert suffix "RN" after our part no.，for example 1CG9-30-12OG/RN.
|
||||||||||
