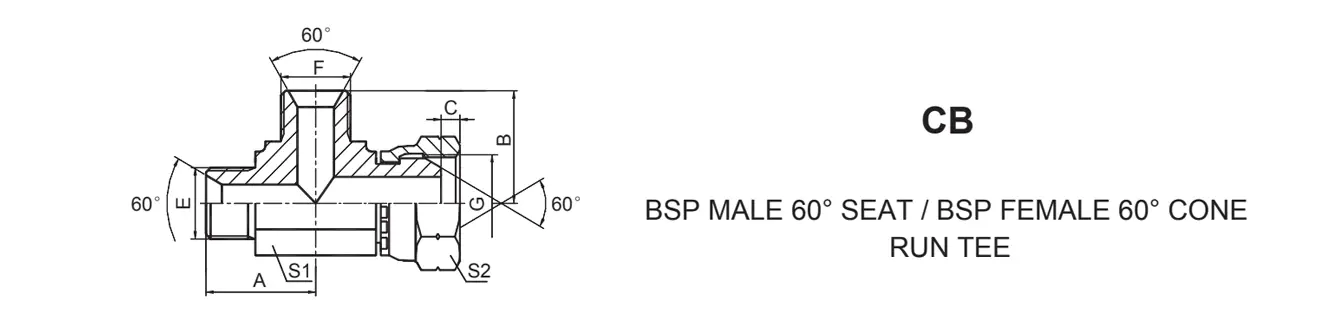

CB Bsp Male 60° Seat / Bsp Female 60° Cone Run Tee

1. Product Overview

The CB BSP male 60° seat and BSP female 60° cone run tee with movable union nut is a professional hydraulic fitting developed for three-way branch connections in fluid power systems. Focused on flexible installation and reliable leak-tight performance under high pressure, this fitting adopts imperial BSPP thread configuration and dual 60° cone sealing structure. Equipped with a movable female thread end, it fully complies with ISO 7-1, BS 5200 and ISO 8434-6 international standards. With a maximum working pressure rated at 420 bar (6000 PSI), it has become a preferred component for construction machinery, oil and gas facilities, heavy-duty hydraulic circuits and a wide range of industrial hydraulic applications worldwide. Designed to solve common connection problems in imperial threaded piping systems, it balances structural stability, sealing efficiency and assembly convenience for long-term industrial operation.

2. Structural & Sealing Features

Both ends are fitted with precision machined 60° cone seals. This cone-to-cone matching structure creates a firm and pressure-resistant sealing interface. When the hydraulic system encounters pressure surges and continuous pressure fluctuation during operation, the sealing structure will not fail easily, which effectively blocks the leakage of hydraulic fluid and guarantees the safety and stability of the whole pipeline system.

The fitting adopts a matched thread design: one end is standard BSPP male thread and the other end is BSPP female thread. The thread parameters fully follow imperial pipe thread specifications, so it can be directly connected with standard BSPP threaded pipes and matching parts without additional modification.

The movable union nut on the female thread end is a practical functional design. During on-site installation, operators can rotate the nut to adjust the connection angle freely. It can well compensate for minor misalignment between pipes, eliminating the need for extra adapters or reworking pipelines. This design greatly simplifies assembly work and avoids mechanical stress on pipes caused by forced connection.

3. Performance Specifications

Sealing type: Dual-end 60° cone face seal

Thread type: Imperial BSPP parallel pipe thread (male thread + movable female thread)

Maximum working pressure: 420 bar / 6000 PSI

Compliance standards: ISO 7-1, BS 5200, ISO 8434-6

4. Material & Durability

Manufactured with robust raw materials and precise machining technology, the CB tee fitting boasts outstanding overall durability. It can resist long-term erosion from various types of hydraulic fluids in daily operation. Meanwhile, the structure is reinforced to withstand wear generated by repeated assembly and disassembly in routine maintenance. The fitting maintains stable physical performance after long service time, free from deformation, thread slipping and other common faults. It effectively extends the service cycle of hydraulic components and cuts down unnecessary downtime and maintenance costs for industrial equipment.

5. Standards & Compatibility

All production processes of CB series run tees are implemented in strict accordance with ISO 7-1, BS 5200 and ISO 8434-6 international standards. Thread size, cone sealing dimension and overall structure are unified in line with global industrial norms. The fitting features excellent interchangeability, which means it can be directly replaced with other qualified hydraulic components of the same specification on the market. Whether for equipment manufacturing, system renovation or daily parts replacement, it adapts to hydraulic equipment from different regions around the globe and brings great convenience for global procurement, after-sales maintenance and spare parts management.

6. Typical Applications

High-pressure hydraulic circuits of various construction machinery

Hydraulic pipelines for extraction, transmission and processing equipment in oil and gas industry

Hydraulic branch systems of large-scale heavy industrial machinery

High-pressure three-way pipelines that require high sealing performance and flexible assembly

7. Key Advantages

The movable union nut supports angle adjustment, adapting to complex piping layouts and delivering high assembly flexibility.

Dual 60° cone sealing structure maintains excellent leak-proof performance steadily under continuous high-pressure working conditions.

High pressure resistance makes it fully competent for service in heavy-duty industrial equipment and harsh working environments.

Standardized design conforms to international regulations, ensuring wide compatibility and easy promotion in global markets.

8.Specification
