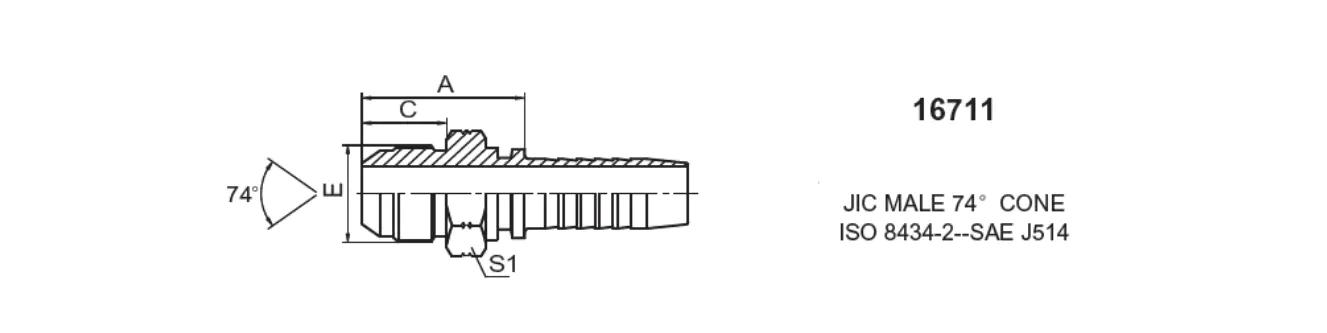

16711 Jic Male 74° CONE Iso 8434-2--SAE J514

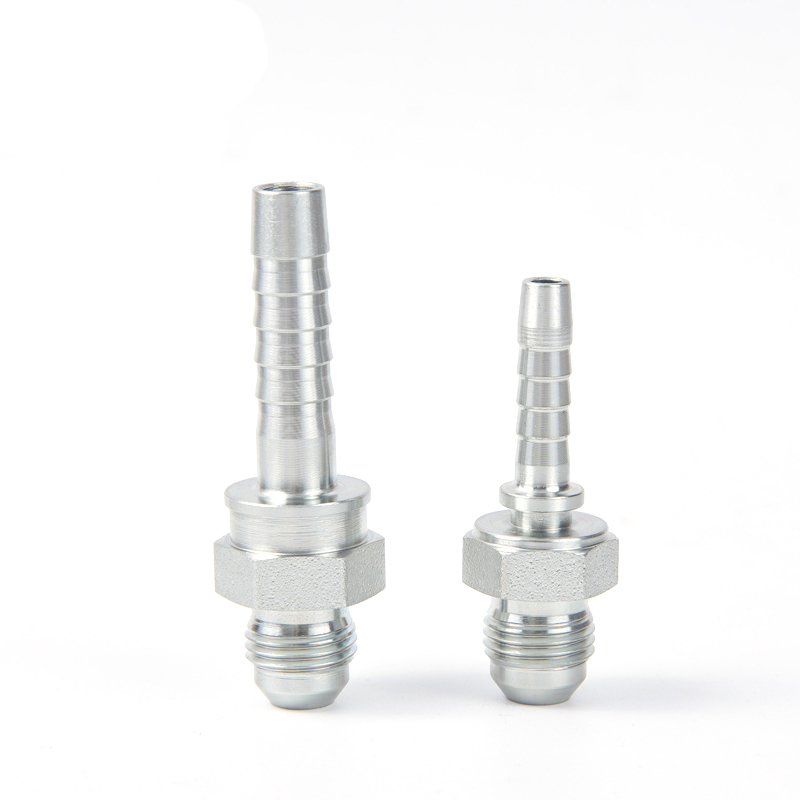

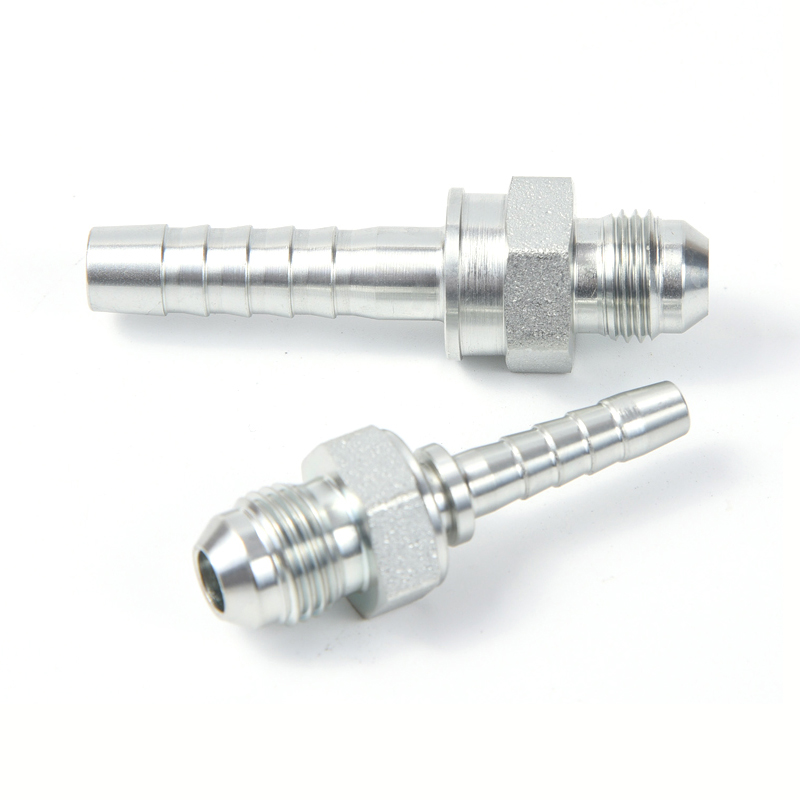

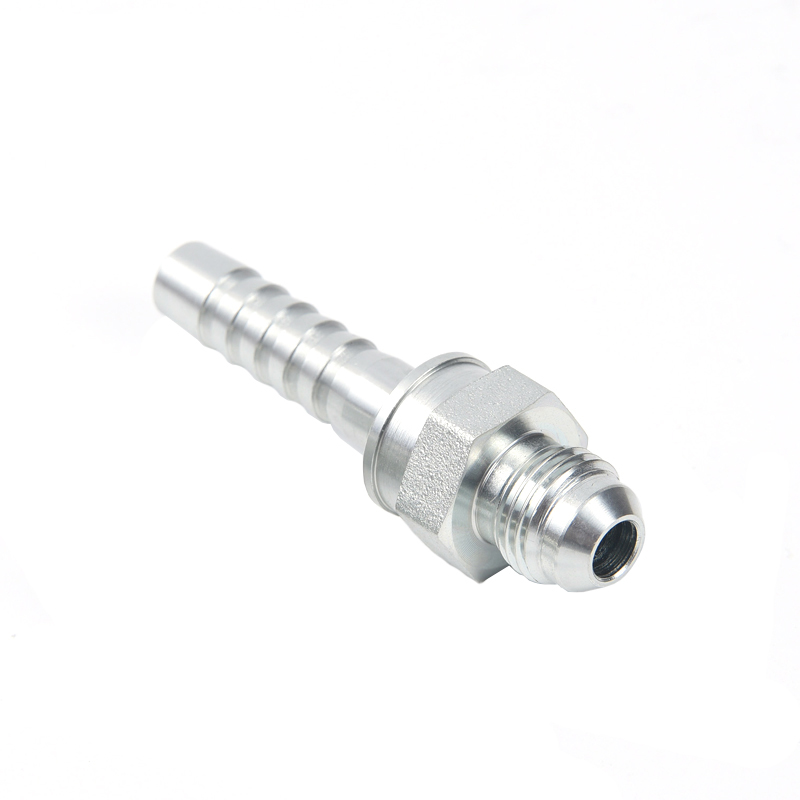

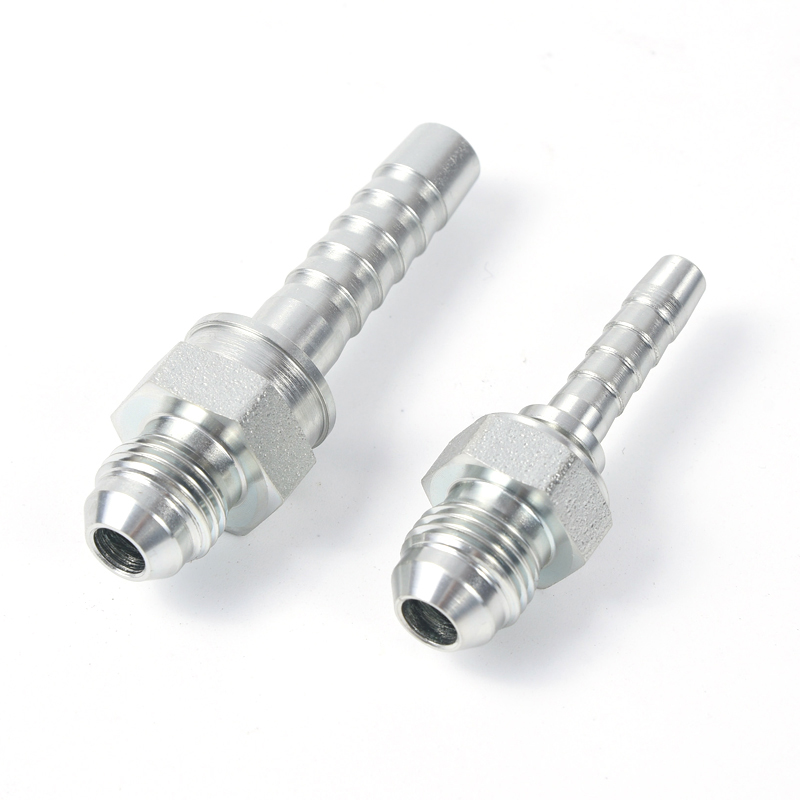

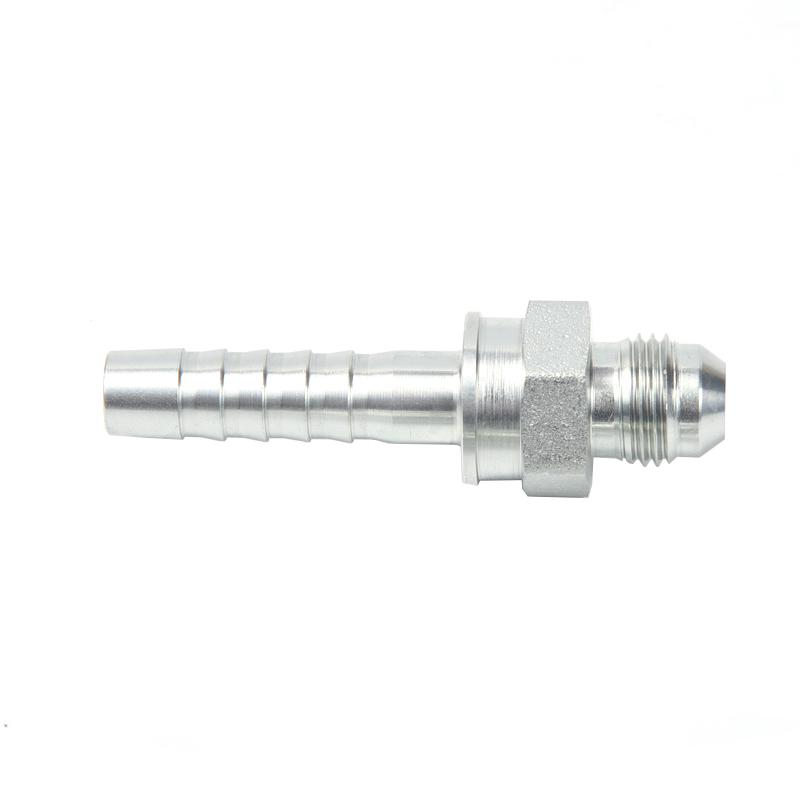

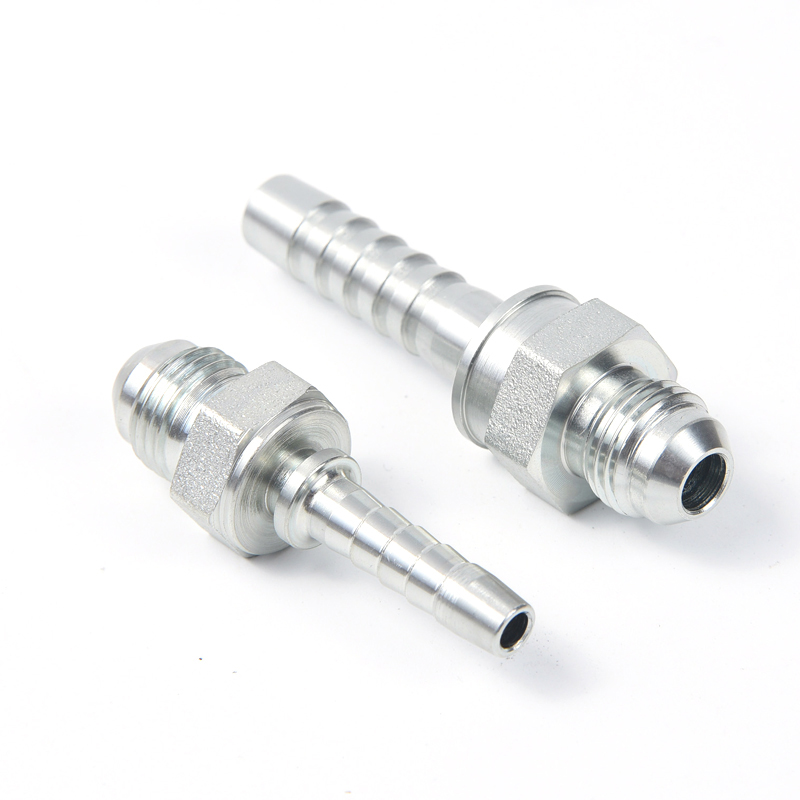

Our 16711 series is a high-performance, one-piece sleeve hose coupling designed for the most demanding hydraulic applications. Engineered with a robust 74° tapered seal on the male threaded end, it ensures a leak-free connection to ports and manifolds. The opposite end is crafted for a permanent and ultra-reliable crimp connection to high-pressure hoses like SAE 100R and EN853 standards. Built to withstand pressures up to 6000 PSI and rigorous pulse cycles, this coupling sets the benchmark for durability and safety in critical systems.

Key Features & Benefits

Superior 74° Tapered Seal: The male thread end features a precision-machined 74° cone seal. This design provides a large metal-to-metal sealing surface, ensuring an exceptional leak-free connection that is highly resistant to vibration and over-torque, even under extreme pressure cycles.

Unmatched Pulse Durability: The innovative one-piece sleeve design significantly enhances the structural integrity of the hose assembly. It is proven to withstand up to one million impulse cycles, far exceeding standard requirements and minimizing downtime in high-cycle applications.

Extreme Pressure Rating: Certified for operating pressures up to 420 bar (6000 PSI), making it ideal for use with high-strength, six-spiral wire reinforced (6SN) hoses in the most intense hydraulic systems.

Global Standard Compliance: Manufactured in full compliance with leading international standards, including ISO 8434-2, ISO 11926, and SAE J514, guaranteeing quality, interoperability, and reliability worldwide.

Broad Compatibility: Available in a complete range of thread sizes from SAE 1/4" to 2", providing a solution for virtually any system requirement and ensuring easy integration into existing equipment.

Specification
