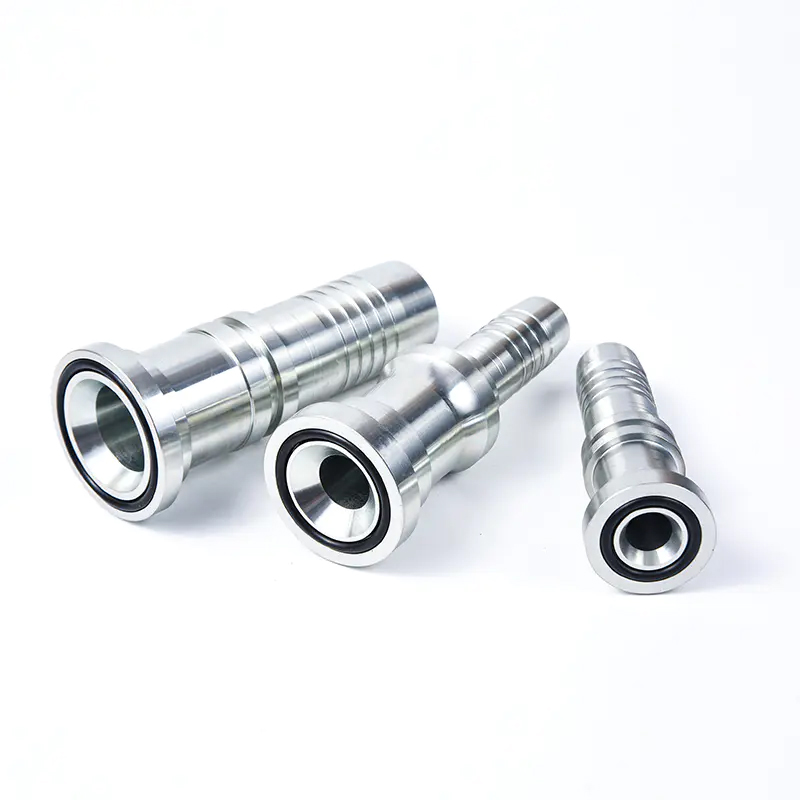

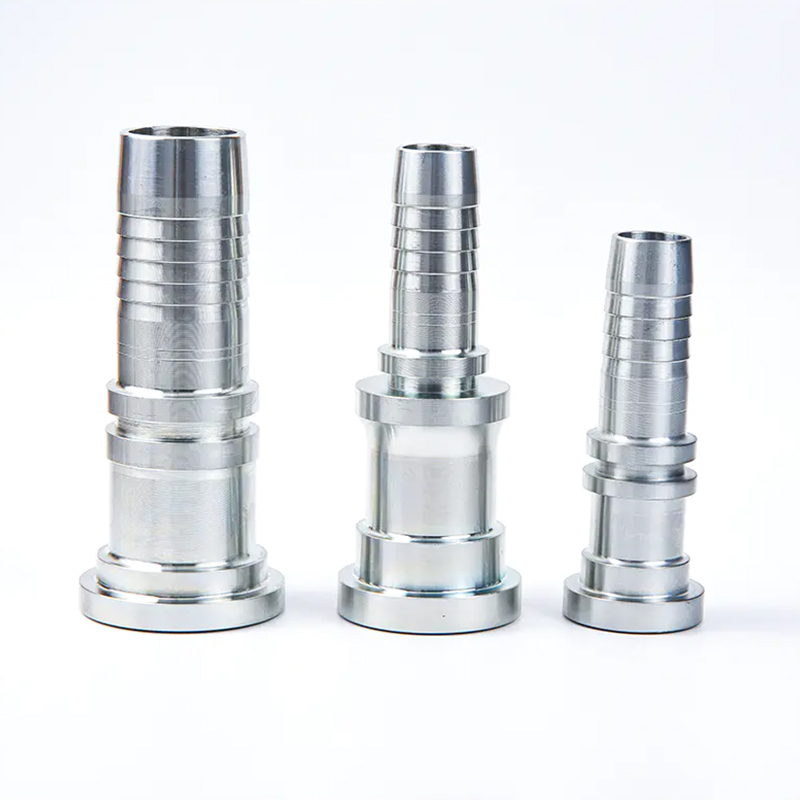

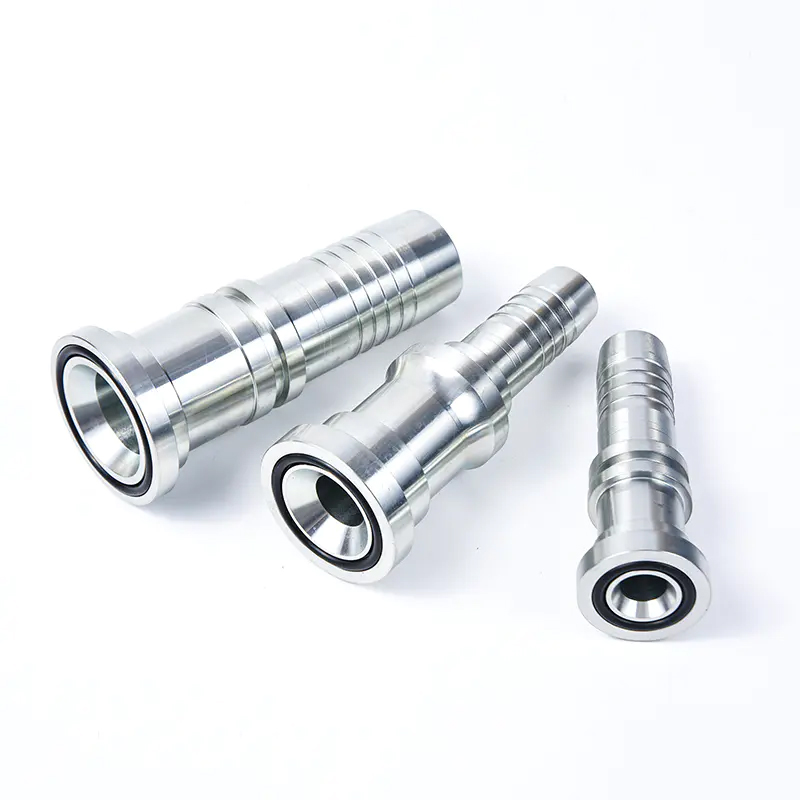

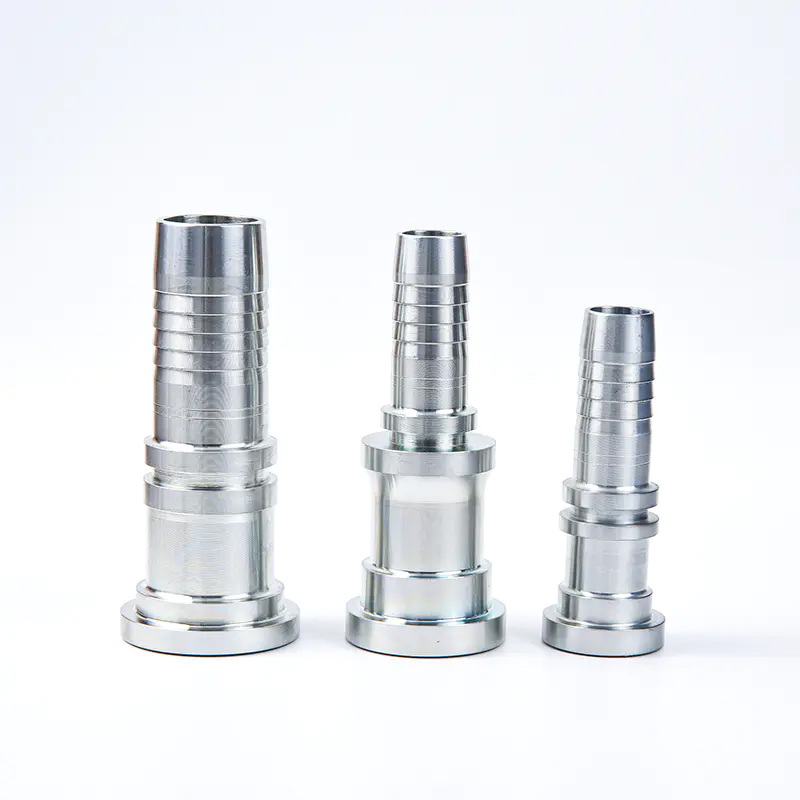

The 87611 flanged hose coupling is a heavy-duty, high-pressure component engineered for ultra-reliable fluid system connections, specifically designed for demanding applications like industrial hydraulic machinery, heavy construction equipment, and high-pressure process lines where 6000PSI performance is non-negotiable.
Its key design advantage lies in a robust dual-end configuration tailored for both strength and versatility. One end features a heavy-duty 6000PSI SAE flange face equipped with an O-ring seal, paired with split flange clamps compliant with SAE J 518 and ISO6162-1 standards. The 6000PSI-rated flange face delivers exceptional structural integrity under extreme pressure, while the O-ring seal ensures zero fluid leakage—even amid intense vibration or pressure fluctuations common in heavy-duty operations. The split flange clamps simplify on-site installation and maintenance: they allow for easy assembly and disassembly without disrupting the entire fluid system, a critical benefit in tight spaces or for equipment with limited access. The opposite end is engineered to connect seamlessly with standard hoses, including SAE 100 and EN853, eliminating compatibility barriers and enabling smooth integration into existing high-pressure circuits.
Boosting its long-term reliability is a one-piece sleeve construction. This integrated design minimizes potential failure points, enhances structural rigidity, and enables the coupling to pass rigorous durability testing—withstanding up to one million pulse tests. This resilience ensures consistent performance in high-cycle operations, reducing unplanned downtime and lowering maintenance costs over the component’s lifespan.
To meet diverse industrial needs, the 87611 coupling is available with standard SAE 100 hose connection cores ranging from 1/4" to 2". This size range covers most high-pressure application requirements, from compact hydraulic units to large-scale heavy machinery, ensuring versatility across project scopes.
In summary, the 87611 flanged hose coupling combines 6000PSI high-pressure capability, leak-proof sealing, easy maintenance, and broad compatibility—all aligned with global standards. It is a trusted choice for professionals seeking a durable, high-performance solution for demanding hydraulic and industrial fluid system connections.
Specification

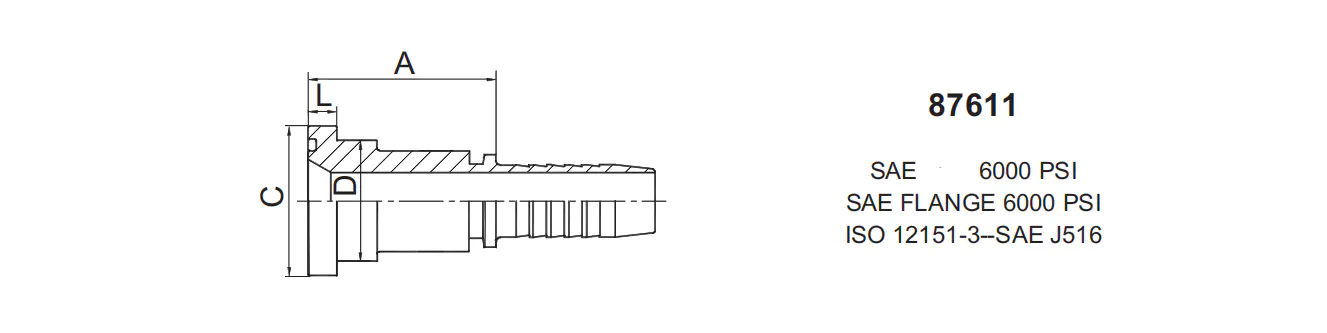

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | c | D | L | ||
| 87611-08-08 | 1/2" | 12 | 8 | 47 | 31.7 | 24 | 7.75 |
| 87611-12-10 | 3/4" | 16 | 10 | 50.5 | 41.3 | 32 | 8.76 |
| 87611-12-12 | 3/4" | 20 | 12 | 51 | 41.3 | 32 | 8.76 |
| 87611-16-12 | 1" | 20 | 12 | 56 | 47.6 | 38 | 9.53 |
| 87611-16-16 | 1" | 25 | 16 | 57 | 47.6 | 38 | 9.53 |
| 87611-16-20 | 1" | 32 | 20 | 61 | 47.6 | 38 | 9.53 |
| 87611-20-16 | 1.1/4" | 25 | 16 | 65 | 54 | 44 | 10.29 |
| 87611-20-20 | 1.1/4" | 32 | 20 | 66 | 54 | 44 | 10.29 |
| 87611-24-20 | 1.1/2" | 32 | 20 | 75 | 63.5 | 51 | 12.57 |
| 87611-24-24 | 1.1/2" | 40 | 24 | 75 | 63.5 | 51 | 12.57 |
| 87611-32-24 | 2" | 40 | 24 | 85 | 79.4 | 67 | 12.57 |
| 87611-32-32 | 2" | 50 | 32 | 85 | 79.4 | 67 | 12.57 |
| Note: 1.For use with braided hoses. 2. If use with spiral hos es, hose ftting series number is 87612-xx-xx. | |||||||
