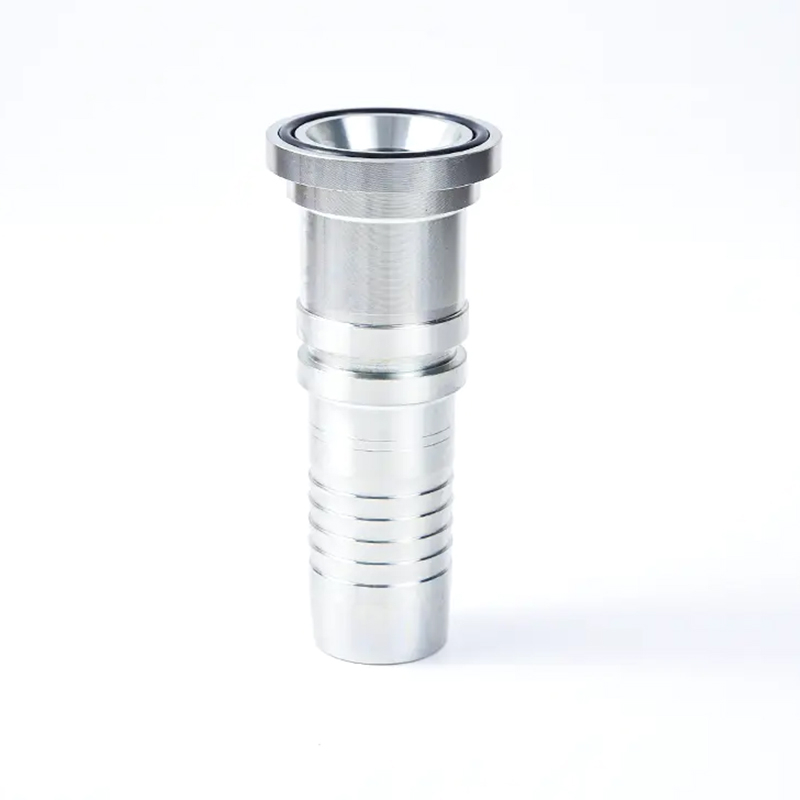

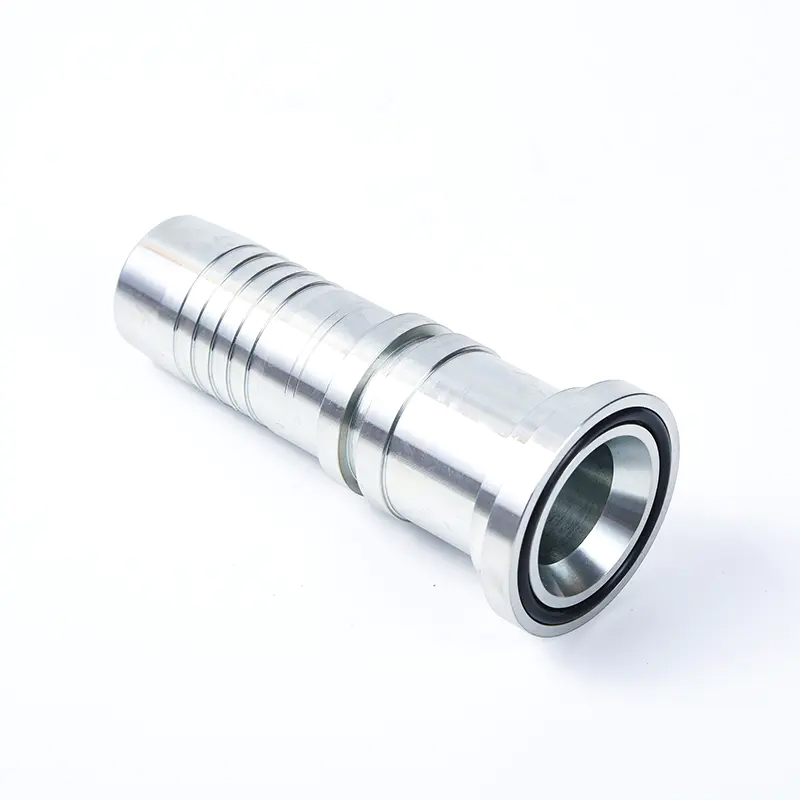

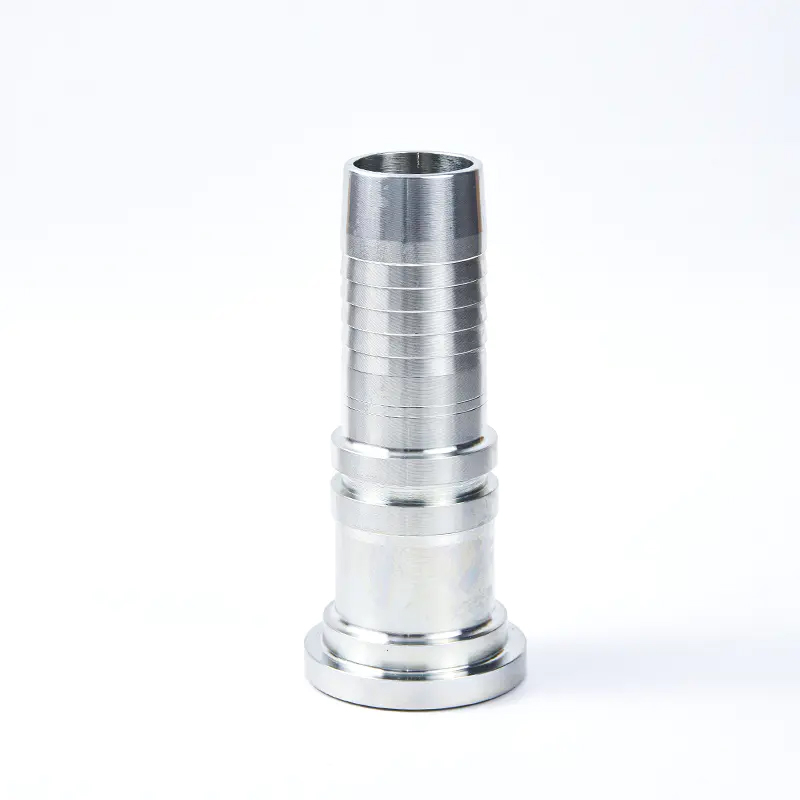

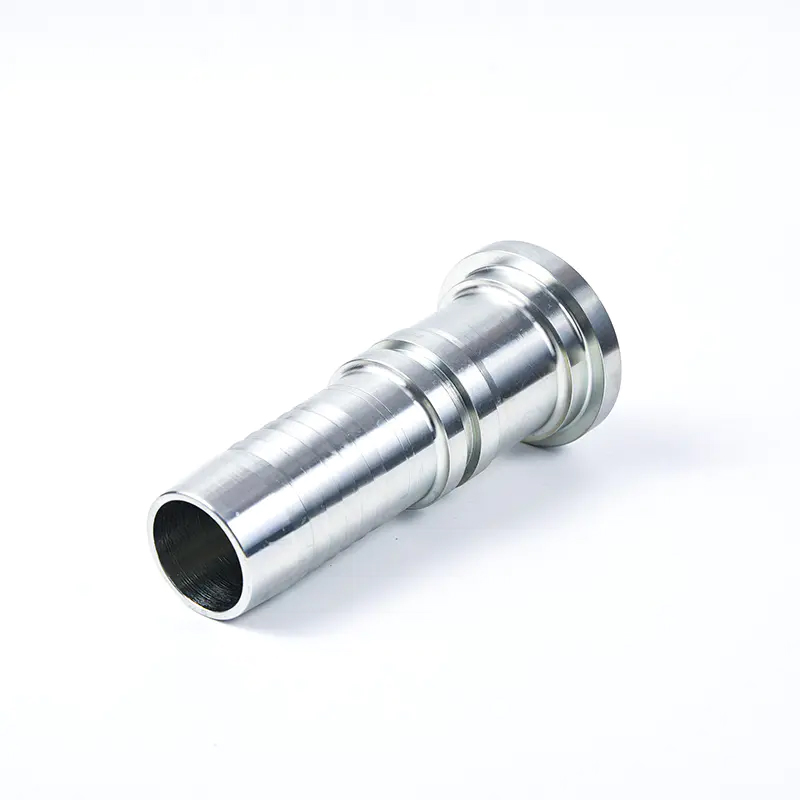

The 87311 flanged hose coupling is a meticulously engineered component designed to deliver secure and efficient connections in a wide range of fluid transfer applications. One end features a light 3000PSI SAE flange face equipped with an O-ring seal, paired with a split flange clamp that adheres to SAE J 518 and ISO 6162-1 standards, ensuring a robust and leak-tight interface with compatible flanged components. The other end is crafted to connect seamlessly with standard hoses such as SAE 100 and EN853, offering exceptional versatility for integration into various industrial setups.
A key highlight of this coupling is its one-piece sleeve, which plays a crucial role in enhancing connection reliability. This integrated design minimizes potential points of failure, providing consistent performance even in demanding operating conditions. Its durability is further validated by its ability to withstand up to one million pulse tests, a testament to its long-term resilience and suitability for high-cycle applications where reliability is paramount.
The 87311 flanged hose coupling is available with SAE 100 standard connection cores, covering hose sizes from 1/4" to 2". This comprehensive size range ensures that it can accommodate diverse hose requirements, making it a flexible choice for industries such as manufacturing, construction, and automotive, where efficient fluid transfer is essential.
In summary, the 87311 flanged hose coupling combines precision engineering, adherence to international standards, and a durable one-piece design, making it an ideal solution for professionals seeking reliable, high-performance connections in their fluid systems.

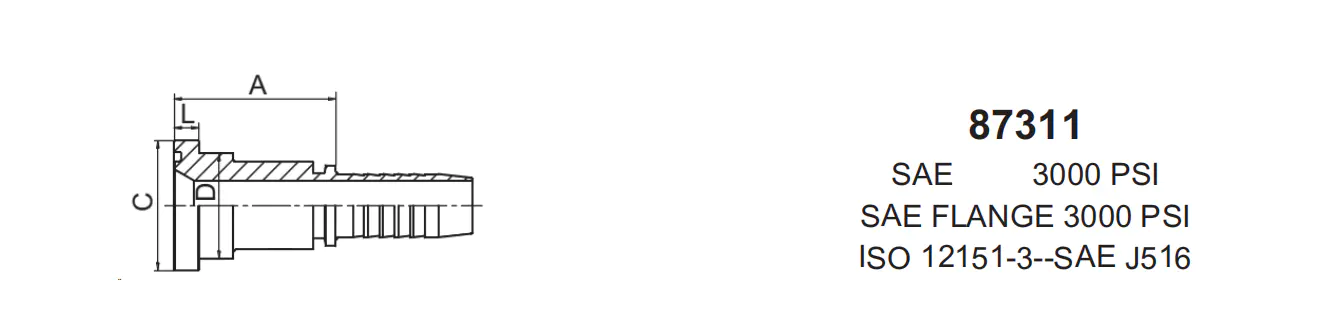

Specification
| PART NO | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | D | L | ||
| 87311-08-08 | 1/2" | 12 | 8 | 46 | 30.2 | 24 | 6.73 |
| 87311-12-08 | 3/4" | 12 | 8 | 47 | 38.1 | 31.7 | 6.73 |
| 87311-12-10 | 3/4" | 16 | 10 | 48 | 38.1 | 31.7 | 6.73 |
| 87311-12-12 | 3/4" | 20 | 12 | 48 | 38.1 | 31.7 | 6.73 |
| 87311-12-16 | 3/4" | 25 | 16 | 49 | 38.1 | 31.7 | 6.73 |
| 87311-16-12 | 1" | 20 | 12 | 51 | 44.4 | 38 | 8 |
| 87311-16-16 | 1" | 25 | 16 | 52 | 44.4 | 38 | 8 |
| 87311-16-20 | 1" | 32 | 20 | 53 | 44.4 | 38 | 8 |
| 87311-20-16 | 1.1/4" | 25 | 16 | 57 | 50.8 | 43 | 8 |
| 87311-20-20 | 1.1/4" | 32 | 20 | 58 | 50.8 | 43 | 8 |
| 87311-24-20 | 1.1/2" | 32 | 20 | 68 | 60.3 | 50 | 8 |
| 87311-24-24 | 1.1/2" | 40 | 24 | 68 | 60.3 | 50 | 8 |
| 87311-32-24 | 2" | 40 | 24 | 70 | 71.4 | 62 | 9.53 |
| 87311-32-32 | 2" | 50 | 32 | 70 | 71.4 | 62 | 9.53 |
| 87311-40-40 | 2.1/2" | 64 | 40 | 76 | 84.1 | 74 | 9.53 |
| Note: 1. For use with braided hoses.2.If use with spiral hoses, hose fitting series number is 873 12-xx-xx. | |||||||
