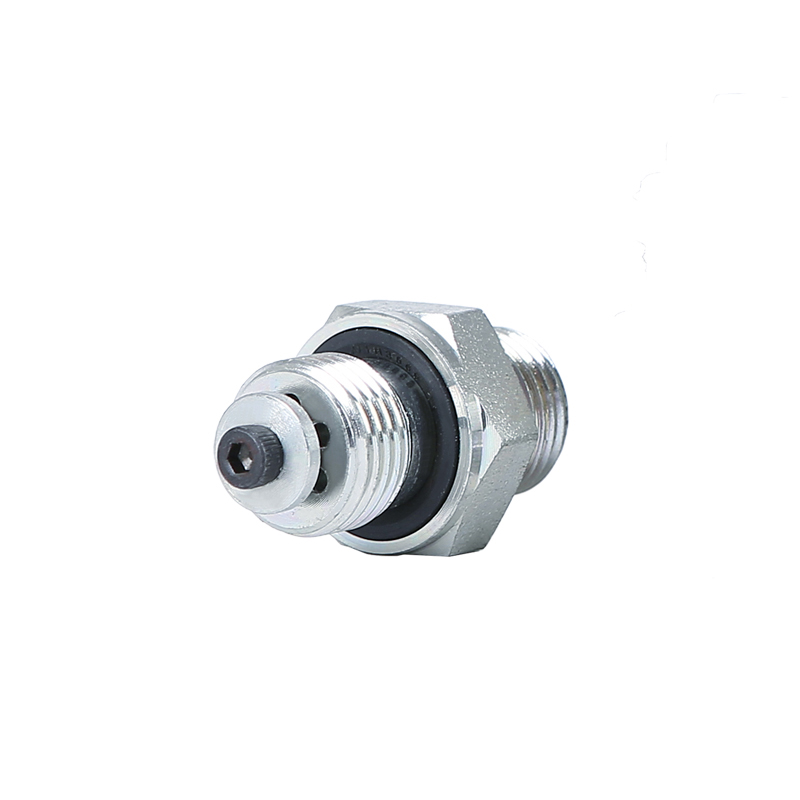

Sizing safety components poses a major engineering dilemma. You must balance strict safety compliance against the constant risk of nuisance tripping. If you guess the flow rate, you invite either operational downtime or catastrophic accidents. A hose burst valve acts as a critical velocity fuse within fluid power circuits. It halts uncontrolled load descent instantly during a catastrophic hose rupture. They protect operators, machinery, and the surrounding environment from sudden mechanical drops.
This article provides a rigorous, evidence-based framework for specifying these protective devices. We will show you how to calculate, evaluate, and select the correct reaction flow rate for your specific application. You will learn to move beyond generic guesswork. We provide the tools to build highly reliable, exceptionally safe fluid power circuits.
The optimal closing flow rate typically requires a safety margin of 20% to 30% above the system's maximum normal operating flow.
Selecting a flow rate too close to the baseline causes operational downtime via false triggering, especially during cold starts or transient surges.
System dynamics—including cylinder ratios, pump output, and fluid viscosity—must dictate your evaluation criteria, not just the hose diameter.
Procurement decisions should weigh the choice between factory-preset valves (higher reliability, tamper-proof) and field-adjustable valves (flexible, but prone to human error).
Specifying the wrong size creates severe operational and safety impacts. Poor sizing wastes money and puts human lives at risk. You must clearly understand the extreme ends of the sizing spectrum.
Setting the flow rate too low causes frequent nuisance tripping. The unit locks up during normal rapid movements. It also triggers prematurely during harmless pressure spikes. This leads to frustrating system downtime. Operators complain about sudden, jarring mechanical halts. You will face unwarranted maintenance calls. Productivity plummets when machines constantly shut themselves down for no valid safety reason.
Setting the rate too high creates a massive safety hazard. A partial hose rupture might not generate enough differential pressure. The fluid escapes, but the velocity remains below your high trigger point. The component fails to actuate entirely. It essentially renders the safety mechanism useless. A heavy load could crash to the ground.
You must establish the "Goldilocks zone" for your circuit. This is the exact reaction flow rate where actuation works perfectly. The safety unit distinguishes accurately between a heavy operational surge and an actual hose failure. Hitting this target requires precise mathematics and real-world system awareness.
Every hose burst valve in hydraulic systems requires careful baseline flow calculations. Engineers must map exact parameters before opening vendor catalogs. You cannot rely on hose diameter alone to dictate your safety specifications.
You must calculate the absolute maximum flow leaving the actuator. This actuator could be a cylinder or a motor. Include maximum pump displacement in your calculations. Factor in the highest possible engine RPM. You must also evaluate critical load dynamics. Gravity can accelerate a descending load faster than the pump supplies fluid.
This remains a crucial engineering factor. Return flow from the rod end of a cylinder is often much higher than the pump supply flow. This happens because of the internal area ratio. The annulus area is smaller than the full bore area. You must multiply the supply flow by this ratio. This determines the true, amplified return rate. Forgetting this step guarantees an undersized unit.
Identify expected spikes from load bouncing. Agricultural machines experience severe bouncing over rough terrain. Heavy mobile equipment faces similar transient forces. Sudden directional valve shifts also cause massive transient spikes. You must map these temporary surges to establish a true baseline.
Follow this numbered list to gather your baseline data accurately:
Determine maximum pump output at peak engine RPM.
Calculate the exact cylinder area ratio (bore area vs. annulus area).
Multiply maximum pump output by the area ratio to find peak return flow.
Add a conservative estimate for gravity-induced overrunning loads.
Document the maximum observed transient spikes during rough operation.
Industry standards define a specific logic to specify the reaction flow. We represent this reaction target mathematically as $Q_{react}$. You must apply structured formulas rather than guesswork.
The industry-standard baseline relies on a straightforward multiplier. You calculate it as $Q_{react} = Q_{max} \times (1.2 \text{ to } 1.3)$. This builds a strict 20% to 30% safety margin above your absolute maximum baseline. This margin absorbs transient spikes safely. It prevents nuisance tripping while guaranteeing rapid actuation during a true rupture.
Never apply standard burst pressure safety rules to flow rates. Some engineers mistakenly use a 1:4 safety ratio for flow. Flow requires much tighter tolerances. Applying a 400% multiplier to your flow rate is dangerous. It ensures the unit will never close during a catastrophic hose failure.
You must consider implementation realities. Cold hydraulic fluid has a much higher viscosity. Thicker fluid increases pressure drops across the internal poppet. This often causes premature closing. You require a margin adjustment for equipment operating in extreme winter weather. Thicker oils fool the mechanism into sensing a higher velocity.
Evaluating a component requires examining the manufacturer’s $\Delta P$ vs. Flow curve. You must ensure the unit will not introduce parasitic losses during normal operation. High pressure drops generate unwanted heat. They reduce overall machine efficiency.
Example Flow Rate Calculation Matrix | |||
System Condition | Max Normal Flow ($Q_{max}$) | Multiplier Applied | Target Reaction Flow ($Q_{react}$) |
|---|---|---|---|
Standard Indoor Machinery | 50 L/min | 1.2x | 60 L/min |
Mobile Equipment (High Bounce) | 50 L/min | 1.3x | 65 L/min |
Cold Weather Operation | 50 L/min | 1.35x | 67.5 L/min |
Physical setup details heavily alter how the device perceives flow. Excellent calculations fail if installation practices are poor. You must control the physical environment tightly.
Forum discussions frequently ask: "Flow goes which way?" You must clarify the difference between free flow and controlled flow. Free flow supplies the actuator to lift the load. Controlled flow handles the return path and load holding. The safety mechanism only actuates in the controlled flow direction. Installing it backwards blocks normal operation entirely.
Install the unit as close to the actuator as physically possible. Screw it directly into the cylinder port if space permits. This ensures it reads exit flow accurately. It prevents interference from upstream hose expansion. Distance dilutes the reaction speed. You want zero flexible hosing between the cylinder and the safety mechanism.
Long, flexible hose runs absorb internal flow spikes. They swell under pressure. This volumetric expansion acts like a minor accumulator. It disguises the sudden pressure drop of a rupture. This can delay actuation significantly. You must factor long hose runs into your reaction time expectations.
You must compare these two main types from a procurement and risk perspective. Each category serves distinct engineering and operational needs.
These units ship from the manufacturer with a locked, predetermined trigger point.
Pros: They are tamper-proof and highly precise. They offer excellent reliability for OEM mass production. They make ISO compliance much easier to document and verify.
Cons: They are unforgiving. If your initial engineering calculations were wrong, you must replace the entire unit. You cannot tweak them on the shop floor.
These units feature an external adjustment mechanism. Users can manually dial in the desired gap size.
Pros: They are ideal for custom machinery and initial prototyping. They work perfectly for retrofitting older equipment where exact baseline flow rates remain unknown.
Cons: They introduce significant human error risk. Untrained operators might adjust the gap too wide to stop nuisance tripping. This action completely nullifies the safety feature.
Buyers need strict criteria to evaluate supplier spec sheets. You must look beyond basic pricing. Demand rigorous engineering documentation to support your selection.
Demand clear Flow vs. Pressure Drop graphs from the manufacturer. You should also request verified testing certificates. Authentic data proves the component performs as advertised. Do not accept vague performance estimates.
Verify if the component meets relevant machinery directives. For example, ISO 8643 dictates strict rules for earth-moving machinery. Compliance protects your company from liability. It ensures the component survives harsh industrial environments.
Ensure the vendor offers correct port sizes natively. Look for exact BSP, NPT, or SAE thread matches. Avoid using adapters whenever possible. Adapters alter internal flow dynamics. They create turbulence. They often change the trigger points unexpectedly. Direct port matching ensures reliable, predictable actuation.
Vendor Evaluation Checklist | ||
Criteria | Ideal Requirement | Red Flag |
|---|---|---|
Performance Data | Detailed $\Delta P$ vs. Flow curves provided | Only a single maximum flow number listed |
Certifications | ISO 8643 or equivalent available | No formal testing documentation |
Port Options | Native thread matching (BSP/NPT/SAE) | Requires third-party adapters to fit cylinder |
Selecting the correct flow rate is an exact science. You must balance normal return flows against area ratios. You must enforce a strict 20% to 30% safety margin. Over-specifying these devices creates a false sense of security. Under-specifying them degrades machine usability through constant nuisance tripping.
We encourage you to consult with a dedicated fluid power applications engineer. Utilize a vendor's proprietary flow calculation tool before finalizing your procurement. Rigorous mathematical evaluation ensures your machinery remains safe, compliant, and highly productive under heavy loads.
A: The valve will close during normal rapid machine movements or fluid temperature drops. It locks the system unexpectedly. This requires a manual pressure reset to resume operation, causing frustrating machine downtime.
A: No. Burst pressure and reaction flow rate are entirely different metrics. Applying a 4:1 multiplier to your flow rate will result in a valve that never closes during an actual hose failure.
A: Yes. Thicker, colder fluids create a higher pressure differential across the internal poppet. This can cause the unit to actuate at a lower actual flow rate than its stated rating.
A: To unseat the locked poppet, pressure must be equalized on both sides of the unit. You typically achieve this by briefly applying pressure to the blocked line from the directional control side.
