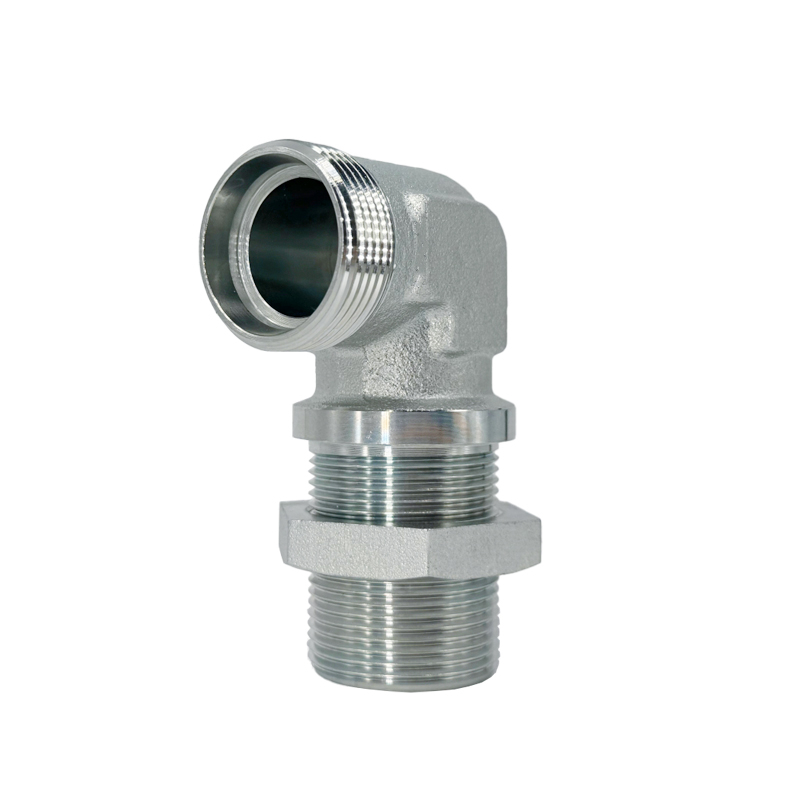

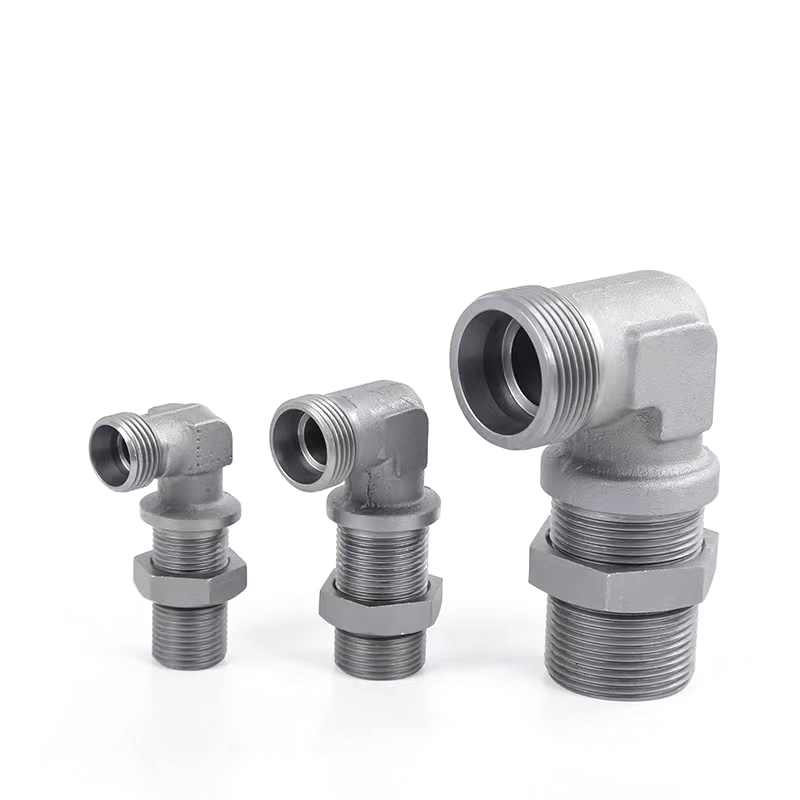

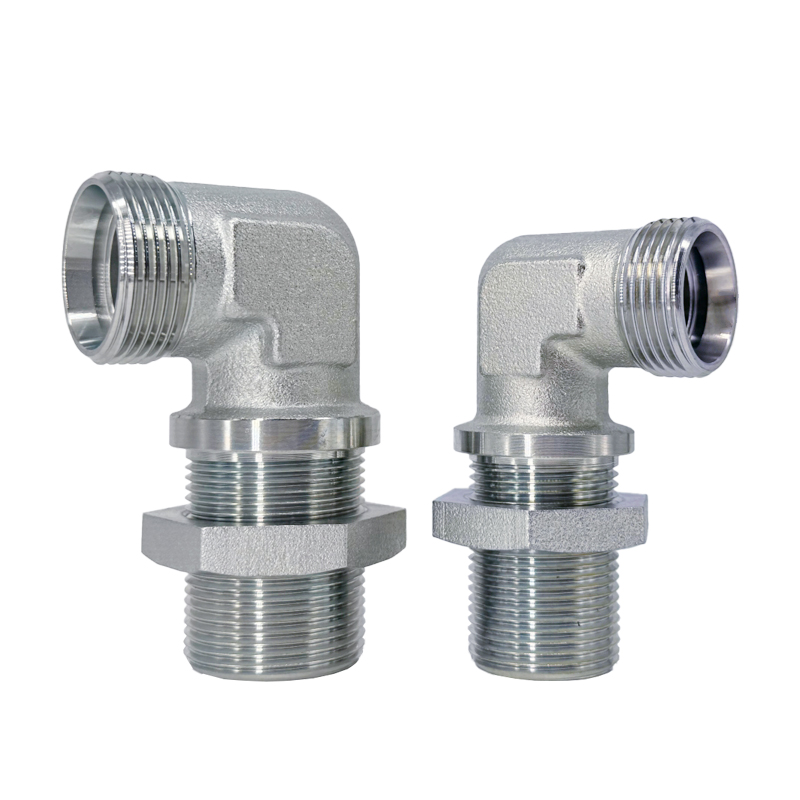

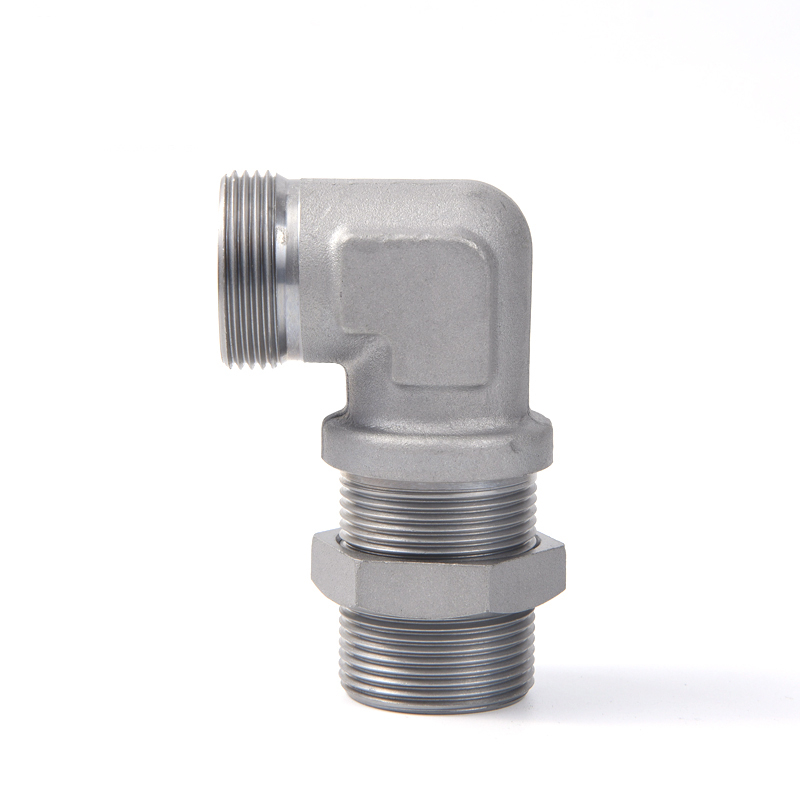

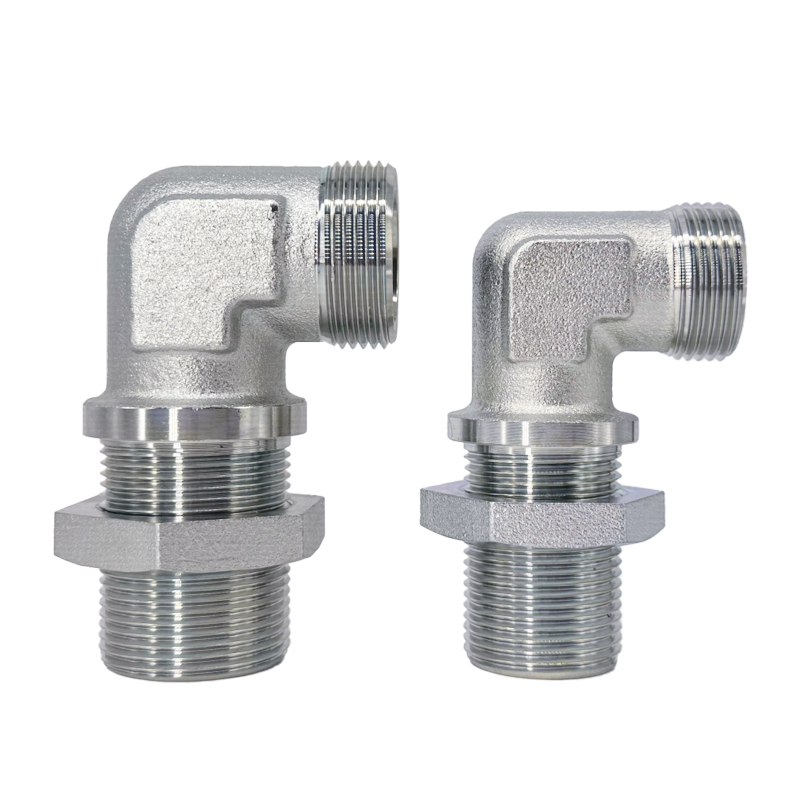

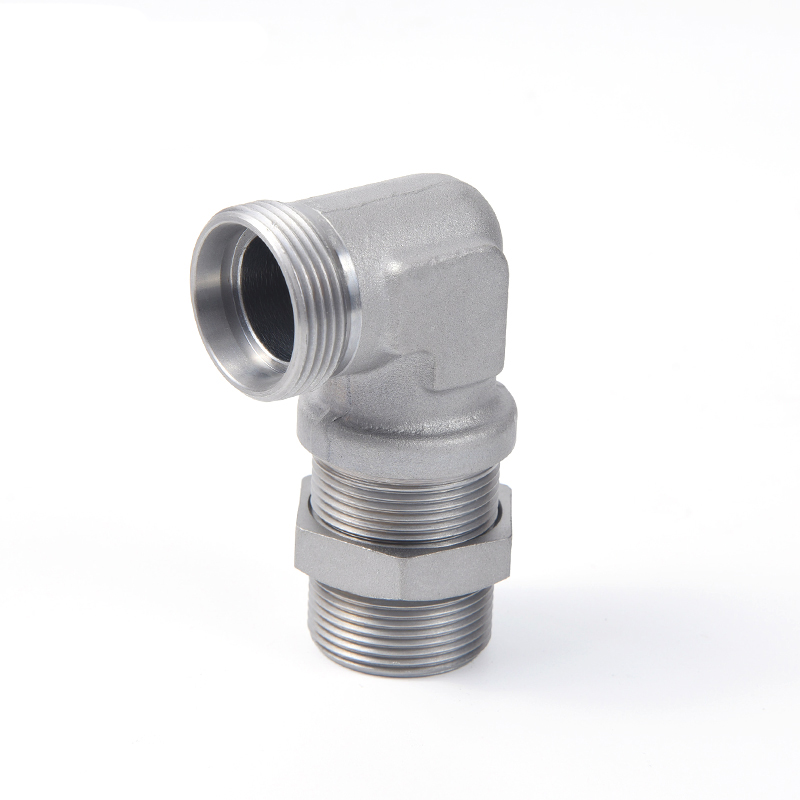

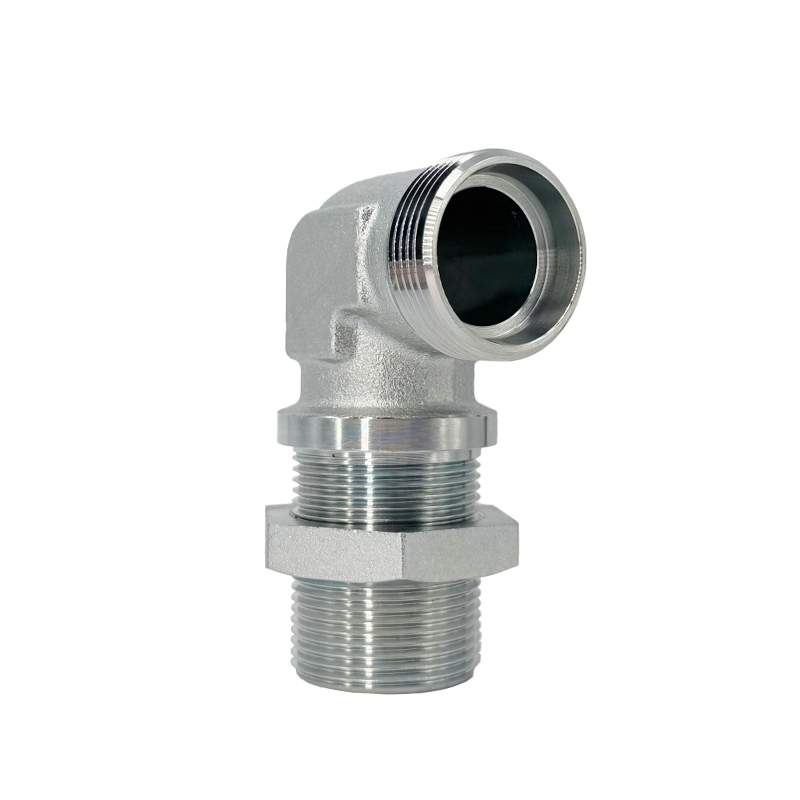

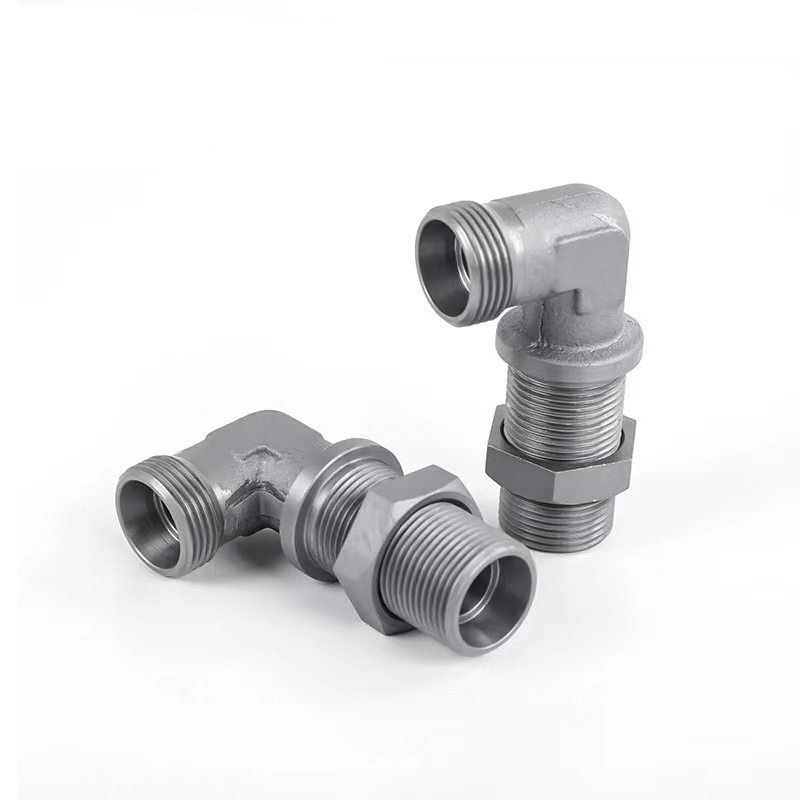

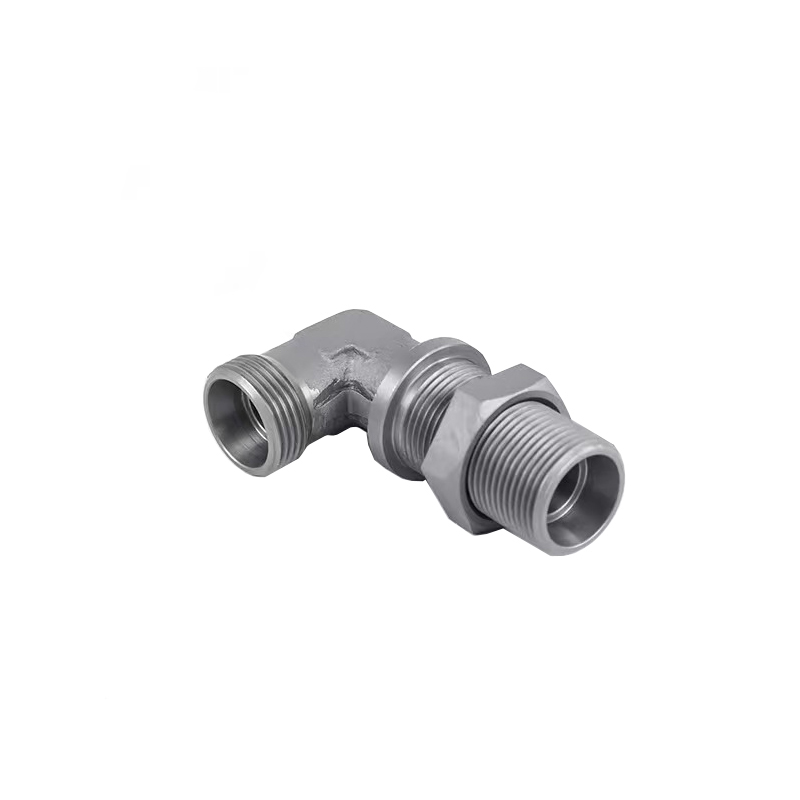

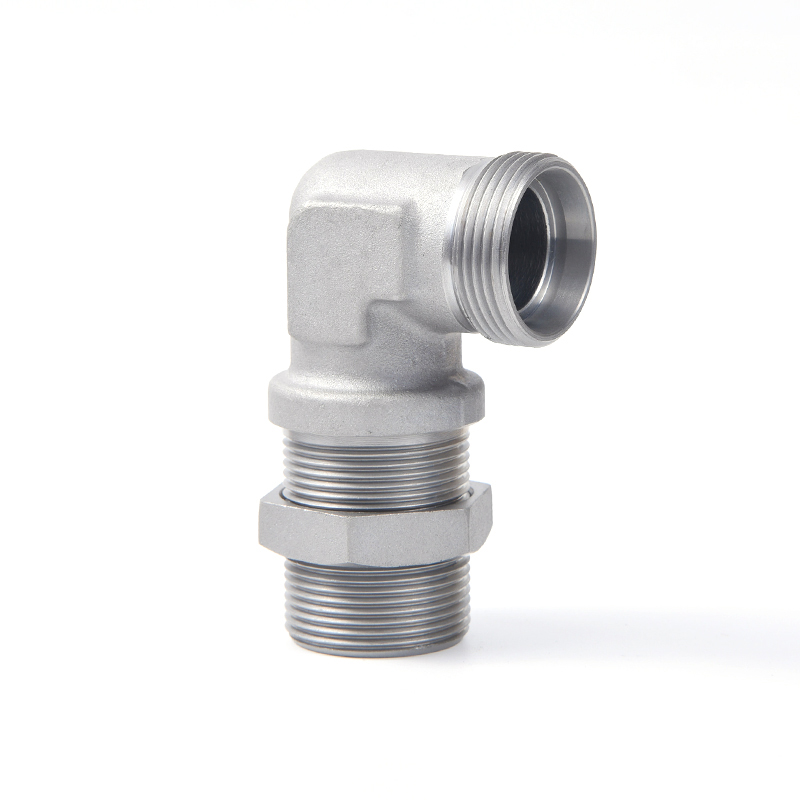

The 6C9-LN/6D9-LN WSV right-angle over-plate coupling is a high-performance hydraulic connector designed for high-pressure fluid systems, compliant with international standards DIN 2353/ISO 8434.
Features
1. 24° Cone Seal on Both Ends Equipped with metric male threads and integrated 24° cone seals (per DIN 2353), ensuring reliable sealing under high pressure and superior leak-proof performance.
2. Compatible with Multiple Tube Standards
Light Series (24° Cone Light Connection): Supports tube sizes 06L-42L.
Heavy Series (24° Cone Heavy Connection): Supports tube sizes 06S-38S.
Accommodates diverse load requirements for various industrial applications.
3. Ultra-High Pressure Resistance
Operating pressure up to 630 bar (9000 PSI), suitable for high-pressure hydraulic systems in construction machinery, oil & gas, and heavy equipment.
4. Standardized Design
Strictly complies with DIN 2353/ISO 8434 international standards, ensuring global compatibility and interchangeability with hydraulic systems.
Typical Applications
Hydraulic Power Units (HPUs)
Industrial machinery high-pressure piping
Mobile equipment (e.g., excavators, cranes)
Key Advantages
1. Right-angle design saves installation space
2. Dual-end sealing for secure leak prevention
3. High-pressure endurance for harsh conditions
4. Standardized interfaces for easy maintenance
This product is an ideal solution for high-pressure hydraulic connections, balancing performance and reliability.

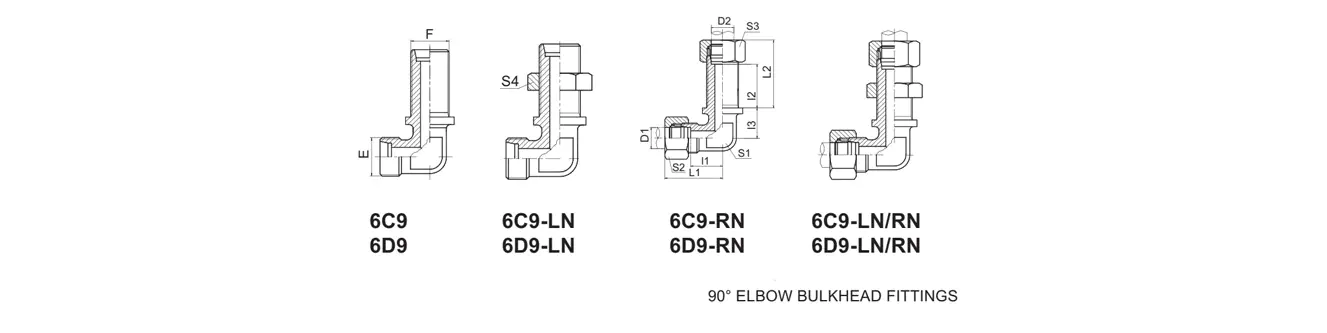

Specification
| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | |||||||||
| E | F | D1 | D2 | l1 | l2 | l3 | L1 | L2 | S1 | S2,S3 | S4 | ||
| 6C9-12 | M12x1.5 | M12x1.5 | 6 | 6 | 27 | 12 | 14 | 42 | 27 | 12 | 14 | 17 | 31.5L |
| 6C9-14 | M14x1.5 | M14x1.5 | 8 | 8 | 27 | 14 | 17 | 42 | 29 | 12 | 17 | 19 | |
| 6C9-16 | M16x1.5 | M16x1.5 | 10 | 10 | 28 | 15 | 18 | 43 | 30 | 14 | 19 | 22 | |
| 6C9-18 | M18x1.5 | M18x1.5 | 12 | 12 | 29 | 17 | 20 | 44 | 32 | 17 | 22 | 24 | |
| 6C9-22 | M22x1.5 | M22x1.5 | 15 | 15 | 31 | 21 | 23 | 46 | 36 | 19 | 27 | 30 | |
| 6C9-26 | M26x1.5 | M26x1.5 | 18 | 18 | 32.5 | 23.5 | 24 | 49 | 40 | 24 | 32 | 36 | |
| 6C9-30 | M30x2 | M30x2 | 22 | 22 | 34.5 | 27.5 | 30 | 51 | 44 | 27 | 36 | 41 | 16L |
| 6C9-36 | M36x2 | M36x2 | 28 | 28 | 35.5 | 30.5 | 34 | 52 | 47 | 36 | 41 | 46 | |
| 6C9-45 | M45x2 | M45x2 | 35 | 35 | 36.5 | 34.5 | 39 | 58 | 56 | 41 | 50 | 55 | |
| 6C9-52 | M52x2 | M52x2 | 42 | 42 | 36 | 40 | 43 | 59 | 63 | 50 | 60 | 65 | |
| 6D9-14 | M14x1.5 | M14x1.5 | 6 | 6 | 29 | 16 | 17 | 44 | 31 | 12 | 17 | 19 | 63S |
| 6D9-16 | M16x1.5 | M16x1.5 | 8 | 8 | 29 | 17 | 18 | 44 | 32 | 14 | 19 | 22 | |
| 6D9-18 | M18x1.5 | M18x1.5 | 10 | 10 | 29.5 | 17.5 | 20 | 46 | 34 | 17 | 22 | 24 | |
| 6D9-20 | M20x1.5 | M20x1.5 | 12 | 12 | 30.5 | 21.5 | 21 | 47 | 38 | 17 | 24 | 27 | |
| 6D9-22 | M22x1.5 | M22x1.5 | 14 | 14 | 32 | 22 | 23 | 50 | 40 | 19 | 27 | 30 | |
| 6D9-24 | M24x1.5 | M24x1.5 | 16 | 16 | 31.5 | 24.5 | 24 | 50 | 43 | 24 | 30 | 32 | 40S |
| 6D9-30 | M30x2 | M30x2 | 20 | 20 | 33.5 | 26.5 | 30 | 55 | 48 | 27 | 36 | 41 | |
| 6D9-36 | M36x2 | M36x2 | 25 | 25 | 35 | 30 | 34 | 59 | 54 | 36 | 46 | 46 | |
| 6D9-42 | M42x2 | M42x2 | 30 | 30 | 37.5 | 35.5 | 39 | 64 | 62 | 41 | 50 | 50 | |
| 6D9-52 | M52x2 | M52x2 | 38 | 38 | 37 | 41 | 43 | 68 | 72 | 50 | 60 | 65 | 31.5S |
| Noted+ in case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part no.for example 6C9- | |||||||||||||
| 30LN,order the adapter with cutting ring and nut,insert suffix "RN" after part no.,for example 6C9-30RN,order the adapter | |||||||||||||
| with lock nut and cutting ring and nut,insert suffix "LN/RN" after part no.,for example 6C9-30LN/RN. | |||||||||||||
