NL NS M Retaining nuts

Name: NL NS M Retaining nuts
Rating: 5.0 (96 reviews)

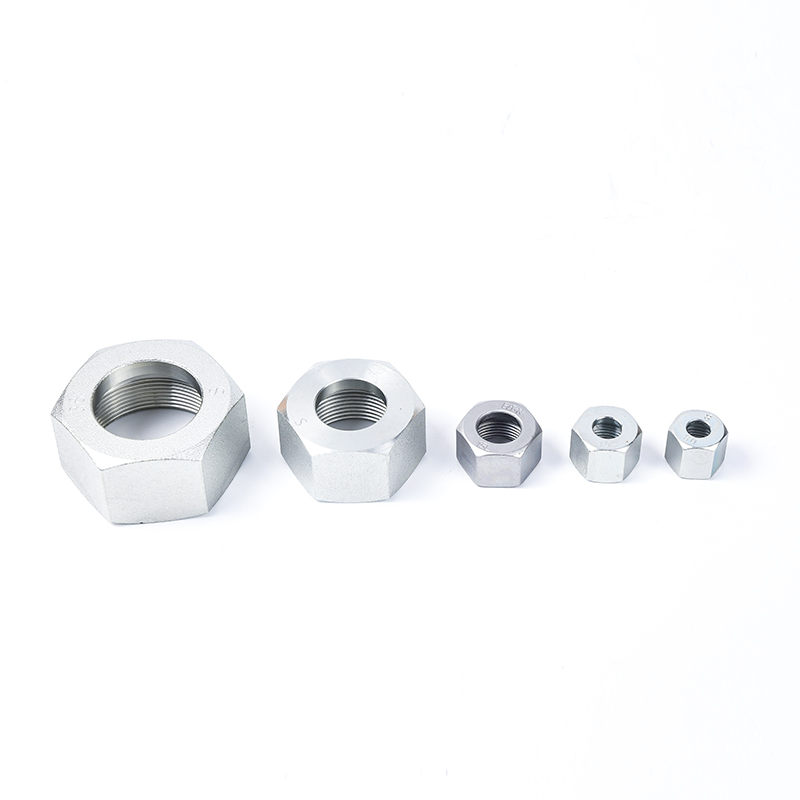

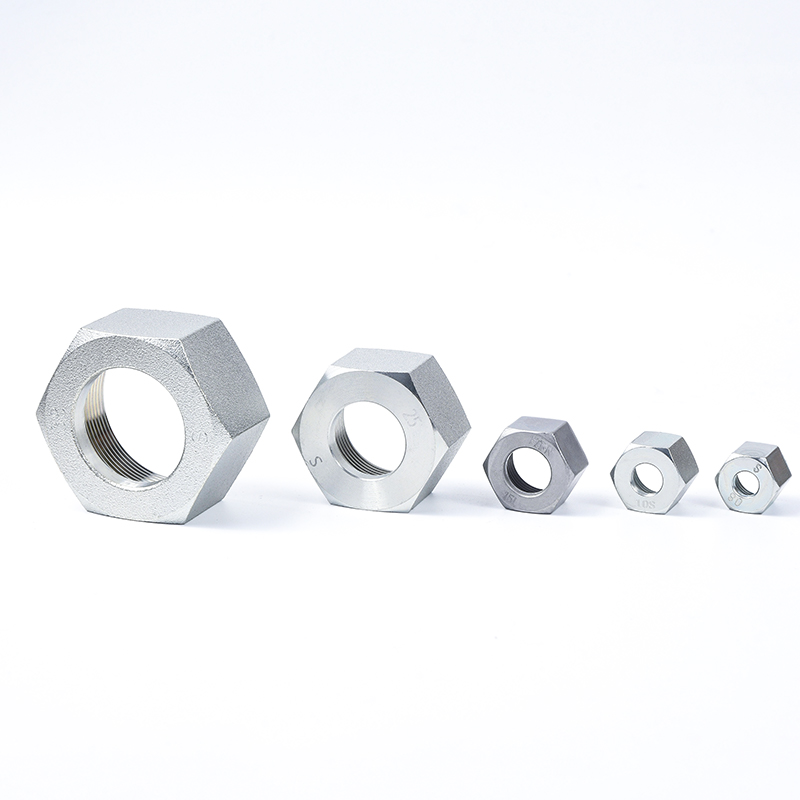

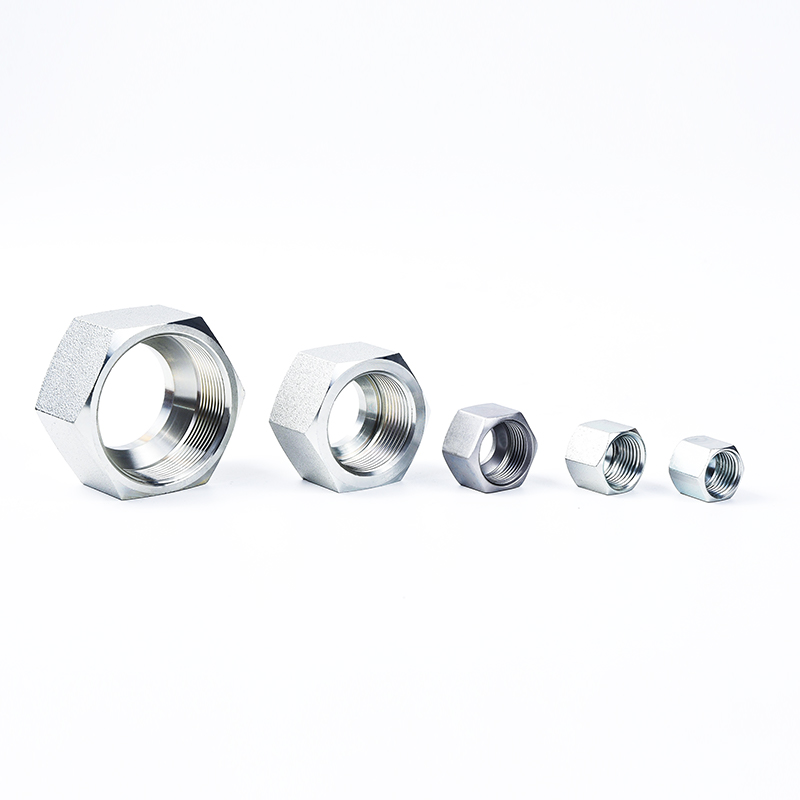

NL NS M ferrule nuts, pressure range up to 630 bar/9000 PSI, according to international standards: DIN3861 2353/ISO8434, available with standard tube diameters 24° taper light connection (DIN2353) 04LL-42L, 24° taper heavy connection (DIN2353) 06S-38S.

Availability:

Quantity:



Inquire Add to Basket

Description

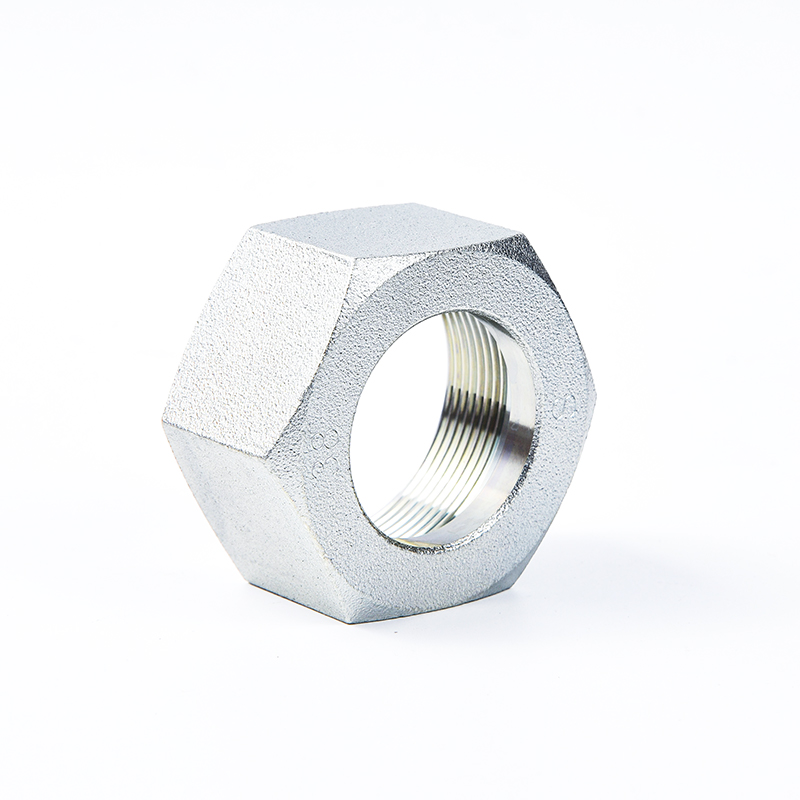

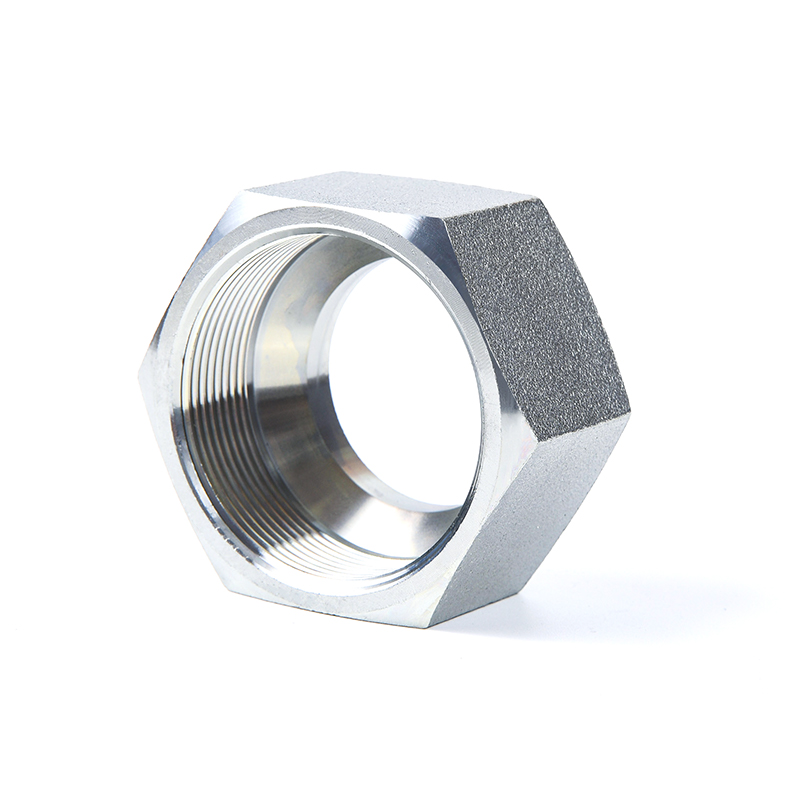

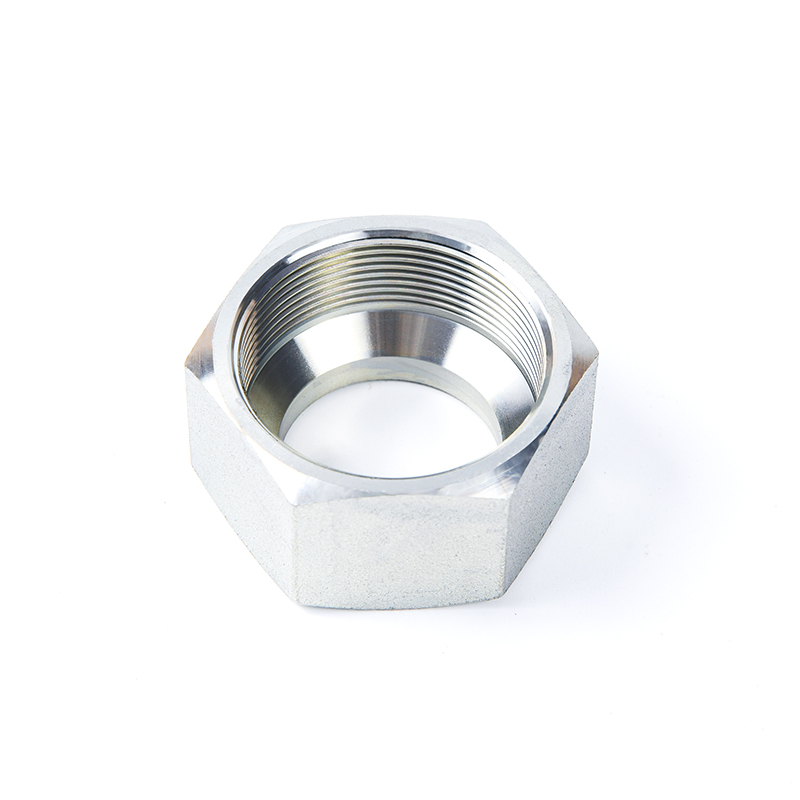

The NL NS M ferrule nuts are precision-machined hydraulic components engineered to secure bite-type ferrules on metric tubes, delivering a vibration-resistant, leak-tight seal under pressures up to 630 bar (9000 PSI). Built to DIN 3861 / ISO 8434 specifications, they ensure consistent clamping force across both light (04LL–42L) and heavy (06S–38S) 24° taper connections, offering reliable performance for high-pressure industrial hydraulic systems
Compliant with DIN 3861, DIN 2353 / ISO 8434 standards for metric bite-type tube fittings, these NL NS M ferrule nuts ensure reliable, leak-tight connections by securing ferrules firmly against the tube, even under high pressure up to 630 bar (9000 PSI). Crafted from durable carbon steel, they feature precision-machined threads for consistent clamping force. Surface treatments like zinc plating enhance corrosion resistance, extending service life in harsh industrial environments.
Suitable for diverse industrial scenarios, the NL NS M ferrule nuts excel in construction machinery, wind turbine gearboxes, industrial hydraulic stations, and marine/offshore hydraulic systems handling oil or hydraulic fluid media. By combining standardized compatibility (light series 04LL–42L / heavy series 06S–38S), high-pressure resistance, and corrosion-resistant construction, they deliver consistent reliability for critical fluid connections. Designed for vibration resistance and long-term performance, these nuts embody engineering excellence for high-pressure hydraulic system requirements.
Description

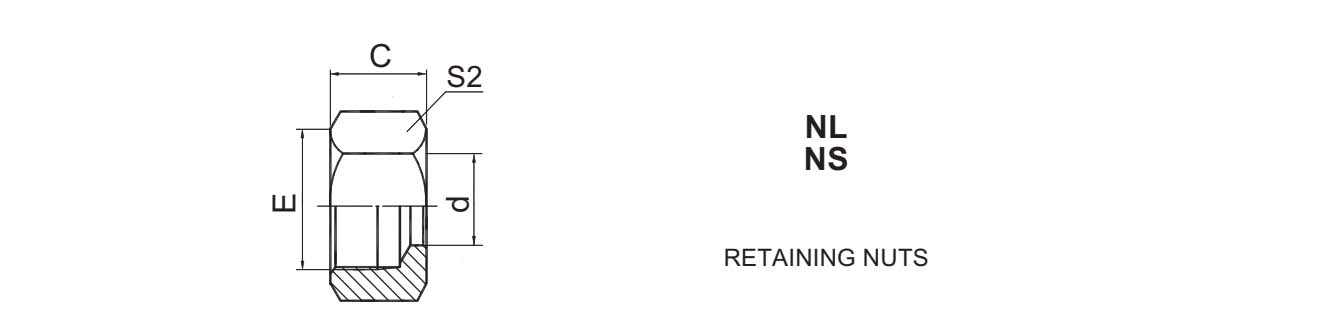

PART NO.	THREAD	TUBE O.D.	DIMENSIONS			MPa
PART NO.	E		C	d	S2	MPa
NL-12	M12X1.5	6	14.5	6	14	L
NL-14	M14X1.5	8	14.5	8	17
NL-16	M16X1.5	10	15.5	10	19
NL-18	M18X1.5	12	15.5	12	22
NL-22	M22X1.5	15	17	15	27
NL-26	M26X1.5	18	18	18	32
NL-30	M30X2	22	20	22	36
NL-30D	M30X1.5	22	19	22	36
NL-36	M36X2	28	21	28	41
NL-36D	M36X1.5	28	21	28	41
NL-45	M45X2	35	24	35	50
NL-45D	M45X1.5	35	25	35	50
NL-52	M52X2	42	24	42	60
NS-14	M14X1.5	6	16.5	6	17	S
NS-16	M16X1.5	8	16.5	8	19
NS-18	M18X1.5	10	17.5	10	22
NS-20	M20X1.5	12	17.5	12	24
NS-22	M22X1.5	14	20.5	14	27
NS-24	M24X1.5	16	20.5	16	30
NS-30	M30X2	20	24	20	36
NS-36	M36X2	25	27	25	46
NS-42	M42X2	30	29	30	50
NS-52	M52X2	38	32.5	38	60
