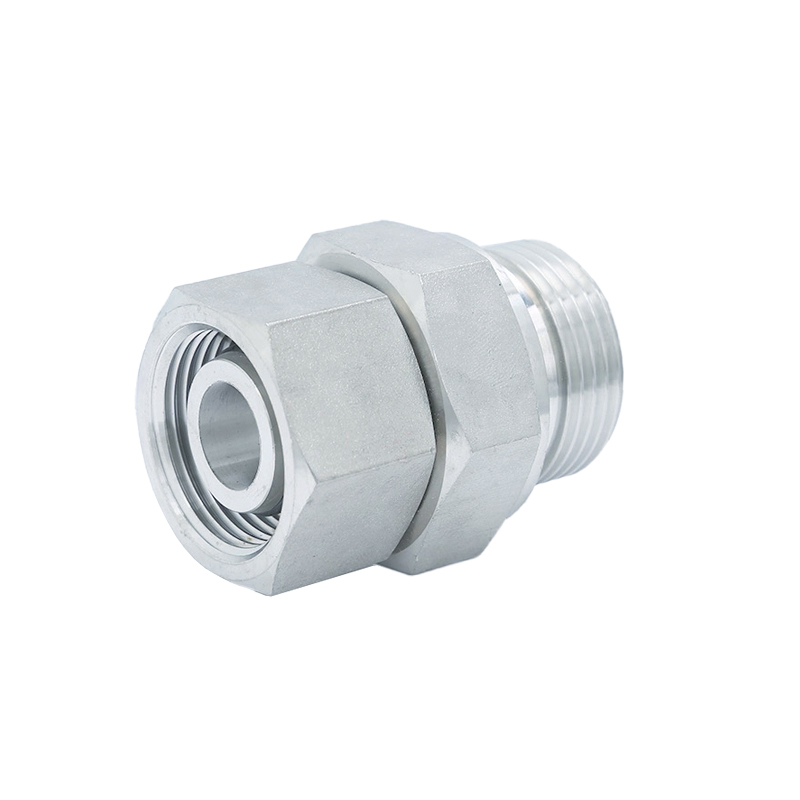

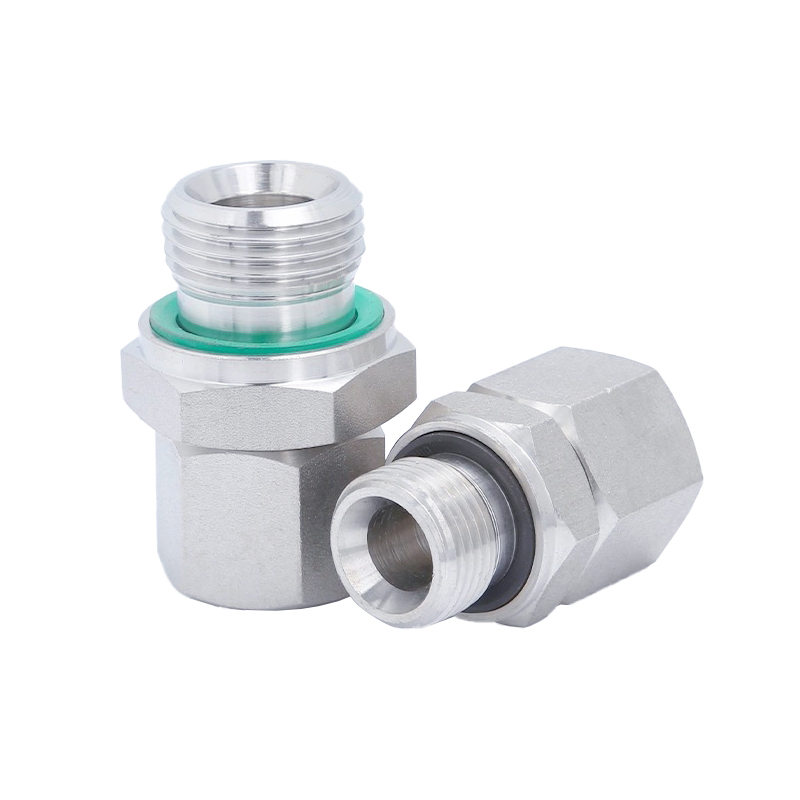

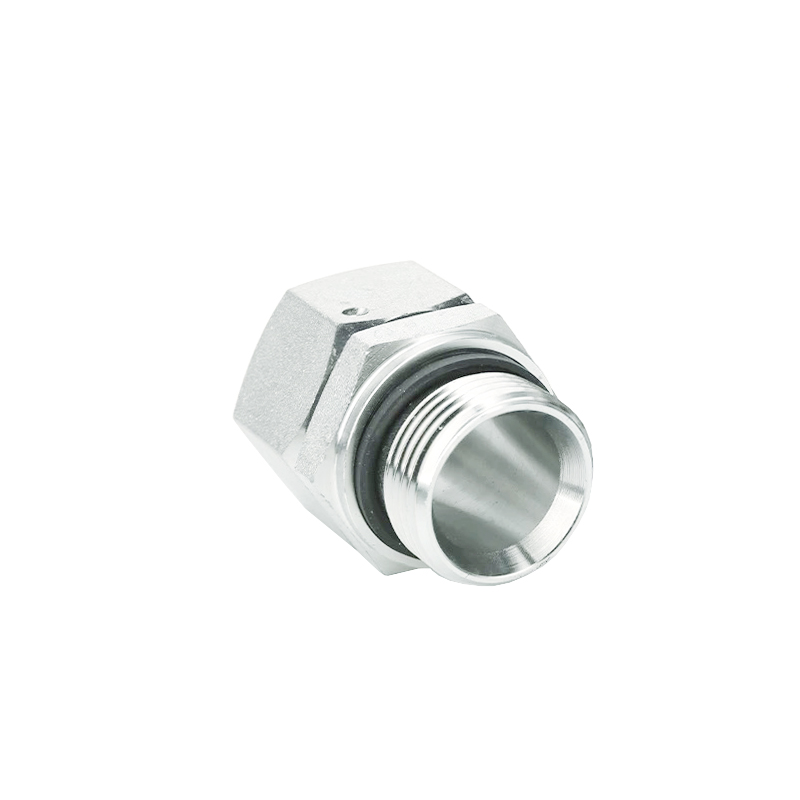

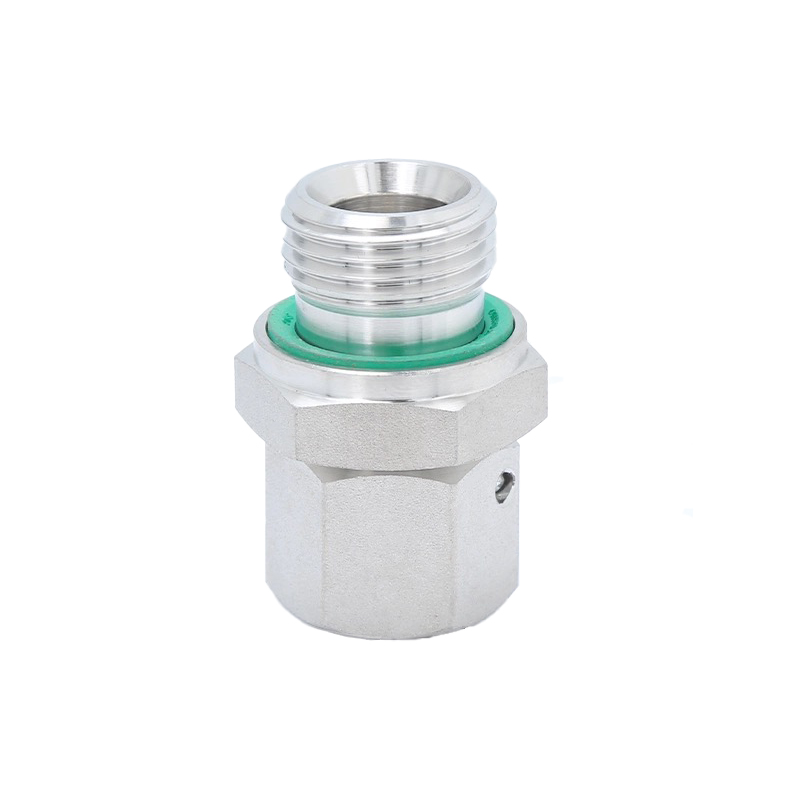

The 2BC-WD and 2BD-WD are specialized hydraulic adapters engineered to bridge male BSP threads and metric female 24° cone seals, with a captive O-ring for reliable high-pressure performance. The “WD” designation highlights their core “with captive seal” feature, which eliminates O-ring loss during installation and ensures consistent, leak-proof connections—critical for demanding hydraulic systems.
Crafted from medium carbon steel with a galvanized surface treatment, these adapters balance structural strength and corrosion resistance, thriving in harsh industrial environments. Their precision-engineered 24° cone interface and captive O-ring create a dual-seal mechanism that withstands extreme pressure fluctuations, making them ideal for heavy machinery, hydraulic power units, and industrial fluid transfer systems.
Compliant with industry hydraulic standards, the 2BC-WD (light-duty) and 2BD-WD (heavy-duty) variants cater to varied pressure requirements, delivering seamless cross-standard connectivity and long-term durability for critical hydraulic system integrations.
| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | |||||
| E | F | D1 | A | L1 | S1 | ||||
| 2BC-02-12WD | G1/8"X28 | M12X1.5 | 6 | 8 | 24.5 | 14 | 14 | 31.5 L series | |
| 2BC-04-14WD | G1/4"X19 | M14X1.5 | 8 | 12 | 29.5 | 19 | 17 | ||
| 2BC-04-16WD | G1/4"X19 | M16X1.5 | 10 | 12 | 27.5 | 19 | 19 | ||
| 2BC-06-18WD | G3/8"×19 | M18X1.5 | 12 | 12 | 34 | 22 | 22 | ||
| 2BC-08-22WD | G1/2"X14 | M22X1.5 | 15 | 14 | 32 | 27 | 27 | ||
| 2BC-08-26WD | G1/2"×14 | M26X1.5 | 18 | 14 | 31.5 | 27 | 32 | ||
| 2BC-12-30WD | G3/4"X14 | M30X2 | 22 | 16 | 33 | 32 | 36 | 16 L series | |
| 2BC-16-36WD | G1"X11 | M36X2 | 28 | 18 | 35 | 41 | 41 | ||
| 2BC-20-45WD | G1.1/4"X11 | M45X2 | 35 | 20 | 42.5 | 50 | 50 | ||
| 2BC-24-52WD | G1.1/2"X11 | M52X2 | 42 | 22 | 47 | 55 | 60 | ||
| 2BD-04-14WD | G1/4"X19 | M14X1.5 | 6 | 12 | 27 | 19 | 17 | 63 S series | |
| 2BD-04-16WD | G1/4"X19 | M16X1.5 | 8 | 12 | 29.5 | 19 | 19 | ||
| 2BD-06-18WD | G3/8"X19 | M18X1.5 | 10 | 12 | 32 | 22 | 22 | ||
| 2BD-06-20WD | G3/8"X19 | M20X1.5 | 12 | 12 | 34 | 22 | 24 | ||
| 2BD-08-22WD | G1/2"X14 | M22X1.5 | 14 | 14 | 36.5 | 27 | 27 | ||
| 2BD-08-24WD | G1/2"X14 | M24X1.5 | 16 | 14 | 37 | 27 | 30 | 40 S series | |
| 2BD-12-30WD | G3/4"X14 | M30X2 | 20 | 16 | 43 | 32 | 36 | ||
| 2BD-16-36WD | G1"X11 | M36X2 | 25 | 18 | 48 | 41 | 46 | ||
| 2BD-20-42WD | G1.1/4"X11 | M42X2 | 30 | 20 | 51 | 50 | 50 | ||
| 2BD-24-52WD | G1.1/2"X11 | M52X2 | 38 | 22 | 60 | 55 | 60 | 31.5 S sereis | |
