Product Overview

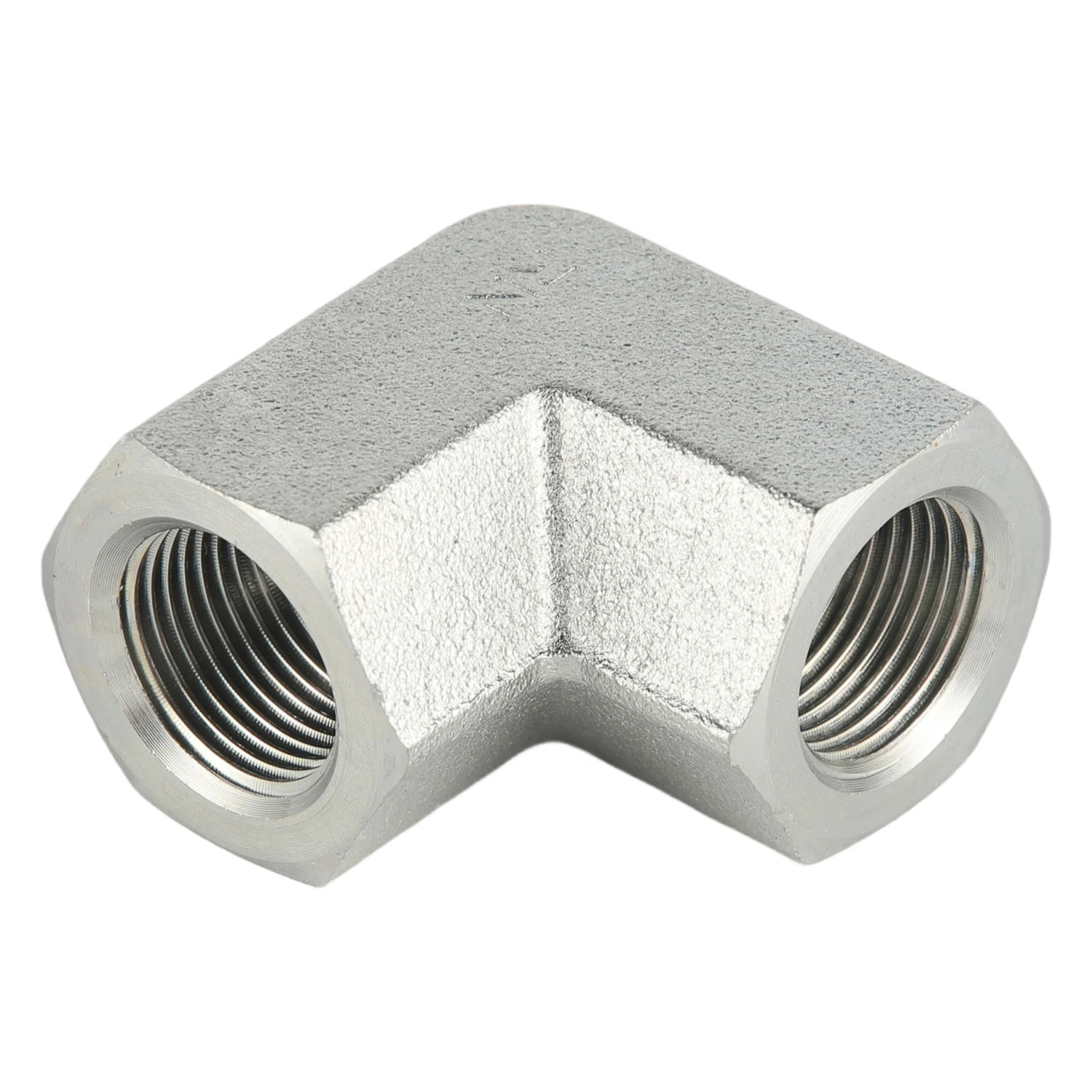

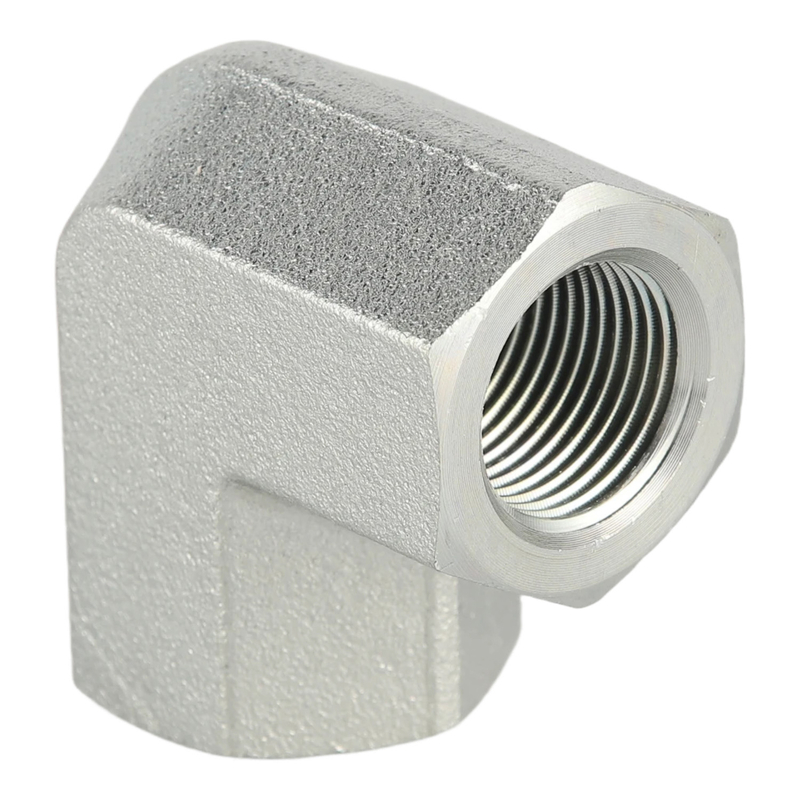

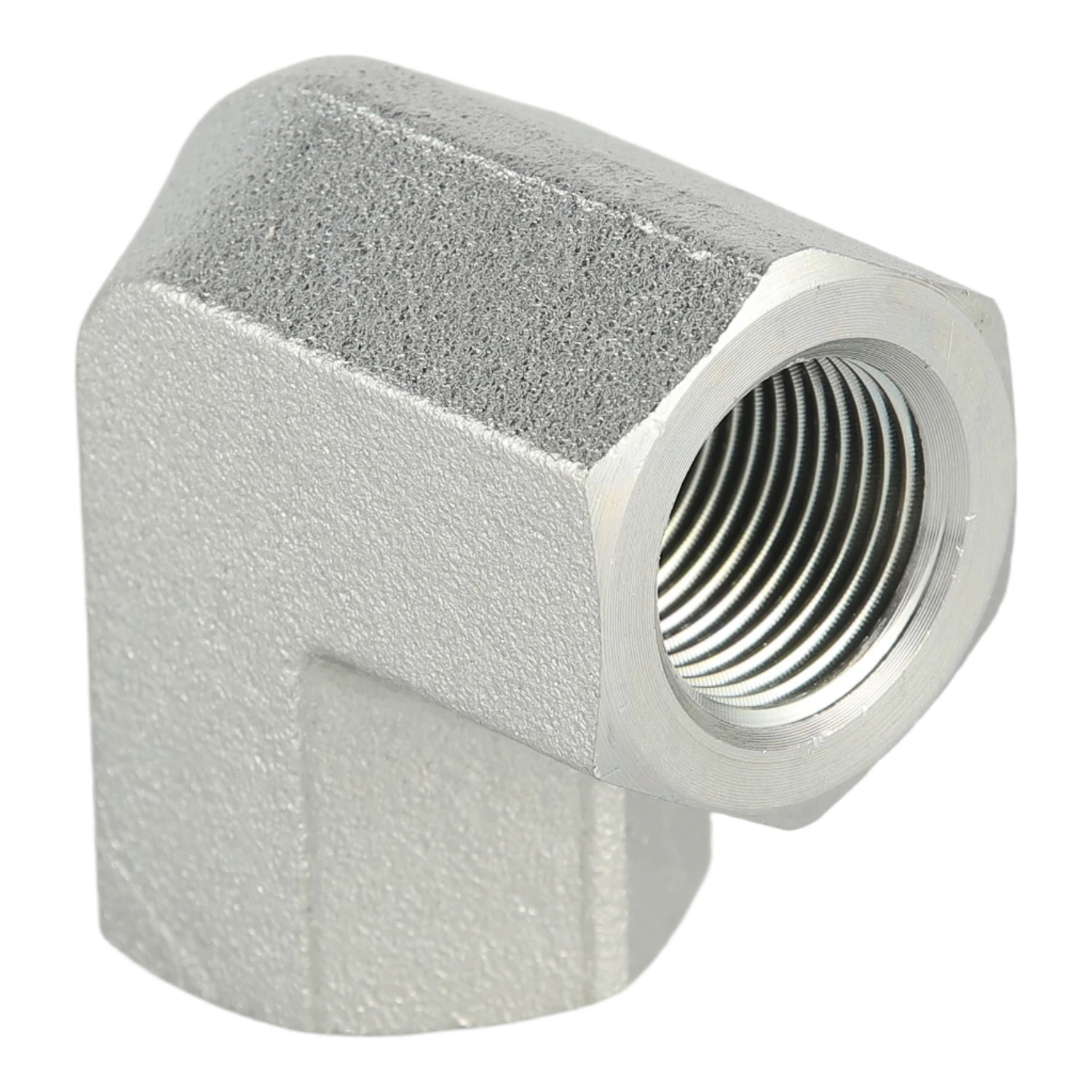

The 7B9-PK Series 90° BSP Female Elbow is designed to provide reliable 90-degree direction changes in hydraulic piping systems while maintaining secure threaded connections. The fitting incorporates BSPP female threads on both ends and is suitable for connecting compatible BSP male components with 60° cone sealing structures.

The precision-machined internal cone seat ensures proper positioning and effective sealing performance without additional sealing components. This makes the fitting suitable for applications requiring compact installation, stable pressure resistance, and reliable fluid transmission.

Manufactured from carbon steel and finished with white zinc plating, these elbows provide enhanced corrosion protection and mechanical strength. The hexagonal head design simplifies installation and maintenance using standard tools.

Features

• 90° elbow design for flexible hydraulic pipeline routing

• BSPP female thread connection on both ends

• 60° internal cone seal for reliable metal-to-metal sealing

• Manufactured according to ISO 1179 and DIN standards

• White zinc-plated surface for corrosion resistance

• Hexagonal head design for easy wrench installation

• Suitable for hydraulic, gas, and water systems

• High-pressure and high-temperature application capability

Specifications

Applications

7B9-PK Series 90° BSP Female Elbow fittings are widely used in hydraulic equipment, industrial machinery, pneumatic systems, gas pipelines, water systems, and fluid control applications. Their 90° structure and reliable 60° cone sealing design provide flexible installation and dependable performance in demanding industrial environments.
