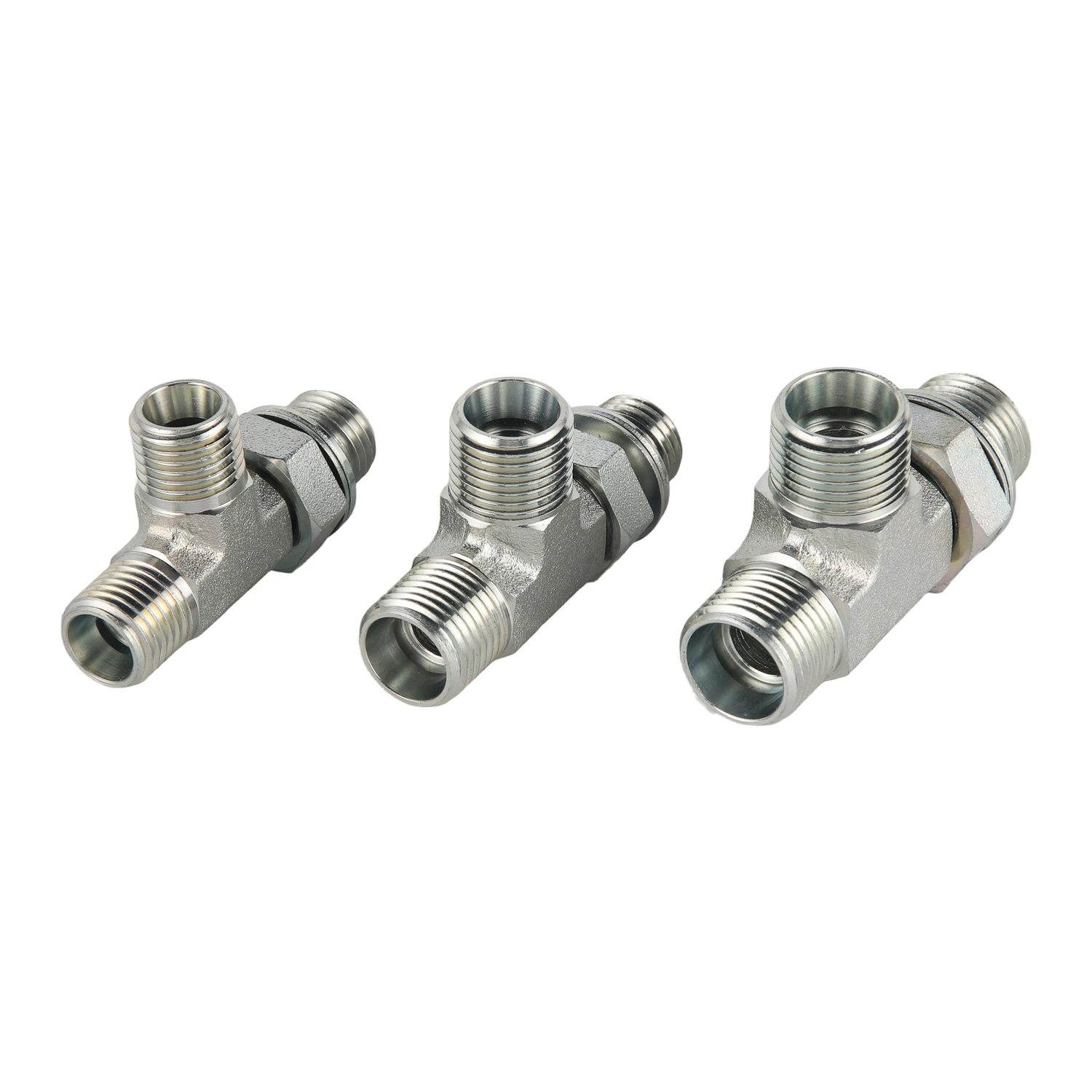

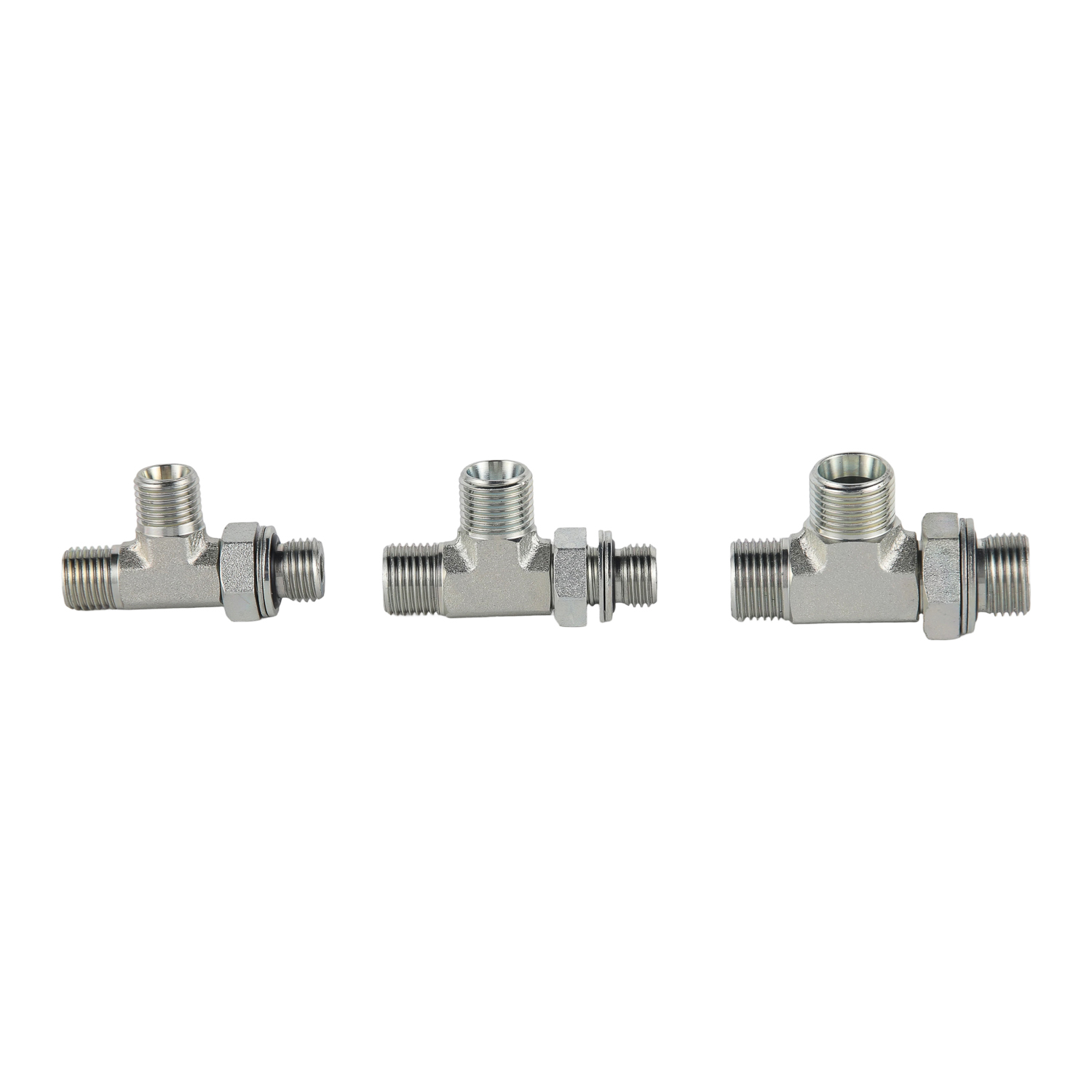

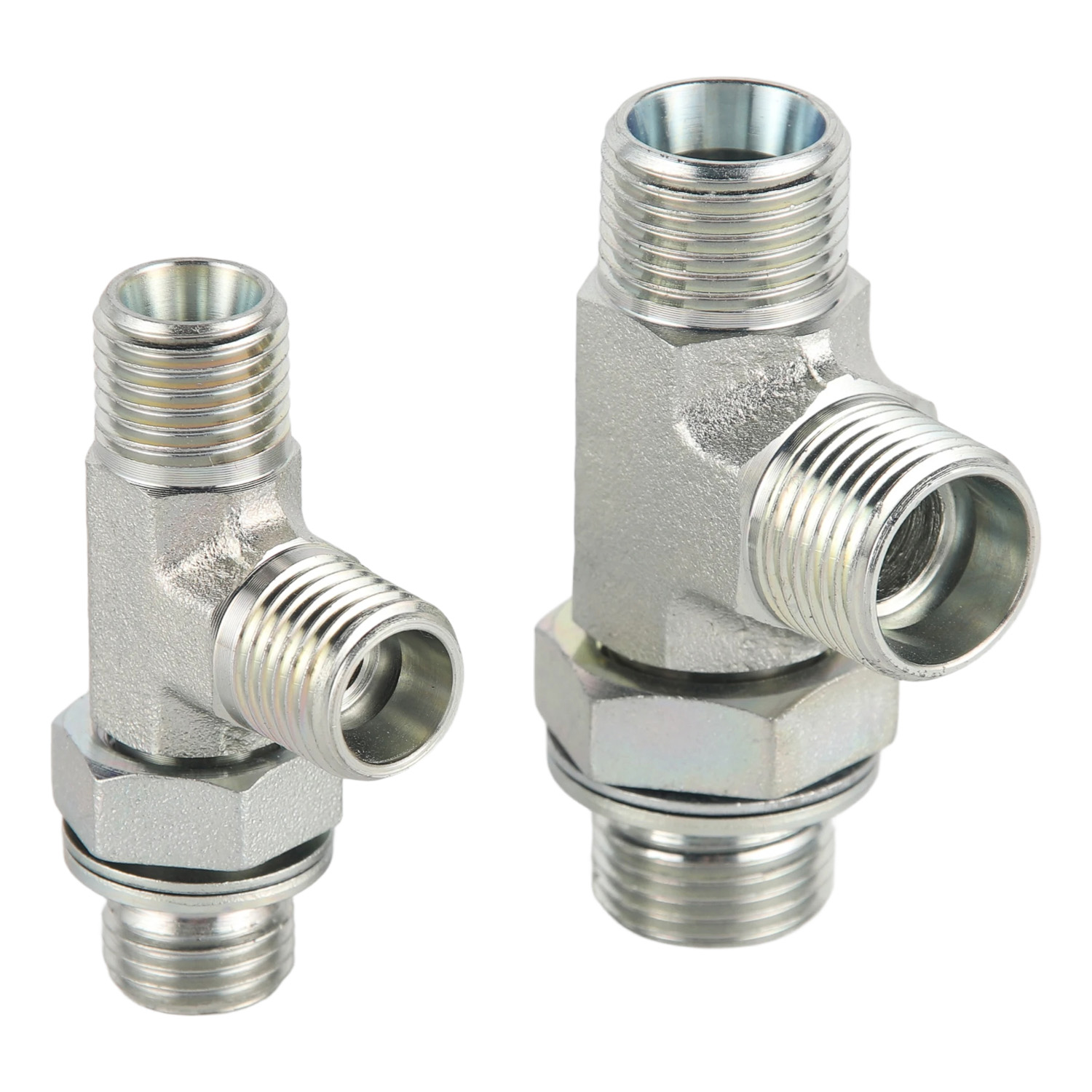

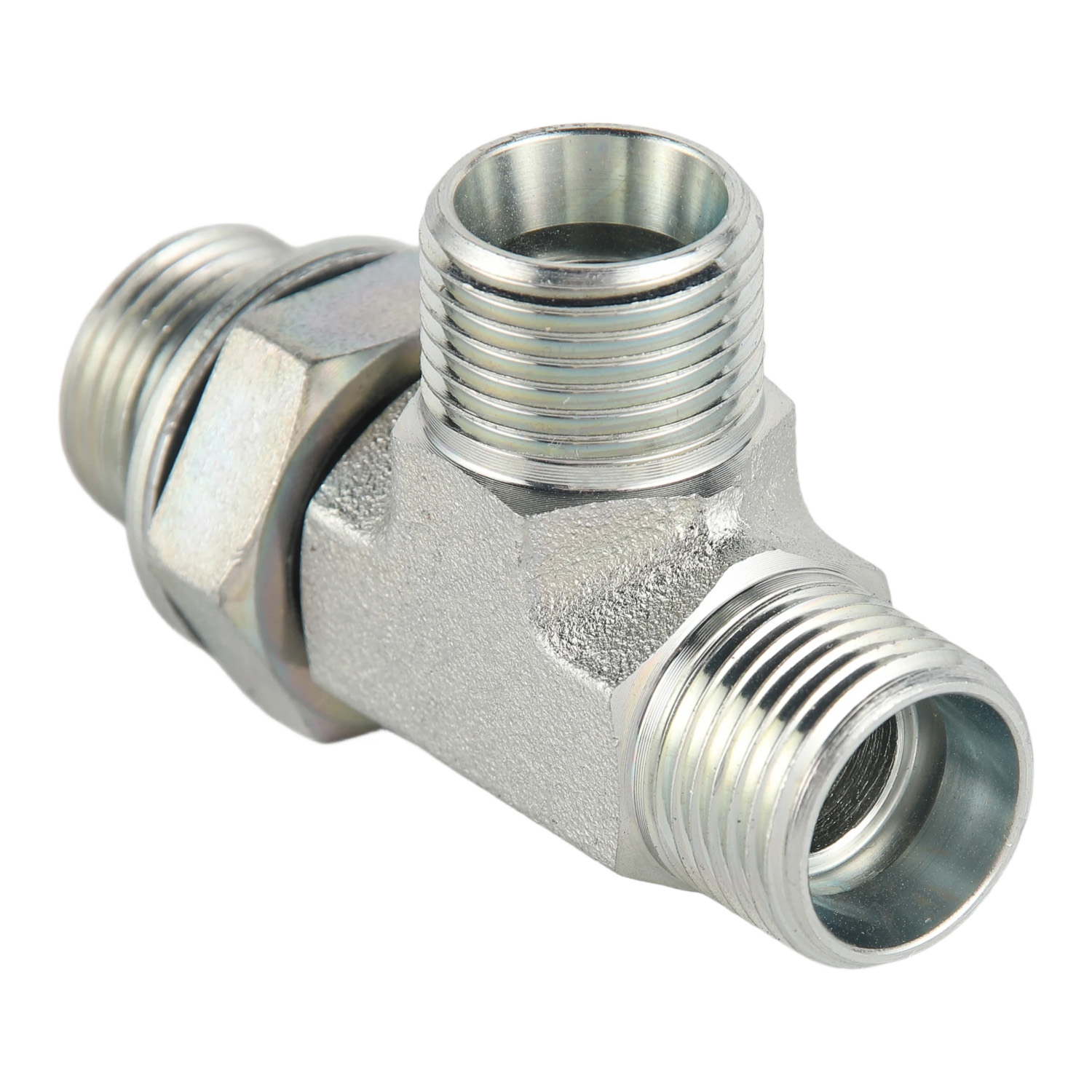

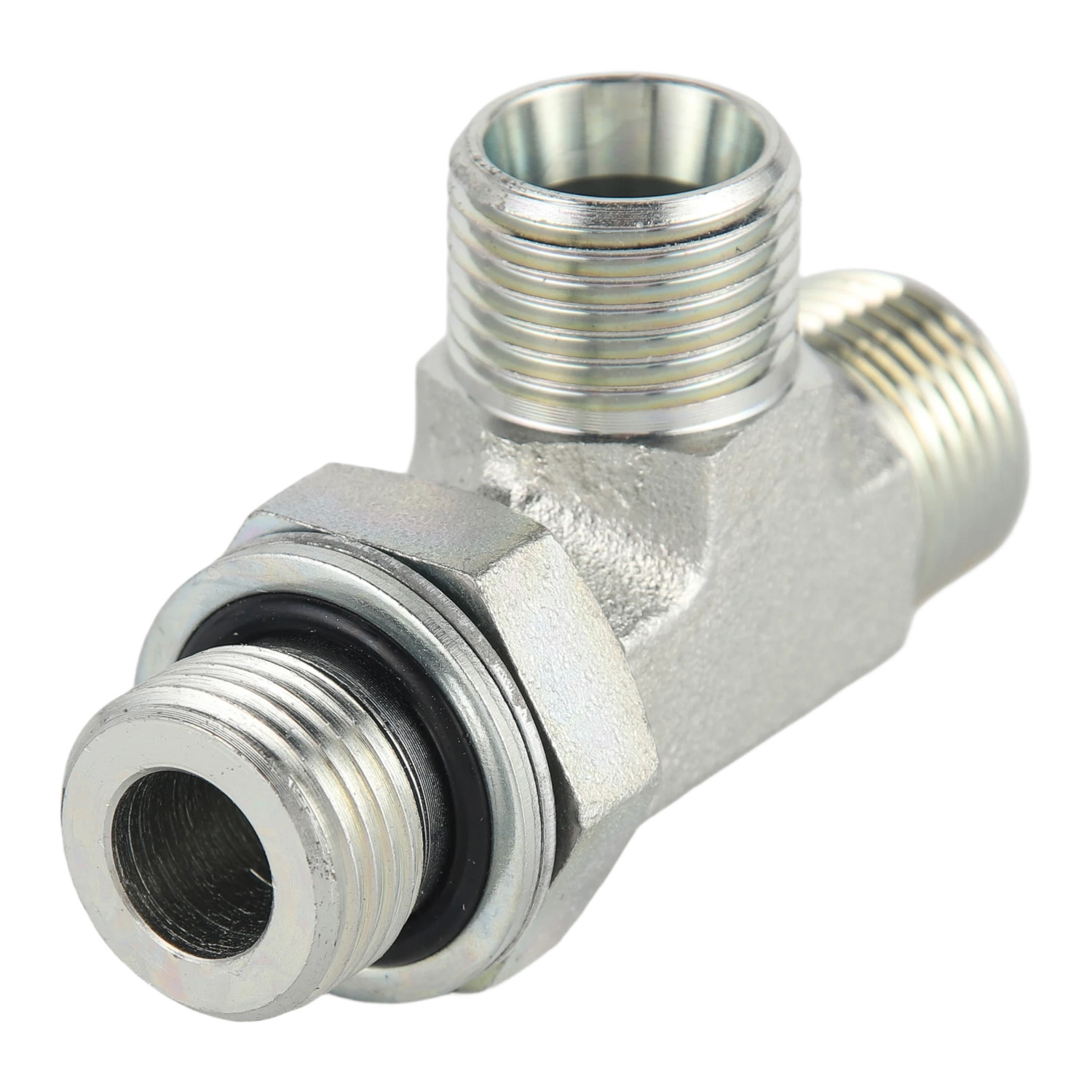

ACCH-OG / ADDH-OG Series Run Tee Fittings are designed for hydraulic systems requiring a combination of Metric Male 24° Cone tube connections and an adjustable Metric Male Stud End conforming to ISO 6149-2. The adjustable stud end allows flexible installation and precise orientation while maintaining reliable sealing performance.

Available in standard and RN locknut versions, these run tees simplify hydraulic pipeline layouts and improve installation efficiency. Manufactured from high-quality carbon steel or stainless steel, they provide excellent mechanical strength, corrosion resistance, and dependable performance in medium and high-pressure hydraulic systems.

Precision machining ensures accurate thread engagement and sealing surfaces, making these fittings suitable for construction machinery, industrial automation, hydraulic power units, and mobile equipment.
Availability:
Quantity:
Inquire Add to Basket

Product Overview

The ACCH-OG / ADDH-OG Series Run Tee combines two Metric Male 24° cone tube connections with one Metric Male Adjustable Stud End manufactured according to ISO 6149-2. This configuration provides an efficient solution for branching hydraulic lines while allowing the branch connection to be accurately positioned during installation.

The adjustable stud end improves assembly flexibility and enables proper fitting orientation without affecting sealing performance. The RN versions are equipped with a locknut for convenient adjustment and secure positioning after installation.

ACCH

Manufactured with precision-machined sealing surfaces, these fittings provide reliable leak-resistant connections under hydraulic operating pressure. Carbon steel and stainless steel material options are available, together with zinc-plated or corrosion-resistant surface finishes for extended service life in demanding industrial environments.

Features

  • Metric Male 24° cone hydraulic tube connection

  • Metric Male Adjustable Stud End conforming to ISO 6149-2

  • Available in standard and RN adjustable locknut versions

  • Reliable leak-resistant hydraulic sealing

  • Compact tee structure for hydraulic branch connections

  • High mechanical strength and pressure resistance

  • Carbon steel and stainless steel material options

  • Zinc-plated surface for enhanced corrosion resistance

Specifications

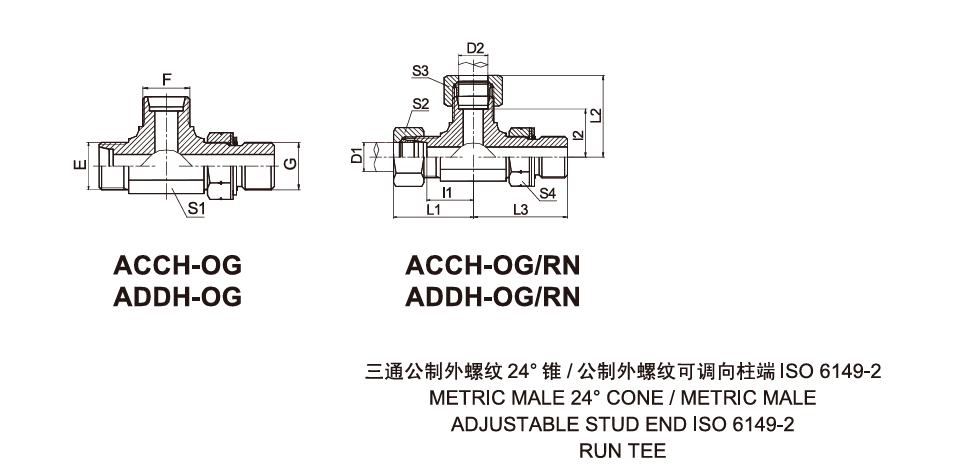

PART   NO. T H R E A D D1,D2 0形圈
O RING		 DIMENSIONS
MPa
E、F G TUBE O.D. I1,I2 L1,L2 L3 S1 S2,S3 S4
ACCH-12-12-100G M12X1.5 M10X1 6 O08.1X1.6 13 28.0 26.5 11 14 14 31.5
L
ACCH-14-14-120G M14X1.5 M12X1.5 8 O09.3X2.4 16 30.5 3.0 14 17 17
ACCH-16-16-140G M16X1.5 M14X1.5 10 O11.3X2.4 18 32.5 34.0 16 19 19
ACCH-18-18-160G M18X1.5 M16X1.5 12 O13.3X2.4 19 34.0 36.0 19 22 22
ACCH-22-22-180G M22X1.5 M18X1.5 15 O15.3X2.4 22 37.0 39.5 22 27 24
ACCH-26-26-220G M26X1.5 M22X1.5 18 O19.3X2.4 25.5 42.0 43.5 27 32 27
ACCH-30-30-270G M30X2 M27X2 22 O23.5x3.0 29.3 45.8 50.0 30 36 32 16
L
ACCH-36-36-330G M【36X2 M33X2 28 O29.2X3.0 33.3 49.8 54.0 36 41 41
ADDH-14-14-120G M14X1.5 M12X1.5 6 O09.3X2.4 17.5 32.5 32.0 14 17 17 63
S
ADDH-16-16-140G M16X1.5 M14X1.5 8 O11.3X2.4 18.7 33.7 34.0 16 19 19
ADDH-18-18-160G M18X1.5 M16X1.5 10 O13.3X2.4 19.5 36 36.0 19 22 22
ADDH-20-20-180G M20X1.5 M18X1.5 12 O15.3X2.4 19.5 36 37.0 19 24 24
ADDH-24-24-220G M24X1.5 M22X1.5 16 O19.3X2.4 24.0 42 37.5 24 30 27
ADDH-30-30-270G M30X2 M27X2 20 O23.5X3.0 28.3 49.8 50 30 36 32 40
S
ADDH-36-36-330G M36X2 M33X2 25 O29.2x3.0 32.8 56.8 54 36 46 41
ADDH-42-42-420G M42X2 M42X2 30 O38.5x3.0 36.2 62.7 57 41 50 50
注:1 如需带卡套及卡套螺母整套订货，则请在代号后加"RN",如ACCH-30-30-27OG/RN。2 G端与ISO 9974-1油口相配，去掉挡圈则与IS0 6149-1油口相配。

Note: 1 in case ifyou are interested to order the adapter in complete set with cuting ring and nut it is necessary to insert sufix "RN" aftel
our part no.,for example ACCH-30-30-270G/RN.
2 Gend is connected with IS0 9974-1 port and connected with lS0 6149-1 por
without retaining ring.
