CC CD EL Barrel tee fit tings with swivel nut ROV

Name: CC CD EL Barrel tee fit tings with swivel nut ROV
Rating: 5.0 (79 reviews)

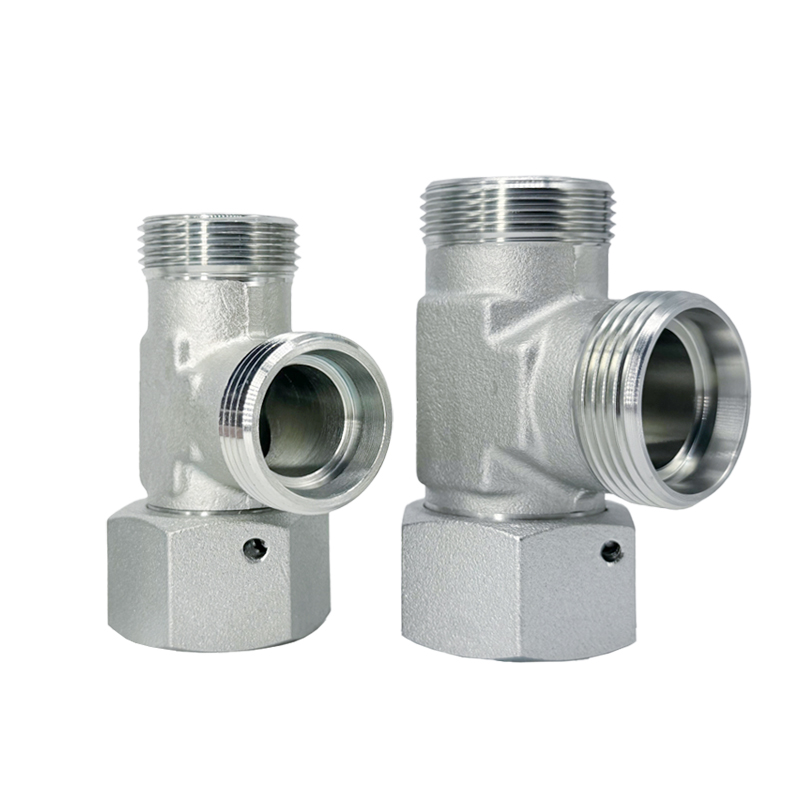

CC CD EL swivel nut tee fitting with 24° tapered female thread on both ends to form to the pipe end, welded pipe, ferrule connection, 24° tapered O-ring seal with movable female thread on one end, pressure range up to 630 bar/9000 PSI. conforming to international standards: DIN3861 2353/ISO8434, available with standard pipe diameter 24° tapered light connection (DIN2353) 06L-42L, 24° cone heavy duty (DIN2353) 06S-38S, available with tee reducers.

Availability:

Quantity:



Inquire Add to Basket

Description

Product Overview：

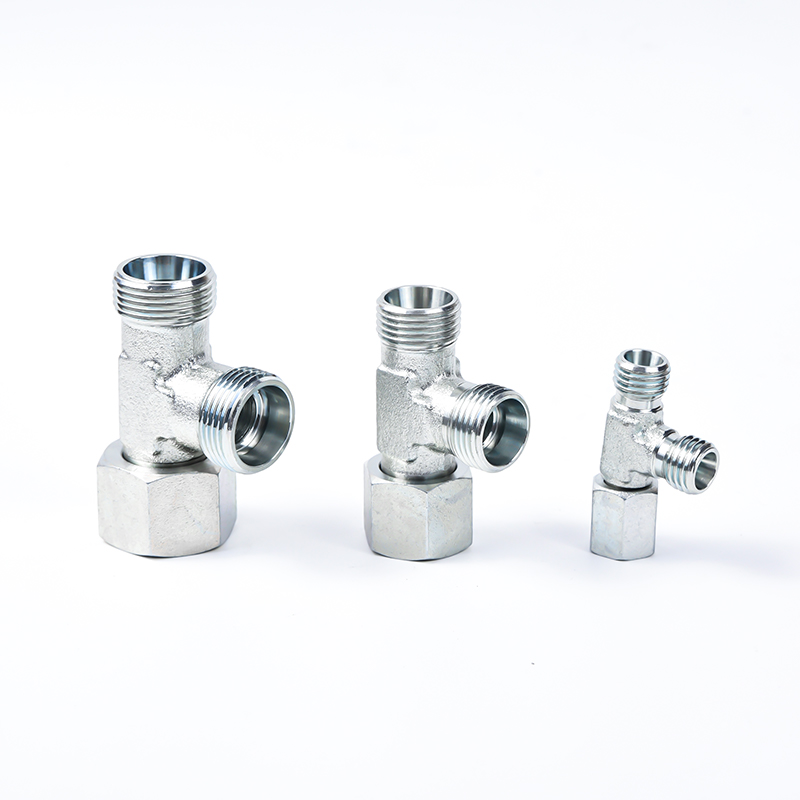

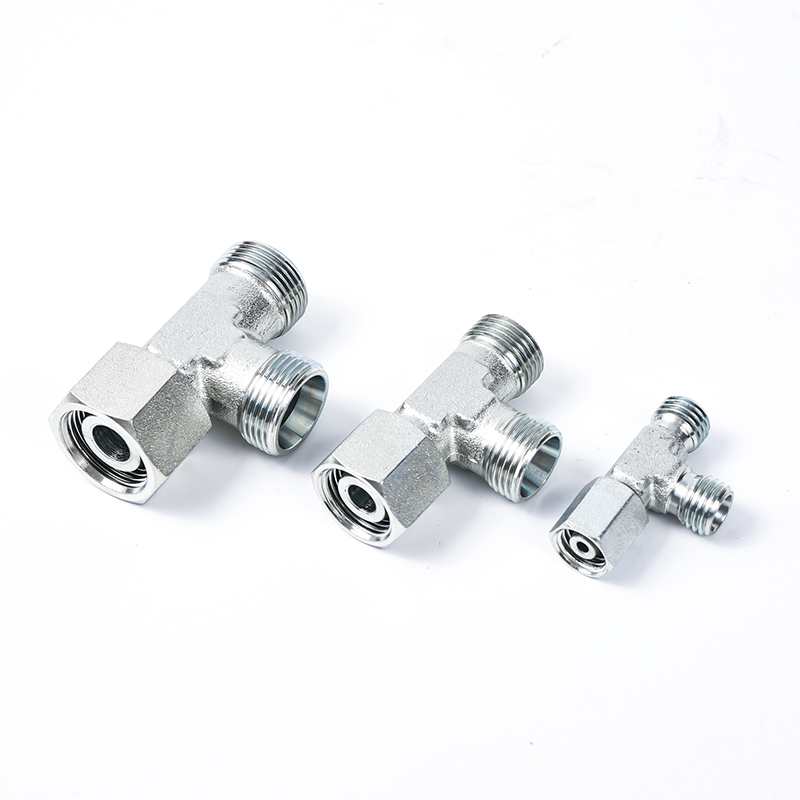

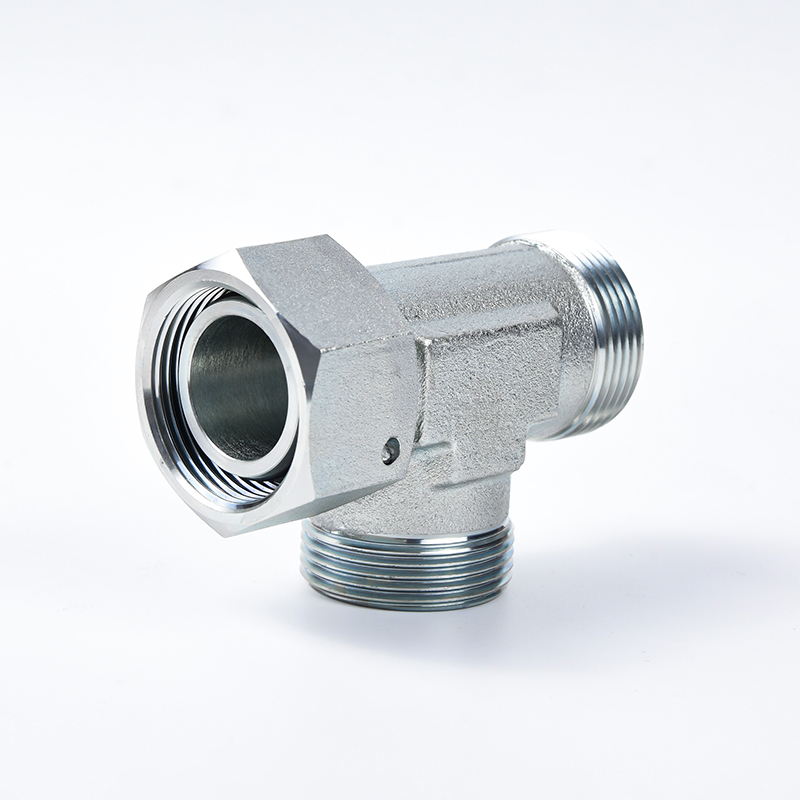

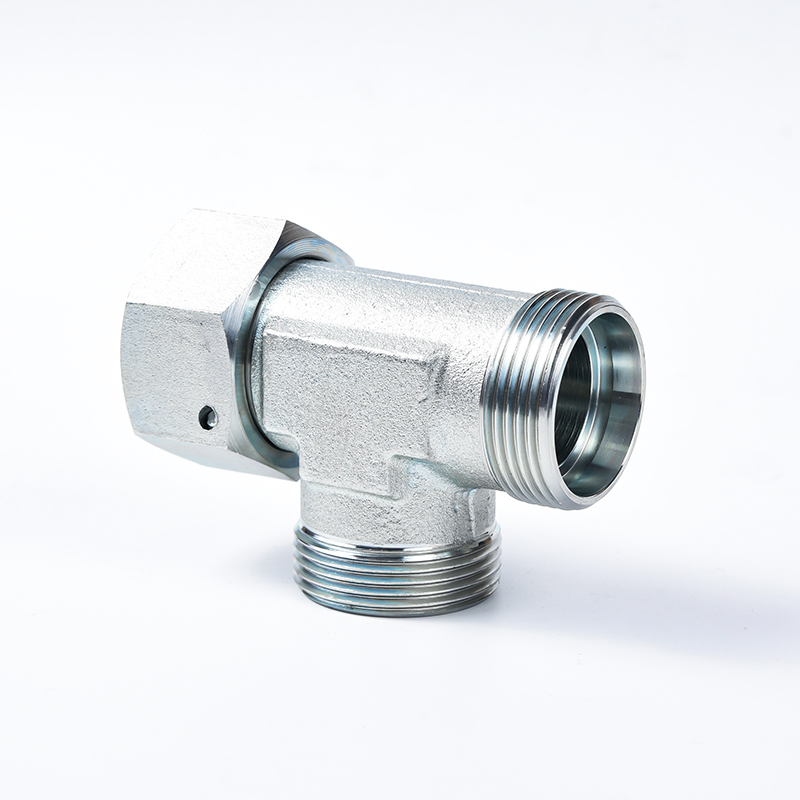

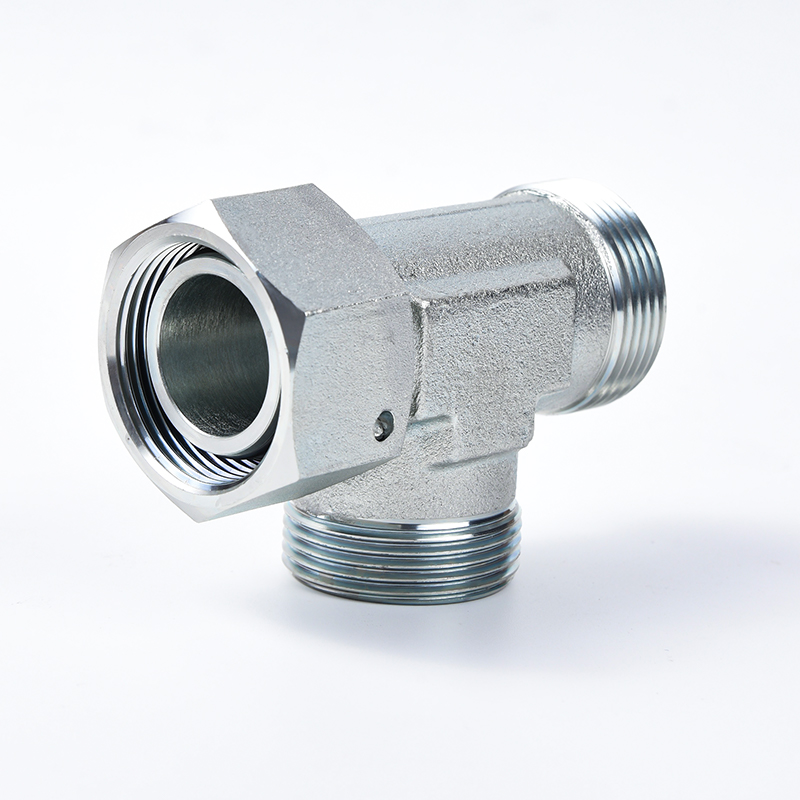

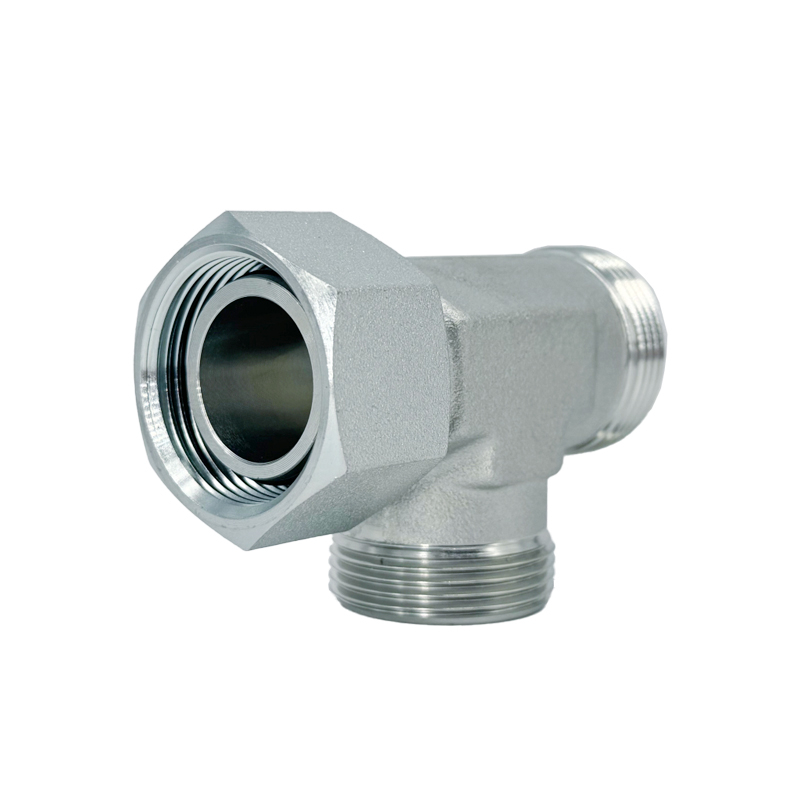

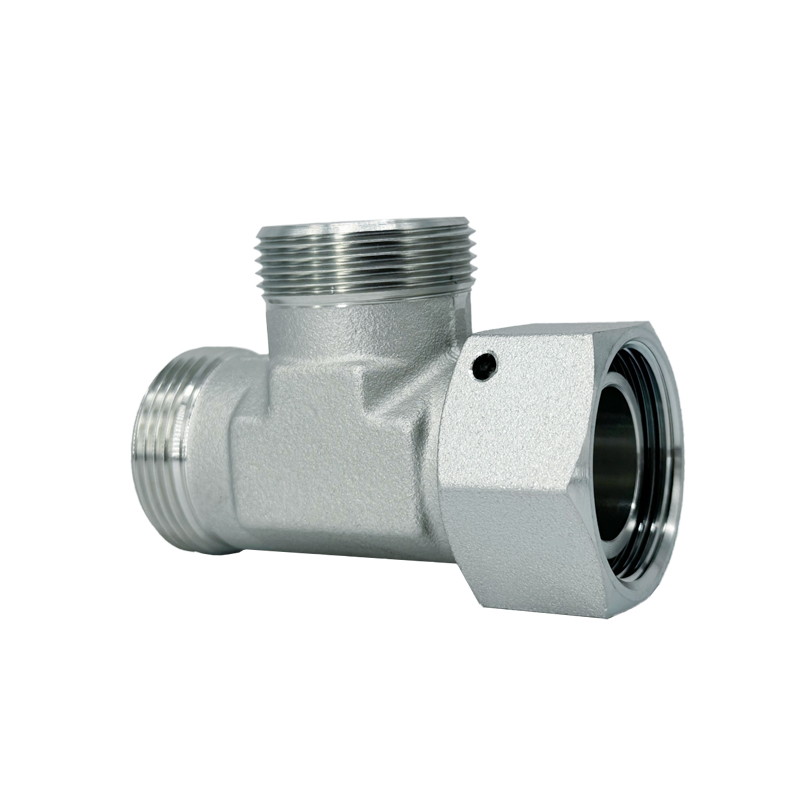

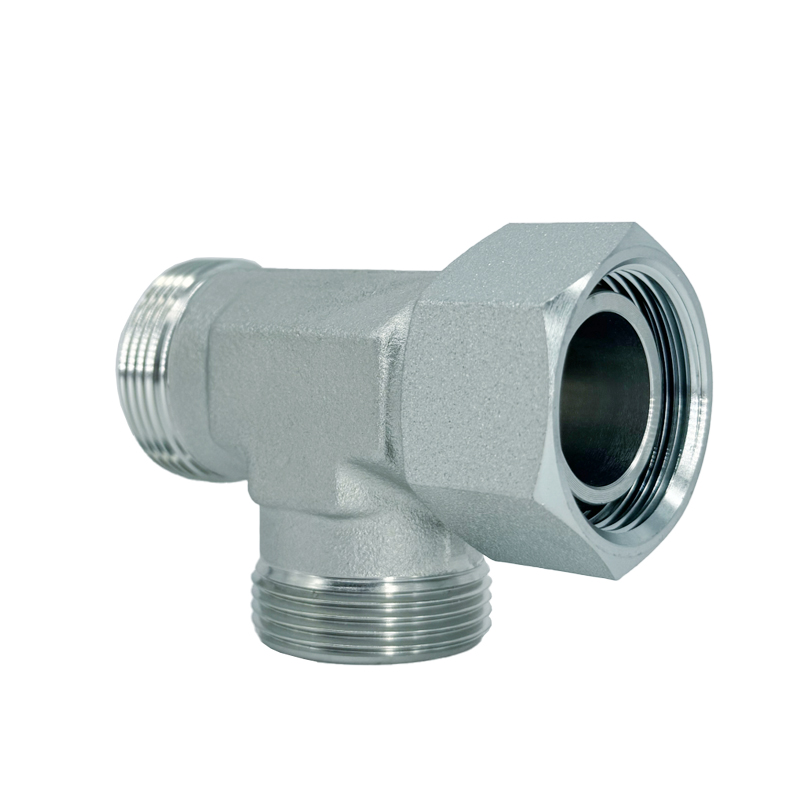

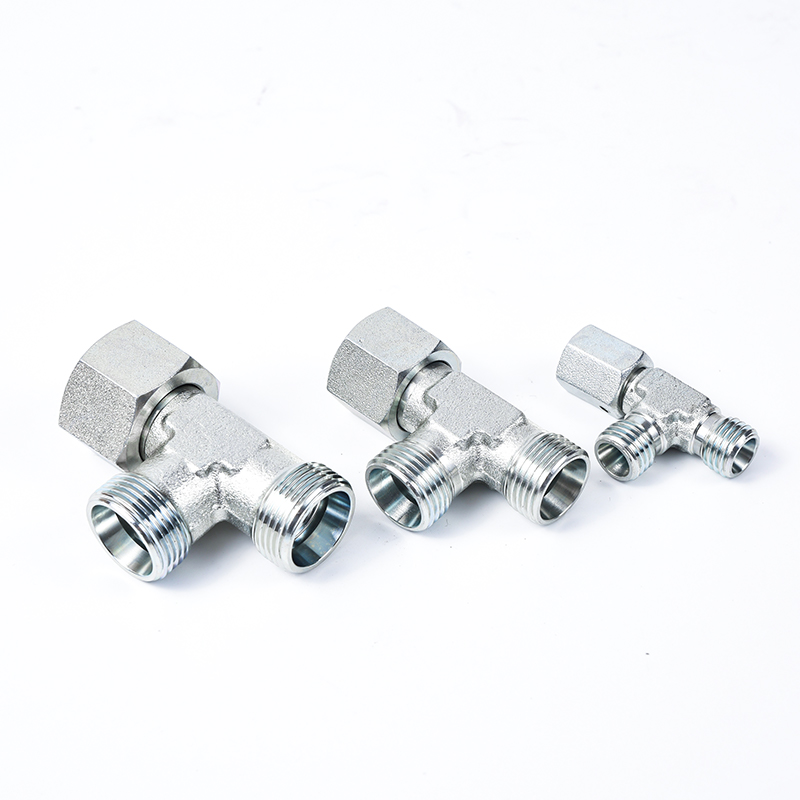

CC / CD / EL swivel nut tee fittings are precision-engineered hydraulic tube adapters designed for secure fluid distribution and branch line connections in high-pressure hydraulic systems. Featuring a 24° cone sealing structure and swivel nut design, these fittings provide excellent sealing performance, flexible installation, and reliable operation under demanding working conditions.

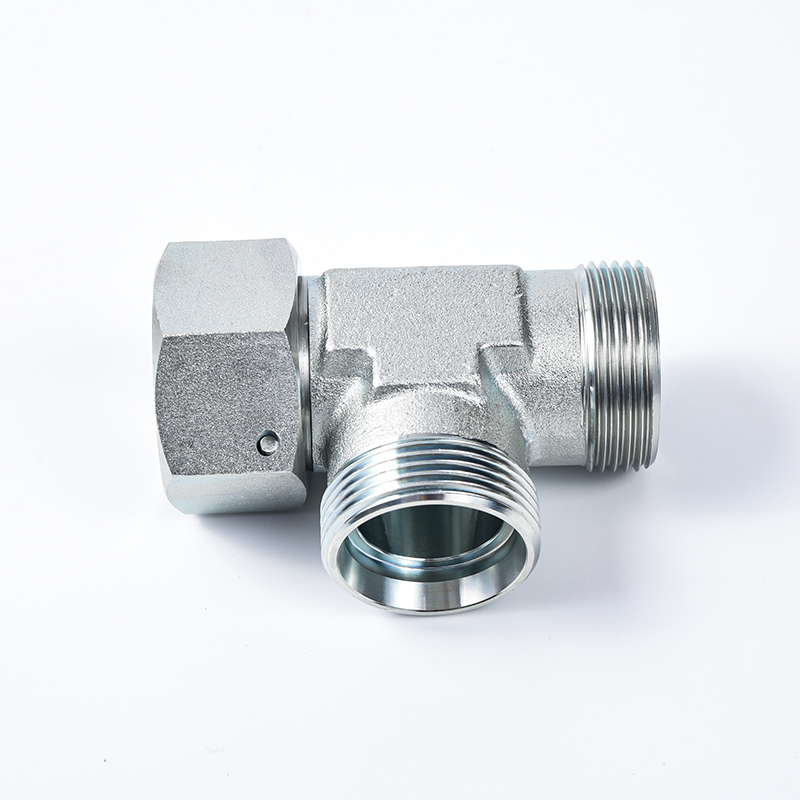

The movable swivel nut allows easy alignment and angle adjustment during installation, significantly reducing assembly difficulty in confined spaces. Combined with precision-machined sealing surfaces, the fitting ensures leak-free performance even under high vibration and high-pressure conditions.

Manufactured in accordance with DIN 2353, DIN 3861, and ISO 8434 standards, these hydraulic tee fittings are fully compatible with mainstream hydraulic tube systems and ferrule connections. Both Light Series (L) and Heavy Series (S) are available to meet different pressure requirements.

Description

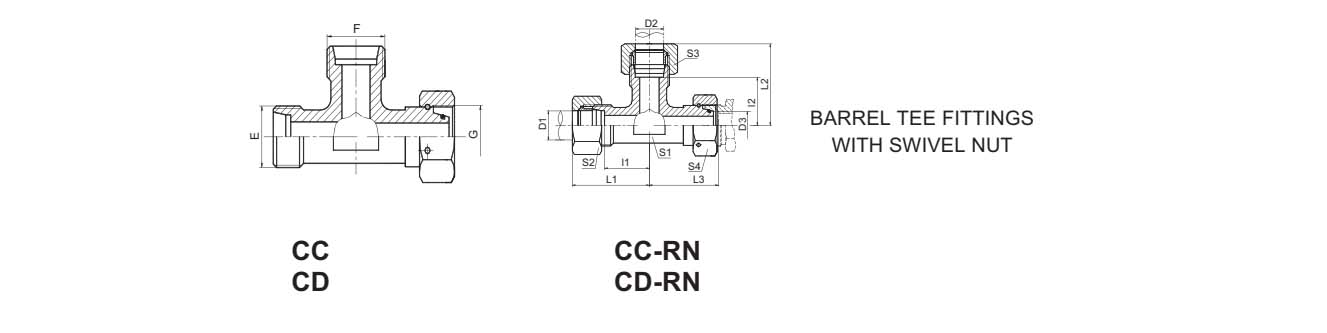

PART NO.	THREAD		TUBE O.D.		DIMENSIONS						MPa
PART NO.	E,F	G	D1,D2	D3	1,12	L1,L2	L3	s1	s2,s3	S4	MPa
CC-12	M12X1.5	M12X1.5	6	6	12	27	26	12	14	14	31.5L
CC-14	M14X1.5	M14X1.5	8	8	14	29	27.5	12	17	17
CC-16	M16X1.5	M16X1.5	10	10	15	30	29	14	19	19
CC-18	M18X1.5	M18X1.5	12	12	17	32	29.5	17	22	22
CC-22	M22X1.5	M22X1.5	15	15	21	36	32.5	19	27	27
CC-26	M26X1.5	M26X1.5	18	18	23.5	40	35.5	24	32	32
CC-30	M30X2	M30X2	22	22	27.5	44	38.5	27	36	36	16L
CC-36	M36X2	M36X2	28	28	30.5	47	41.5	36	41	41
CC-45	M45X2	M45X2	35	35	34.5	56	51	41	50	50
CC-52	M52X2	M52X2	42	42	40	63	56	50	60	60
CD-14	M14X1.5	M14X1.5	6	6	16	31	27	12	17	17	63
CD-16	M16X1.5	M16X1.5	8	8	17	32	27.5	14	19	19
CD-18	M18X1.5	M18X1.5	10	10	17.5	34	30	17	22	22
CD-20	M20X1.5	M20X1.5	12	12	21.5	38	31	17	24	24
CD-22	M22X1.5	M22X1.5	14	14	22	40	35	19	27	27
CD-24	M24X1.5	M24X1.5	16	16	24.5	43	36.5	24	30	30	40S
CD-30	M30X2	M30X2	20	20	26.5	48	44.5	27	36	36
CD-36	M36X2	M36X2	25	25	30	54	50	36	46	46
CD-42	M42X2	M42X2	30	30	35.5	62	55	41	50	50
CD-52	M52X2	M52X2	38	38	41	72	63	50	60	60	31.5S
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example CC-30RN.

Key Features:

1. Leak-Free 24° Cone Sealing

The precision-machined 24° tapered sealing surface ensures reliable metal-to-metal sealing or O-ring assisted sealing, effectively preventing leakage under high-pressure hydraulic conditions.

2. Swivel Nut Design for Easy Installation

The swivel nut allows 360° rotational adjustment during assembly, making pipeline installation faster and more convenient, especially in tight installation spaces.

3. High Pressure Resistance

Designed for demanding hydraulic applications, the heavy-duty series supports working pressures up to 630 bar (9000 PSI), suitable for high-pressure systems.

4. Excellent Mechanical Strength

Made from high-quality forged carbon steel, these fittings offer outstanding impact resistance, fatigue resistance, and long service life.

5. Superior Corrosion Protection

The zinc-plated surface treatment provides excellent corrosion resistance, ensuring reliable performance in humid, outdoor, and harsh industrial environments.
