1O-OG Series SAE O-Ring Boss Male Fittings – Light Series ISO 11926-3

The 1O-OG series SAE O-ring boss male fittings are designed for hydraulic systems requiring secure threaded connections and reliable O-ring sealing. Featuring SAE straight male threads and an O-ring sealing structure, these fittings connect to compatible SAE O-ring boss ports in hydraulic equipment.

Designed for the light series in accordance with ISO 11926-3, the fittings are suitable for hydraulic piping assemblies and fluid power systems. They can be used in industrial machinery, construction equipment, and other hydraulic applications where compatible SAE port connections are required.

Availability:

Quantity:



Inquire Add to Basket

Product Description

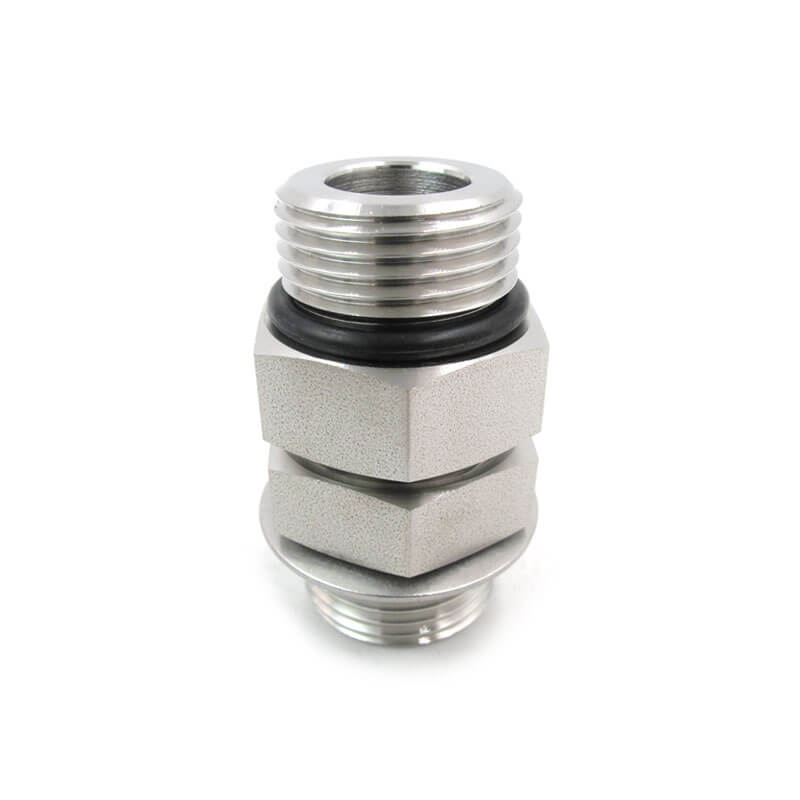

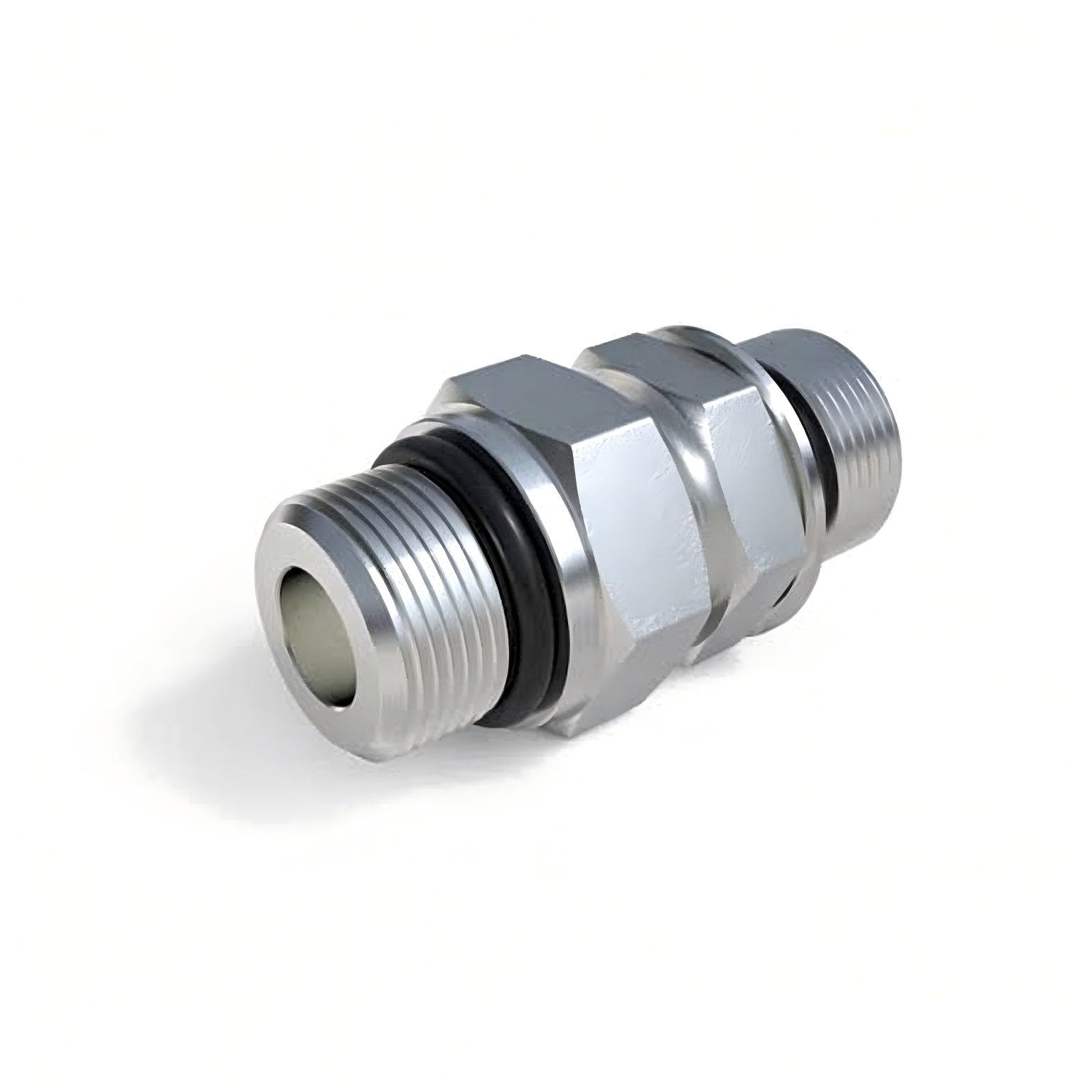

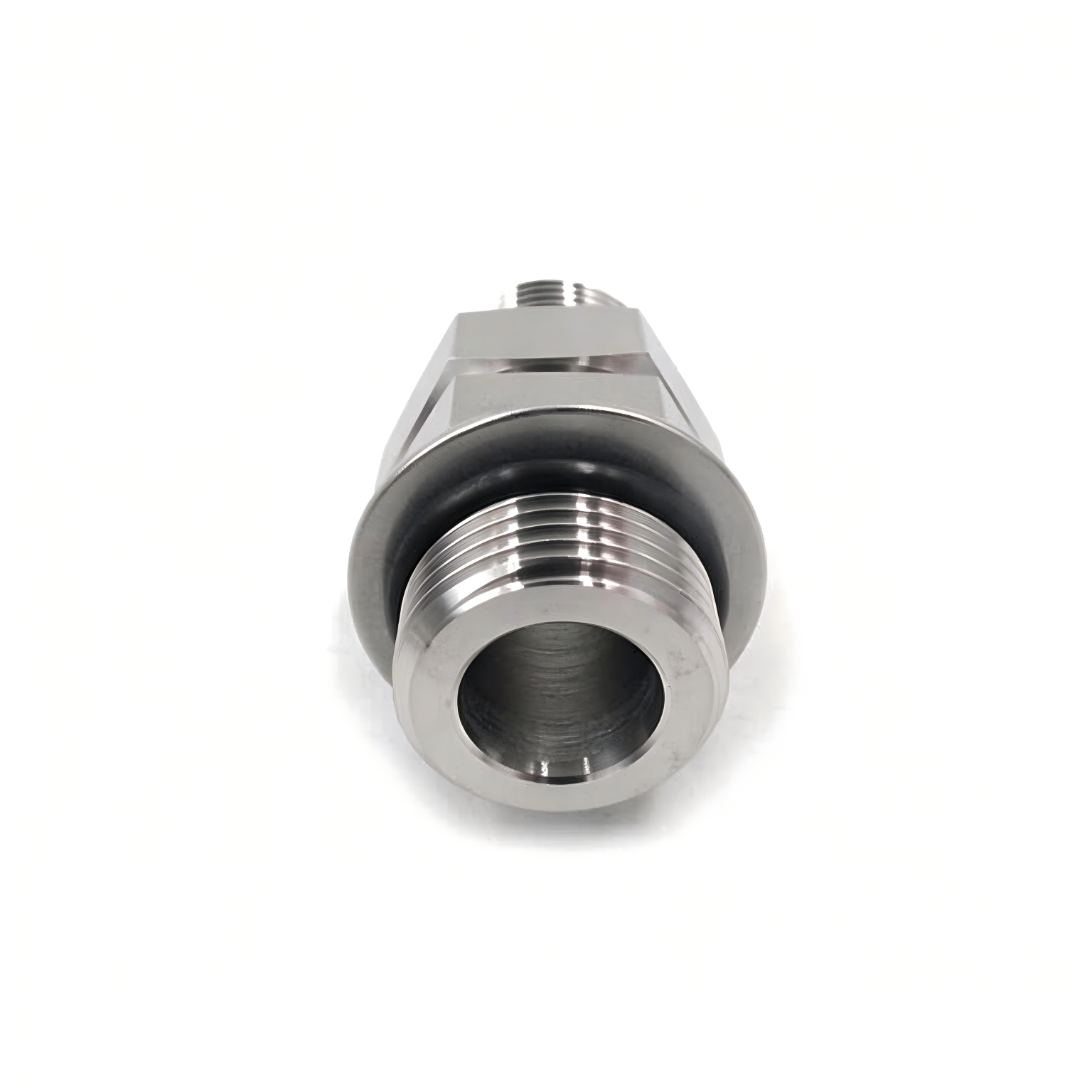

The 1O-OG series SAE O-ring boss male fittings provide a threaded connection for compatible hydraulic ports. The SAE straight thread engages with the corresponding port, while the O-ring provides the sealing interface when correctly installed.

63a0585c-fda5-41bc-8919-1f07d88d46b4

These fittings are designed according to the applicable requirements of ISO 11926-3. Selection should be based on the thread specification, matching port dimensions, O-ring requirements, and system working pressure to ensure compatibility with the intended hydraulic application.

Features

SAE O-ring boss male thread connection
O-ring sealing design for compatible SAE ports
Light-series configuration
Designed in accordance with ISO 11926-3
Suitable for hydraulic piping and fluid power systems
Available in different thread sizes according to the product range
Suitable for industrial and mobile hydraulic equipment

Specifications

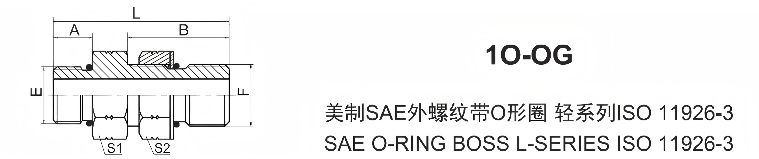

Part No.	Thread		O-Ring		Dimensions
Part No.	E	F	E	F	A (mm)	B (mm)	L (mm)	S1 (mm)	S2 (mm)
1O-04OGZ	7/16"-20	7/16"-20	O904	O904	9.1	18	33	14	17
1O-04-06OGZ	7/16"-20	9/16"-18	O904	O906	9.1	20	35.1	17	19
1O-06OGZ	9/16"-18	9/16"-18	O906	O906	9.93	20	36	17	19
1O-06-08OGZ	9/16"-18	3/4"-16	O906	O908	9.93	22	40	22	24
1O-08OGZ	3/4"-16	3/4"-16	O908	O908	11.13	22	40	22	24
1O-08-12OGZ	3/4"-16	1-1/16"-12	O908	O912	11.13	29	51	32	32
1O-10OGZ	7/8"-14	7/8"-14	O910	O910	12.7	26	46	27	27
1O-12OGZ	1-1/16"-12	1-1/16"-12	O912	O912	15.1	29	54	32	32
1O-16OGZ	1-5/16"-12	1-5/16"-12	O916	O916	15.1	29	54	38	41
1O-20OGZ	1-5/8"-12	1-5/8"-12	O920	O920	15.1	29	54	50	50
1O-24OGZ	1-7/8"-12	1-7/8"-12	O924	O924	15.1	29	54	55	55
Note: Designed to fit ISO 11926-1 ports.

Applications

1O-OG series SAE O-ring boss male fittings are suitable for hydraulic systems that use SAE straight-thread connections with O-ring sealing. Typical applications include construction machinery, agricultural equipment, industrial hydraulic systems, and mobile fluid power equipment.

Correct matching of the SAE port, O-ring, thread size, and installation specifications helps ensure a reliable hydraulic connection.
