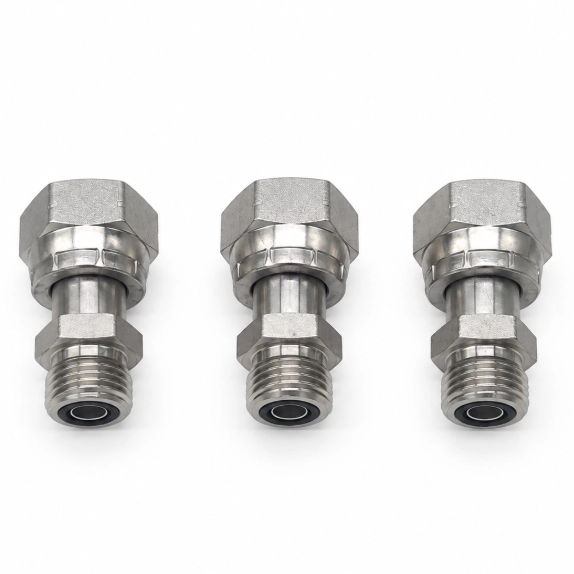

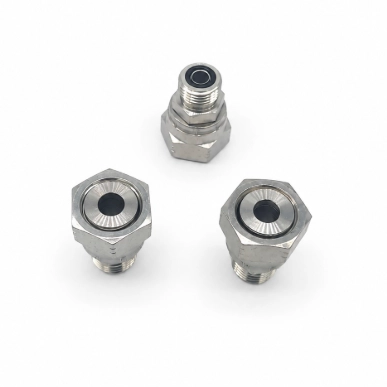

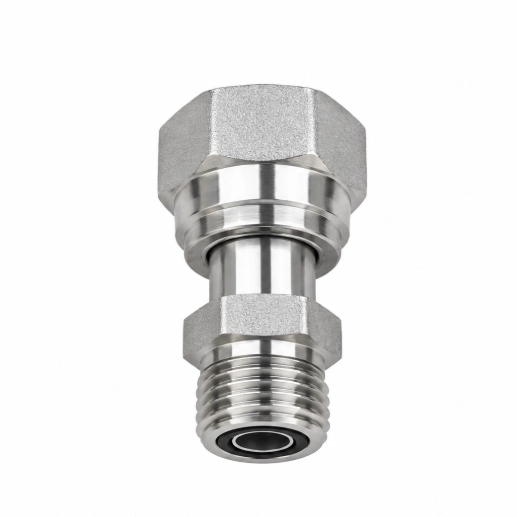

The 2F Series is a hydraulic adapter featuring an ORFS male O-ring connection on one end and an ORFS female connection on the other. It is intended for use in hydraulic systems where these two connection types are required.
The male end incorporates an O-ring identified in the dimensional table by its corresponding size code. The opposite end uses an ORFS female thread. Available configurations include matching thread sizes as well as combinations of different E-end and F-end sizes.
The dimensional table provides the part numbers, thread specifications, O-ring codes, and principal dimensions for the listed models. Customers can refer to these details when selecting a suitable connection size for their hydraulic equipment.
NBFK can evaluate OEM or customized hydraulic adapter requirements based on customer drawings, technical specifications, or samples.
ORFS male O-ring connection on one end
ORFS female connection on the other end
Multiple E-end and F-end thread combinations
O-ring specifications listed by model
Multiple sizes available from 9/16" to 2"
Dimensional information available for the listed part numbers
Suitable for compatible ORFS hydraulic connections
OEM customization can be evaluated according to drawings or samples
| Item | Specification |
|---|---|
| Product Series | 2F |
| Product Type | ORFS Male O-Ring / ORFS Female Hydraulic Adapter |
| Connection Type | ORFS Male O-Ring / ORFS Female |
| Thread Size Range | 9/16" to 2", according to the provided table |
| O-Ring Identification | Model-specific codes, as listed in the dimensional table |
| Available Configurations | Different E-end and F-end thread combinations |
| Dimensions | Refer to the dimensional table below |
| Customization | OEM requirements can be evaluated based on drawings or samples |
| Part No. | Thread | DIMENSIONS | ||||||
| E | F | O-Ring (E end) | A | B | L | S1 | S2 | |
| 2F-04Z | 9/16" x 18 | 9/16" x 18 | O011 | 10 | 8.5 | 33 | 17 | 17 |
| 2F-04-06Z | 9/16" x 18 | 11/16" x 16 | O011 | 10 | 10 | 34.5 | 17 | 22 |
| 2F-04-08Z | 9/16" x 18 | 13/16" x 16 | O011 | 10 | 11 | 36.5 | 19 | 27 |
| 2F-06-04Z | 11/16" x 16 | 9/16" x 18 | O012 | 11.2 | 8.5 | 35.5 | 19 | 17 |
| 2F-06Z | 11/16" x 16 | 11/16" x 16 | O012 | 11.2 | 10 | 38.5 | 19 | 22 |
| 2F-06-08Z | 11/16" x 16 | 13/16" x 16 | O012 | 11.2 | 11 | 37.7 | 19 | 27 |
| 2F-06-10Z | 11/16" x 16 | 1" x 14 | O012 | 11.2 | 13 | 43.7 | 24 | 30 |
| 2F-08-06Z | 13/16" x 16 | 11/16" x 16 | O014 | 13 | 10 | 41 | 22 | 22 |
| 2F-08Z | 13/16" x 16 | 13/16" x 16 | O014 | 13 | 11 | 43 | 22 | 27 |
| 2F-08-10Z | 13/16" x 16 | 1" x 14 | O014 | 13 | 13 | 45.5 | 24 | 30 |
| 2F-08-12Z | 13/16" x 16 | 1.3/16" x 12 | O014 | 13 | 15 | 49 | 30 | 36 |
| 2F-10-08Z | 1" x 14 | 13/16" x 16 | O016 | 15.5 | 11 | 47.5 | 27 | 27 |
| 2F-10Z | 1" x 14 | 1" x 14 | O016 | 15.5 | 13.5 | 51.5 | 27 | 30 |
| 2F-10-12Z | 1" x 14 | 1.3/16" x 12 | O016 | 15.5 | 15 | 51.5 | 30 | 36 |
| 2F-10-16Z | 1" x 14 | 1.7/16" x 12 | O016 | 15.5 | 15 | 56 | 36 | 41 |
| 2F-12-08Z | 1.3/16" x 12 | 13/16" x 16 | O018 | 17 | 11 | 50.5 | 32 | 27 |
| 2F-12-10Z | 1.3/16" x 12 | 1" x 14 | O018 | 17 | 13.5 | 54.5 | 32 | 30 |
| 2F-12Z | 1.3/16" x 12 | 1.3/16" x 12 | O018 | 17 | 15 | 56 | 32 | 36 |
| 2F-12-16Z | 1.3/16" x 12 | 1.7/16" x 12 | O018 | 17 | 15 | 58 | 36 | 41 |
| 2F-16-12Z | 1.7/16" x 12 | 1.3/16" x 12 | O021 | 17.5 | 15 | 58 | 38 | 36 |
| 2F-16Z | 1.7/16" x 12 | 1.7/16" x 12 | O021 | 17.5 | 15 | 60 | 38 | 41 |
| 2F-16-20Z | 1.7/16" x 12 | 1.11/16" x 12 | O021 | 17.5 | 15 | 58 | 41 | 50 |
| 2F-20-16Z | 1.11/16" x 12 | 1.7/16" x 12 | O025 | 17.5 | 15 | 58.5 | 46 | 41 |
| 2F-20Z | 1.11/16" x 12 | 1.11/16" x 12 | O025 | 17.5 | 15 | 62 | 46 | 50 |
| 2F-20-24Z | 1.11/16" x 12 | 2" x 12 | O025 | 17.5 | 15 | 65.5 | 50 | 60 |
| 2F-24-20Z | 2" x 12 | 1.11/16" x 12 | O029 | 17.5 | 15 | 64 | 55 | 50 |
| 2F-24Z | 2" x 12 | 2" x 12 | O029 | 17.5 | 15 | 64 | 55 | 60 |
The 2F Series ORFS Male O-Ring / ORFS Female Hydraulic Adapters are intended for hydraulic systems requiring compatible ORFS male and female connections. They can be considered for connecting hydraulic components and fluid lines where the specified thread sizes and connection types match the system requirements.
Please confirm the required thread sizes and connection specifications before selecting a model.
