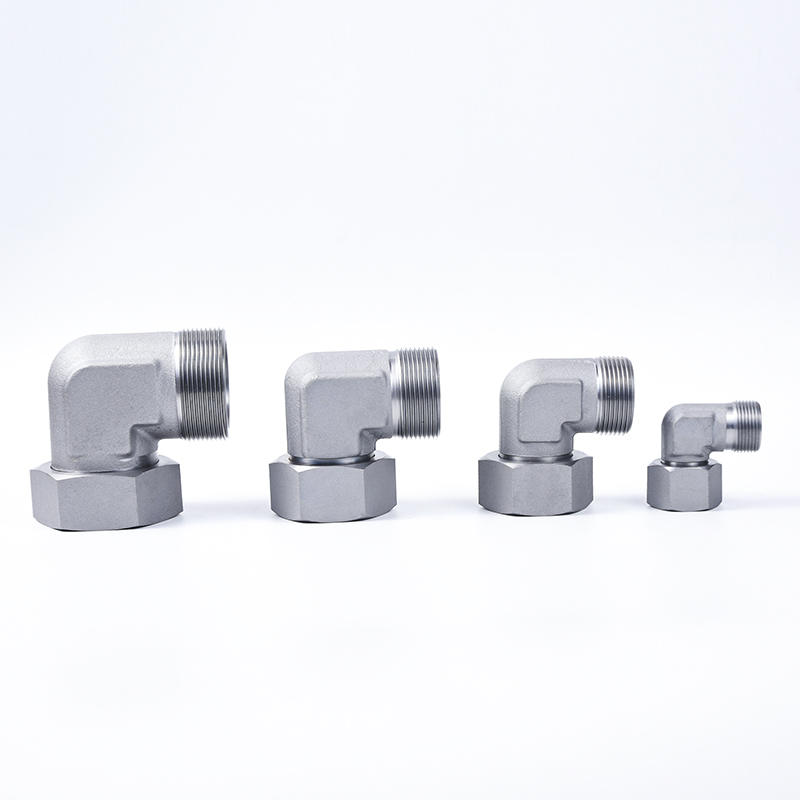

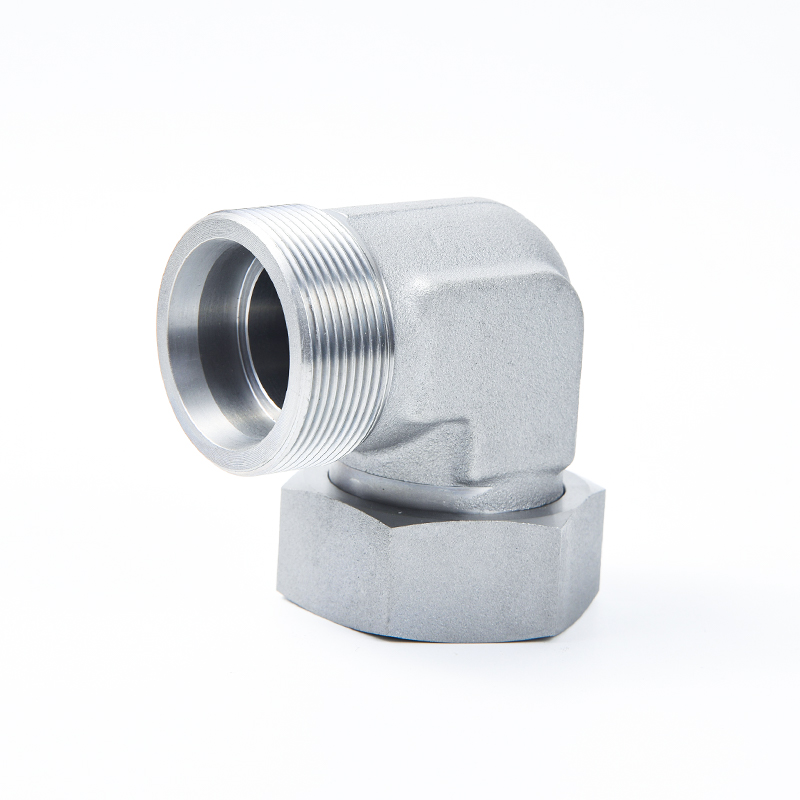

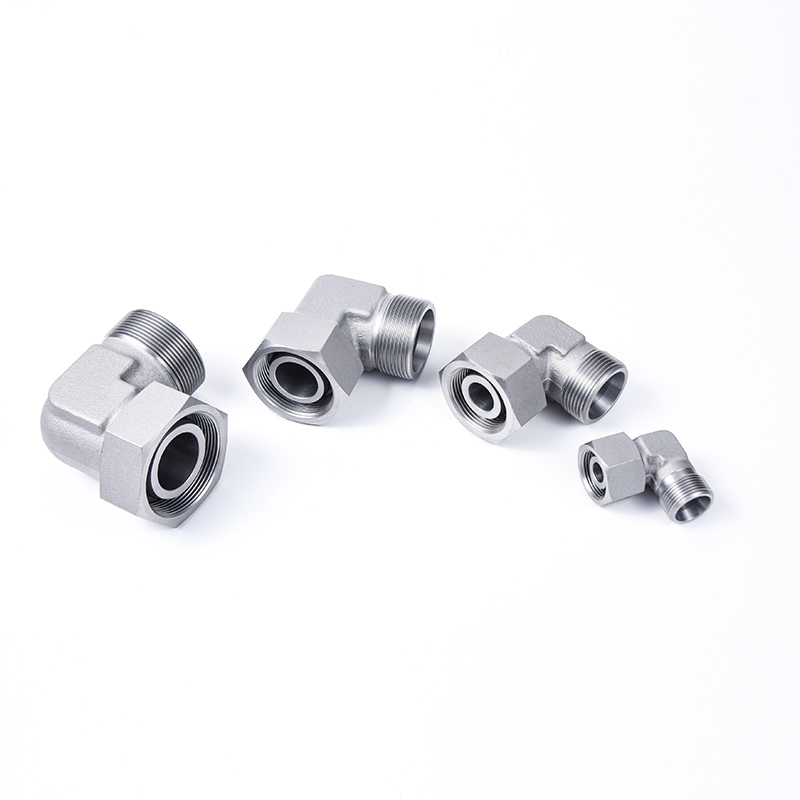

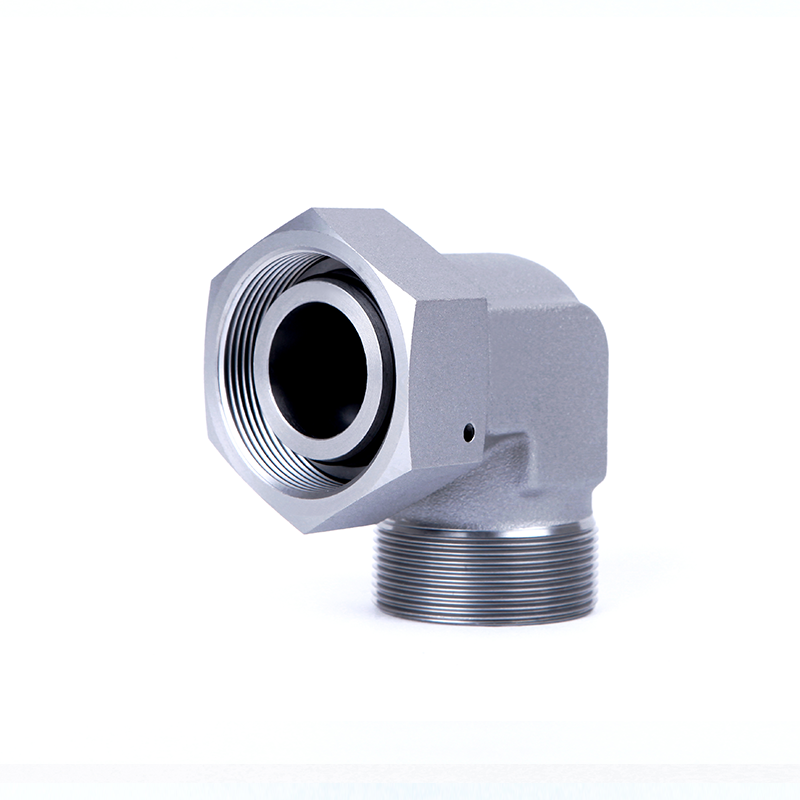

2C9 2D9 EW Reducer tube adaptor with swivel nut 90° elbow
Home » Products » Hydraulic Fittings » Adapter » Metric Adapter » 2C9 2D9 EW Reducer tube adaptor with swivel nut 90° elbow
2C9 2D9 EW Reducer tube adaptor with swivel nut 90° elbow
2C9 2D9 EW Reducer tube adaptor with swivel nut 90° elbow 2C9 2D9 EW Reducer tube adaptor with swivel nut 90° elbow
2C9 2D9 EW Reducer tube adaptor with swivel nut 90° elbow 2C9 2D9 EW Reducer tube adaptor with swivel nut 90° elbow
2C9 2D9 EW Reducer tube adaptor with swivel nut 90° elbow 2C9 2D9 EW Reducer tube adaptor with swivel nut 90° elbow
2C9 2D9 EW Reducer tube adaptor with swivel nut 90° elbow 2C9 2D9 EW Reducer tube adaptor with swivel nut 90° elbow

loading

2C9 2D9 EW Reducer tube adaptor with swivel nut 90° elbow

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
2C9 2D9 EW Swivel nut 90° bend-through fitting, one end male thread three ends male thread female cone 24° cone can be formed to the pipe end, welded pipe, ferrule connection, one end movable female thread 24° cone O-ring seal, pressure range up to 630bar/9000PSI. conforming to international standards: DIN3861/ISO8434, available with standard pipe diameters 24° cone light connection ( DIN2353)06L-42L, 24° cone heavy duty (DIN2353)06S-38S, available with reducers.
Quantity:
Inquire Add to Basket
  • Description

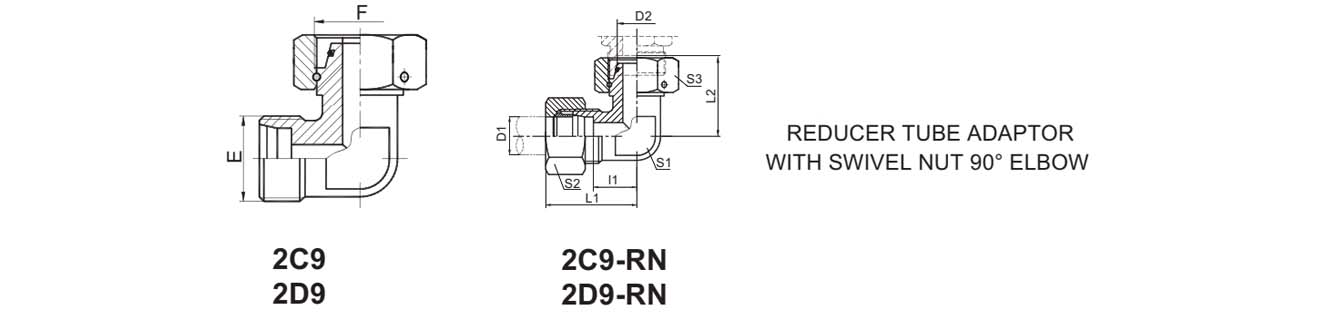

  • PART NO.
    THREAD
    TUBE O.D.
    DIMENSIONS
    MPa
    E
    F
    D1
    D2
    l1,2
    L1,L2
    S1
    s2,s3
    2C9-12
    M12X1.5
    M12X1.5
    6
    6
    12
    27
    12
    14
    25L
    2C9-14
    M14X1.5
    M14X1.5
    8
    8
    14
    29
    12
    17
    2C9-16
    M16X1.5
    M16X1.5
    10
    10
    15
    30
    14
    19
    2C9-18
    M18X1.5
    M18X1.5
    12
    12
    17
    32
    17
    22
    2C9-22
    M22X1.5
    M22X1.5
    15
    15
    21
    36
    19
    27
    2C9-26
    M26X1.5
    M26X1.5
    18
    18
    23.5
    40
    24
    32
    2C9-30
    M30X2
    M30X2
    22
    22
    27.5
    44
    27
    36
    16L
    2C9-36
    M36X2
    M36X2
    28
    28
    30.5
    47
    36
    41
    2C9-45
    M45X2
    M45X2
    35
    35
    34.5
    56
    41
    50
    2C9-52
    M52X2
    M52X2
    42
    42
    40
    63
    50
    60
    2D9-14
    M14X1.5
    M14X1.5
    6
    6
    16
    31
    12
    17
    63S
    2D9-16
    M16X1.5
    M16X1.5
    8
    8
    17
    32
    14
    19
    2D9-18
    M18X1.5
    M18X1.5
    10
    10
    17.5
    34
    17
    22
    2D9-20
    M20X1.5
    M20X1.5
    12
    12
    21.5
    38
    17
    24
    2D9-22
    M22X1.5
    M22X1.5
    14
    14
    22
    40
    19
    27
    2D9-24
    M24X1.5
    M24X1.5
    16
    16
    24.5
    43
    24
    30
    40S
    2D9-30
    M30X2
    M30X2
    20
    20
    26.5
    48
    27
    36
    2D9-36
    M36X2
    M36X2
    25
    25
    30
    54
    36
    46
    2D9-42
    M42X2
    M42X2
    30
    30
    35.5
    62
    41
    50
    31.5S
    2D9-52
    M52X2
    M52X2
    38
    38
    41
    72
    50
    60
    Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.，for example 1C9-30RN.

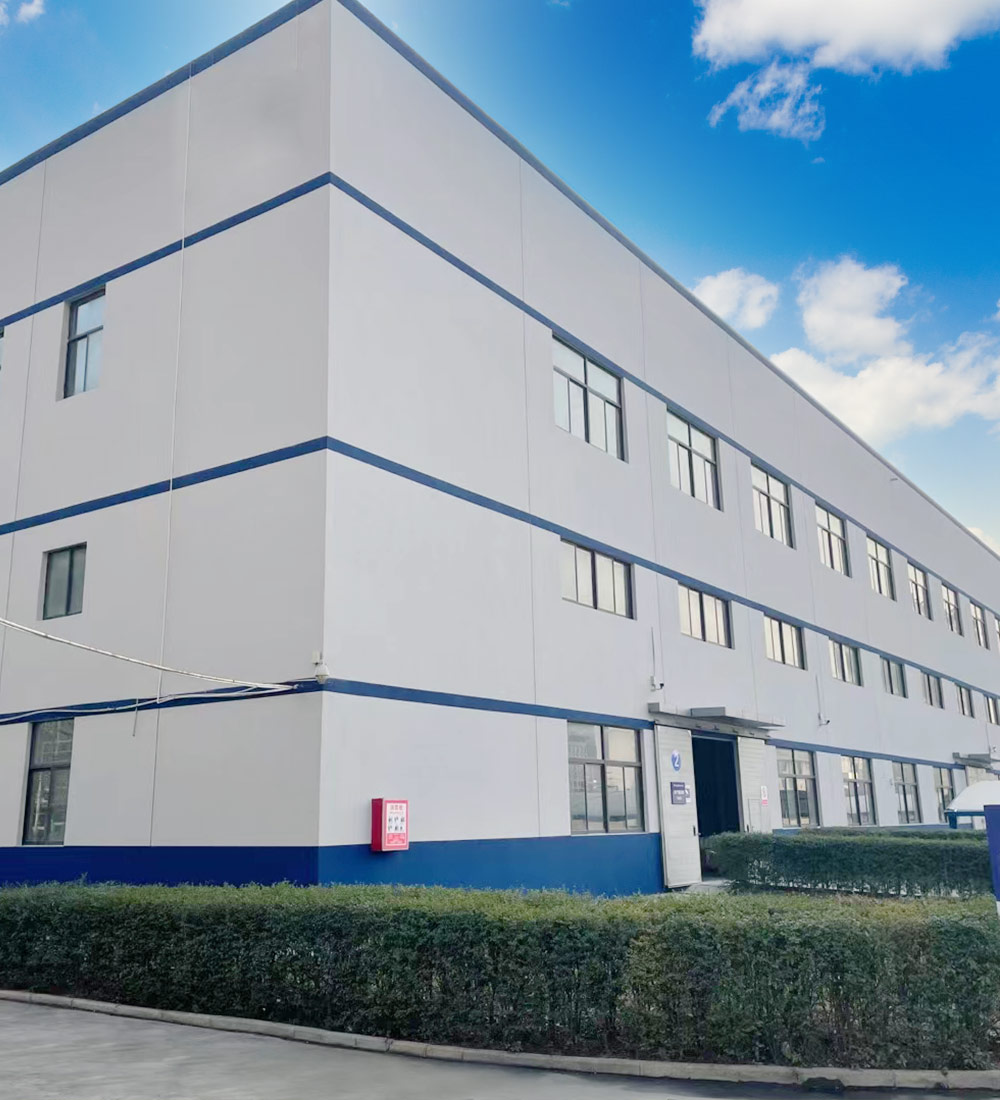

Ningbo Fuke Hydraulic Machinery Co., Ltd.

Ningbo Fuke Hydraulic Machinery Co., Ltd. is a specialized company dedicated to the production and research and development of hydraulic fluid connectors and control valves. The company mainly provides hydraulic joints, high-precision hydraulic valve blocks, high-pressure ball valves, and single-phase valves that meet ISO, DIN, and SAE standards. As well known Reducer Tube Adapter suppliers in China, The company has experienced hydraulic system designers, who can provide customers with relevant technical support and all hydraulic accessories solutions to improve customer procurement efficiency.
The company earnestly implements the 1S09001:2000 quality system, and its products are widely used in metallurgical industry, drilling platform equipment manufacturing, construction machinery, wind power generation, petrochemical industry, machine tool manufacturing and other fields.
The company also OEM/ODM and wholesale Swivel Nut 90º Elbow Reducer Tube Adaptor in bulk.
Previous:
Next:
2C9 2D9 EW Reducer tube adaptor with swivel nut 90° elbow

Related Products

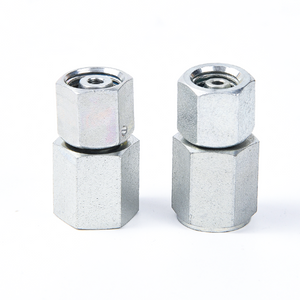

7BC-GDK MAVE Pressure gauge connector
7BC-GDK MAVE Pressure gauge connector

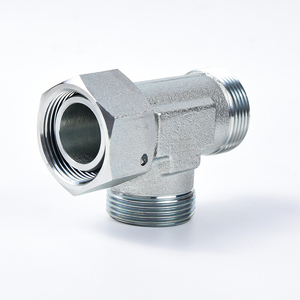

CC CD EL Barrel tee fit tings with swivel nut ROV
CC CD EL Barrel tee fit tings with swivel nut ROV
1CI 1DI WH Splice fitting one imperial thread
1CI 1DI WH Splice fitting one imperial thread
AC AD T Bsp Thread with Captive Seal
AC AD T Bsp Thread with Captive Seal

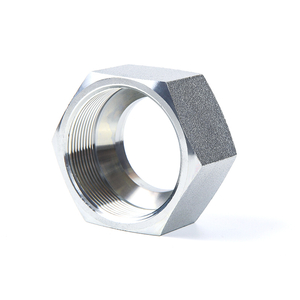

NL NS M Retaining nuts
