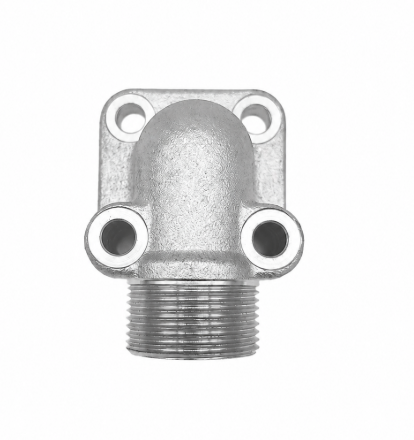

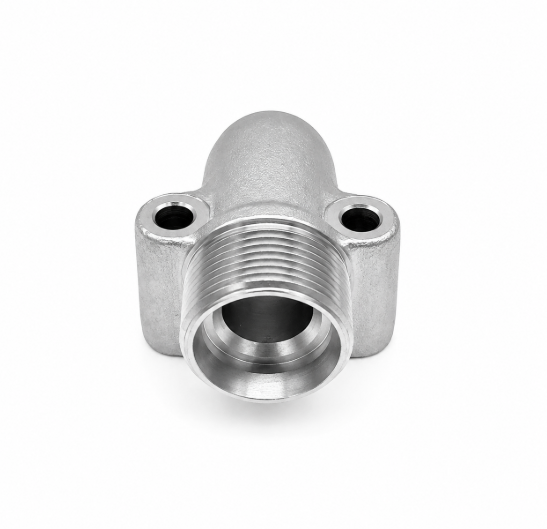

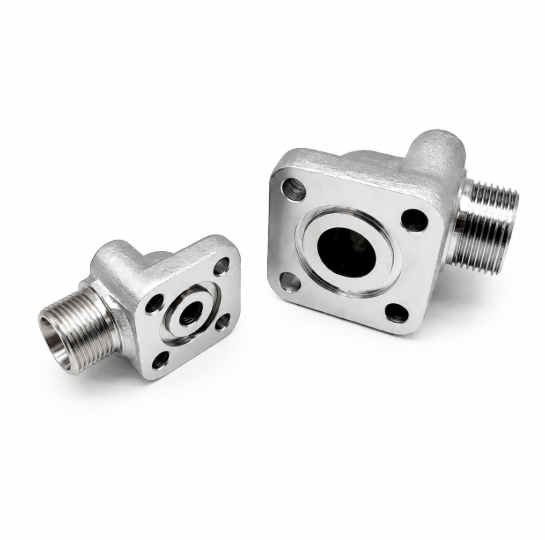

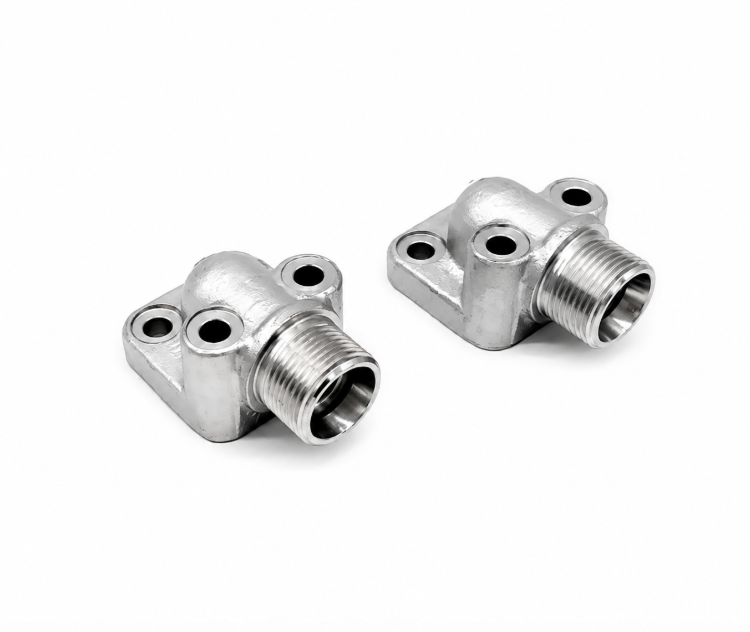

The Gear Pump Flange 90° Elbow is designed to connect hydraulic gear pumps with DIN EO 24° cone tube fittings while changing the flow direction by 90°. The flange connection provides secure mounting to the pump, while the EO 24° cone end ensures reliable leak-free sealing with compatible hydraulic tube fittings.
Its compact elbow design helps optimize hydraulic piping layouts, making it ideal for installations where space is limited. By reducing hose bending and minimizing installation stress, the fitting contributes to improved hydraulic system reliability and longer service life.
Manufactured using precision machining and high-strength materials, the fitting delivers excellent dimensional accuracy, pressure resistance, and vibration durability. Corrosion-resistant surface treatment further improves long-term performance in industrial and mobile hydraulic environments.
Available in multiple flange sizes and EO tube sizes, the product can also be customized to meet specific hydraulic system requirements.
90° elbow design for compact hydraulic installations
Hydraulic gear pump flange connection
EO 24° cone tube end
Reliable metal-to-metal sealing
High-strength carbon steel or stainless steel construction
Precision-machined flange and sealing surfaces
Corrosion-resistant surface treatment
Suitable for medium and high-pressure hydraulic systems
OEM and custom sizes available

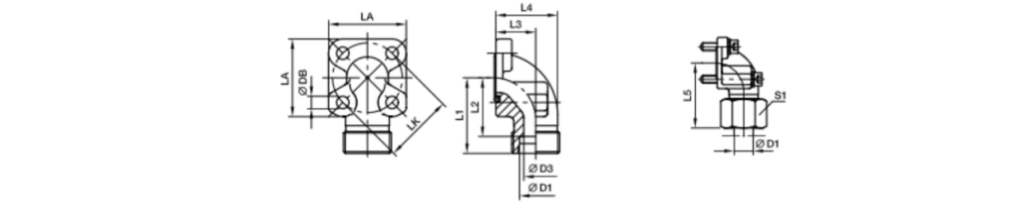

| LK | D1 | D3 | L1 | L2 | L3 | L4 | L5 | LA | S1 | DB | screws | O-ring | PN (bar) | |
| 35 | 10L | 8 | 38 | 31 | 16.5 | 26.5 | 47 | 40 | 19 | 6.4 | M 06x22 | M 06x35 | 20x2.5 | 315 |
| 35 | 12L | 10 | 38 | 31 | 16.5 | 26.5 | 47 | 40 | 22 | 6.4 | M 06x22 | M 06x35 | 20x2.5 | 315 |
| 35 | 15L | 12 | 38 | 31 | 16.5 | 26.5 | 46 | 40 | 27 | 6.4 | M 06x22 | M 06x35 | 20x2.5 | 315 |
| 35 | 16S | 12 | 38 | 29.5 | 20 | 31 | 48 | 40 | 30 | 6.4 | M 06x22 | M 06x40 | 20x2.5 | 315 |
| 35 | 20S | 16 | 45 | 34.5 | 25 | 38 | 56 | 40 | 36 | 6.4 | M 06x22 | M 06x45 | 20x2.5 | 315 |
| 40 | 15L | 12 | 38 | 31 | 22.5 | 36.5 | 46 | 42 | 27 | 6.4 | M06x22 | M06x22 | 26x2.5 | 100 |
| 40 | 18L | 15 | 38 | 30.5 | 22.5 | 36.5 | 47 | 42 | 32 | 6.4 | M06x22 | M06x22 | 26x2.5 | 100 |
| 40 | 22L | 19 | 38 | 30.5 | 22.5 | 36.5 | 47.5 | 42 | 36 | 6.4 | M06x22 | M06x22 | 26x2.5 | 100 |
| 40 | 28L | 22 | 40 | 32.5 | 28 | 43 | 49 | 42 | 41 | 6.4 | M06x20 | M06x50 | 26x2.5 | 100 |
| 40 | 35L | 31 | 41 | 30.5 | 32 | 55 | 52 | 42 | 50 | 6.4 | M06x22 | M06x60 | 26x2.5 | 100 |
| 40 | 20s | 16 | 40 | 29.5 | 22.5 | 35.5 | 50 | 42 | 36 | 6.4 | M06x22 | M06x45 | 26x2.5 | 250 |
| 55 | 35L | 31 | 49 | 38.5 | 32 | 51.5 | 62 | 58 | 50 | 8.4 | M08x25 | M 08x60 | 32x2.5 | 250 |
| 55 | 42L | 38 | 49 | 38 | 40 | 64.5 | 61 | 58 | 60 | 8.4 | M08x25 | M 08x70 | 32x2.5 | 250 |
| 55 | 20S | 17 | 45 | 34.5 | 24 | 38 | 56 | 58 | 36 | 8.4 | M08x25 | M08x50 | 32x2.5 | 250 |
| 55 | 25s | 20 | 49 | 37 | 30 | 46 | 61 | 58 | 46 | 8.4 | M08x25 | M08x55 | 32x2.5 | 250 |
| 55 | 30S | 26 | 49 | 35.5 | 32 | 50 | 62 | 58 | 50 | 8.4 | M 08x25 | M 08x50 | 32x2.5 | 250 |
The Gear Pump Flange 90° Elbow with EO 24° Cone End is widely used in hydraulic power units, gear pumps, construction machinery, agricultural machinery, mobile hydraulic equipment, industrial automation systems, machine tools, and fluid transmission systems. It provides a reliable and compact connection solution between hydraulic pumps and tube assemblies.
