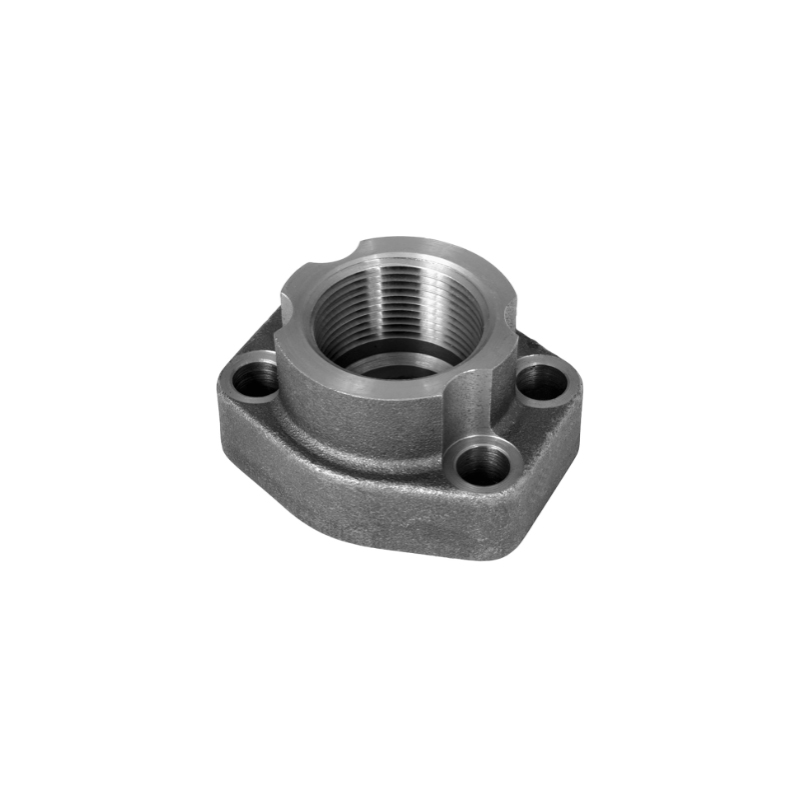

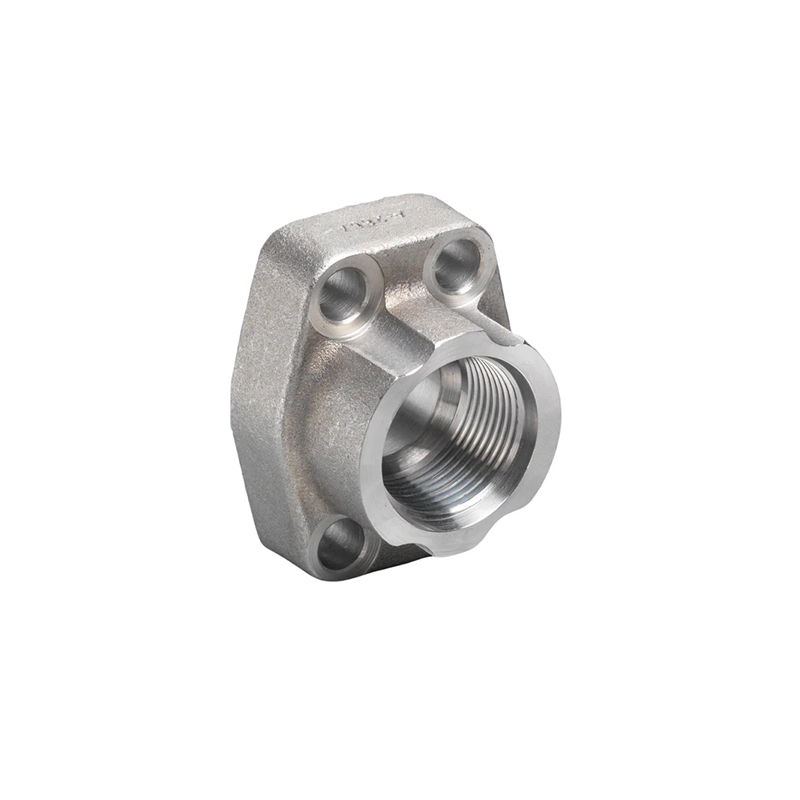

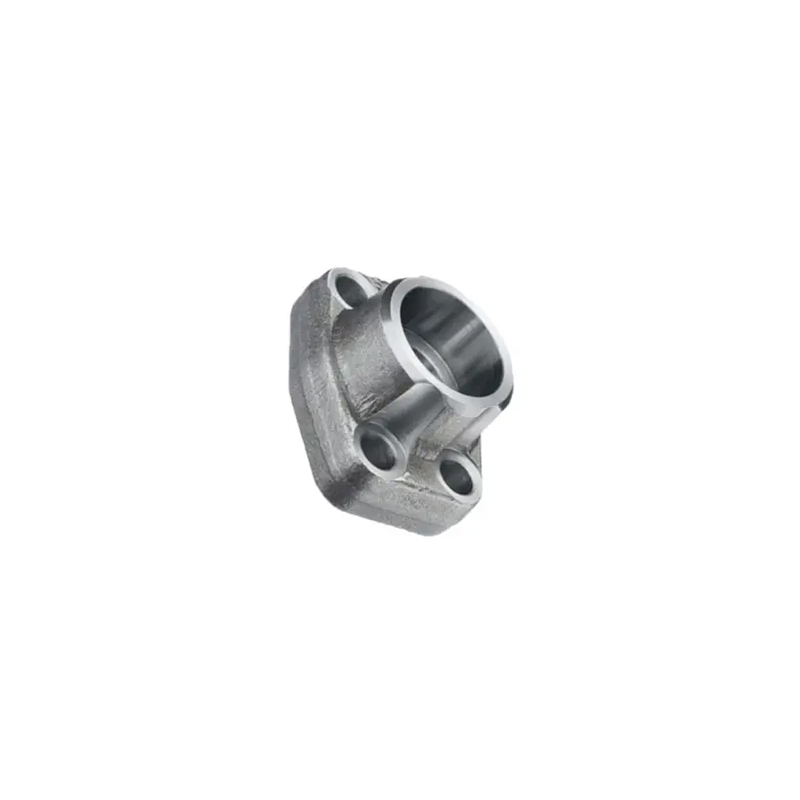

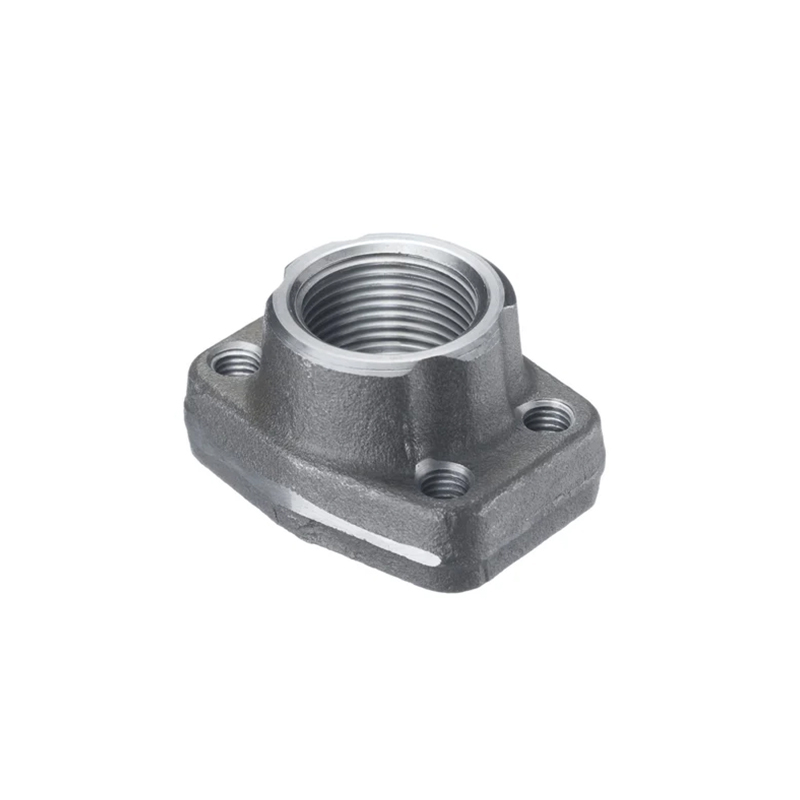

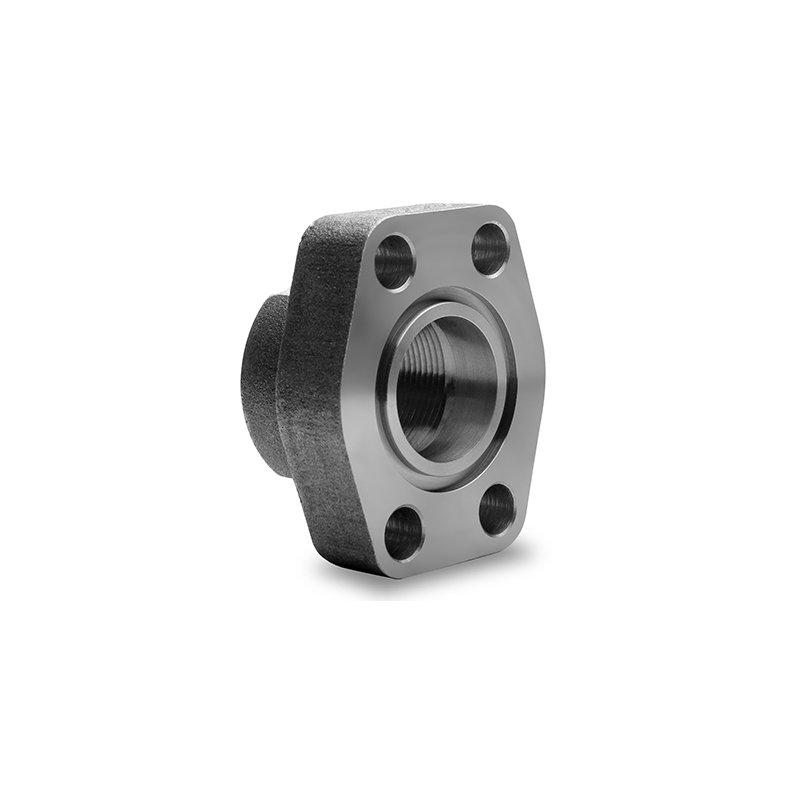

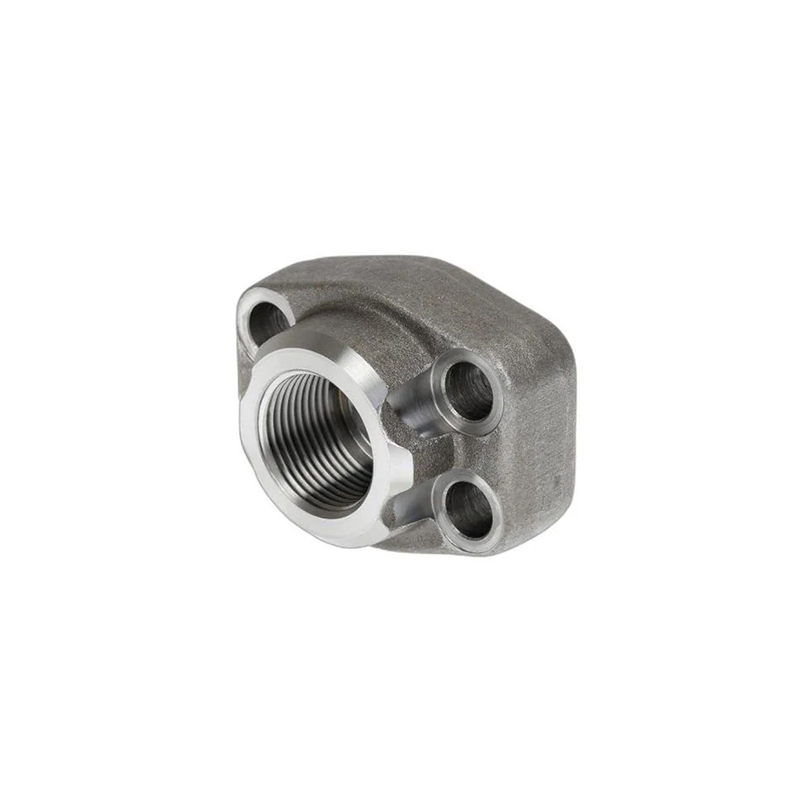

The SAE Straight 4 Bolt Flange PFF-G Thread Flange is a high-performance component designed to meet the demands of various hydraulic systems, offering exceptional versatility and reliability. It is specifically engineered for use with both braided hoses and spiral hoses, making it a flexible solution for connecting different types of hoses in a wide range of setups.
One of the key strengths of this flange is its adaptability to diverse working conditions, thanks to the availability of different materials. This allows customers to select the most suitable material based on their specific operational environments, ensuring optimal performance and longevity even in challenging circumstances.
The SAE Straight 4 Bolt Flange PFF-G Thread Flange finds extensive application across numerous industries. It is widely used in agriculture, construction, coal mining, machinery, garden industry, automobile industry, petroleum, and more. Its robust design and reliable performance make it a trusted choice for ensuring secure and efficient hose connections in these demanding sectors.
Our fittings are crafted to match the quality of international famous brands, adhering to strict standards to guarantee consistent performance and durability. With a proven track record, we have produced a large number of tube fittings that have been exported to many countries, earning the trust and recognition of customers worldwide.
In summary, the SAE Straight 4 Bolt Flange PFF-G Thread Flange combines versatility in hose compatibility, material adaptability, wide industry application, and top-tier quality, making it an excellent choice for all your hydraulic connection needs.

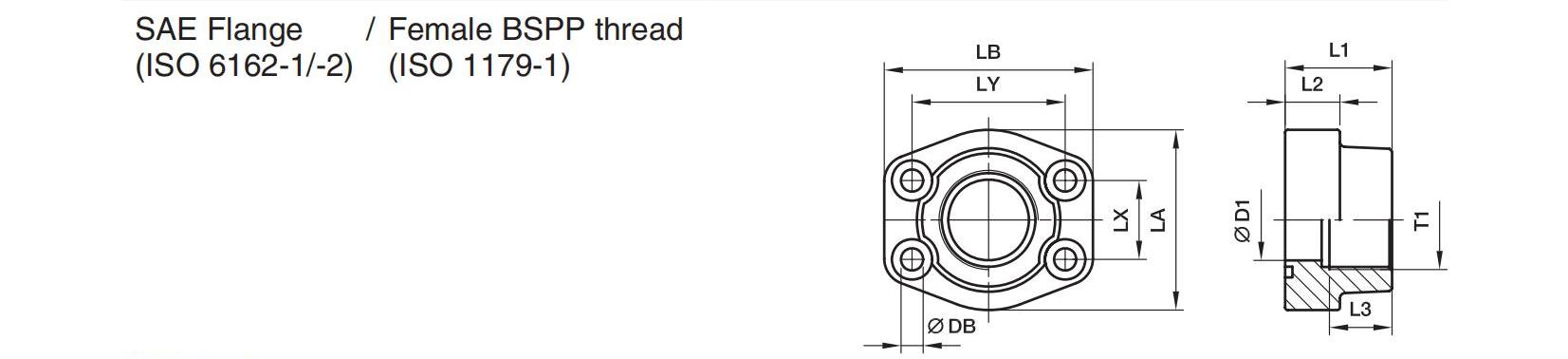

Specification
| 3000 PSI Series | ||||||||||||||
| Nom. flange size | T1 | D1 | L1 | L2 | L3 | LA | LB | LX | LY | DB | Weight | PN (bar)¹) | ||
| (steel) | ||||||||||||||
| SAE | ISO | kg/piece | S | SS | ||||||||||
| (in.) | (DN) | |||||||||||||
| 1/2 | 13 | G 3/8 | 13 | 36 | 16 | 19 | 46 | 57 | 17.5 | 38.1 | 9 | 0.27 | 345 | 345 |
| 1/2 | 13 | G 1/2 | 13 | 36 | 16 | 19 | 46 | 57 | 17.5 | 38.1 | 9 | 0.27 | 345 | 345 |
| 3/4 | 19 | G 3/4 | 19 | 36 | 18 | 19 | 50 | 65 | 22.3 | 47.6 | 11 | 0.37 | 345 | 345 |
| 3/4 | 13 | G 1/2 | 13 | 36 | 18 | 19 | 50 | 65 | 22.3 | 47.6 | 11 | 0.4 | 345 | 345 |
| 1 | 25 | G 1 | 25 | 36 | 18 | 22 | 55 | 70 | 26.2 | 52.4 | 11 | 0.45 | 345 | 345 |
| 1 | 19 | G 3/8 | 19 | 35 | 21 | 19 | 55 | 70 | 26.2 | 52.4 | 11 | 0.45 | 345 | 345 |
| 1 1/4 | 32 | G 1 1/4 | 32 | 40 | 21 | 22 | 68 | 79 | 30.2 | 58.7 | 11.5 | 0.66 | 276 | 276 |
| 1 1/4 | 25 | G 1 | 25 | 42 | 25 | 22 | 65 | 80 | 30.2 | 58.7 | 11.5 | 0.8 | 276 | 276 |
| 1 1/2 | 38 | G 1 1/2 | 38 | 45 | 25 | 24 | 78 | 93 | 35.7 | 69.9 | 13.5 | 1.05 | 207 | 207 |
| 1 1/2 | 32 | G 1 1/4 | 32 | 45 | 27 | 24 | 78 | 95 | 35.7 | 69.9 | 13.5 | 1.17 | 207 | 207 |
| 2 | 51 | G 2 | 51 | 45 | 25 | 30 | 89 | 103 | 42.9 | 77.8 | 13.5 | 1.17 | 207 | 207 |
| 2 | 38 | G 2 1/2 | 38 | 45 | 25 | 26 | 89 | 103 | 42.9 | 77.8 | 13.5 | 1.52 | 207 | 207 |
| 2 1/2 | 63 | G 2 1/2 | 63 | 50 | 25 | 30 | 101 | 115 | 50.8 | 88.9 | 13.5 | 1.59 | 172 | 172 |
| 2 1/2 | 51 | G 2 | 51 | 50 | 25 | 30 | 101 | 115 | 50.8 | 88.9 | 13.5 | 2.13 | 172 | 172 |
| 3 | 73 | G 3 | 73 | 50 | 27 | 34 | 124 | 135 | 61.9 | 106.4 | 17.5 | 2.28 | 138 | 138 |
| 3 | 63 | G 2 1/2 | 63 | 50 | 27 | 30 | 124 | 135 | 61.9 | 106.4 | 17.5 | 2.56 | 138 | 138 |
| 3 1/2 | 89 | G 3 1/2 | 89 | 48 | 27 | 34 | 136 | 152 | 69.9 | 120.7 | 17.5 | 2.42 | 34 | 34 |
| 3 1/2 | 73 | G 3 | 73 | 48 | 27 | 34 | 136 | 152 | 69.9 | 120.7 | 17.5 | 3.28 | 34 | 34 |
| 4 | 99 | G 4 | 99 | 48 | 27 | 34 | 146 | 162 | 77.8 | 130.2 | 17.5 | 2.78 | 34 | 34 |
| 4 | 89 | G 3 1/2 | 89 | 48 | 27 | 34 | 146 | 162 | 77.8 | 130.2 | 17.5 | 3.3 | 34 | 34 |
| 5 | 129 | G5 | 129 | 50 | 28 | 30 | 180 | 184 | 92.1 | 152.4 | 17.5 | 5.8 | 34 | 34 |
| 6000 PSI Series | ||||||||||||||
| 1/2 | 13 | G 3/8 | 13 | 36 | 16 | 19 | 46 | 57 | 18.2 | 40.5 | 9 | 0.26 | 420 | 420 |
| 1/2 | 13 | G 1/2 | 13 | 36 | 16 | 19 | 46 | 57 | 18.2 | 40.5 | 9 | 0.29 | 420 | 420 |
| 3/4 | 19 | G 3/4 | 19 | 35 | 21 | 22 | 55 | 71 | 23.8 | 50.8 | 11 | 0.5 | 420 | 420 |
| 3/4 | 13 | G 1/2 | 13 | 35 | 21 | 22 | 55 | 71 | 23.8 | 50.8 | 11 | 0.5 | 420 | 420 |
| 1 | 25 | G 1 | 25 | 42 | 25 | 24 | 65 | 81 | 27.8 | 57.2 | 13 | 0.76 | 420 | 420 |
| 1 | 19 | G 3/4 | 19 | 42 | 25 | 24 | 65 | 81 | 27.8 | 57.2 | 13 | 0.76 | 420 | 420 |
| 1 1/4 | 32 | G 1 1/4 | 32 | 45 | 27 | 25 | 78 | 95 | 31.8 | 66.6 | 15 | 1.2 | 420 | 420 |
| 1 1/4 | 25 | G 1 | 25 | 45 | 27 | 25 | 78 | 95 | 31.8 | 66.6 | 15 | 1.2 | 420 | 420 |
| 1 1/2 | 38 | G 1 1/2 | 38 | 50 | 30 | 28 | 94 | 112 | 36.5 | 79.3 | 17 | 1.65 | 420 | 420 |
| 1 1/2 | 32 | G 1 1/4 | 32 | 50 | 30 | 28 | 94 | 112 | 36.5 | 79.3 | 17 | 1.65 | 420 | 420 |
| 2 | 51 | G 2 | 51 | 65 | 37 | 30 | 114 | 134 | 44.5 | 96.8 | 21 | 2.45 | 420 | 420 |
| 2 | 38 | G 1 1/2 | 38 | 65 | 37 | 30 | 114 | 134 | 44.5 | 96.8 | 21 | 2.45 | 420 | 420 |
| 2 1/2 | 63 | G 2 1/2 | 63 | 80 | 45 | 32 | 152 | 180 | 58.7 | 123.8 | 25 | 3.05 | 420 | 420 |
| 3 | 73 | G 3 | 73 | 90 | 55 | 40 | 178 | 208 | 71.4 | 152.4 | 32 | 3.45 | 420 | 420 |
