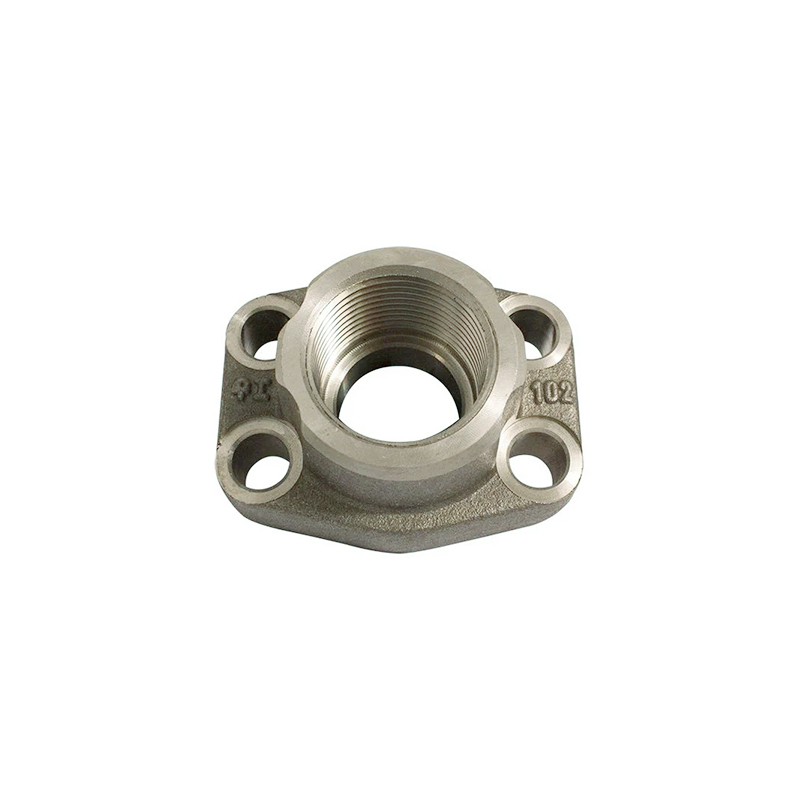

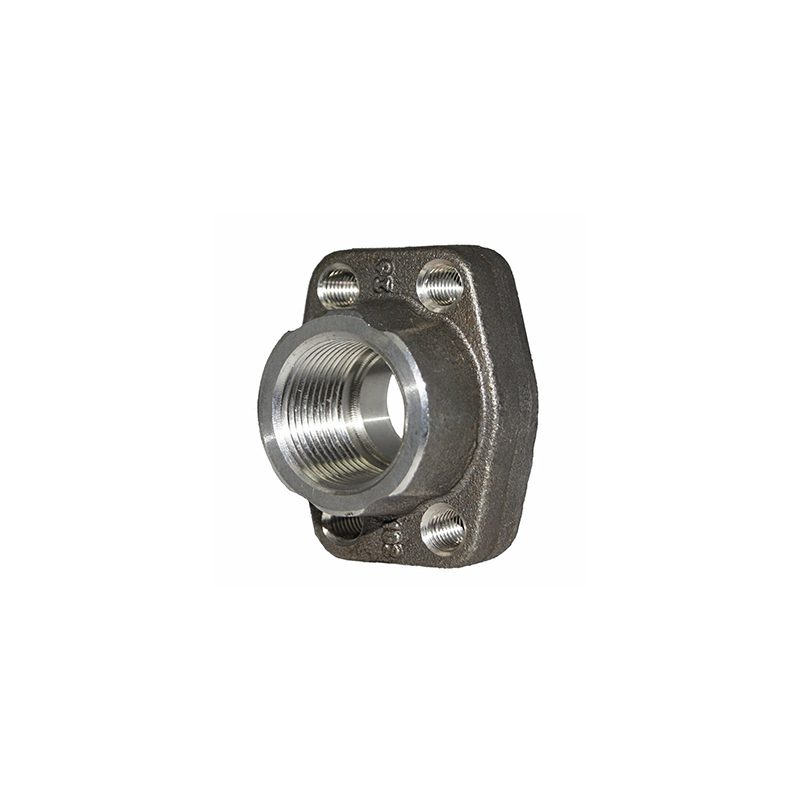

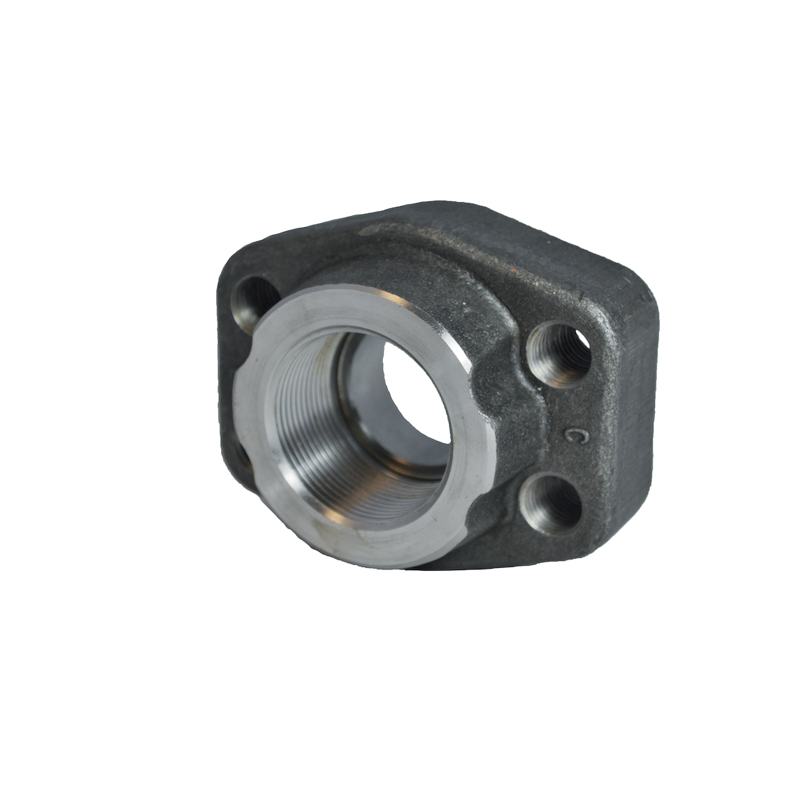

SAE Straight 4 Bolt Flange with BSPP Thread PCFF-G

Name: SAE Straight 4 Bolt Flange with BSPP Thread PCFF-G
Rating: 5.0 (57 reviews)

SAE straight 4 bolt thread flange. It could use for braided hoses and spiral hoses . On the other hand , it has different material for customer work condition. Applicated in agriculture, construction, coal mining industry, machinery, garden industry, automobile industry, petroleum, etc.Our fittings have the same quality as international famous brand. We have produced many tube fittings to export many contries.

Availability:

Quantity:



Inquire Add to Basket

Description

1. Product Overview

The SAE Straight 4 Bolt Flange with BSPP Thread, model PCFF-G, is a professional connecting fitting designed for hydraulic systems. Following standard four-bolt flange structure and adopting BSPP thread design, this product features solid connection performance and outstanding versatility. It is fully compatible with both braided hoses and spiral hoses, the two most common types of hydraulic hoses in the industry. With reliable structural design, it can realize firm and leak-free connection for various hydraulic pipelines, serving as a fundamental component for fluid power system assembly.

2. Material & Condition Adaptability

To meet the requirements of diverse operating environments, this flange is supplied in a range of material options. Users can select the most suitable material according to practical working factors such as transmission medium, operating temperature and corrosive atmosphere. Proper material matching enables the product to maintain stable performance all the time and effectively extends its overall service life, whether working under normal conditions or relatively harsh industrial environments.

3. Application Fields

This flange has a wide coverage of application scenarios across multiple industries. It is widely applied in agricultural machinery, construction equipment, coal mining facilities, general mechanical devices, garden tools, automobile manufacturing, petroleum industry and other major sectors. Its stable performance and firm connecting effect make it well qualified for continuous operation in different industrial hydraulic circuits.

4. Product Quality

We adopt strict manufacturing and quality control standards throughout production. The overall quality of our pipe fittings reaches the level of world-famous brands. Up to now, a large quantity of our tube fittings including this PCFF-G flange have been exported to many countries worldwide. Consistent high quality has helped us gain good reputation and long-term trust from global customers.

5. Key Advantages

Standard BSPP thread and four-bolt structure ensure excellent connecting tightness and safety. It is compatible with braided and spiral hydraulic hoses for flexible assembly. Various material choices make it adaptable to different working conditions. With wide industrial applicability and reliable quality, this flange is a cost-effective and trustworthy choice for hydraulic pipeline connection.

6.Description

3000 PSI Series

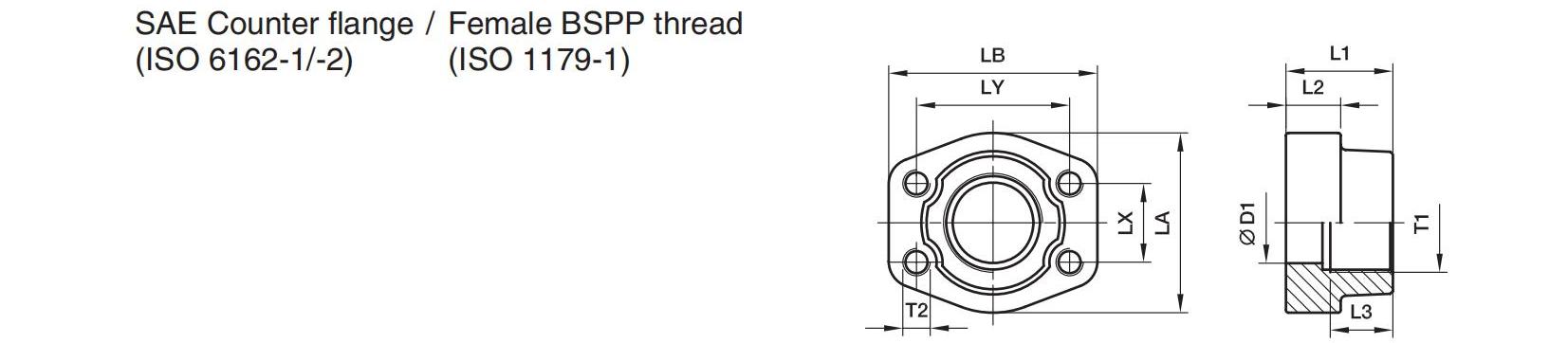

Nom. flange size		T1	D1	L1	L2	L3	LA	LB	LX	LY	T2		Weight (steel) kg/piece	PN (bar)¹)
SAE (in.)	ISO (DN)	T1	D1	L1	L2	L3	LA	LB	LX	LY	(metr.)	(unc.)	Weight (steel) kg/piece	S	SS
1/2	13	G 3/8	13	36	16	19	46	57	17.5	38.1	M 8	5/16	0.26	345	345
1/2	13	G 1/2	13	36	16	19	46	57	17.5	38.1	M 8	5/16	0.28	345	345
3/4	19	G 3/4	19	36	18	19	50	65	22.3	47.6	M 10	3/8	0.41	345	345
3/4	13	G 1/2	13	36	18	19	50	65	22.3	47.6	M 10	3/8	0.44	345	345
1	25	G 1	25	38	18	22	55	70	26.2	52.4	M 10	3/8	0.49	345	345
1	19	G 3/8	19	35	21	19	55	70	26.2	52.4	M 10	3/8	0.55	345	345
1 1/4	32	G 1 1/4	32	40	21	22	68	79	30.2	58.7	M 10	7/16	0.71	276	276
1 1/4	25	G 1	25	42	25	22	65	80	30.2	58.7	M 10	7/16	0.85	276	276
1 1/2	38	G 1 1/2	38	45	25	24	78	93	35.7	69.9	M 12	1/2	1.12	207	207
1 1/2	32	G 1 1/4	32	45	27	24	78	95	35.7	69.9	M 12	1/2	1.24	207	207
2	51	G 2	51	45	25	30	89	103	42.9	77.8	M 12	1/2	1.24	207	207
2	38	G 1 1/2	38	45	25	26	89	103	42.9	77.8	M 12	1/2	1.59	207	207
2 1/2	64	G 2 1/2	63	50	25	30	101	115	50.8	88.9	M 12	1/2	1.66	172	172
2 1/2	51	G 2	51	50	25	30	101	115	50.8	88.9	M 12	1/2	2.20	172	172
3	76	G 3	73	50	27	30	124	135	61.9	106.4	M 16	5/8	2.37	138	138
3	63	G 2 1/2	63	50	27	30	124	135	61.9	106.4	M 16	5/8	2.65	138	138
3 1/2	89	G 3 1/2	89	50	27	30	136	152	69.9	120.7	M 16	5/8	2.51	34	34
3 1/2	73	G 3	73	48	27	34	136	152	69.9	120.7	M 16	5/8	3.37	34	34
4	102	G 4	99	50	27	30	146	162	77.8	130.2	M 16	5/8	2.87	34	34
4	89	G 3 1/2	89	48	27	34	146	162	77.8	130.2	M 16	5/8	3.39	34	34
5	127	G5	120	50	28	30	180	184	92.1	152.4	M 16	5/8	5.80	34	34
6000 PSI Series
1/2	13	G 3/8	13	36	16	19	46	57	18.2	40.5	M 8	5/16	0.26	420	420
1/2	13	G 1/2	13	36	16	19	46	57	18.2	40.5	M 8	5/16	0.29	420	420
3/4	19	G 3/4	19	35	21	22	55	71	23.8	50.8	M 10	3/8	0.55	420	420
3/4	13	G 1/2	13	35	21	22	55	71	23.8	50.8	M 10	3/8	0.60	420	420
1	25	G 1	25	42	25	24	65	81	27.8	57.2	M 12	7/16	0.87	420	420
1	19	G 3/4	19	42	25	24	65	81	27.8	57.2	M 12	7/16	0.90	420	420
1 1/4	32	G 1 1/4	32	45	27	25	78	95	31.8	66.6	M 14	1/2	1.21	420	420
1 1/4	25	G 1	25	45	27	25	78	95	31.8	66.6	M 14	1/2	1.34	420	420
1 1/2	38	G 1 1/2	38	50	30	28	94	112	36.5	79.3	M 16	5/8	1.90	420	420
1 1/2	32	G 1 1/4	32	50	30	28	94	112	36.5	79.3	M 16	5/8	2.03	420	420
2	51	G 2	51	65	37	30	114	134	44.5	96.8	M 20	3/4	3.43	420	420
2	38	G 1 1/2	38	65	37	30	114	134	44.5	96.8	M 20	3/4	3.92	420	420
2 1/2	64	G 2 1/2	63	80	45	32	152	180	58.7	123.8	M 24	-	6.98	420	420
3	76	G 3	73	90	55	40	178	208	71.4	152.4	M 30	-	13.00	420	420
