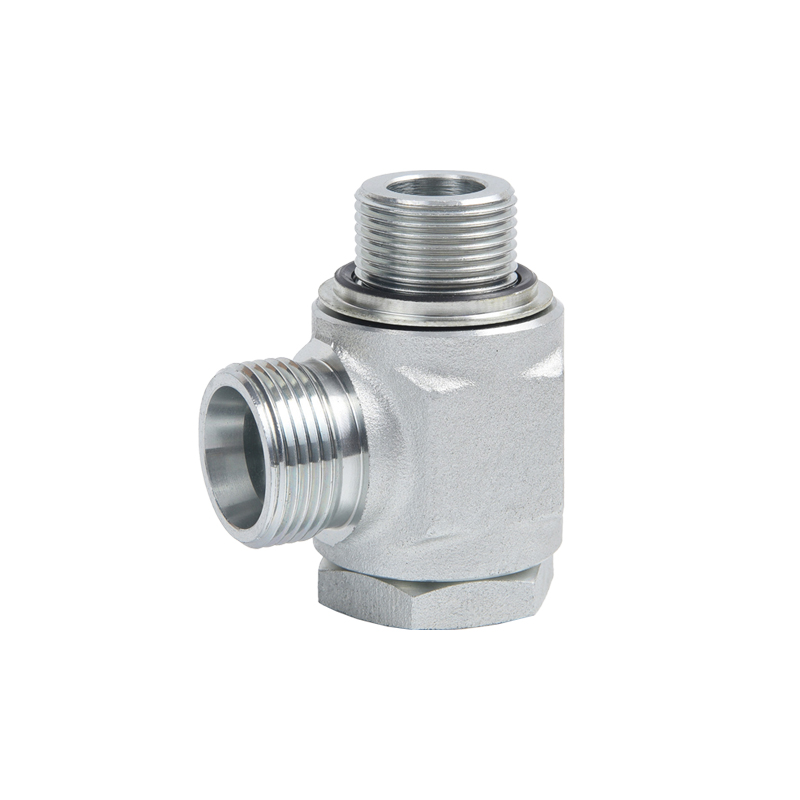

1CI 1DI-B WH High Pressure Spliced Fitting One Inch Thread Elastic Seal

The 1CI/1DI-B WH-R-KDS high-pressure spliced fitting features an inch-thread elastomeric seal, metric male thread, and 24° taper. Compatible with welded pipes, it uses a ferrule connection and ISO 9974 imperial-thread articulated bolt for reliable hydraulic system performance.

Availability:

Quantity:



Inquire Add to Basket

Description

1. Product Overview

The 1CI/1DI-B WH-R-KDS high-pressure spliced fitting is a precision connection component engineered for high-pressure hydraulic fluid systems. It adopts an inch-thread elastomeric seal structure, combined with metric male thread and 24° taper design. Compatible with welded pipes and ferrule connection methods, it applies ISO 9974 imperial-thread articulated bolt design to deliver stable and reliable connection performance for hydraulic systems.

Crafted from versatile materials (carbon steel or stainless steel) to suit varying pressure and environmental demands.

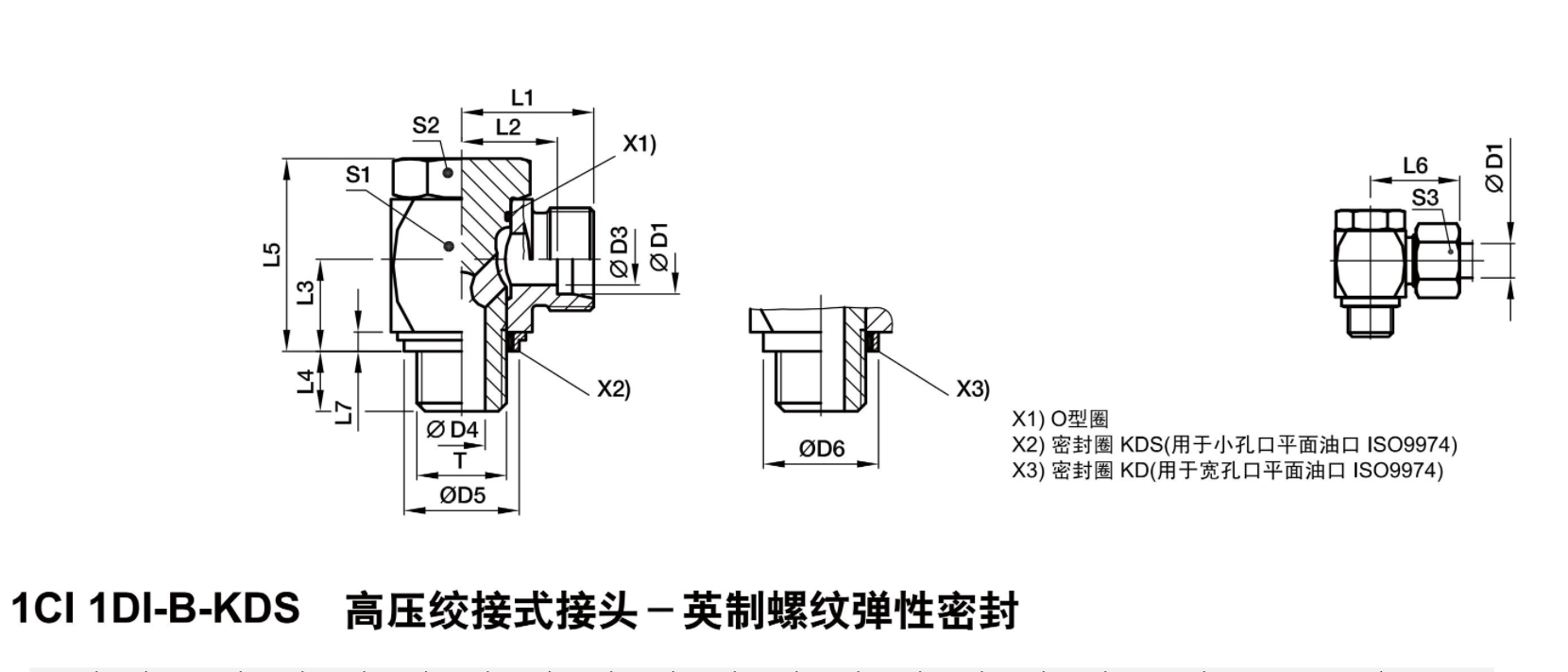

1CI-B 图纸

2. Core Structural Features

Featured with a composite structure integrating inch-thread elastic seal, metric male thread and 24° taper, realizing versatile pipeline connection adaptation.

Optimized for welded pipe installation and equipped with a standard ferrule connection system to ensure tight and firm assembly.

Adopts ISO 9974 standard imperial-thread articulated bolt structure, offering high compatibility with mainstream hydraulic system assembly specifications.

3. Sealing & Connection Advantages

Equipped with integrated elastomeric sealing and precise 24° taper & thread matching structure, the fitting effectively prevents fluid leakage and improves overall sealing tightness. The standard ferrule connection ensures easy assembly and high connection stability, supporting long-term reliable operation of high-pressure fluid systems.

4. Application Scope

With strong structural compatibility, the fitting is suitable for various high-pressure hydraulic equipment and fluid power systems. It is widely applied in industrial hydraulic machinery and fluid transmission equipment, meeting precise connection requirements for high-pressure pipeline splicing and transition.

Series	D1	T	D3	D4	D5 KDS	D6 KD	L1	L2	L3	L4	L5	L6	L7	S1	S2	S3	Weight g/pcs	Order No.	Work pressure (bar)
Series	D1	T	D3	D4	D5 KDS	D6 KD	L1	L2	L3	L4	L5	L6	L7	S1	S2	S3	Weight g/pcs	Order No.	CF	71
L	06	G 1/8A	4	4.5	14.9	17	19	12	10.5	8	24	27	2.5	17	17	14	53	1Cl-12-B02	315	315
	08	G 1/4A	6	6	18.9	22	21.5	14.5	14	12	30	29	3	22	19	17	101	1Cl-14-B04	315	315
	10	G 1/4A	8	6	18.9	22	22.5	15.5	14	12	30	30	3	22	19	19	102	1Cl-16-B04	315	315
	12	G 3/8A	10	7.5	21.9	27	25	18	16.5	12	36	33	3	27	24	22	181	1Cl-18-B06	315	315
	15	G 1/2A	12	11	26.9	32	28.5	21.5	21.5	14	45	37	4.5	32	30	27	312	1Cl-22-B08	315	315
	18	G 1/2A	15	11.0	26.9	32	28.5	21.0	21.5	14	45	37	4.5	32	30	32	319	1Cl-26-B08	315	315
	22	G3/4A	19	17.0	32.9	41	35.0	27.5	24.0	16	53	44	3.5	41	36	36	578	1Cl-30-B12	160	160
	28	G 1A	24	21.0	39.9	46	39.5	32.0	30.5	18	66	4O	3.5	50	46	41	1035	1Cl-36-B16	160	160
	35	G11/4A	30	27.0	49.9	57	46.5	36.0	35.5	20	76	58	3.5	60	55	50	1499	1Cl-45-B20	160	160
	42	G11/2A	36	34.0	55.9	64	51.5	40.5	40.5	22	87	63	3.5	70	60	60	2196	1Cl-52-B24	160	160
S	06	G 1/4A	4	6.0	18.9	22	23.5	16.5	14	12	30	31	3.0	22	19	17	107	1DI-14-B04	400	400
	08	G 1/4A	5	6	18.9	22	23.5	16.5	14	12	30	31	3.0	22	19	19	107	1DI-16-B04	400	400
	10	G 3/8A	7	7.5	21.9	27	26	18.5	16.5	12	36	35	3.0	27	24	22	188	1DI-18-B06	400	400
	12	G 3/8A	8	7.5	21.9	27	26	18.5	16.5	12	36	35	3.0	27	24	24	190	1DI-20-B06	400	400
	14	G 1/2A	10	11	26.9	32	30.5	22.5	21.5	15	45	40	4.5	32	30	27	320	1DI-22-B08	400	400
	16	G 1/2A	12	11.0	26.9	32	30.5	22.0	21.5	14	45	40	4.5	32	30	30	324	1DI-24-B08	315	315
	20	G 3/4A	16	17.0	32.9	41	37.0	26.5	24.0	16	53	48	3.5	41	36	36	588	1DI-30-B12	315	315
	25	G1A	20	21.0	39.9	46	43.5	31.5	30.5	18	66	56	3.5	50	46	46	1073	1DI-36-B16	250	250
	30	G11/4A	25	27.0	49.9	57	50.5	37.0	35.5	20	76	64	3.5	60	55	50	1559	1DI-42-B20	160	160
	38	G11/2A	32	34.0	55.9	64	57.5	41.5	40.5	22	87	72	3.5	70	60	60	2296	1DI-52-B24	160	160
Note:In case if you are interested to order the adapterin complete set with cuting ring and nut it is necessary to insert suffix "RN"after our part no.,for example 1Cl-12-B02/RN.
