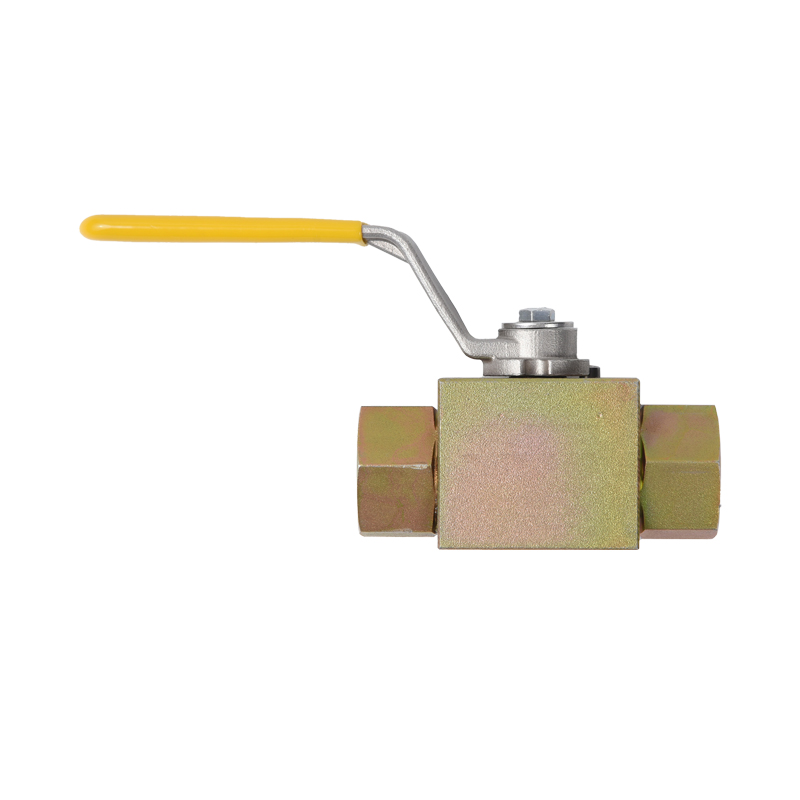

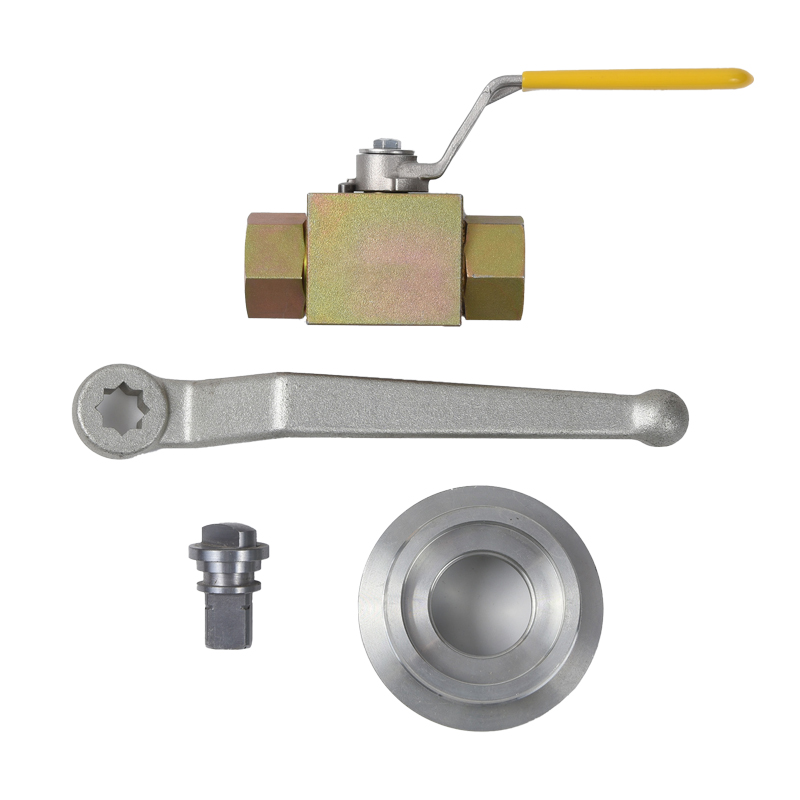

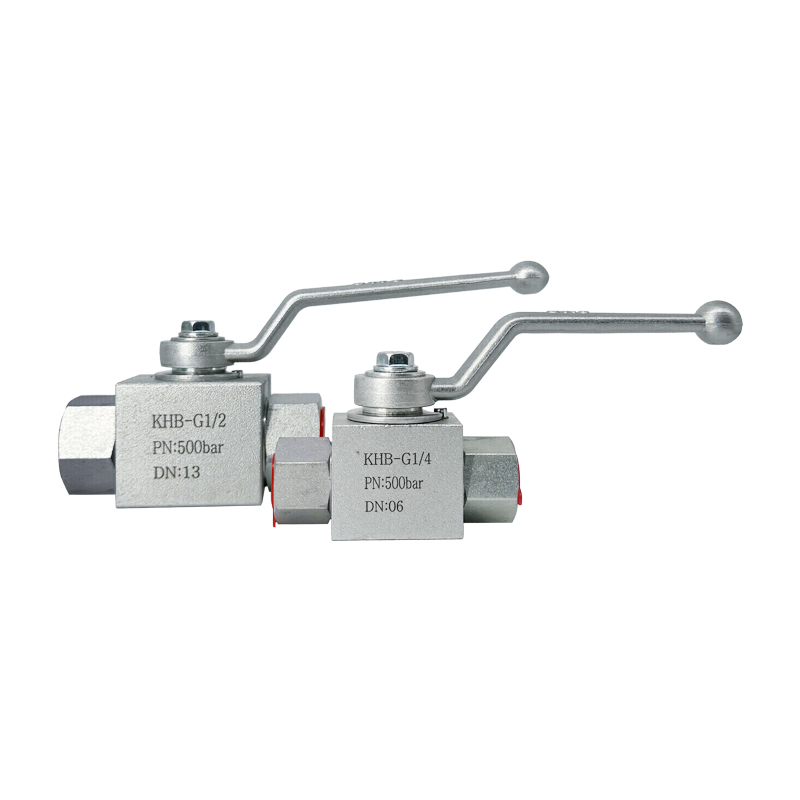

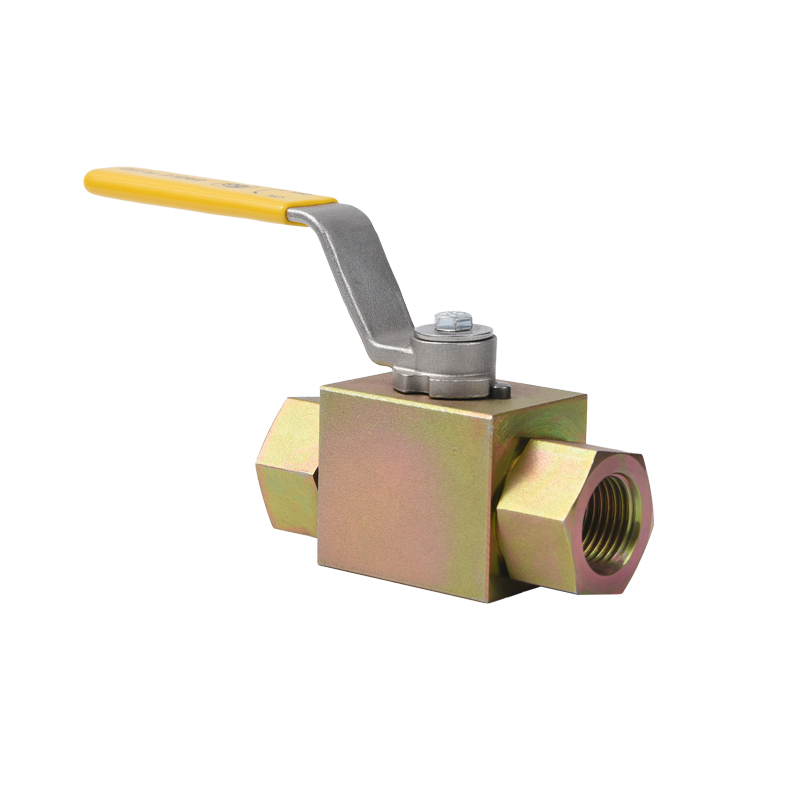

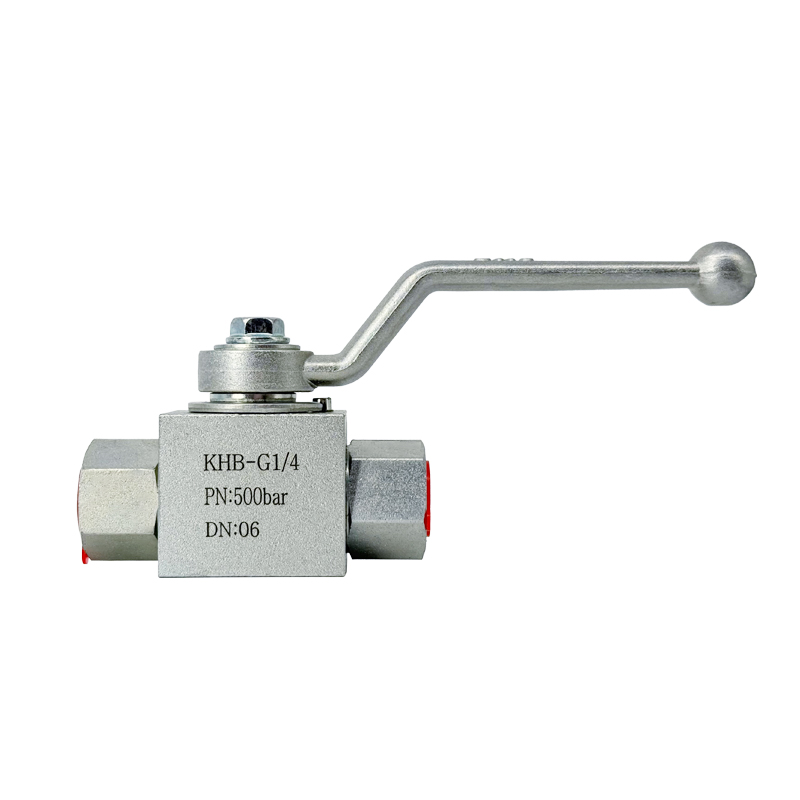

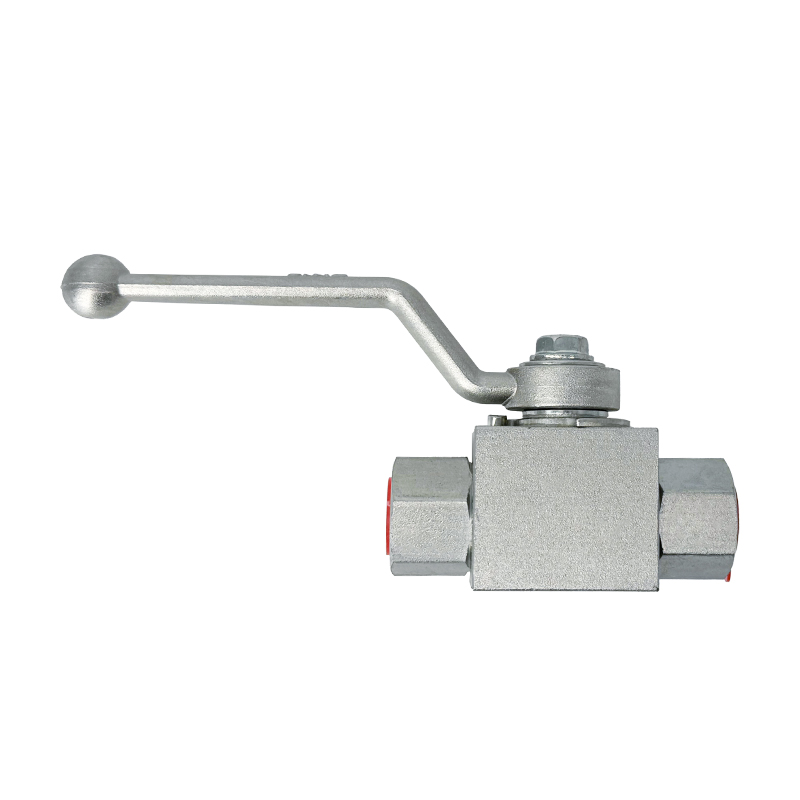

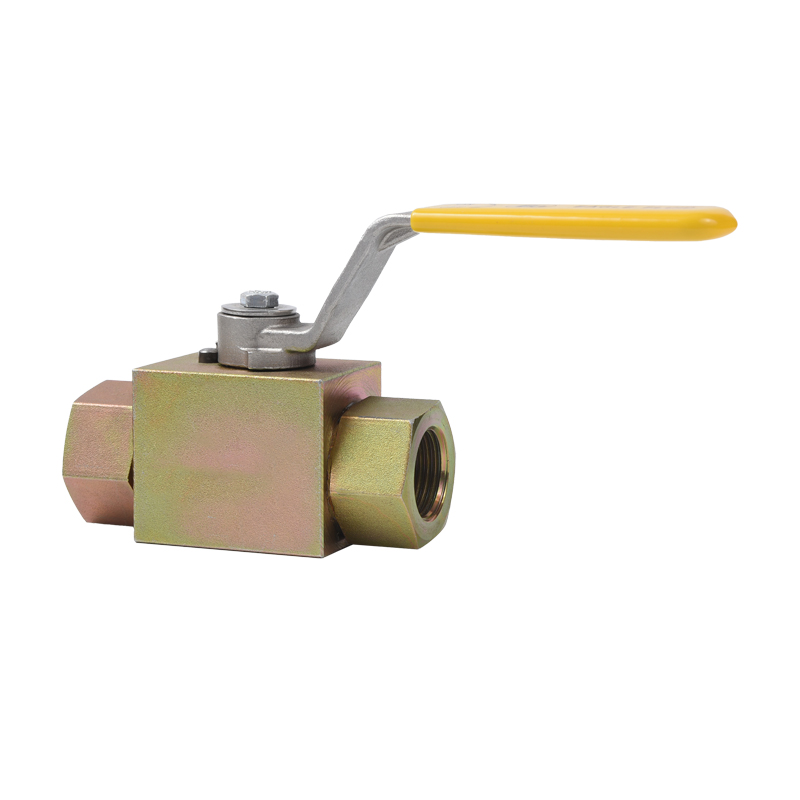

The BKR/BKN/BKHL/BKHS series of high pressure two-way ball valves feature a square body design, combining robust construction with versatile connectivity to meet the needs of various industrial applications. Both ends of these valves come with standard connections, offering a wide range of options to ensure seamless integration into diverse systems.
These include BSP female threads (conforming to DIN ISO 228), NPT female threads (in line with ANSI B1.20.1), UN/UNF female threads (meeting SAE J 514 standards), as well as 24° tapered light connections (DIN 2353) in sizes 06L-42L and 24° tapered heavy connections (DIN 2353) in sizes 06S-38S.
Engineered to handle high-pressure environments, these ball valves boast an impressive pressure range of up to 420 bar (6000 PSI), making them suitable for heavy-duty operations. They also perform reliably across a broad operating temperature range, from -20°C to +100°C, ensuring consistent functionality in both cold and moderately high-temperature conditions.
The BKR/BKN/BKHL/BKHS high pressure two-way ball valves are particularly well-suited for hydraulic systems in construction machinery, agricultural machinery, mining machinery, and painting machinery. Additionally, they can be used with steam, oil, and gas media, though it is important to note that the choice of seat and seal material should be carefully considered based on the specific medium to ensure optimal performance and longevity.
In summary, with their square body design, extensive connection options, high-pressure and wide temperature tolerance, and adaptability to various media, the BKR/BKN/BKHL/BKHS series high pressure two-way ball valves are a reliable and versatile choice for professionals seeking top-notch performance in demanding industrial systems.

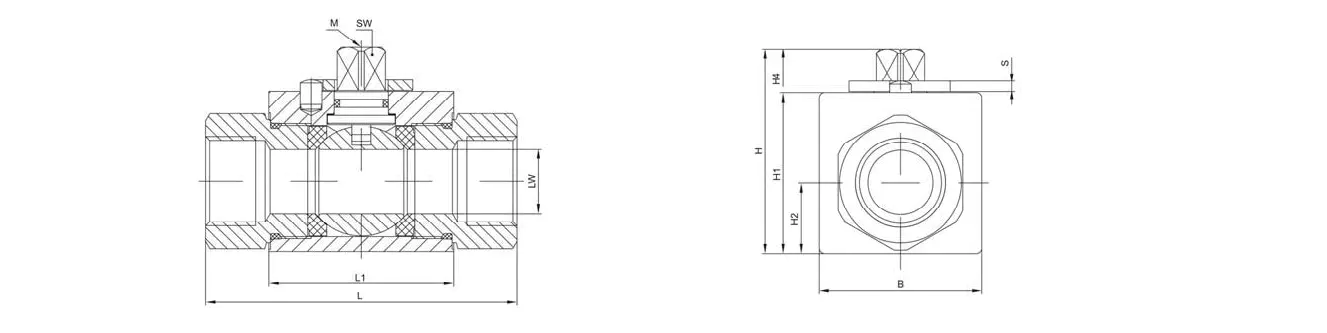

Specification
| DN | LW | PN* | L1 | B | H | H1 | H2 | H4 | SW | M | S |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| 4 | 5 | 500 | 37 | 26 | 43.4 | 32 | 12.8 | 11 | 9 | M5 | 3 |
| 6 | 6 | 500 | 37 | 26 | 46.4 | 32 | 12.8 | 11 | 9 | M5 | 3 |
| 8 | 8 | 500 | 37 | 26 | 43.4 | 32 | 12.8 | 11 | 9 | M5 | 3 |
| 10 | 10 | 500 | 42 | 32 | 49.2 | 38 | 16.25 | 10.9 | 9 | M5 | 3 |
| 13 | 13 | 500 | 48.2 | 35 | 51.2 | 40 | 17.25 | 10.9 | 9 | M5 | 3 |
| 16 | 15 | 500 | 47 | 38 | 61.9 | 46 | 18.7 | 15.5 | 12 | M6 | 3.5 |
| 20 | 20 | 400 | 60 | 48 | 73.4 | 57 | 24.5 | 16 | 14 | M6 | 4 |
| 25 | 24 | 350 | 65 | 57 | 76.6 | 60 | 26.5 | 16 | 14 | M6 | 4 |
| 32 | 32 | 400 | 83.4 | 80 | 104.4 | 85.4 | 39.5 | 18.5 | 17 | M8 | 5 |
| 40 | 38 | 400 | 91 | 90 | 111.4 | 92.4 | 42 | 18.5 | 17 | M8 | 5 |
| 50 | 47.5 | 400 | 100 | 111 | 129 | 110 | 52 | 18.5 | 17 | M8 | 5 |
