Product Overview

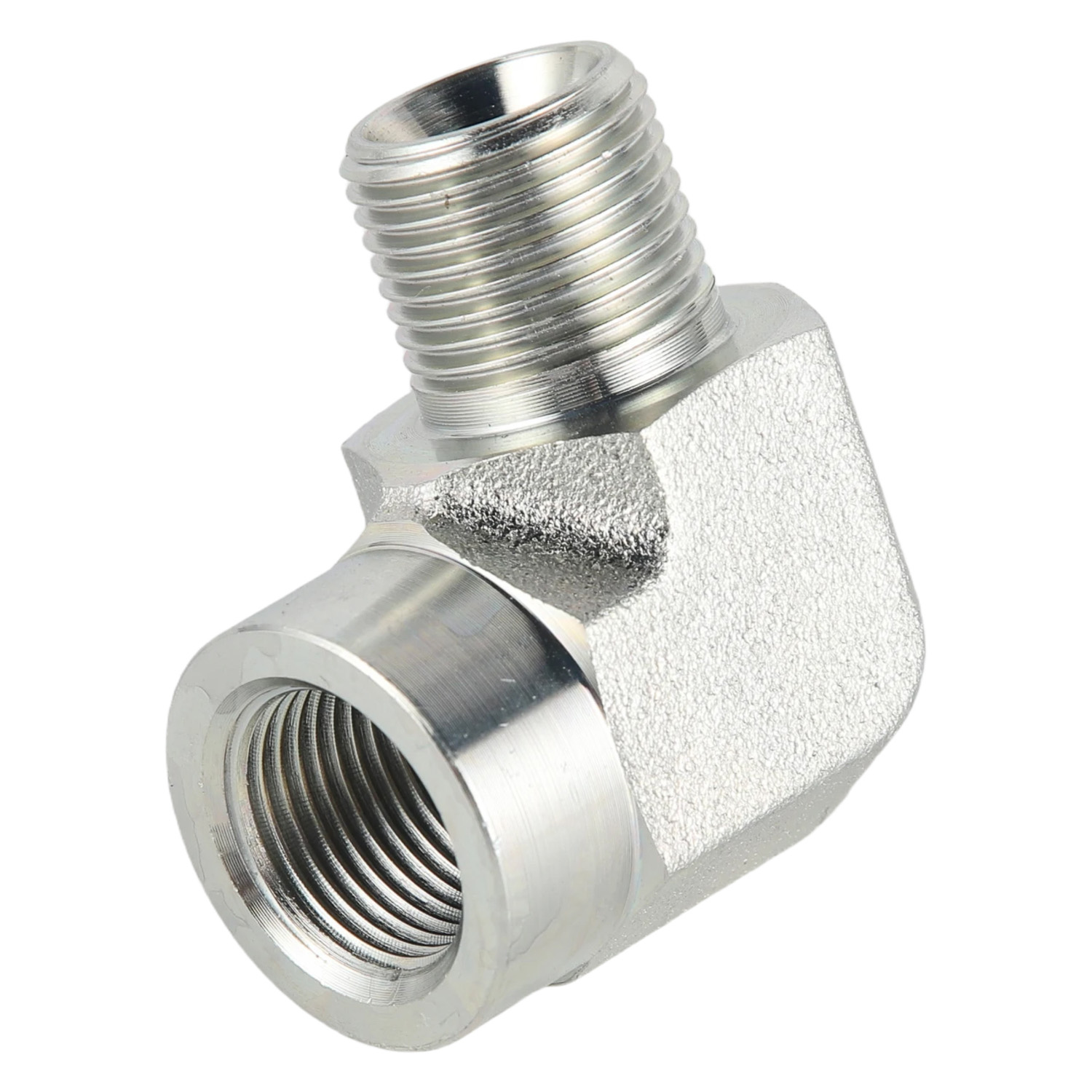

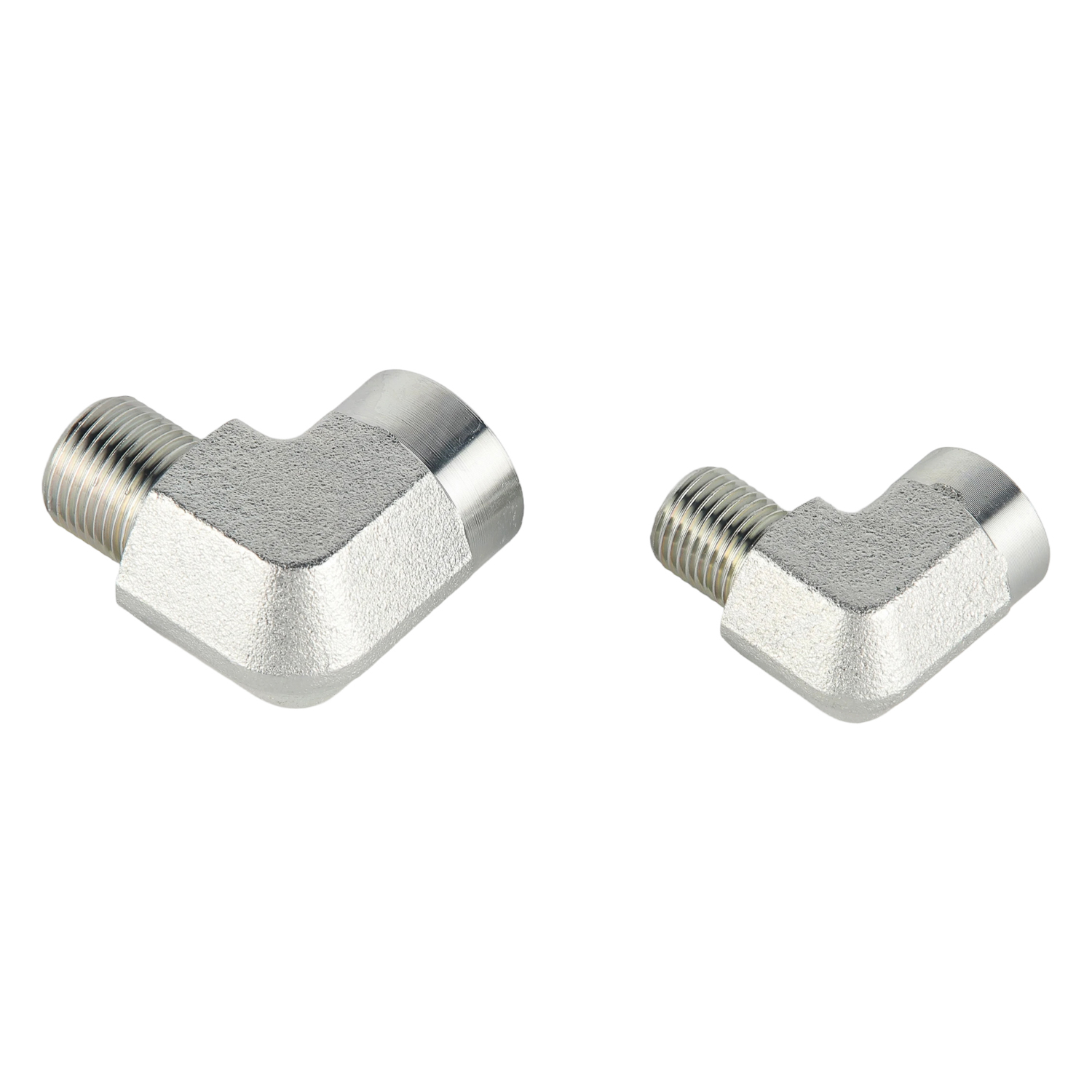

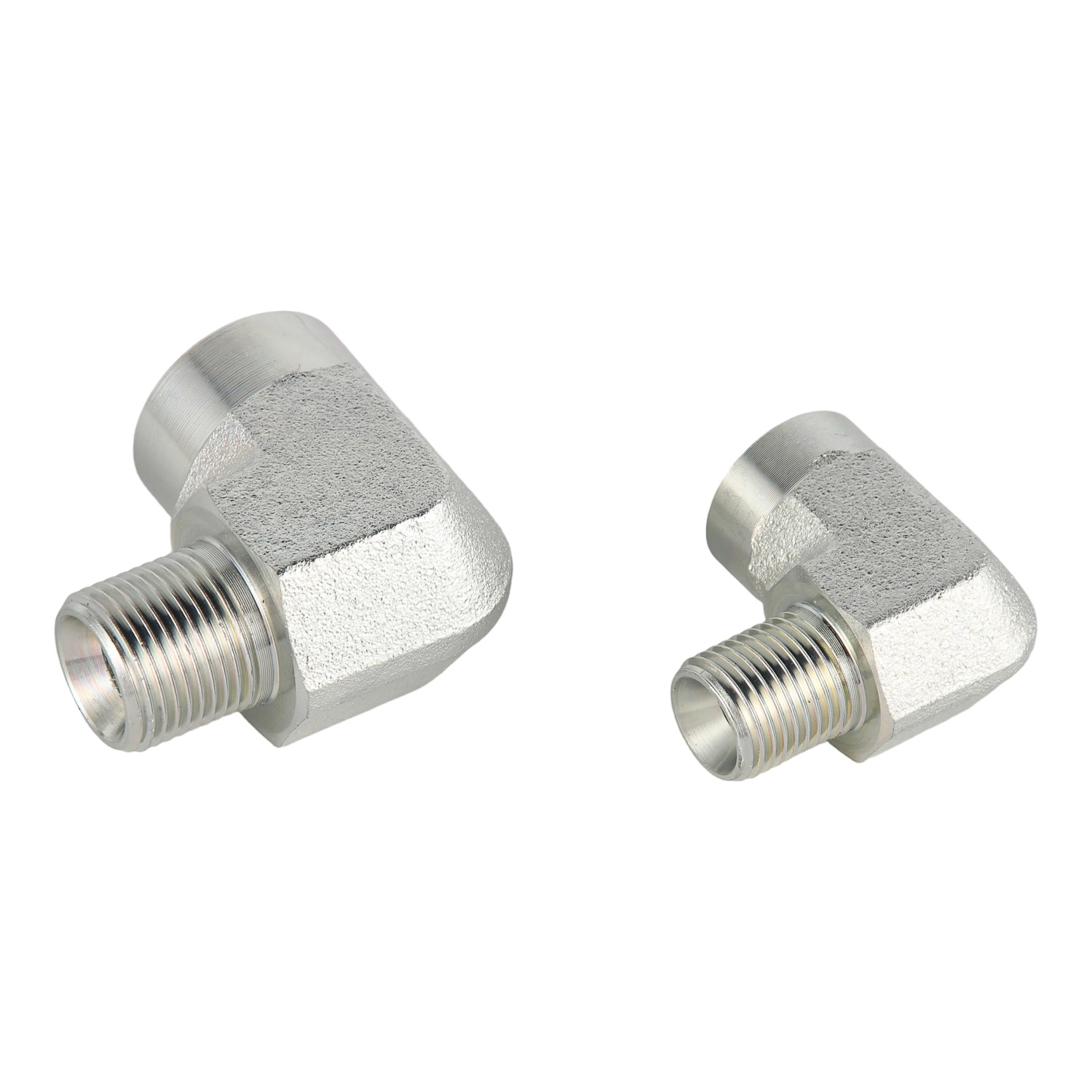

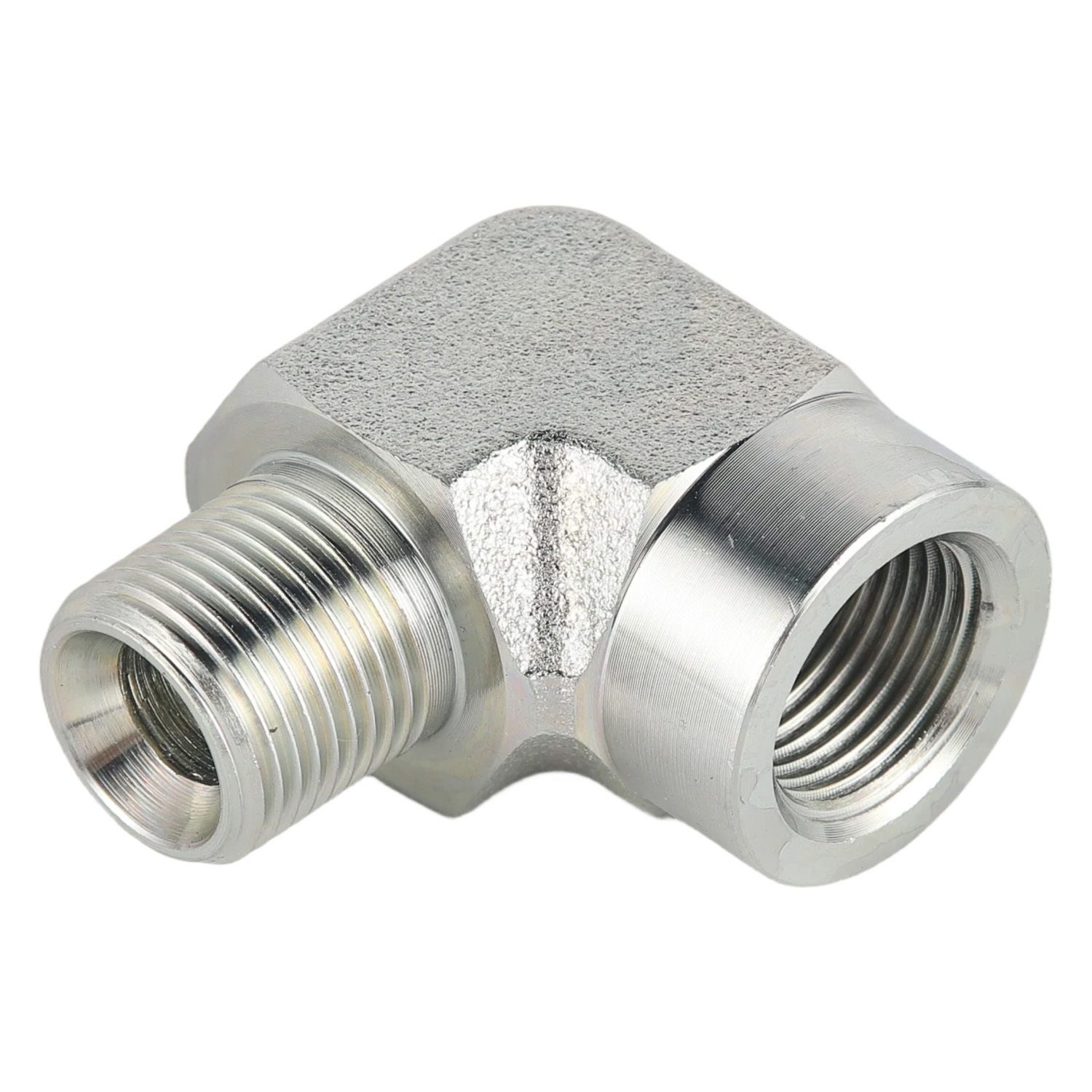

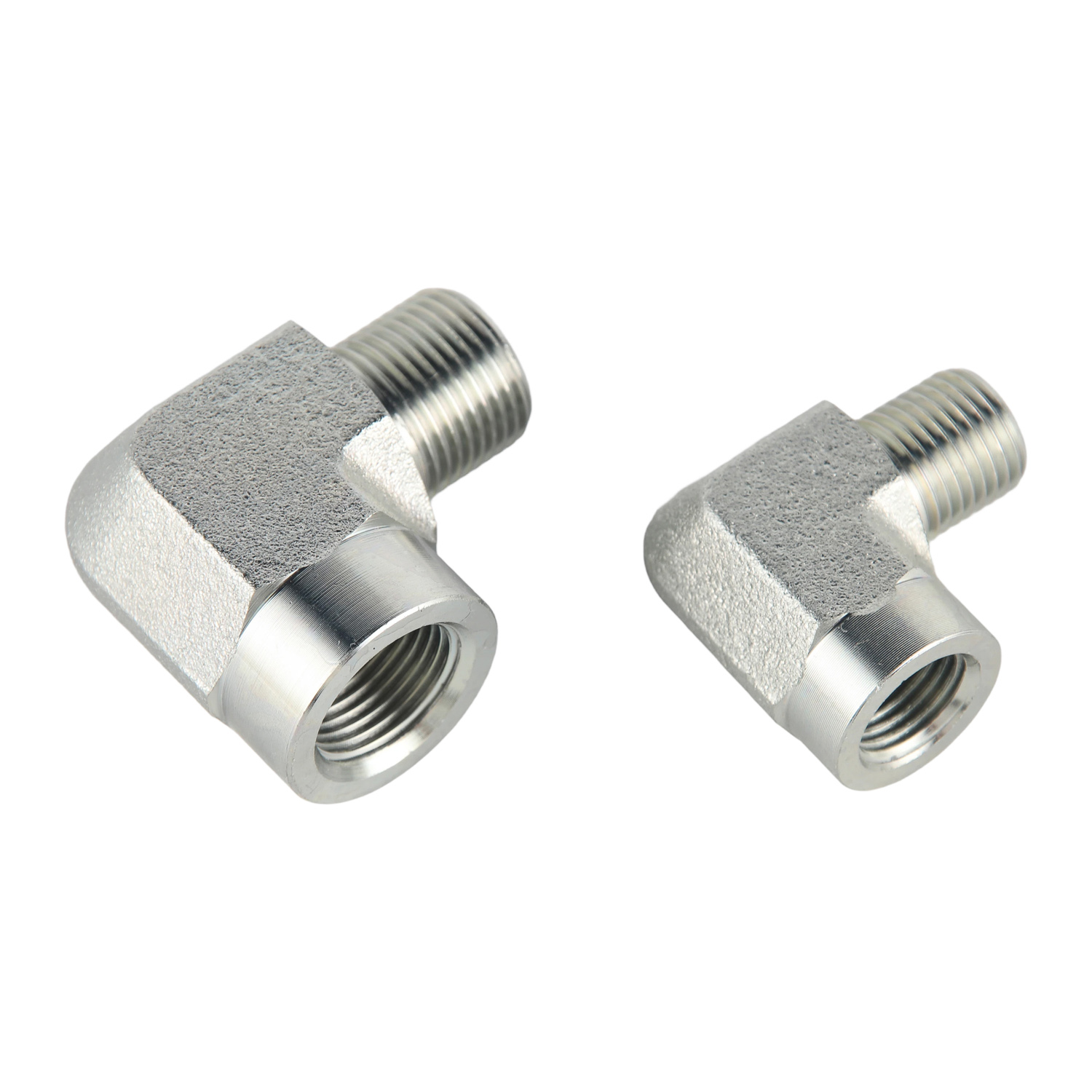

The 5B9 90° elbow adapter is designed for connecting hydraulic components with BSP thread connections. It features a BSP male end with 60° seat sealing and a BSP female connection according to ISO 1179.
The compact elbow design enables directional changes in hydraulic piping while maintaining a simple and reliable connection structure. The fitting is commonly used in hydraulic systems requiring BSP threaded connections.
Product Overview
The 5B9 90° elbow adapter is designed for connecting hydraulic components with BSP thread connections. It features a BSP male end with 60° seat sealing and a BSP female connection according to ISO 1179.
The compact elbow design enables directional changes in hydraulic piping while maintaining a simple and reliable connection structure. The fitting is commonly used in hydraulic systems requiring BSP threaded connections.
Features and Benefits
90° Elbow Design
The 90-degree configuration allows hydraulic lines to be routed at an angle, helping improve installation flexibility.
BSP Male 60° Cone Seat Connection
The male connection uses a 60° cone sealing seat design, providing a metal sealing interface for hydraulic applications.
BSP Female Thread According to ISO 1179
The female port follows ISO 1179 BSP thread specifications for compatibility with standard BSP hydraulic components.
Compact Hydraulic Connection Solution
The elbow design helps reduce installation space compared with straight fittings.
Specifications
| PART NO. | THREAD |
| DIMENSIONS |
| E | F |
|
| A | B | S1 |
| 5B9-02 | G1/8"X28 | G1/8"X28 |
|
| 22.5 | 20 | 16 |
| 5B9-04 | G1/4"X19 | G1/4"X19 |
|
| 25.5 | 22 | 19 |
| 5B9-06 | G3/8"X19 | G3/8"X19 |
|
| 30.5 | 26 | 24 |
| 5B9-08 | G1/2"X14 | G1/2"X14 |
|
| 39 | 31 | 30 |
| 5B9-12 | G3/4"X14 | G314"X14 |
|
| 43.5 | 37 | 33 |
| 5B9-16 | G1"X11 | G1"X11 |
|
| 50.5 | 43 | 41 |
| 5B9-20 | G1.114"X11 | G1.1/4"X11 |
|
| 55 | 46 | 50 |
Applications
Hydraulic piping systems
Industrial hydraulic equipment
Mobile hydraulic machinery
Fluid power systems
Hydraulic control systems
Standards & Compatibility
The 5B9 fitting is designed according to BSP hydraulic connection principles and uses ISO 1179 compatible female thread connection.
It is suitable for hydraulic systems requiring BSP threaded components and 60° cone sealing connections.
