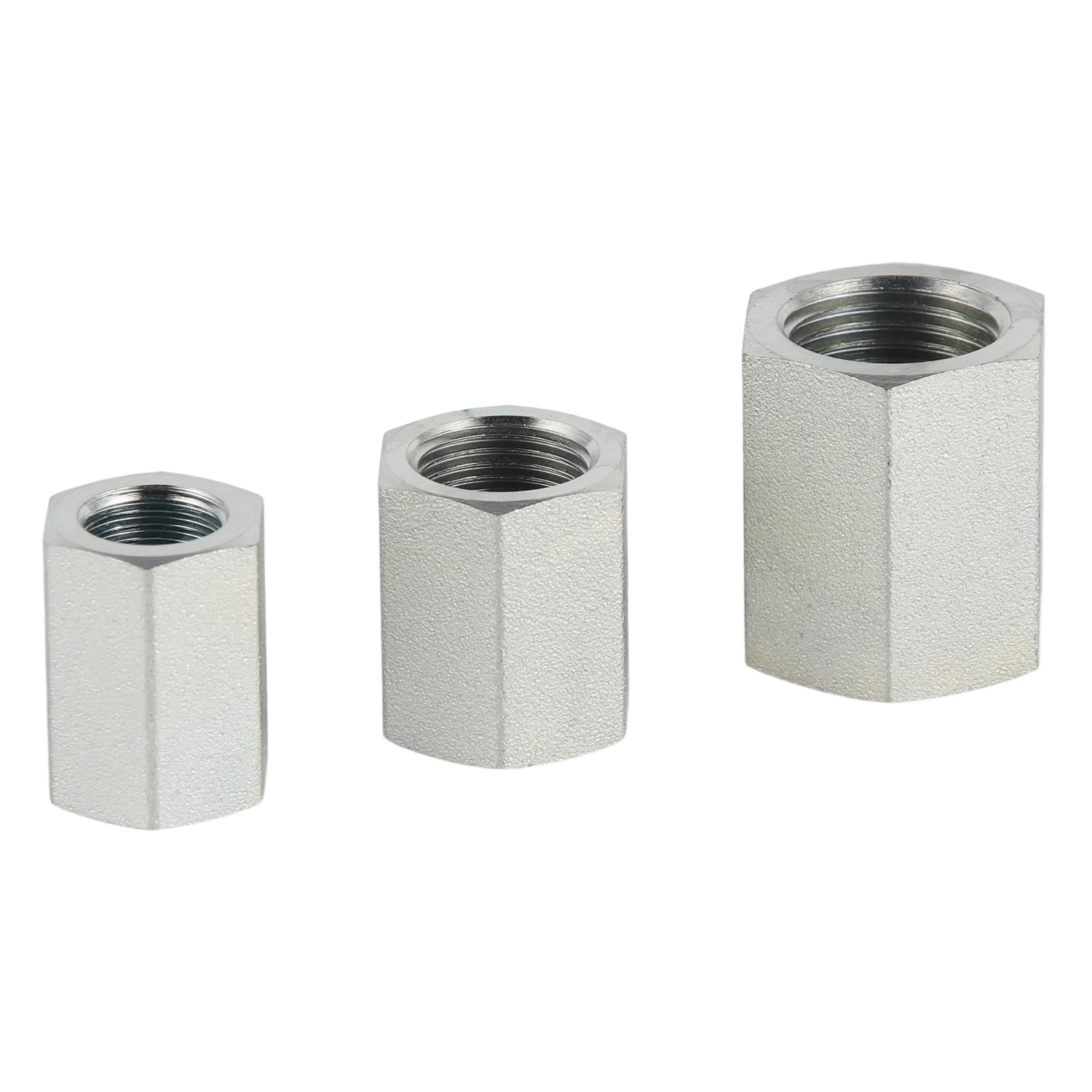

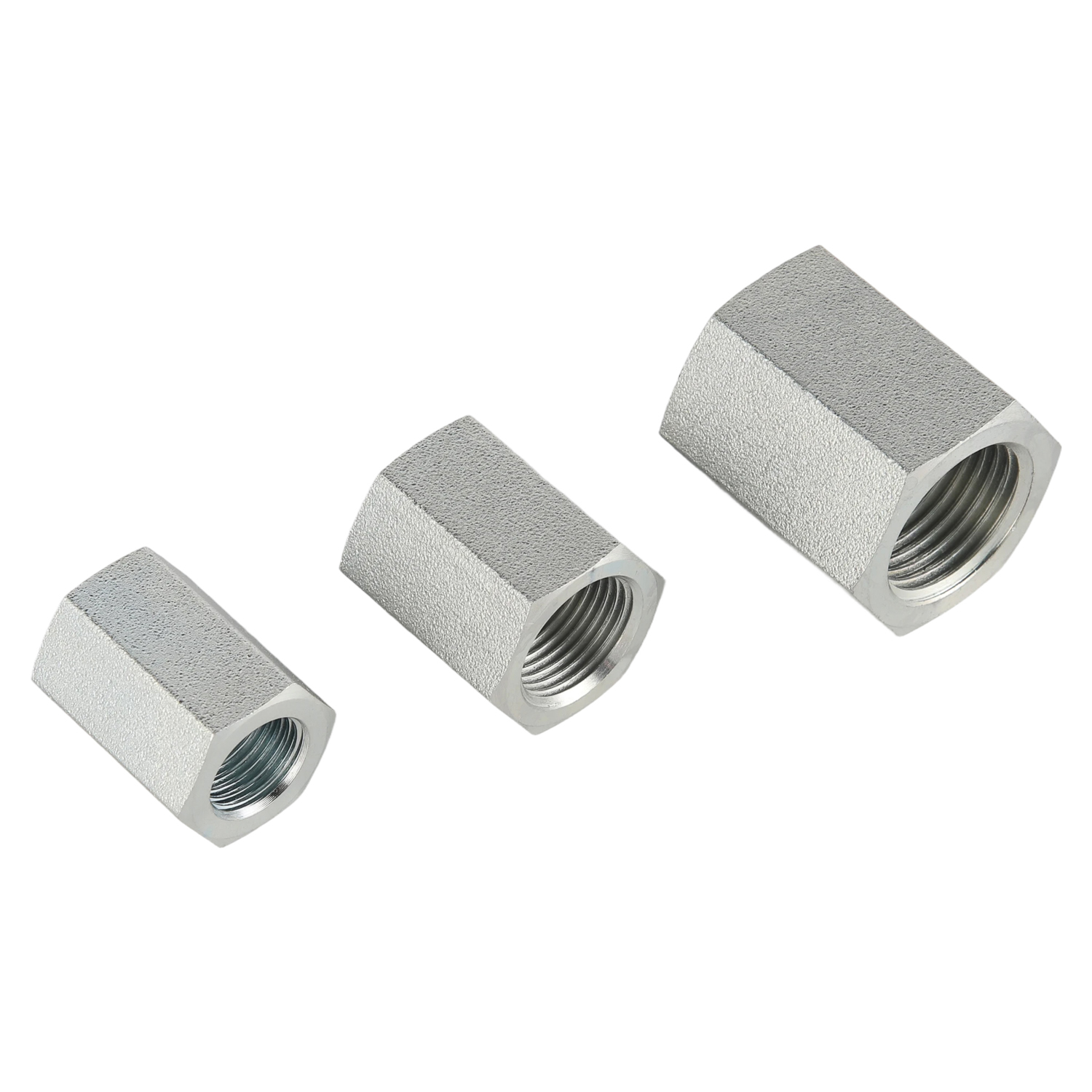

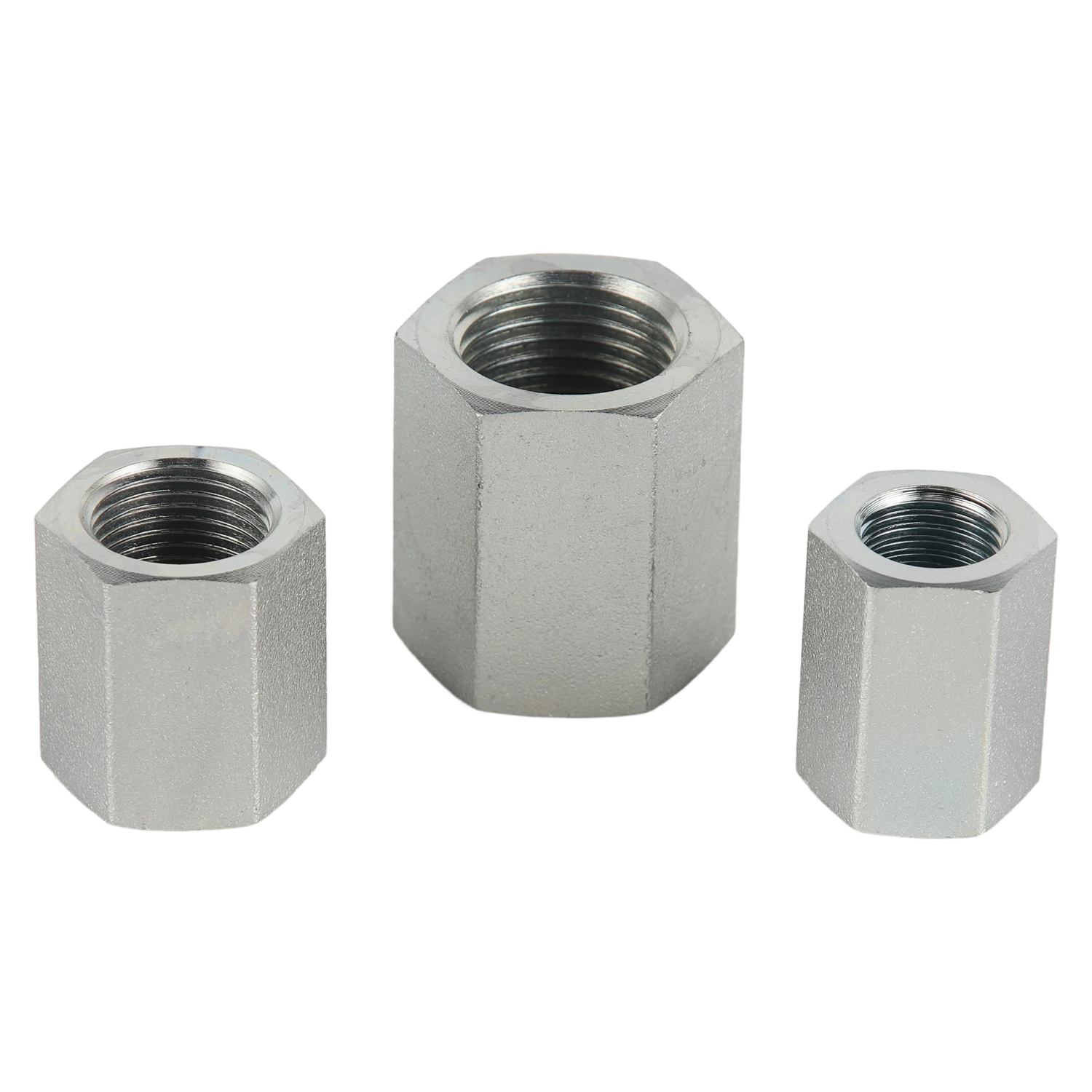

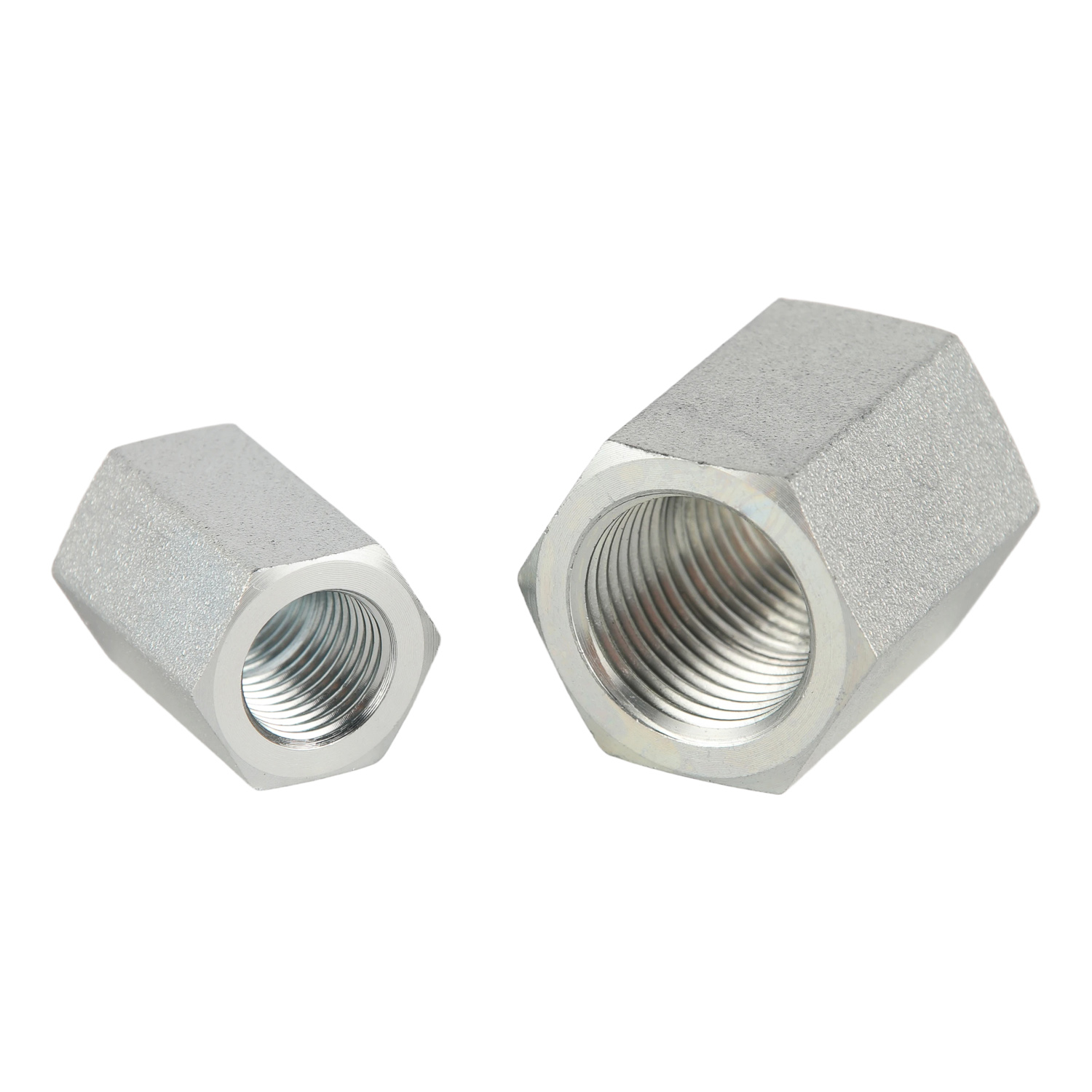

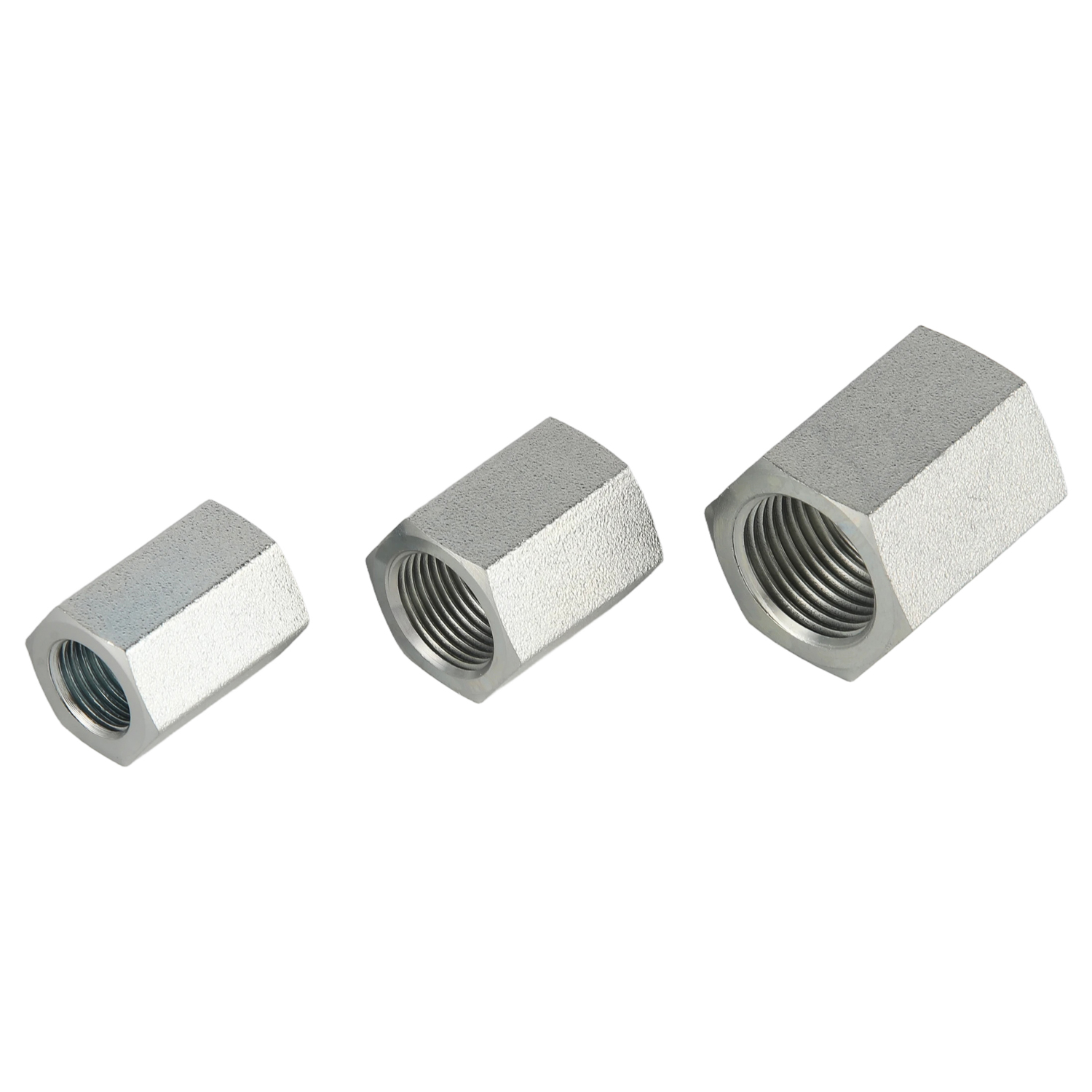

The 7B Series BSP Female Adapter is designed for BSPP threaded hydraulic systems requiring reliable 60° cone sealing connections. Manufactured in accordance with ISO 1179, the fitting incorporates a BSP parallel female thread and a precision-machined 60° internal cone seat to provide secure sealing without additional sealing components when used with matching fittings.
The precision-machined sealing surface ensures excellent connection accuracy while minimizing leakage under hydraulic operating pressure. The straight adapter design provides a compact connection solution suitable for hydraulic equipment, industrial machinery, and fluid transmission systems.
Manufactured from high-quality carbon steel or stainless steel, the fitting can be supplied with zinc-plated or other corrosion-resistant surface treatments to improve durability in industrial environments. The hexagonal body simplifies installation and maintenance using standard tools.
Manufactured according to ISO 1179 standard
BSPP female parallel thread with 60° cone sealing
Reliable metal-to-metal sealing performance
Hexagonal body for convenient installation
Zinc-plated surface for improved corrosion resistance
Available in carbon steel and stainless steel
Complete BSP thread size range available
Suitable for hydraulic and industrial fluid systems

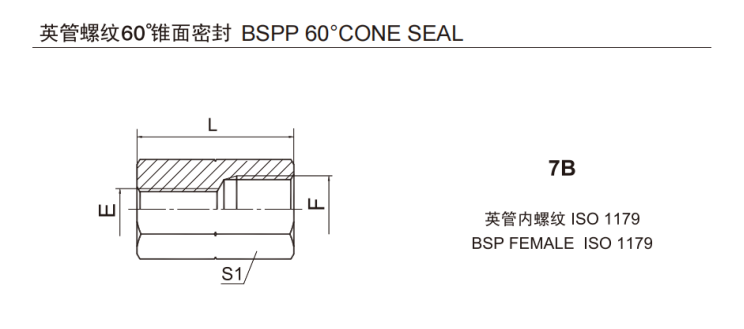

PART NO. | T H R E A D | DIMENSIONS | |||||||
| E | F | L | S1 | ||||||
| 7B-02 | G1/8"X28 | G1/8"X28 | 22 | 14 | |||||
| 7B-02-04 | G1/8"×28 | G1/4"X19 | 24 | 19 | |||||
| 7B-04 | G1/4"×19 | G1/4"×19 | 24 | 19 | |||||
| 7B-04-06 | G1/4"X19 | G3/8"X19 | 29 | 22 | |||||
| 7B-06 | G3/8"X19 | G3/8"X19 | 26 | 22 | |||||
| 7B-06-08 | G3/8"×19 | G1/2"X14 | 33 | 27 | |||||
| 7B-08 | G1/2"X14 | G1/2"X14 | 32 | 27 | |||||
| 7B-08-10 | G1/2"X14 | G5/8"X14 | 36 | 30 | |||||
| 7B-10 | G5/8"×14 | G5/8"×14 | 36 | 30 | |||||
| 7B-12 | G3/4"X14 | G3/4"X14 | 36 | 32 | |||||
| 7B-12-16 | G3/4"X14 | G1"X11 | 43 | 41 | |||||
| 7B-16 | G1"×11 | G1"X11 | 40 | 41 | |||||
| 7B-16-20 | G1"X11 | G1.1/4"X11 | 46 | 50 | |||||
| 7B-20 | G1.1/4"X11 | G1.1/4"X11 | 44 | 50 | |||||
| 7B-20-24 | G1.1/4"X11 | G1.1/2"X11 | 48 | 55 | |||||
| 7B-24 | G1.1/2"X11 | G1.1/2"X11 | 45 | 55 | |||||
| 7B-24-32 | G1.1/2"X11 | G2"X11 | 56 | 70 | |||||
| 7B-32 | G2"X11 | G2"X11 | 54 | 70 | |||||
The 7B Series BSP Female Adapter is widely used in hydraulic power units, construction machinery, industrial automation equipment, agricultural machinery, and general fluid transmission systems. Its ISO 1179 compliant 60° cone sealing design provides dependable leak-free performance for medium and high-pressure hydraulic applications.
