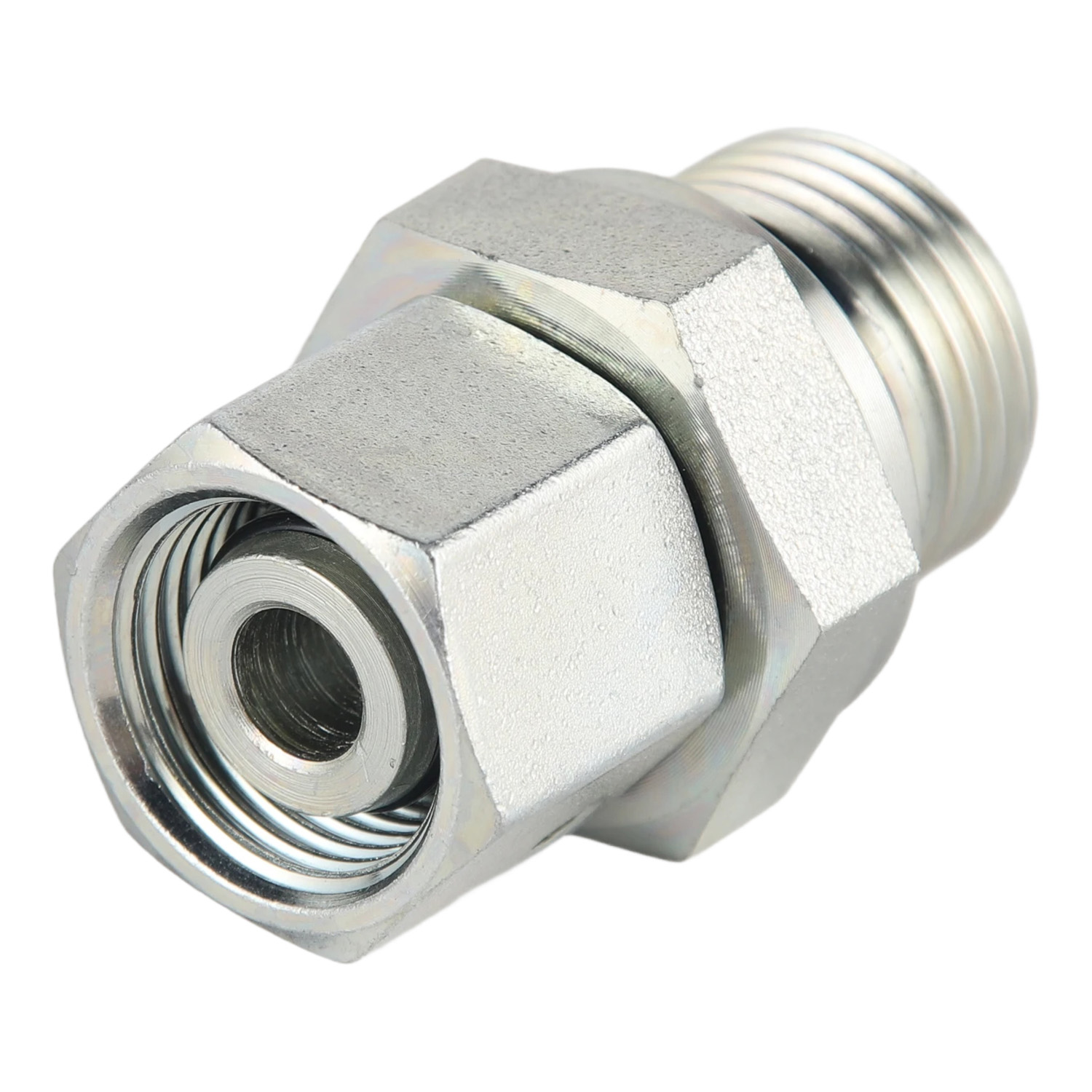

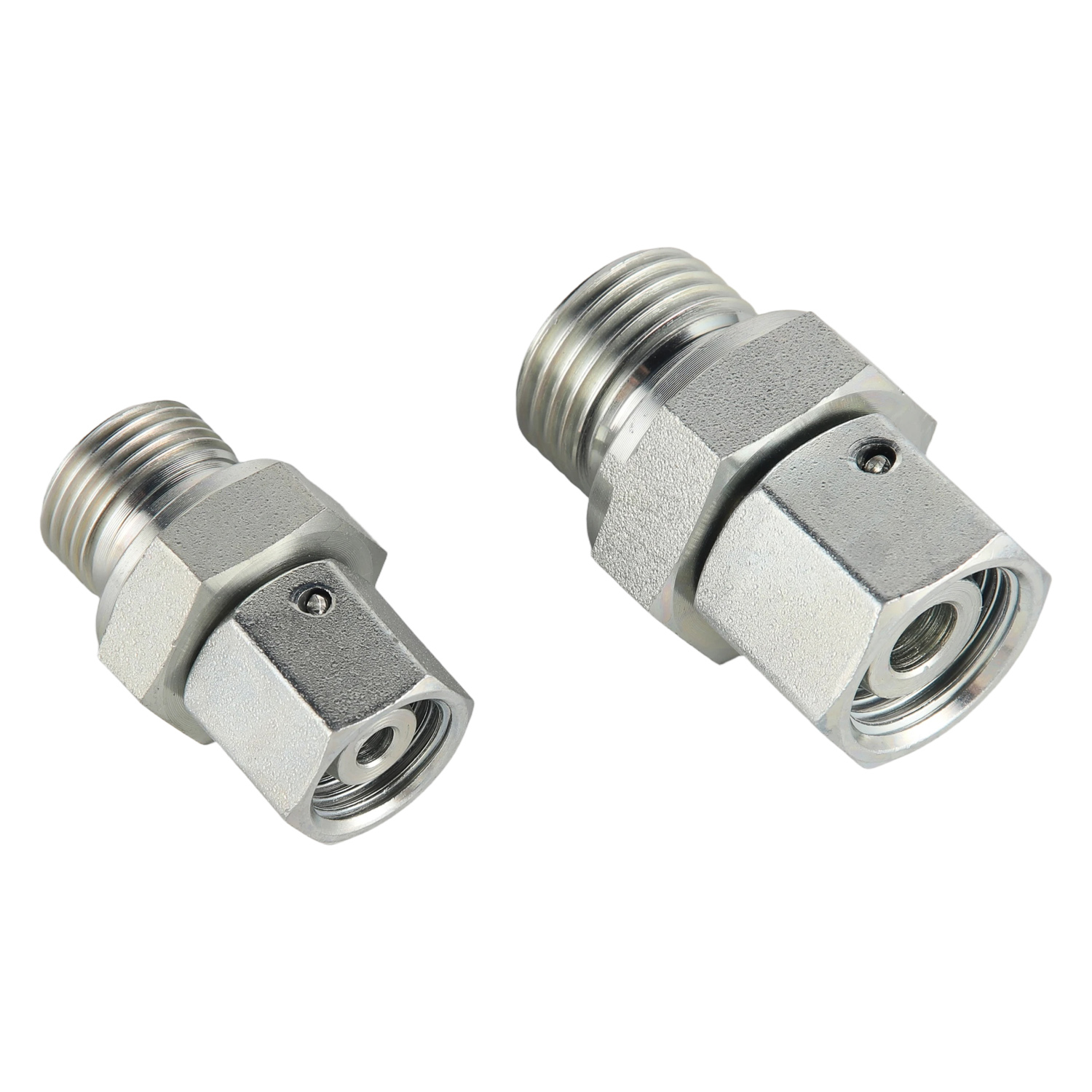

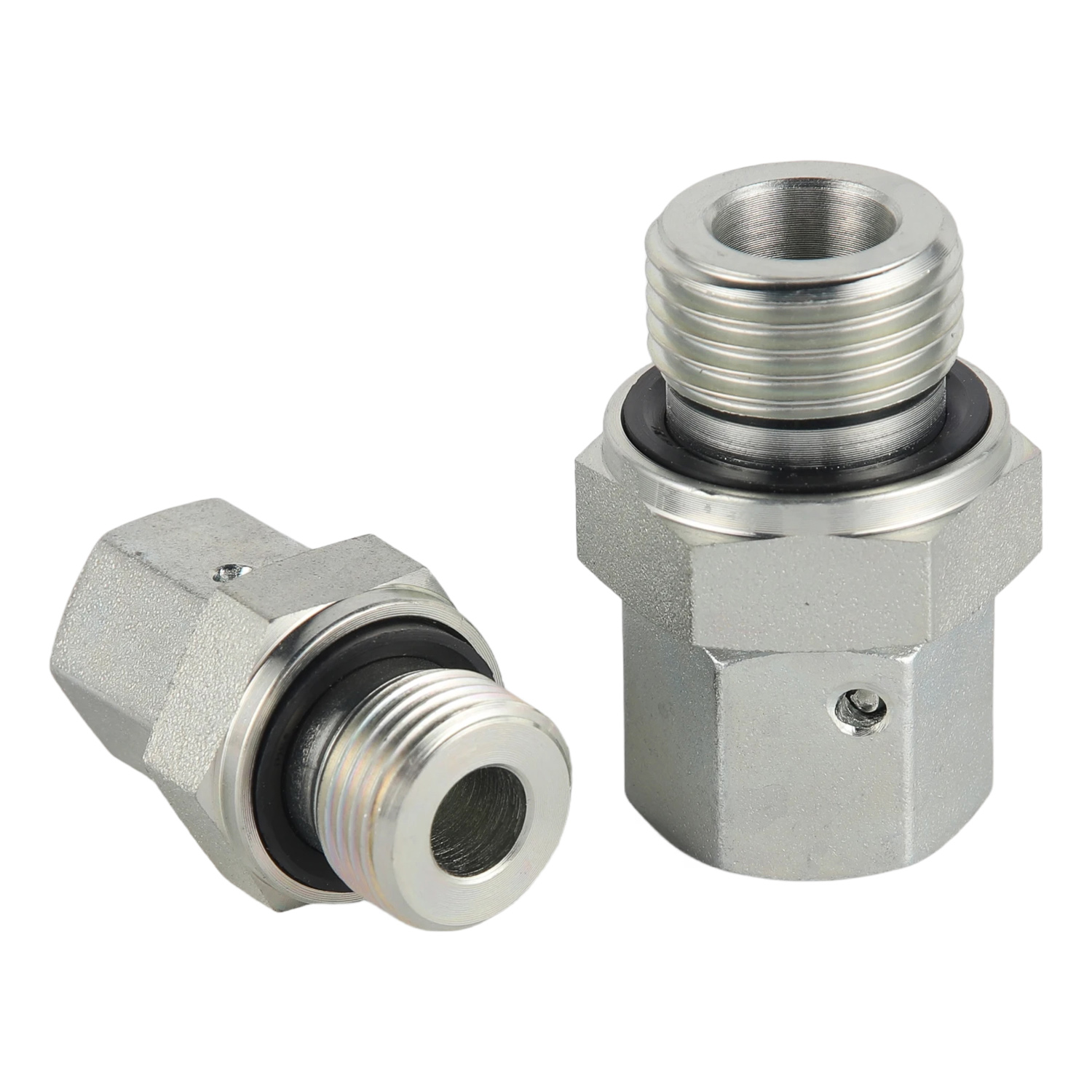

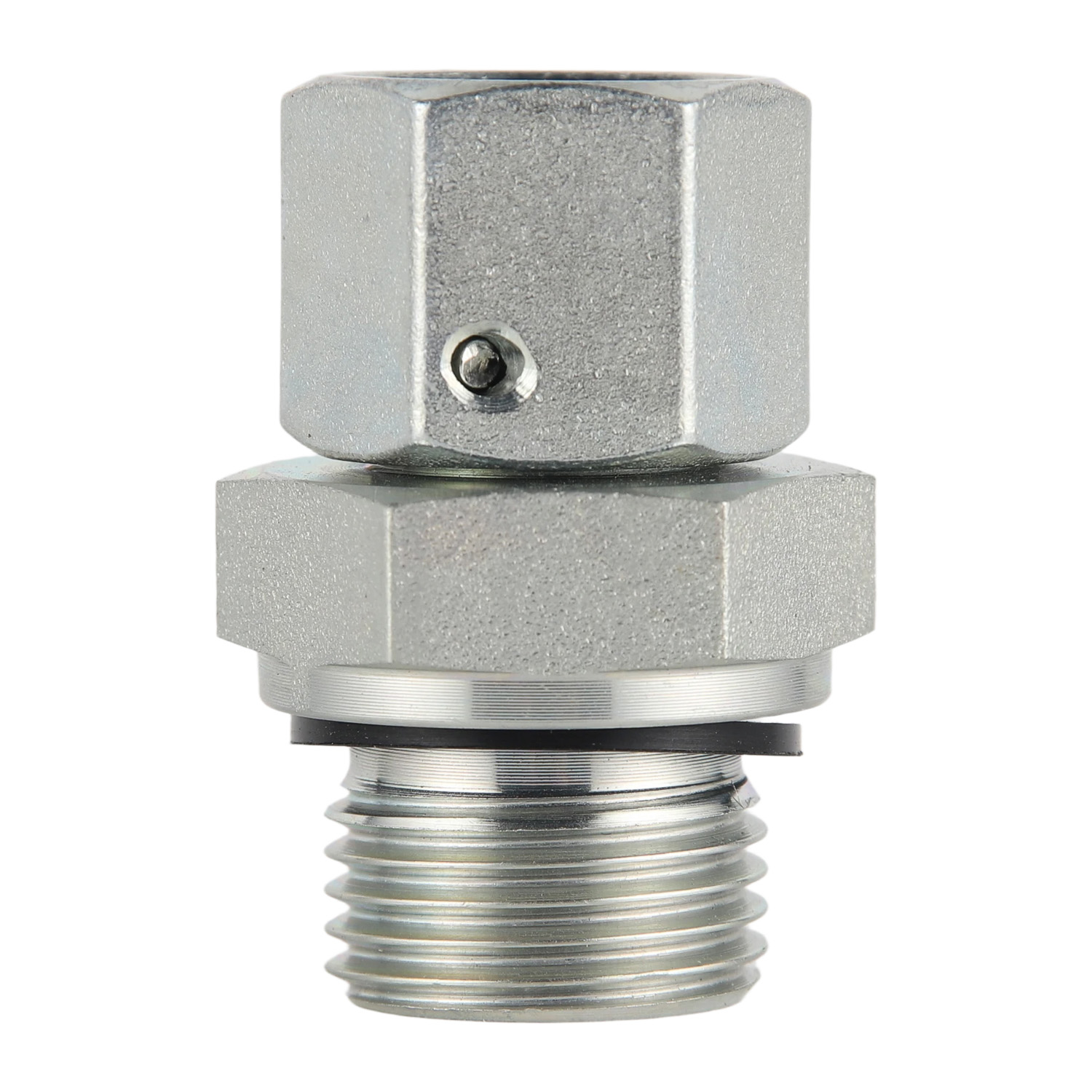

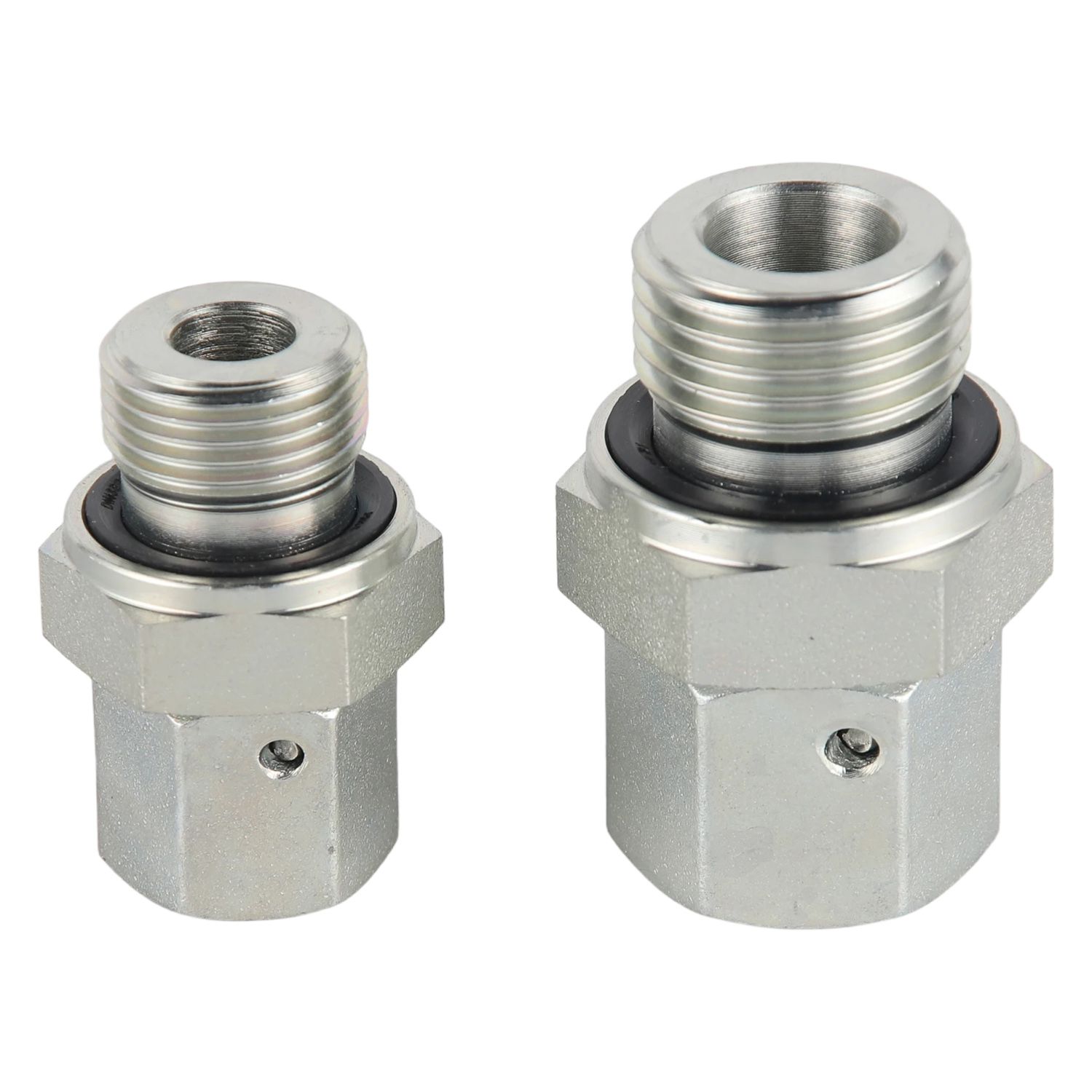

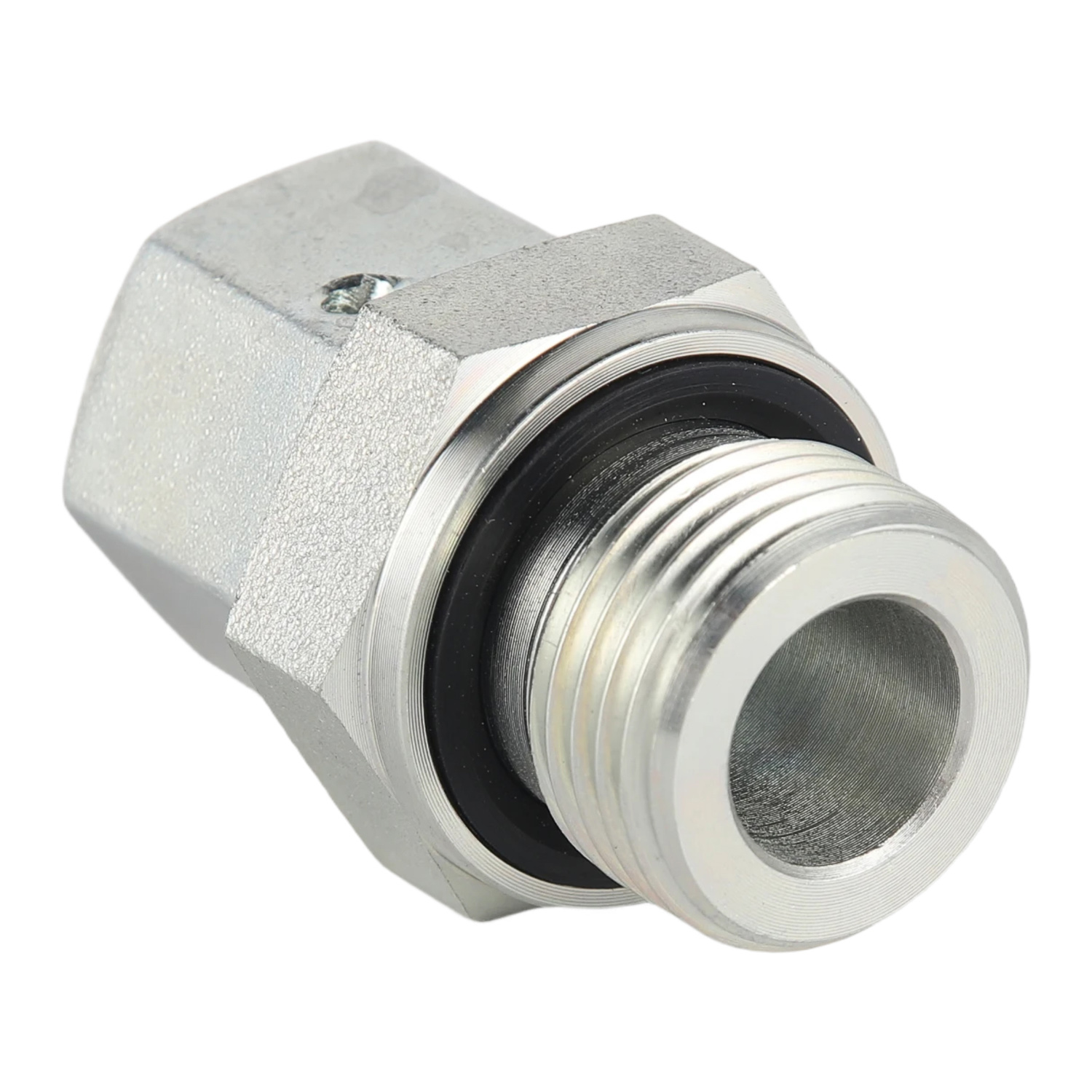

Product Description
2BC-WD and 2BD-WD series hydraulic fittings are designed with BSP thread and captive seal (bonded sealing washer) structure, providing reliable and leak-resistant connections for hydraulic systems. The captive seal is integrated into the fitting end, eliminating the need for separate sealing washers during installation and reducing the risk of missing or incorrectly installed seals.
These BSP threaded fittings are available in straight and elbow configurations, offering flexible solutions for different hydraulic piping layouts. The compact design ensures easy installation and maintenance while maintaining stable sealing performance under high-pressure working conditions.
Manufactured from high-quality carbon steel or stainless steel materials, these fittings can be supplied with corrosion-resistant surface treatments such as zinc plating. They are suitable for hydraulic oil, water, and other industrial fluid applications where secure threaded connections and long service life are required.
Features
BSP thread design with integrated captive seal for reliable sealing performance
Eliminates the need for additional sealing washers during assembly
Available in straight and elbow configurations for flexible installation
Suitable for high-pressure hydraulic systems and industrial piping applications
Available in carbon steel and stainless steel materials
Corrosion-resistant surface treatment options for extended service life
Compatible with various hydraulic adapters and piping systems
Specifications

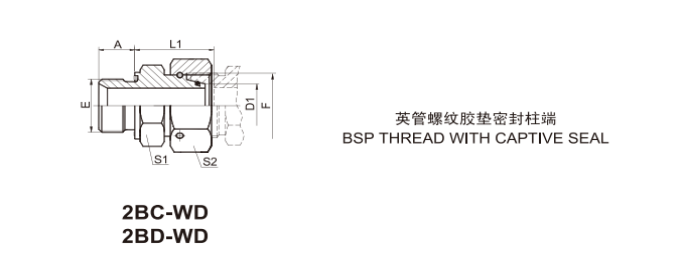

| PART NO. | T H R E A D | TUBE O.D. | DIMENSIONS | MPa |
| E | F | D1 |
| A | L1 | S1 | S2 |
| 2BC-02-12WD | G1/8"X28 | M12X1.5 | 6 |
| 8 | 24.5 | 14 | 14 | 31.5
L |
| 2BC-04-14WD | G1/4"X19 | M14X1.5 | 8 |
| 12 | 29.5 | 19 | 17 |
| 2BC-04-16WD | G1/4"×19 | M16X1.5 | 10 |
| 12 | 27.5 | 19 | 19 |
| 2BC-06-18WD | G3/8"X19 | M18X1.5 | 12 |
| 12 | 34 | 22 | 22 |
| 2BC-08-22WD | G1/2"X14 | M22X1.5 | 15 |
| 14 | 32 | 27 | 27 |
| 2BC-08-26WD | G1/2"×14 | M26X1.5 | 18 |
| 14 | 31.5 | 27 | 32 |
| 2BC-12-30WD | G3/4"×14 | M30X2 | 22 |
| 16 | 32.5 | 32 | 36 | 16
L |
| 2BC-16-36WD | G1"X11 | M36X2 | 28 |
| 18 | 35 | 41 | 41 |
| 2BC-20-45WD | G1.1/4"×11 | M45X2 | 35 |
| 20 | 42.5 | 50 | 50 |
| 2BC-24-52WD | G1.1/2"X11 | M52X2 | 42 |
| 22 | 46.5 | 55 | 60 |
| 2BD-04-14WD | G1/4"×19 | M14×1.5 | 6 |
| 12 | 27 | 19 | 17 | 63
S |
| 2BD-04-16WD | G1/4"X19 | M16X1.5 | 8 |
| 12 | 29.5 | 19 | 19 |
| 2BD-06-18WD | G3/8"×19 | M18X1.5 | 10 |
| 12 | 32 | 22 | 22 |
| 2BD-06-20WD | G3/8"×19 | M20X1.5 | 12 |
| 12 | 34 | 22 | 24 |
| 2BD-08-22WD | G1/2"×14 | M22X1.5 | 14 |
| 14 | 36.5 | 27 | 27 |
| 2BD-08-24WD | G1/2"×14 | M24×1.5 | 16 |
| 14 | 37 | 27 | 30 | 40
S |
| 2BD-12-30WD | G3/4"X14 | M30X2 | 20 |
| 16 | 43 | 32 | 36 |
| 2BD-16-36WD | G1"×11 | M36X2 | 25 |
| 18 | 48 | 41 | 46 |
| 2BD-20-42WD | G1.1/4"X11 | M42X2 | 30 |
| 20 | 51 | 50 | 50 |
| 2BD-24-52WD | G1.1/2"X11 | M52X2 | 38 |
| 22 | 60 | 55 | 60 | 31.5 S |
Applications
2BC-WD and 2BD-WD series BSP thread fittings with captive seal are widely used in hydraulic equipment, mobile machinery, industrial automation systems, and fluid control pipelines. Their integrated sealing structure makes them especially suitable for applications requiring quick installation, reliable sealing, and reduced maintenance requirements.
