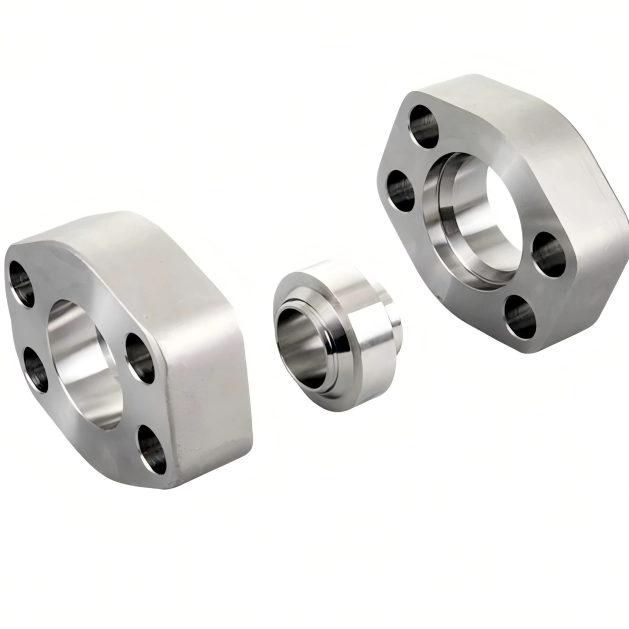

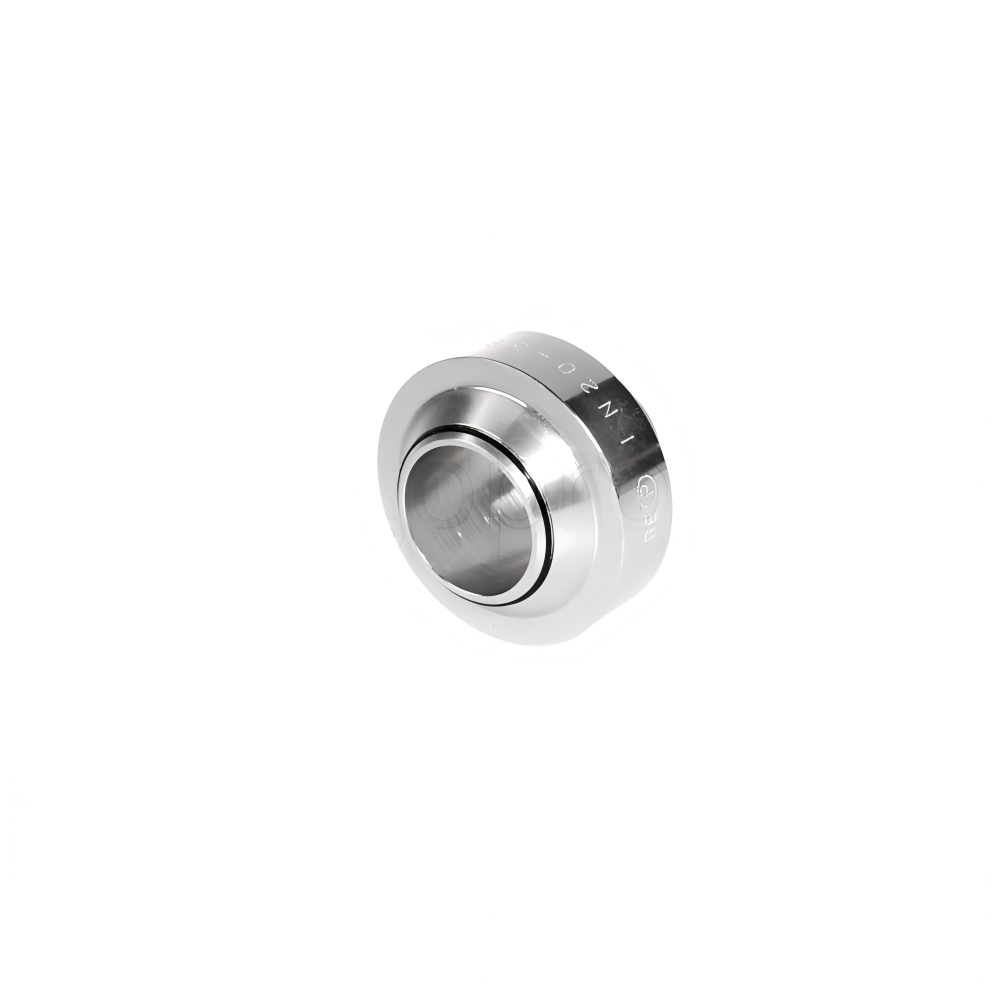

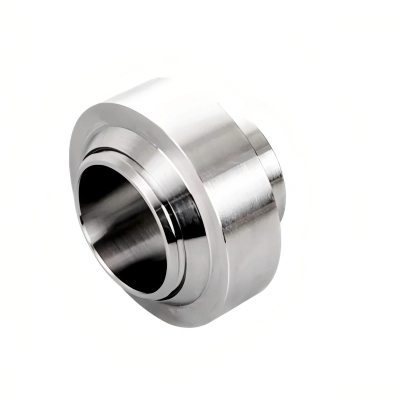

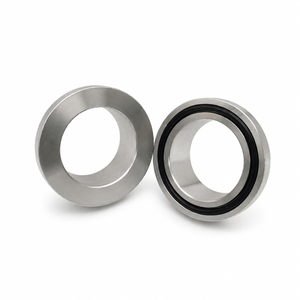

The TT Series Flare Flange Connection is designed for tube-to-tube connection in hydraulic piping systems. Its flange structure provides a robust mechanical connection, while the F37 sealing configuration with an O-ring provides the sealing interface between the connected components.
The series covers a wide range of connection sizes, including 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2" and 3". Different tube outside diameters and wall thicknesses are available for each size, allowing the fitting to be matched to different hydraulic tube configurations.
The machined connection surfaces and defined O-ring sealing positions help ensure proper assembly and consistent sealing when the fitting is installed according to the applicable specifications. The flange-style construction is suitable for hydraulic systems where a secure and serviceable tube connection is required.
The TT Series can be used in hydraulic machinery, industrial equipment, construction machinery and other fluid power systems. Its range of available tube sizes makes it suitable for both standard hydraulic piping arrangements and customized system configurations.
Tube-to-tube hydraulic flange connection
F37 sealing configuration with O-ring
Available in multiple inch sizes from 1/2" to 3"
Multiple tube outside diameters and wall thicknesses available
Precision-machined connection surfaces
Compact flange-style construction
Suitable for hydraulic piping systems and fluid power equipment
Various O-ring specifications available according to tube size
Suitable for standard and customized hydraulic system configurations

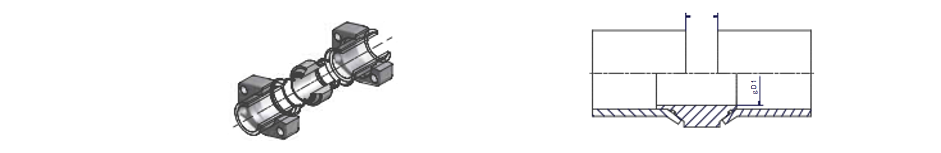

| Size | D1 | C | O-Ring Order Code | |
| Inch | Tube | |||
| 1/2 | 16X2.0 | 9.5 | 16 | OR12X1.0X |
| 1/2 | 18X2.0 | 11.5 | 16 | OR14X1.1X |
| 1/2 | 20X2.0 | 13.5 | 16 | OR16X1.0X |
| 1/2 | 20X2.5 | 13.5 | 16 | OR16X1.0X |
| 1/2 | 25X2.5 | 13.5 | 20 | OR20X1.0X |
| 1/2 | 25X3.0 | 13 | 16 | OR20X1.0X |
| 3/4 | 20X2.0 | 13.5 | 16 | OR16X1.0X |
| 3/4 | 20X2.5 | 12.5 | 16 | OR16X1.0X |
| 3/4 | 25X2.5 | 17.5 | 20 | OR20X1.0X |
| 3/4 | 25X3.0 | 16.5 | 16 | OR20X1.0X |
| 3/4 | 30X3.0 | 19 | 17 | OR25X1.0X |
| 3/4 | 30X4.0 | 19 | 17 | OR24X1.0X |
| 1 | 25X2.5 | 17.5 | 20 | OR20X1.0X |
| 1 | 25X3.0 | 16.5 | 16 | OR20X1.0X |
| 1 | 30X3.0 | 21.5 | 17 | OR25X1.0X |
| 1 | 30X4.0 | 19.5 | 17 | OR22X1.0X |
| 1 | 38X2.5 | 25 | 19 | OR34X1.0X |
| 1 | 38X3.0 | 25 | 18 | OR34X1.0X |
| 1 | 38X4.0 | 25 | 20 | OR30X1.0X |
| 1 | 38X5.0 | 25 | 16 | OR28X1.0X |
| 1 1/4 | 30X3.0 | 21.5 | 17 | OR25X1.0X |
| 1 1/4 | 30X4.0 | 19.5 | 17 | OR22X1.0X |
| 1 1/4 | 38X3.0 | 29 | 18 | OR34X1.0X |
| 1 1/4 | 38X4.0 | 27 | 20 | OR30X1.0X |
| 1 1/4 | 38X5.0 | 25.5 | 16 | OR28X1.0X |
| 1 1/4 | 42X3.0 | 31.5 | 20 | OR37.82X1.78X |
| 1 1/4 | 42X4.0 | 31.5 | 20 | OR34X1.0X |
| 1 1/2 | 38X3.0 | 27.5 | 18 | OR34X1.0X |
| 1 1/2 | 38X4.0 | 27.5 | 20 | OR30X1.0X |
| 1 1/2 | 38X5.0 | 25 | 16 | OR41X1.78X |
| 1 1/2 | 42X3.0 | 33.5 | 20 | OR37.82X1.78X |
| 1 1/2 | 42X4.0 | 31.5 | 20 | OR34X1.0X |
| 1 1/2 | 50X3.0 | 36 | 22 | OR44.17X1.78X |
| 1 1/2 | 50X5.0 | 36 | 20 | OR41X1.78X |
| 1 1/2 | 50X6.0 | 35 | 20 | OR41X1.78X |
| 2 | 50X3.0 | 41.5 | 22 | OR44.17X1.78X |
| 2 | 50X5.0 | 37.5 | 20 | OR41X1.78X |
| 2 | 50X6.0 | 35 | 20 | OR41X1.78X |
| 2 | 60X3.0 | 46 | 24 | OR53.7X1.78X |
| 2 1/2 | 60X3.0 | 50 | 24 | OR53.7X1.78X |
| 2 1/2 | 60X5.0 | 46 | 22 | OR50.52X1.78X |
| 2 1/2 | 60X6.0 | 45 | 22 | OR47.37X1.78X |
| 2 1/2 | 75X3.0 | 60 | 20 | OR69.57X1.78X |
| 2 1/2 | 75X5.0 | 60 | 20 | OR63.22X1.78X |
| 3 | 75X3.0 | 66 | 20 | OR69.57X1.78X |
| 3 | 75X5.0 | 62 | 20 | OR63.22X1.78X |
| 3 | 90X3.5 | 72 | 30 | OR82.27X1.78X |
| 3 | 90X5.0 | 72 | 28 | OR79X1.78X |
TT Series Flare Flange Connections are suitable for hydraulic machinery, construction equipment, industrial hydraulic systems, mobile machinery and fluid power equipment. They can be used where reliable tube-to-tube connections are required within hydraulic piping systems, particularly in applications using flange-based connections and O-ring sealing.
