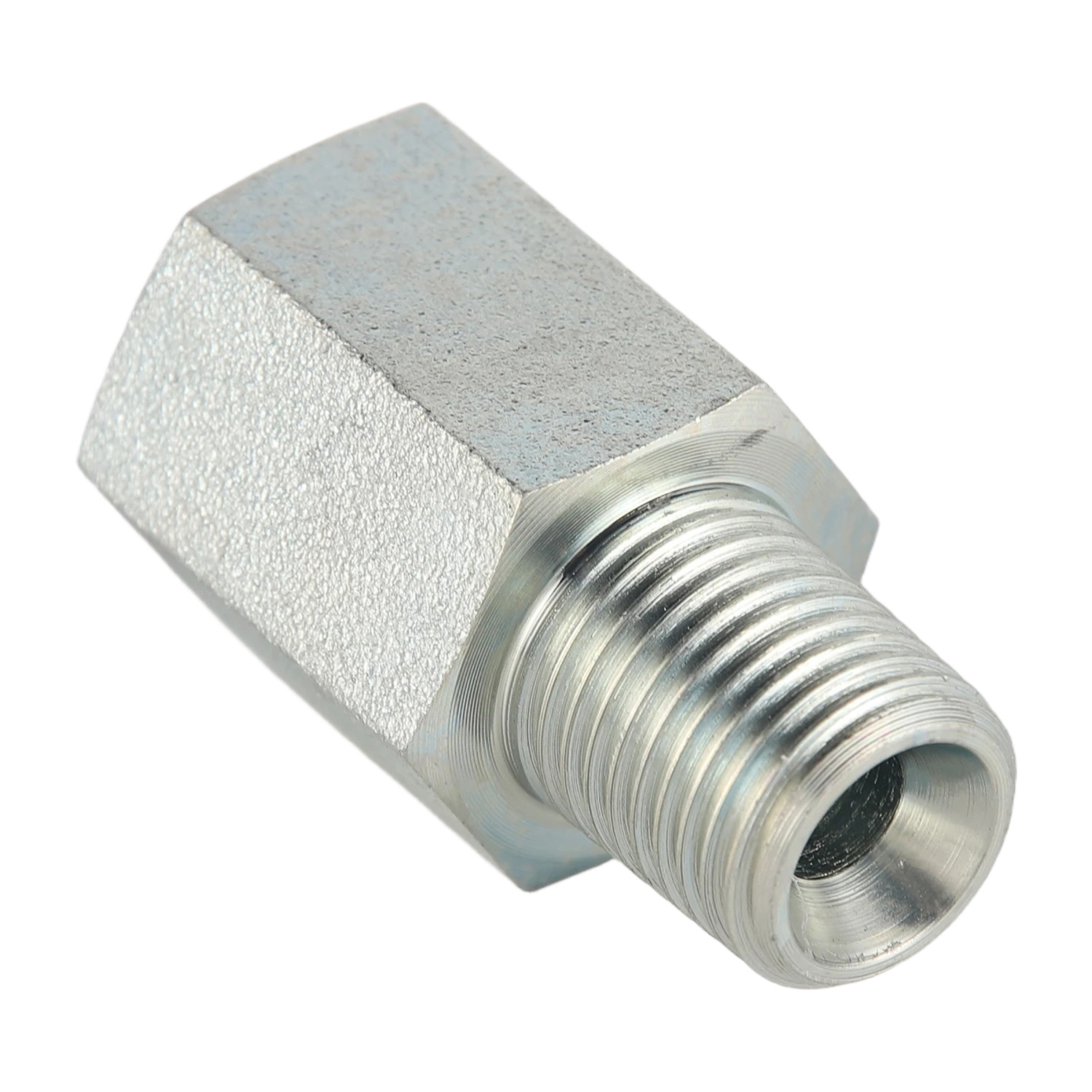

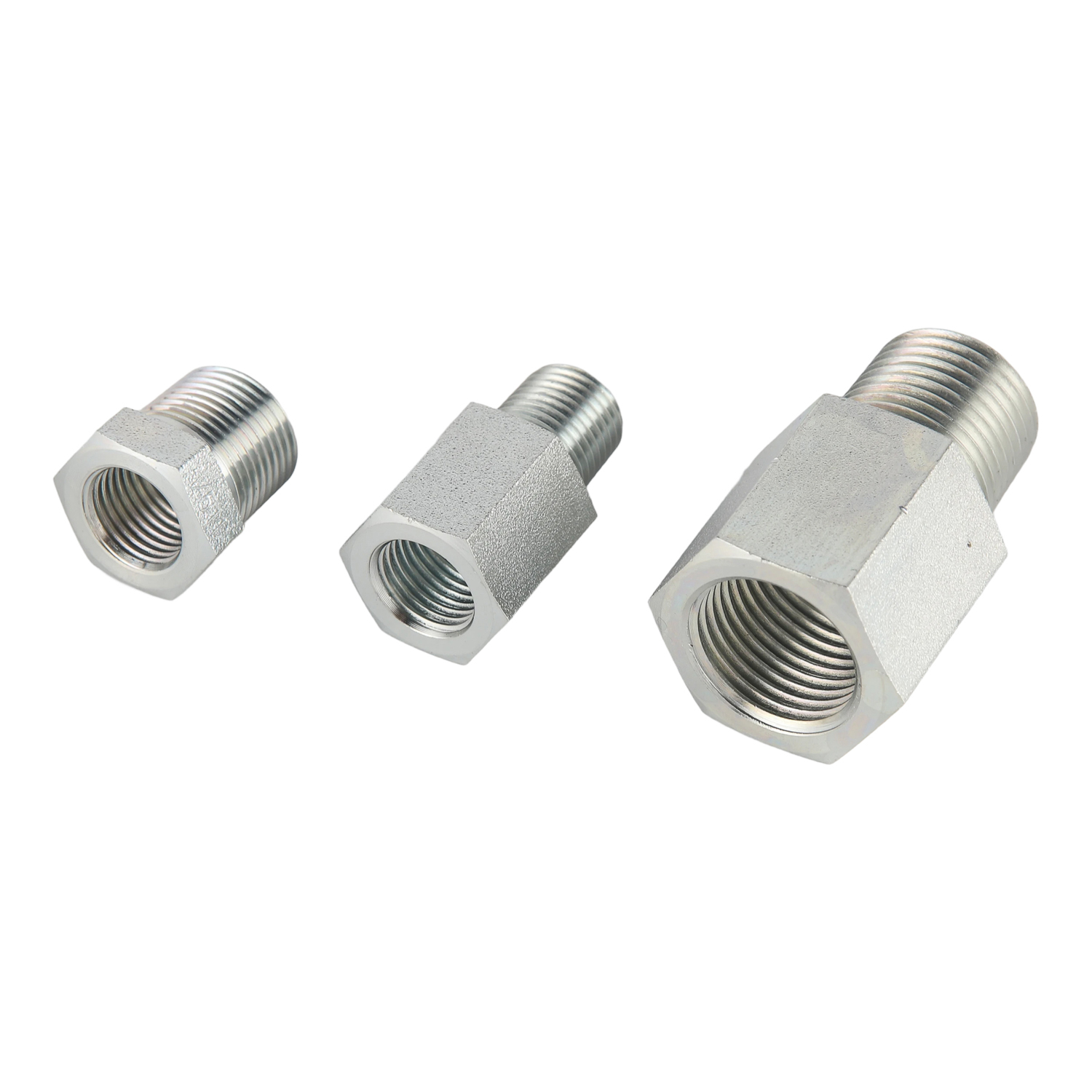

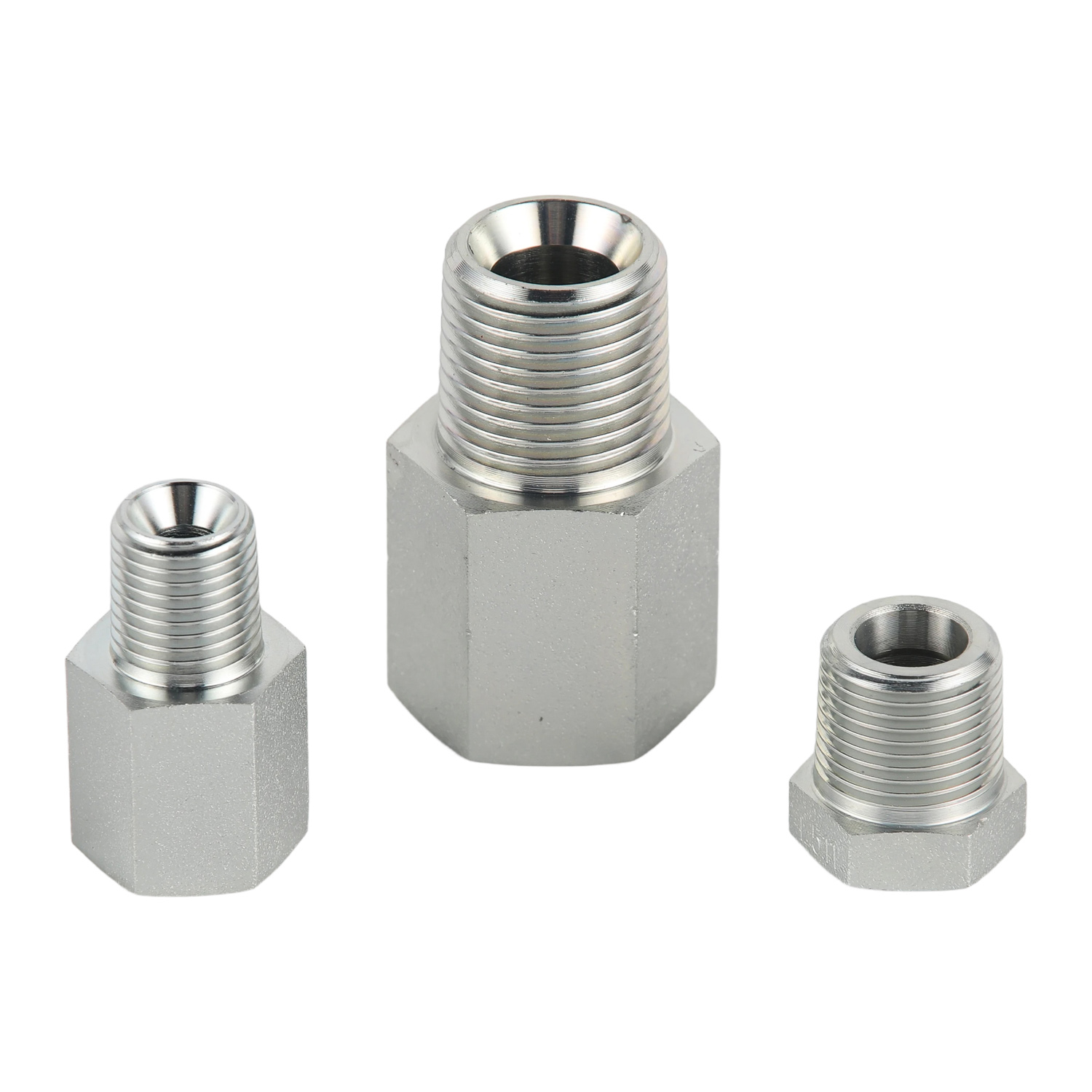

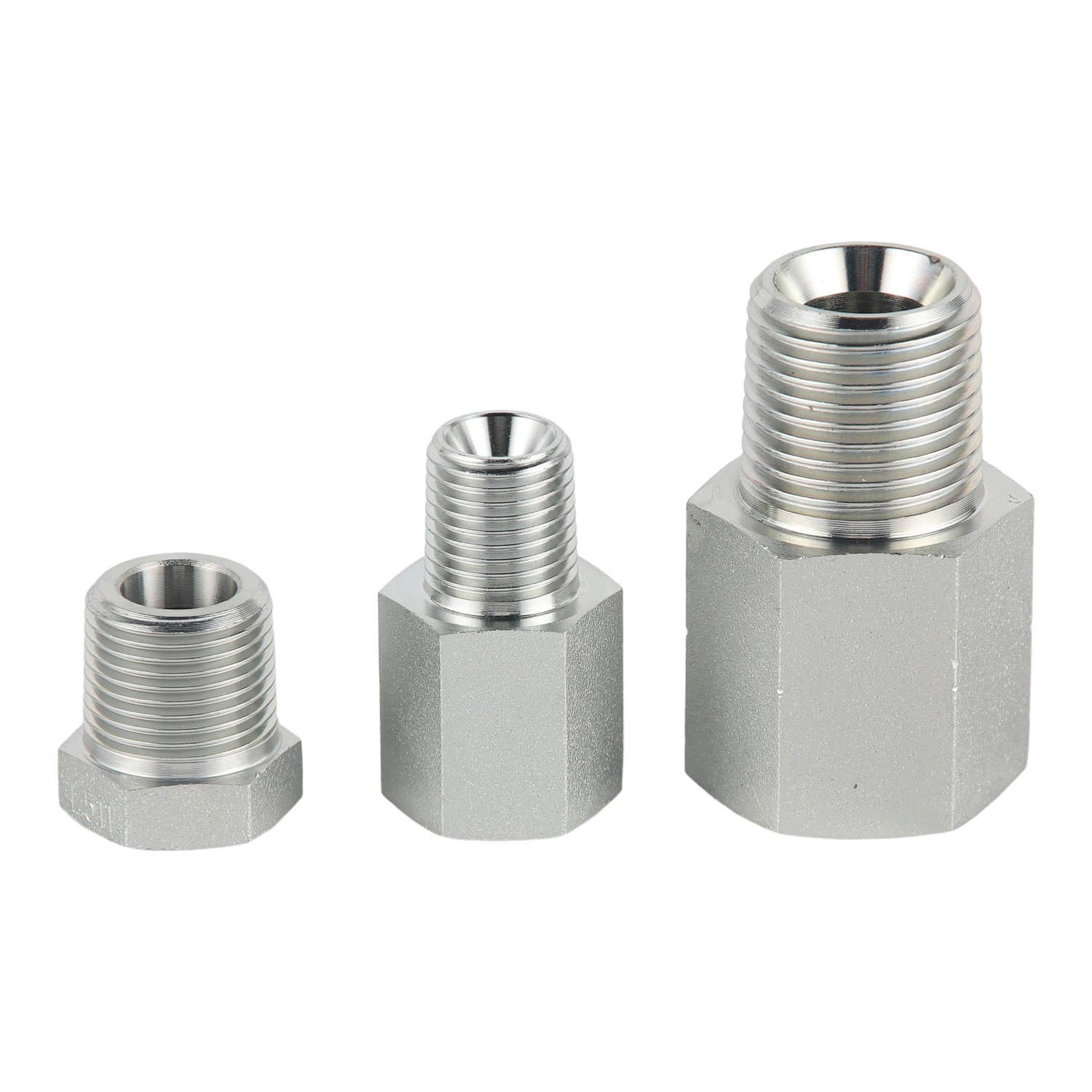

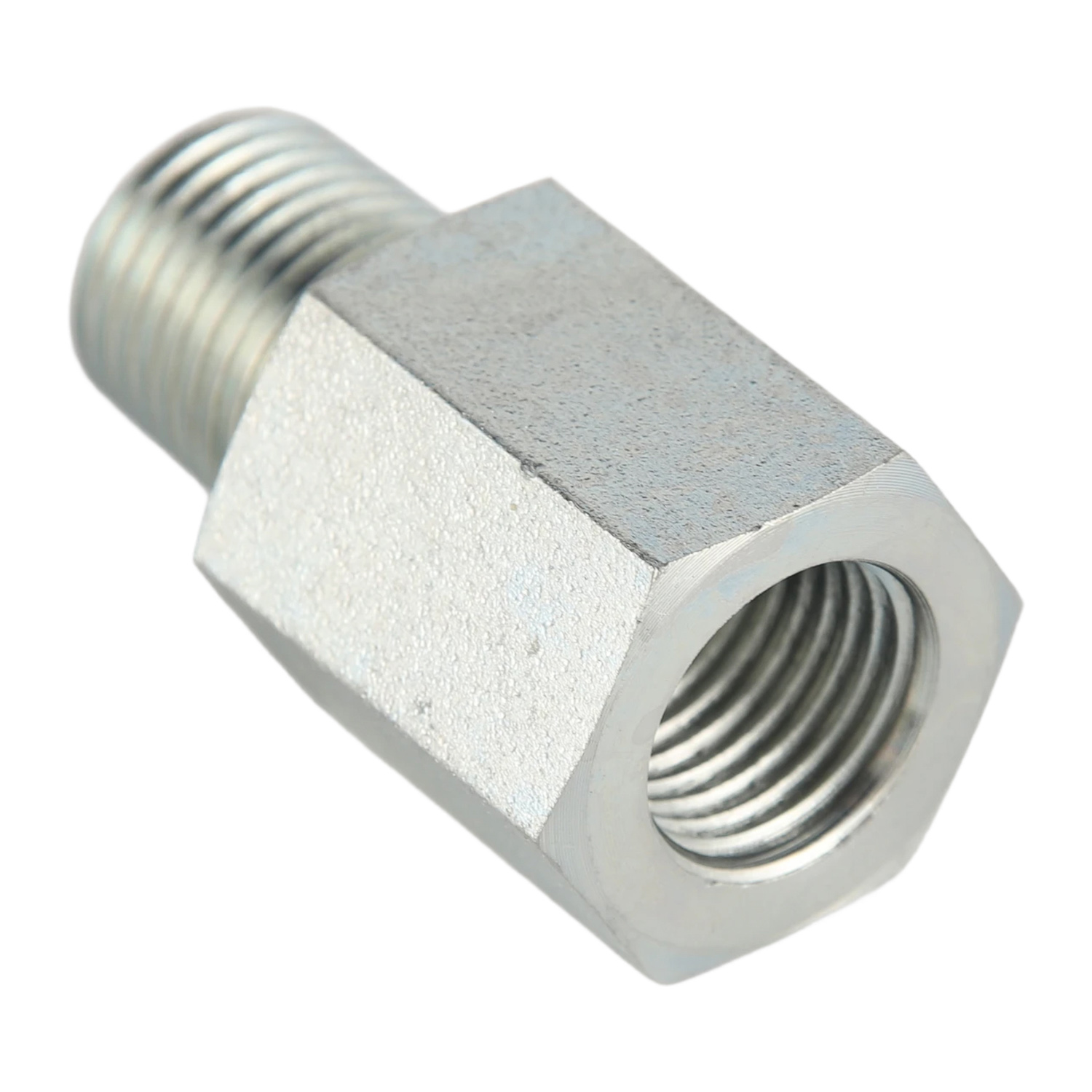

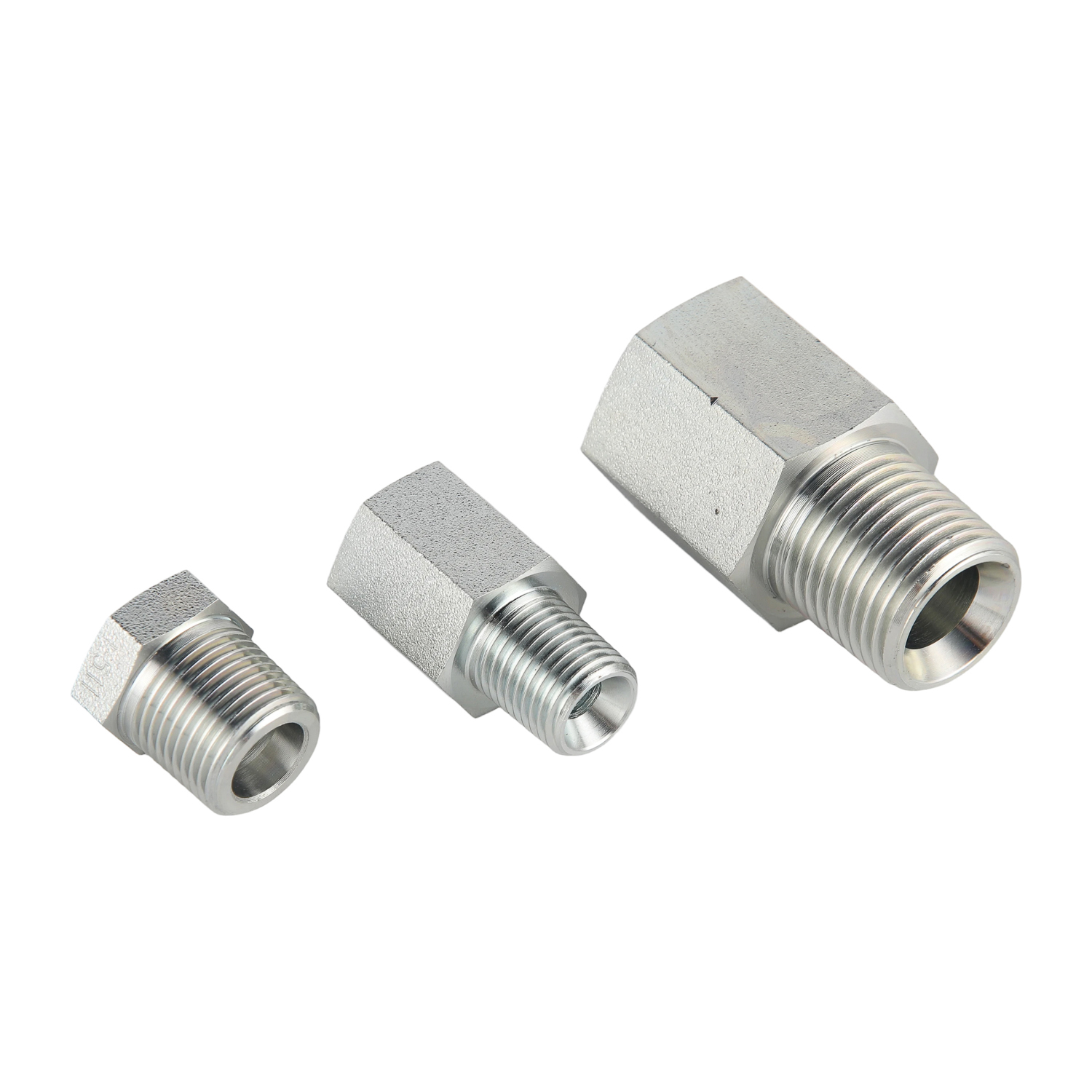

The 5TB-SP Series is a straight thread conversion adapter designed for connecting BSPT male threaded components with BSP female threaded ports. The fitting features a BSPT male tapered thread on one side and a BSP female parallel thread on the opposite side, allowing flexible connection between different BSP thread configurations.
The tapered BSPT male thread provides secure engagement through thread interference, while the BSP female thread allows compatibility with standard BSP male fittings. This design helps simplify piping layouts and provides a practical solution for hydraulic system modification and component connection.
Manufactured from precision-machined carbon steel, the adapter offers high mechanical strength and reliable performance under demanding operating conditions. The hexagonal body design allows easy installation and tightening with standard tools. Surface treatment improves corrosion resistance and extends service life in industrial environments.
The 5TB-SP series is suitable for hydraulic systems, pneumatic equipment, industrial machinery, fluid control systems, and general pipeline applications.
BSPT male to BSP female thread conversion
Straight adapter configuration
Reliable tapered thread connection
Compatible with BSP hydraulic components
Hexagonal body design for easy installation
Precision-machined threads for secure connection
Carbon steel construction with corrosion-resistant finish
Suitable for hydraulic, oil, gas, and water systems

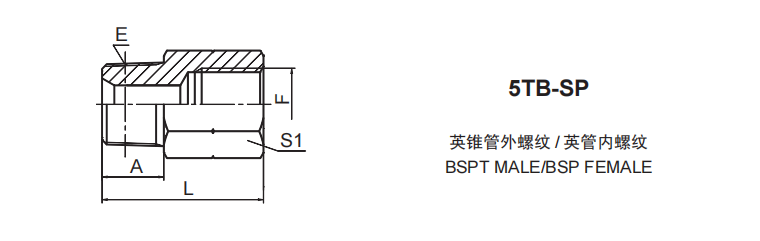

| PART NO. | T H R E A D | DIMENSIONS | |||||||
| E | F | A | L | S1 | |||||
| 5TB-02-04SP | R1/8"X28 | G1/4"X19 | 10 | 31.5 | 19 | ||||
| 5TB-04-06SP | R1/4"X19 | G3/8"X19 | 14.5 | 38.5 | 22 | ||||
| 5TB-04SP | R1/4"X19 | G1/4"X19 | 14.5 | 35 | 19 | ||||
| 5TB-06-04SP | R3/8"X19 | G1/4"X19 | 15 | 36 | 19 | ||||
| 5TB-06-08SP | R3/8"X19 | G1/2"X14 | 15 | 43 | 27 | ||||
| 5TB-06-12SP | R3/8"X19 | G3/4"X14 | 15 | 44 | 36 | ||||
| 5TB-06SP | R3/8"X19 | G3/8"X19 | 15 | 39 | 22 | ||||
| 5TB-08-06SP | R1/2"X14 | G3/8"X19 | 20 | 44 | 22 | ||||
| 5TB-08-12SP | R1/2"X14 | G3/4"X14 | 20 | 50 | 36 | ||||
| 5TB-08-16SP | R1/2"X14 | G1"X11 | 20 | 54.5 | 41 | ||||
| 5TB-08SP | R1/2"X14 | G1/2"X14 | 20 | 48 | 27 | ||||
| 5TB-12-08SP | R3/4"X14 | G1/2"X14 | 20 | 48 | 30 | ||||
| 5TB-12-16SP | R3/4"X14 | G1"X11 | 20 | 54.5 | 41 | ||||
| 5TB-12SP | R3/4"X14 | G3/4"X14 | 20 | 49 | 36 | ||||
| 5TB-16-12SP | R1"X11 | G3/4"X14 | 25.5 | 55 | 36 | ||||
| 5TB-16-20SP | R1"X11 | G1.1/4"X11 | 25.5 | 61.5 | 50 | ||||
| 5TB-16SP | R1"X11 | G1"X11 | 25.5 | 60 | 41 | ||||
| 5TB-20-08SP | R1.1/4"X11 | G1/2"X14 | 26.5 | 39 | 46 | ||||
| 5TB-20-12SP | R1.1/4"X11 | G3/4"X14 | 26.5 | 39 | 46 | ||||
| 5TB-20-24SP | R1.1/4"X11 | G1.1/2"X11 | 26.5 | 63 | 55 | ||||
| 5TB-20SP | R1.1/4"X11 | G1.1/4"X11 | 26.5 | 61.5 | 50 | ||||
| 5TB-24-16SP | R1.1/2"X11 | G1"X11 | 26.5 | 40.5 | 55 | ||||
| 5TB-24-20SP | R1.1/2"X11 | G1.1/4"X11 | 26.5 | 61 | 55 | ||||
| 5TB-24-32SP | R1.1/2"X11 | G2"X11 | 26.5 | 63.5 | 70 | ||||
| 5TB-24SP | R1.1/2"X11 | G1.1/2"X11 | 26.5 | 63 | 55 | ||||
| 5TB-32-24SP | R2"X11 | G1.1/2"X11 | 30 | 45 | 65 | ||||
The 5TB-SP Series BSPT Male / BSP Female Adapters are widely used in hydraulic machinery, pneumatic equipment, industrial automation systems, construction machinery, fluid control equipment, oil and gas pipelines, and general industrial piping. Their thread conversion design provides a reliable connection solution for systems requiring BSPT and BSP compatibility.
