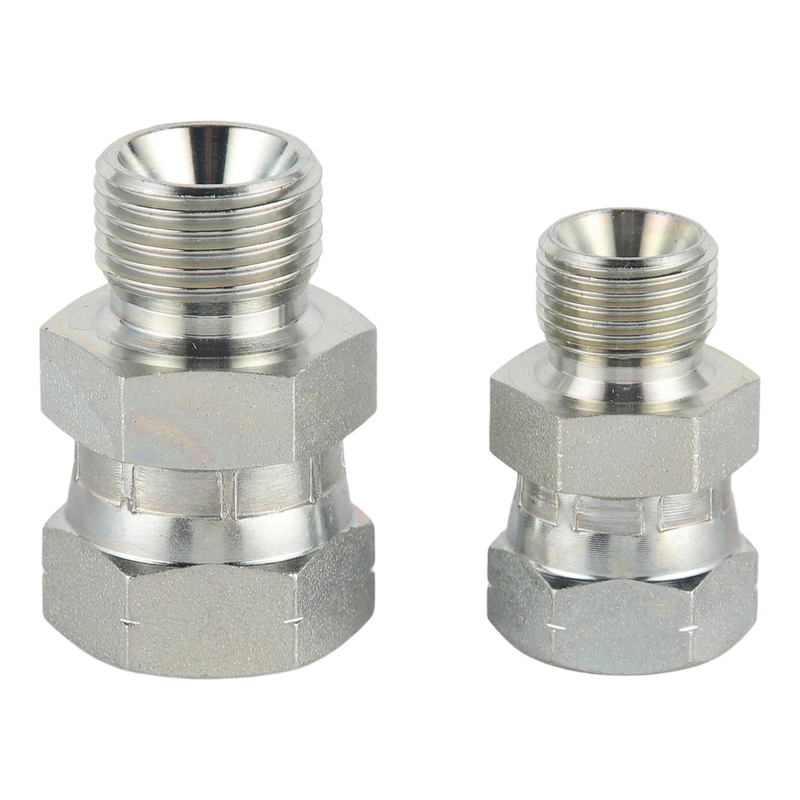

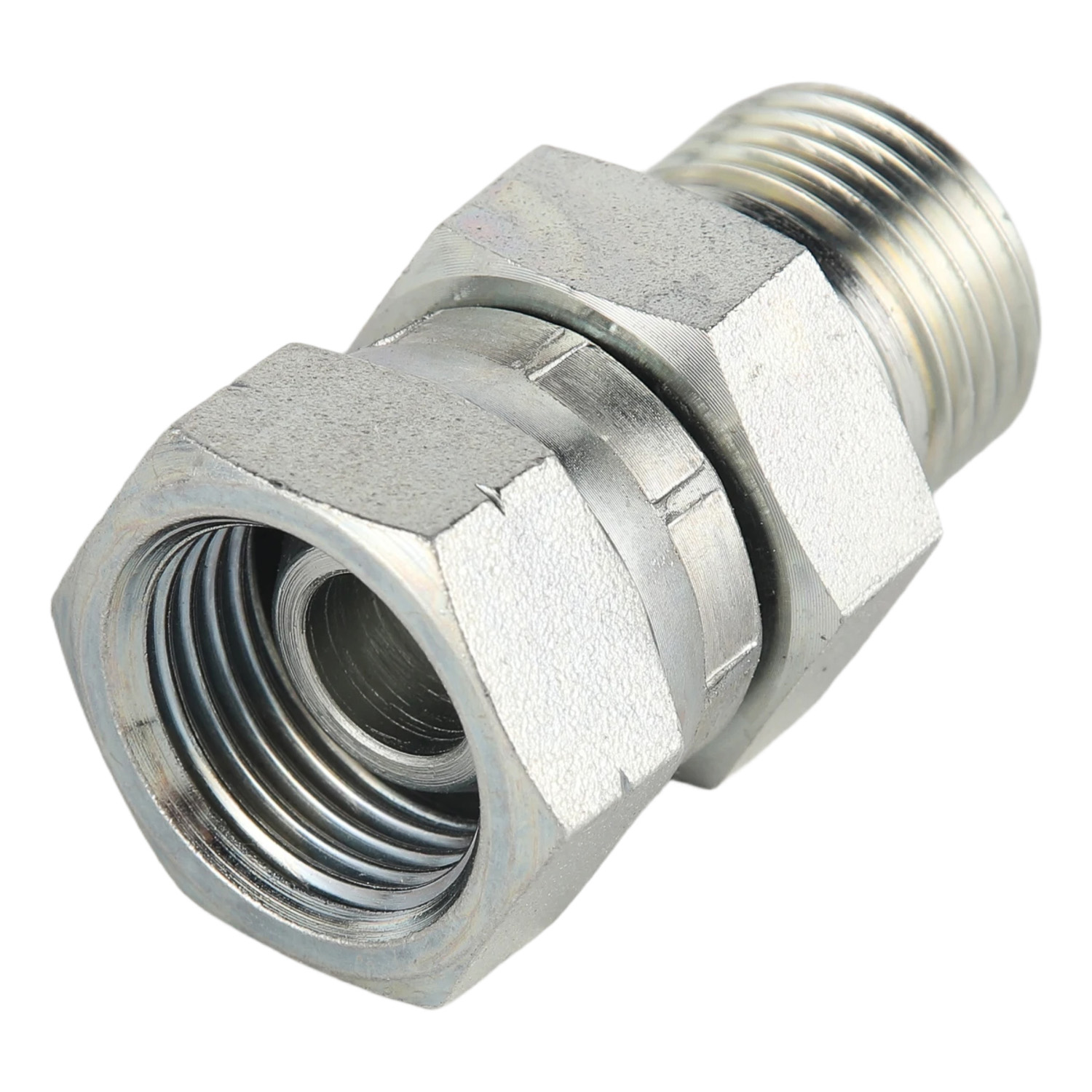

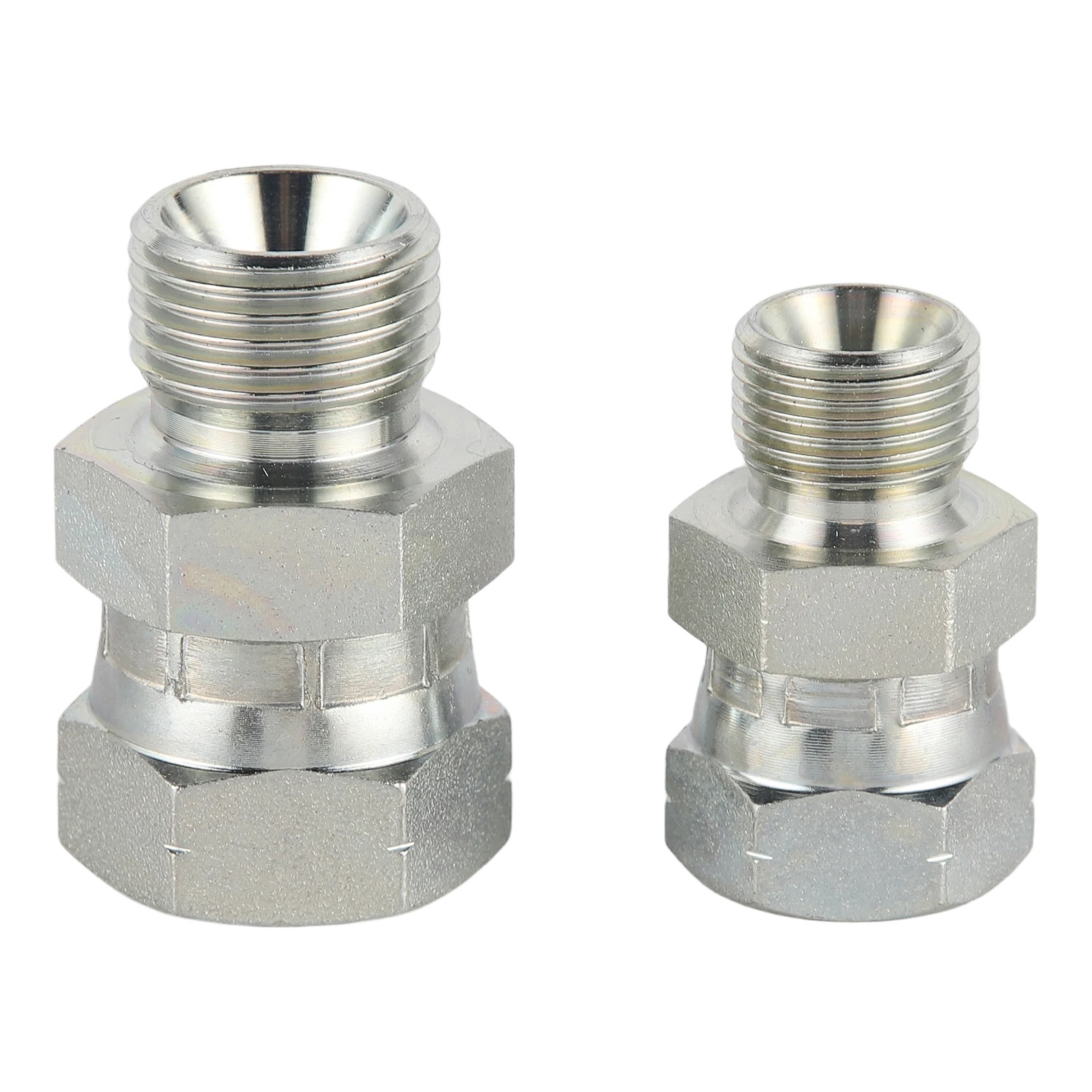

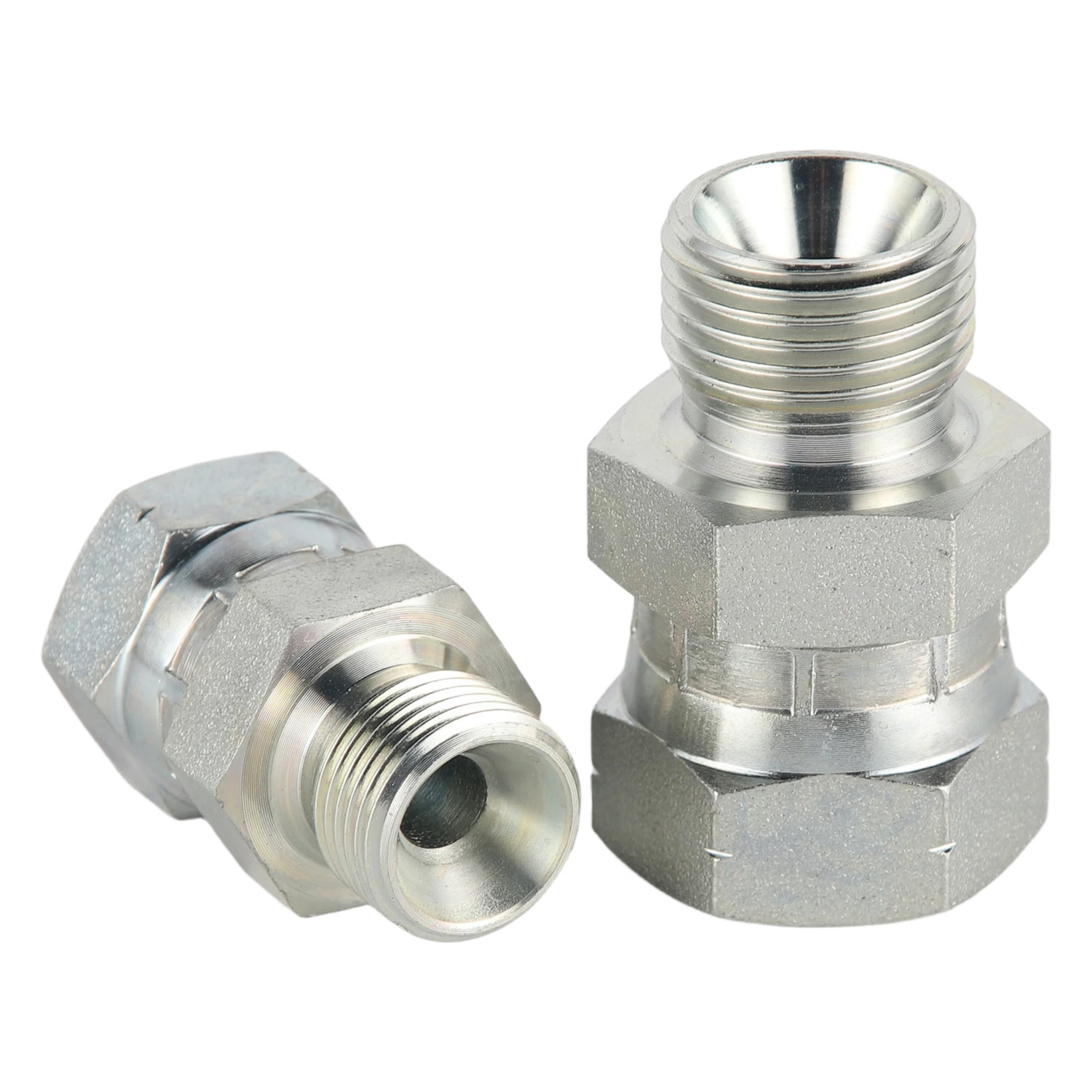

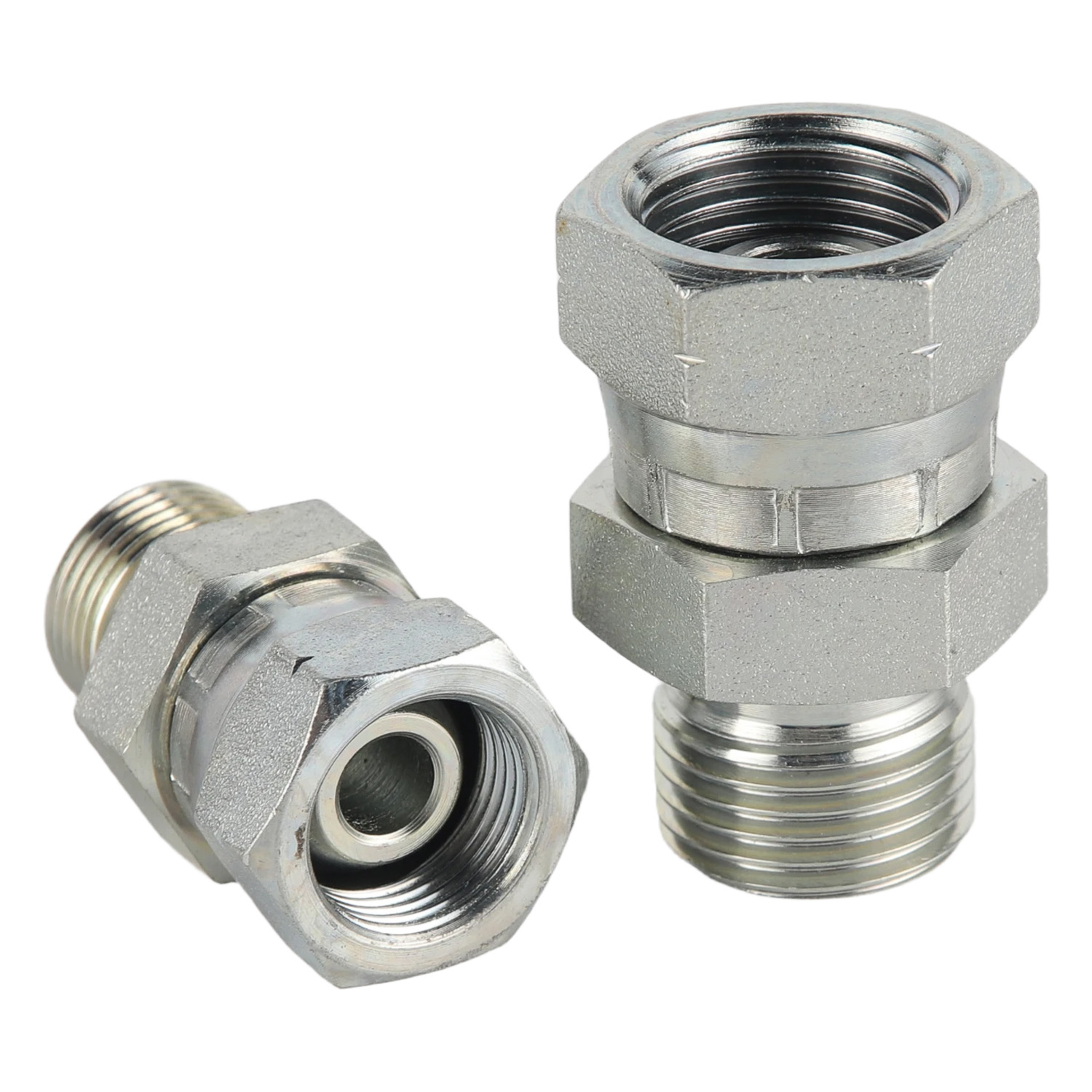

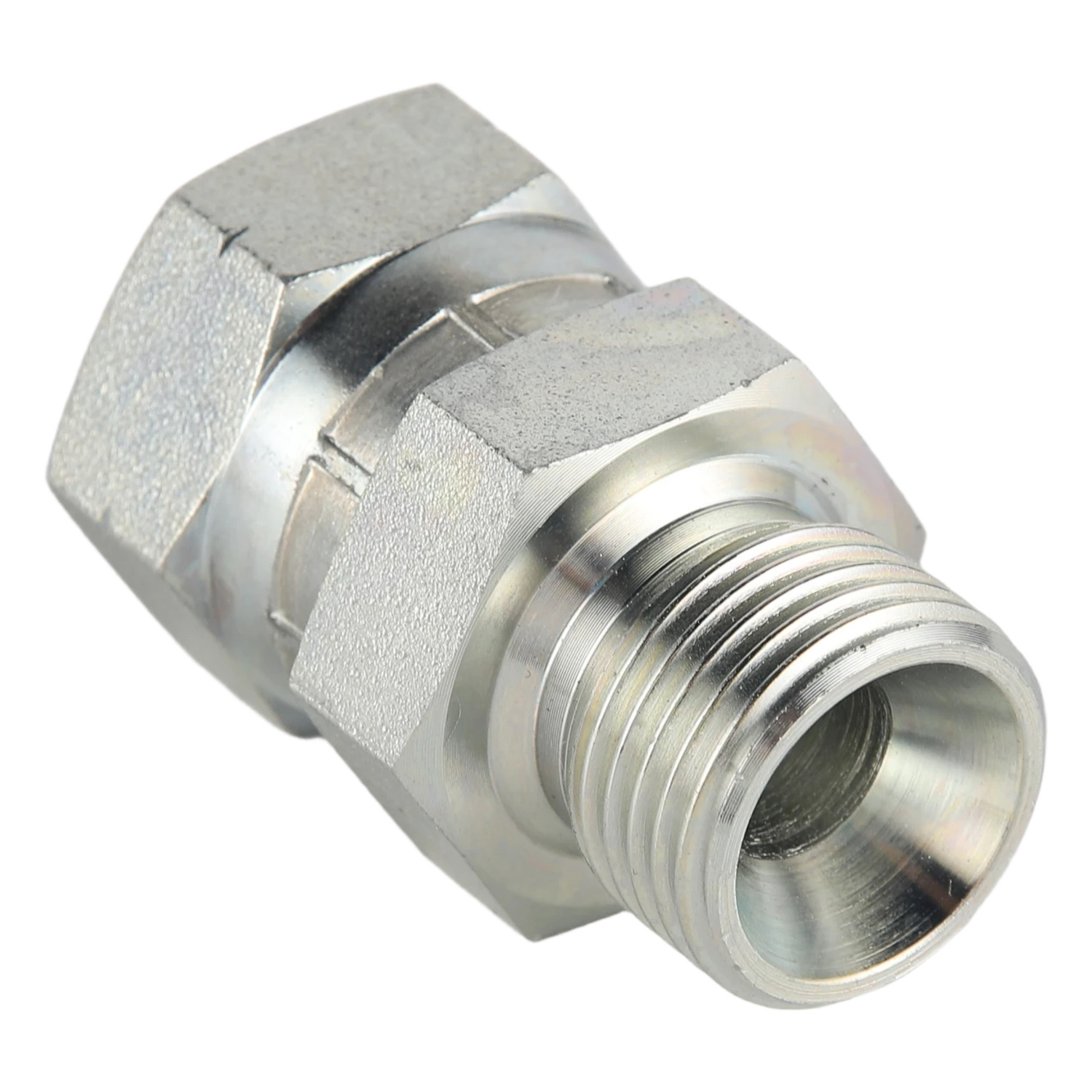

The 2B BSP Male Double Use for 60° Cone Seat or Bonded Seal / BSP Female 60° Cone Hydraulic Adapter is designed for secure and leak-free hydraulic connections. Featuring a BSP male thread with dual sealing capability and a BSP female 60° cone connection, it provides reliable performance in high-pressure hydraulic systems.
Manufactured from high-quality carbon steel or stainless steel, the adapter is precision machined to ensure dimensional accuracy, excellent sealing performance, and long service life. Available with Cr3 zinc plating or Zn-Ni coating, it offers outstanding corrosion resistance for demanding industrial applications.
BSP Male Double Use for 60° Cone Seat or Bonded Seal
BSP Female 60° Cone Connection
Precision CNC Machined
Carbon Steel & Stainless Steel Available
Cr3 Zinc Plated or Zn-Ni Surface Finish
High Pressure Performance
OEM & ODM Service Available

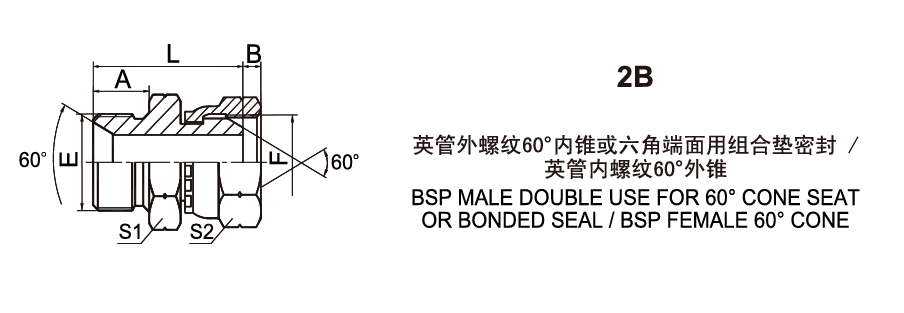

| PART NO. | THREAD | DIMENSIONS | |||||
| E | F | A | B | L | S1 | S2 | |
| 2B-02 | G1/8"X28 | G1/8"X28 | 10 | 5.5 | 25 | 14 | 14 |
| 2B-02-04 | G1/8"X28 | G1/4"X19 | 10 | 5.5 | 27 | 14 | 19 |
| 2B-04 | G1/4"X19 | G1/4"X19 | 12 | 5.5 | 29 | 19 | 19 |
| 2B-04-06 | G1/4"X19 | G3/8"X19 | 12 | 6.3 | 30.5 | 19 | 22 |
| 2B-04-08 | G1/4"X19 | G1/2"X14 | 12 | 7.5 | 32 | 19 | 27 |
| 2B-06 | G3/8"X19 | G3/8"X19 | 13.5 | 6.3 | 34 | 22 | 22 |
| 2B-06-08 | G3/8"X19 | G1/2"X14 | 13.5 | 7.5 | 35.5 | 22 | 27 |
| 2B-06-10 | G3/8"X19 | G5/8"X14 | 13.5 | 9.5 | 36 | 22 | 30 |
| 2B-08 | G1/2"X14 | G1/2"X14 | 16 | 7.5 | 40 | 27 | 27 |
| 2B-08-06 | G1/2"X14 | G3/8X19 | 16 | 6.3 | 38.5 | 27 | 22 |
| 2B-08-12 | G1/2"X14 | G3/4"X14 | 16 | 10.9 | 41 | 27 | 32 |
| 2B-10 | G518"X14 | G518"X14 | 17.5 | 9.5 | 42 | 30 | 30 |
| 2B-10-08 | G5/8"X14 | G1/2"X14 | 17.5 | 7.5 | 41.5 | 30 | 27 |
| 2B-10-12 | G5/8"X14 | G314"X14 | 17.5 | 10.9 | 42.5 | 30 | 32 |
| 2B-12 | G3/4"X14 | G3/4"X14 | 18.5 | 10.9 | 44.5 | 32 | 32 |
| 2B-12-10 | G3/4"X14 | G5/8"X14 | 18.5 | 9.5 | 44 | 32 | 30 |
| 2B-12-16 | G3/4"X14 | G1"X11 | 18.5 | 11.7 | 46 | 32 | 41 |
| 2B-16 | G1"X11 | G1"X11 | 20.5 | 11.7 | 50 | 41 | 41 |
| 2B-16-12 | G1"X11 | G314"X14 | 20.5 | 10.9 | 49 | 41 | 32 |
| 2B-16-20 | G1"X11 | G1.1/4"X11 | 20.5 | 11 | 53 | 41 | 50 |
| 2B-20 | G1.1/4"X11 | G1.1/4"X11 | 20.5 | 11 | 55 | 50 | 50 |
| 2B-20-16 | G1.1/4"X11 | G1"X11 | 20.5 | 11.7 | 52 | 50 | 41 |
| 2B-20-24 | G1.1/4"X11 | G1.1/2"X11 | 20.5 | 13 | 55.5 | 50 | 55 |
| 2B-24 | G1.1/2"X11 | G1.1/2"X11 | 23 | 13 | 58 | 55 | 55 |
| 2B-32 | G2"X11 | G2"X11 | 25.5 | 16 | 63.5 | 70 | 70 |
Construction Machinery
Agricultural Machinery
Mining Equipment
Industrial Hydraulic Systems
Mobile Hydraulic Equipment
Hydraulic Power Units (HPUs)
Ningbo Fuke Hydraulic Machinery Co., Ltd. specializes in manufacturing hydraulic fittings, adapters, ball valves, and hydraulic accessories. Our products comply with ISO, DIN, SAE, and BSP standards and are exported worldwide. With advanced CNC machining equipment and strict quality control, we provide reliable hydraulic connection solutions for customers around the globe.
