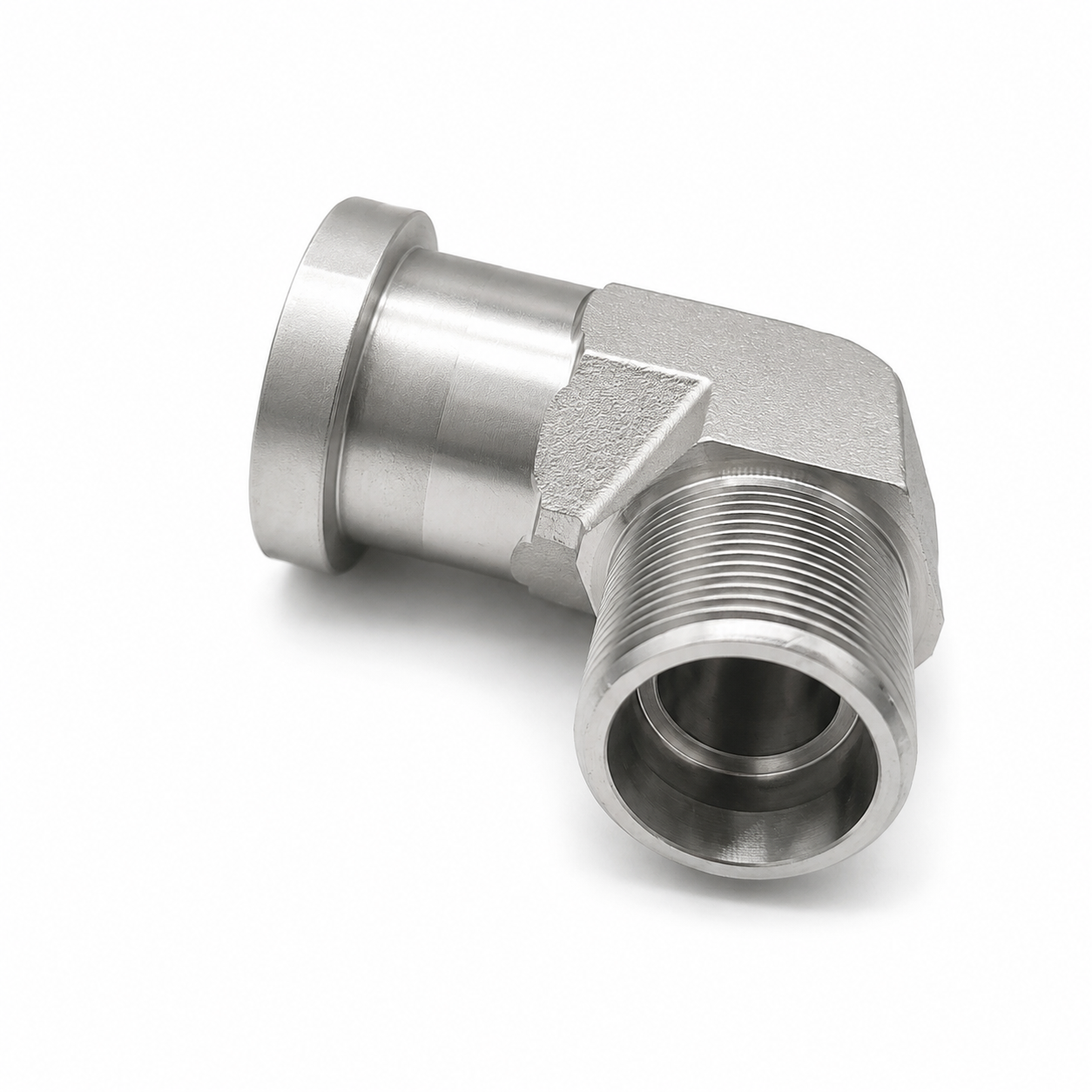

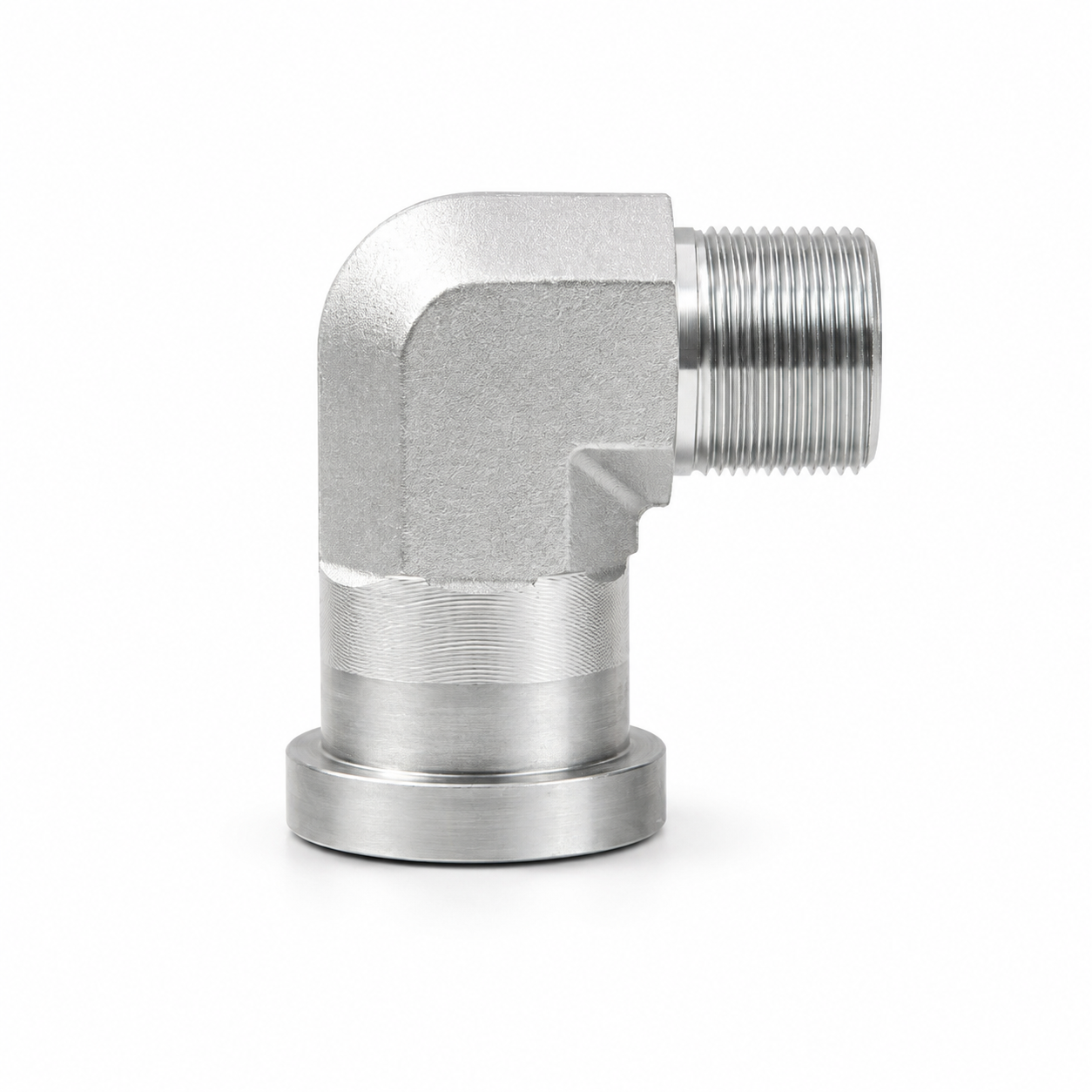

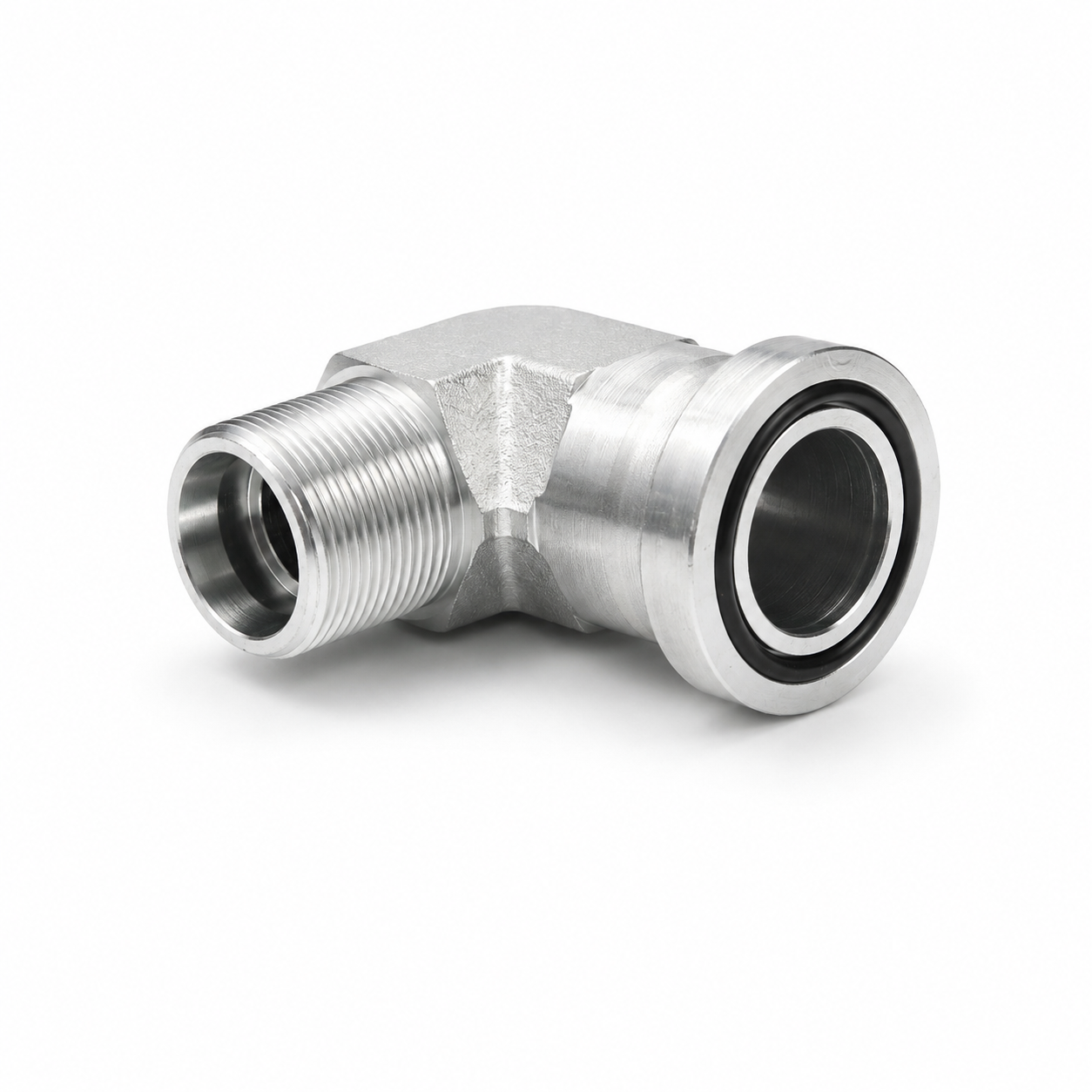

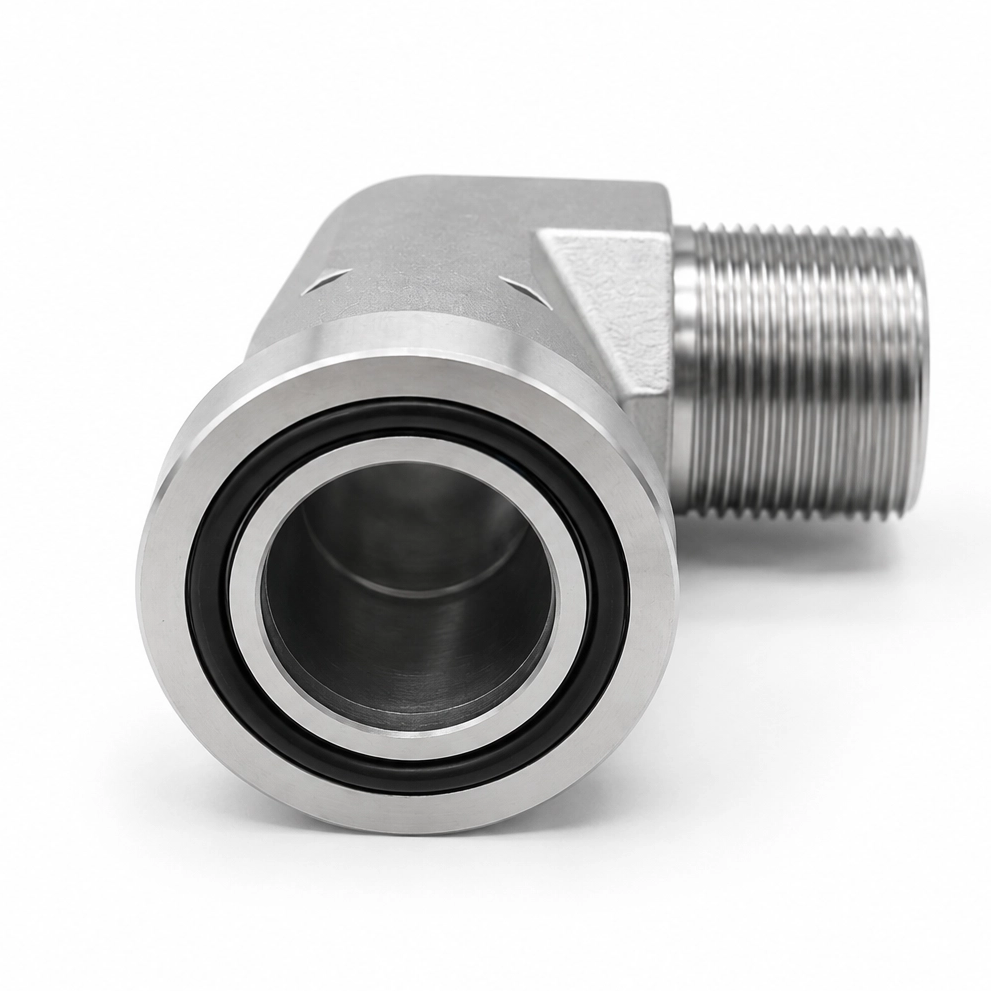

The 1CFL9 / 1DFL9 Series are precision-engineered 90° hydraulic fittings that combine DIN bite type tube connections with ISO 6162-1 flange interfaces. The elbow configuration allows efficient routing of hydraulic tubing while maintaining reliable sealing performance under high-pressure operating conditions.
The fittings feature a metric male thread with a DIN compression bite type connection on one end and an ISO 6162-1 hydraulic flange on the other. This design provides a secure mechanical connection, excellent sealing performance, and easy installation in hydraulic pipelines.
Manufactured from premium carbon steel or stainless steel, the fittings offer outstanding mechanical strength, corrosion resistance, and long service life. Precision machining ensures accurate dimensions and consistent sealing performance.
The series is available in L Series (Light Duty) and S Series (Heavy Duty) versions to accommodate different pressure requirements. Optional O-rings, nuts, and cutting rings are available to complete the assembly.
Suitable for hydraulic pumps, valve manifolds, cylinders, industrial equipment, construction machinery, agricultural machinery, mining equipment, and mobile hydraulic systems, the 1CFL9 / 1DFL9 Series provides dependable hydraulic connections for a wide range of applications.
NBFK also provides OEM and customized manufacturing services according to customer drawings and specifications.
90° elbow hydraulic fitting
DIN bite type tube connection
ISO 6162-1 hydraulic flange connection
Available in L Series and S Series
Precision-machined sealing surfaces
High-strength carbon steel or stainless steel
Zinc-plated or customized surface finish
Reliable leak-free performance
Easy installation and maintenance
OEM customization available

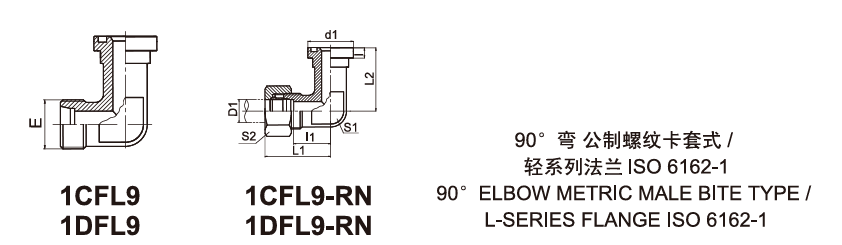

| Part No. | Thread E | Flange Size | (D1) | O-Ring | DEMENTIONS | Pressure (MPa) | ||||||
| Tube O.D. | d1 | l | l1 | L1 | L2 | S1 | S2 | |||||
| 1CFL9-22-08 | M22×1.5 | 1/2" | 15 | O210 | 30.2 | 6.7 | 29 | 44 | 36 | 24 | 27 | 31.5 (L Series) |
| 1CFL9-26-12 | M26×1.5 | 3/4" | 18 | O214 | 38.1 | 6.7 | 31.5 | 48 | 42 | 30 | 32 | |
| 1CFL9-30-12 | M30×2 | 3/4" | 22 | O214 | 38.1 | 6.7 | 33.5 | 50 | 42 | 30 | 36 | 16 (L Series) |
| 1CFL9-36-16 | M36×2 | 1" | 28 | O219 | 44.4 | 8 | 36.5 | 53 | 45 | 36 | 41 | |
| 1CFL9-45-20 | M45×2 | 1-1/4" | 35 | O222 | 50.8 | 8 | 46.5 | 68 | 50 | 41 | 50 | |
| 1CFL9-52-24 | M52×2 | 1-1/2" | 42 | O225 | 60.3 | 8 | 47 | 70 | 75 | 48 | 60 | |
| 1DFL9-24-08 | M24×1.5 | 1/2" | 16 | O210 | 30.2 | 6.7 | 29.5 | 48 | 36 | 24 | 30 | 35 (S Series) |
| 1DFL9-30-12 | M30×2 | 3/4" | 20 | O214 | 38.1 | 6.7 | 32.5 | 54 | 42 | 30 | 36 | |
| 1DFL9-36-12 | M36×2 | 1" | 25 | O219 | 38.1 | 6.7 | 33 | 57 | 42 | 30 | 46 | |
| 1DFL9-42-16 | M42×2 | 1" | 30 | O219 | 44.4 | 8 | 36.5 | 63 | 45 | 36 | 50 | 28 (S Series) |
| 1DFL9-36-20 | M36×2 | 1-1/4" | 25 | O222 | 50.8 | 8 | 43 | 67 | 50 | 41 | 46 | |
| 1DFL9-42-20 | M42×2 | 1-1/4" | 30 | O222 | 50.8 | 8 | 43.5 | 70 | 50 | 41 | 50 | |
| 1DFL9-52-20 | M52×2 | 1-1/4" | 38 | O222 | 50.8 | 8 | 43 | 74 | 50 | 46 | 60 | |
| 1DFL9-52-24 | M52×2 | 1-1/2" | 38 | O225 | 60.3 | 8 | 48 | 79 | 75 | 48 | 60 | 21 (S Series) |
| Note: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix "RN" after our part NO., for example 1DFL9-52-24RN. | ||||||||||||
The 1CFL9 / 1DFL9 Series is widely used in hydraulic pumps, hydraulic valves, manifolds, cylinders, industrial machinery, construction equipment, agricultural machinery, mining equipment, marine hydraulic systems, and other fluid power applications requiring DIN bite type tube-to-flange connections.
