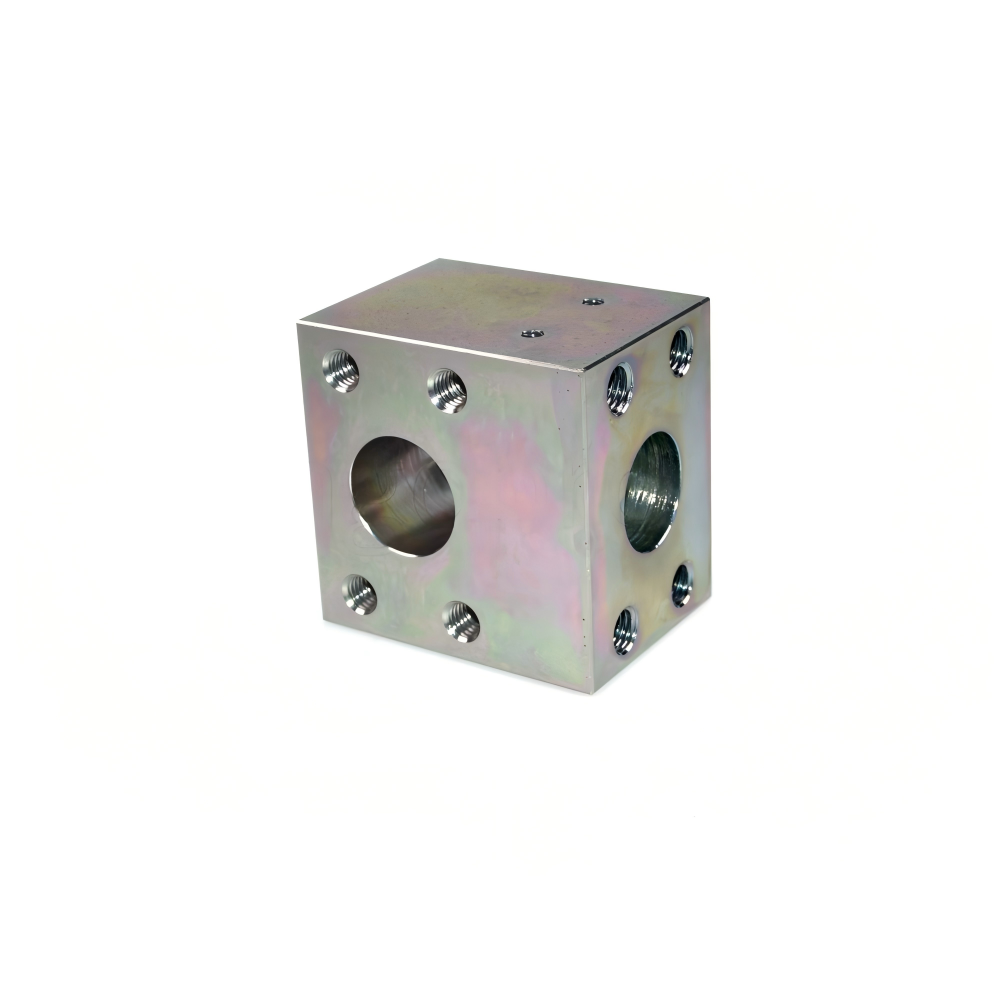

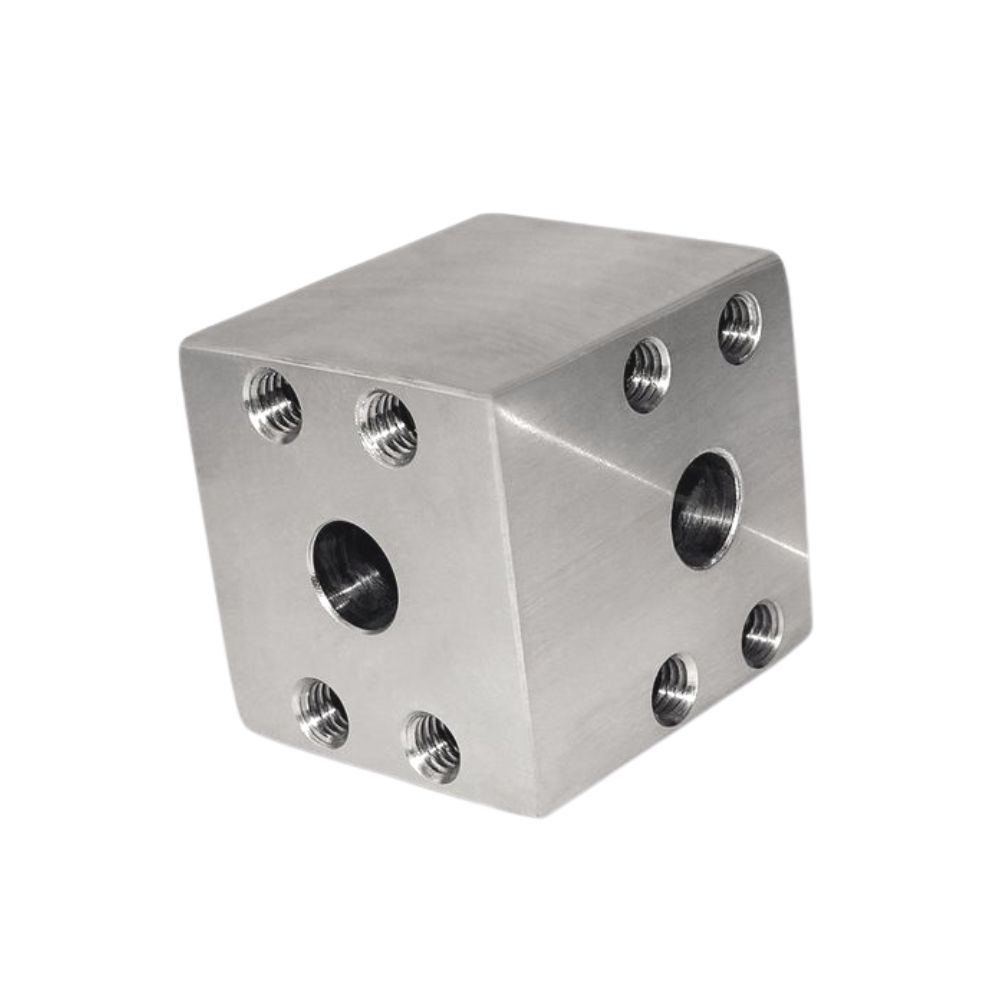

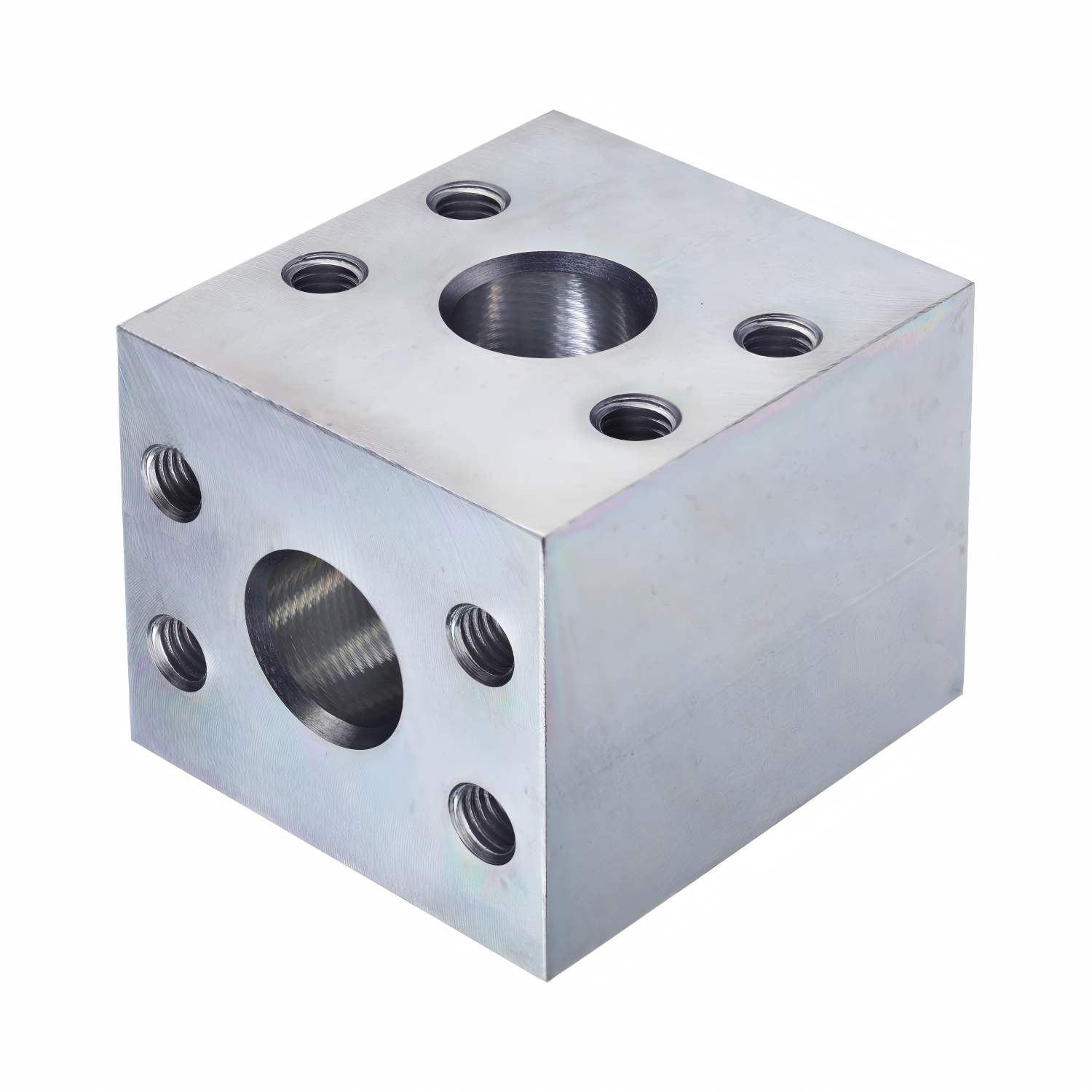

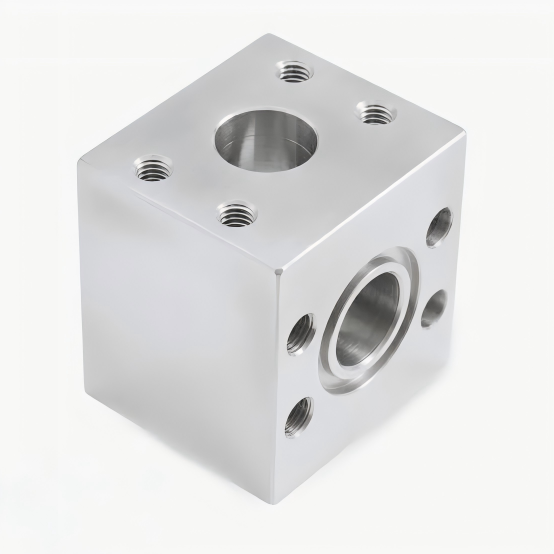

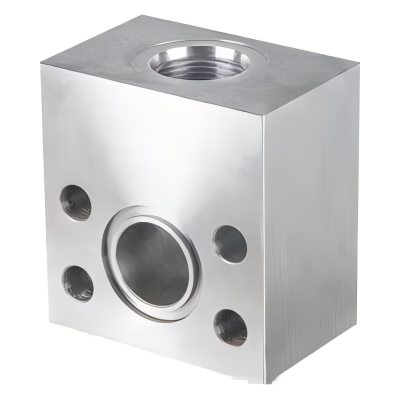

The Flange L-Block SAE 3000 / ISO 6162-1 is designed for connecting hydraulic pipelines and components using SAE flange connection systems. It provides a compact and reliable solution for hydraulic applications requiring strong mechanical support and secure fluid transmission.
The product follows SAE 3000 PSI and ISO 6162-1 dimensional standards, ensuring compatibility with standard hydraulic flange components. The precision-machined port and flange surfaces provide accurate positioning and stable sealing when assembled with flange clamps, bolts, and sealing elements.
The L-shaped block structure helps simplify hydraulic system layout by allowing changes in installation direction while maintaining efficient fluid flow. This design is suitable for applications where traditional straight connections cannot meet installation requirements.
Produced with controlled machining processes, the flange block offers consistent dimensions, good pressure resistance, and long service life. Surface treatment options are available according to customer requirements to improve corrosion resistance and product durability.
NBFK provides standard SAE flange products as well as customized solutions according to drawings, dimensions, and application requirements.
Designed according to SAE 3000 PSI / ISO 6162-1 standard
Suitable for SAE Code 61 hydraulic flange systems
L-block design for flexible hydraulic installation
Precision-machined flange surfaces for reliable sealing
Strong mechanical structure and high durability
Compatible with hydraulic flange clamps and accessories
Available in multiple sizes
OEM customization available

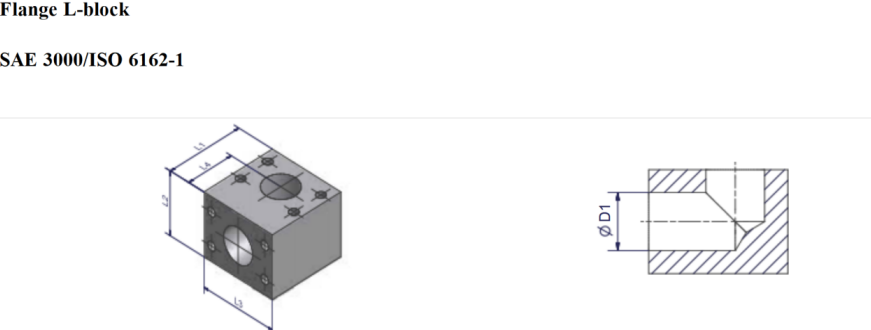

| Size (Inch) | D1 (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) |
| 1" | 25 | 70 | 48 | 70 | 46 |
| 1-1/4" | 30 | 80 | 58 | 80 | 51 |
| 1-1/2" | 38 | 90 | 68 | 90 | 56 |
| 2" | 50 | 96 | 78 | 100 | 57 |
| 2-1/2" | 60 | 110 | 88 | 110 | 65 |
| 3" | 73 | 135 | 110 | 135 | 80 |
