Product Overview

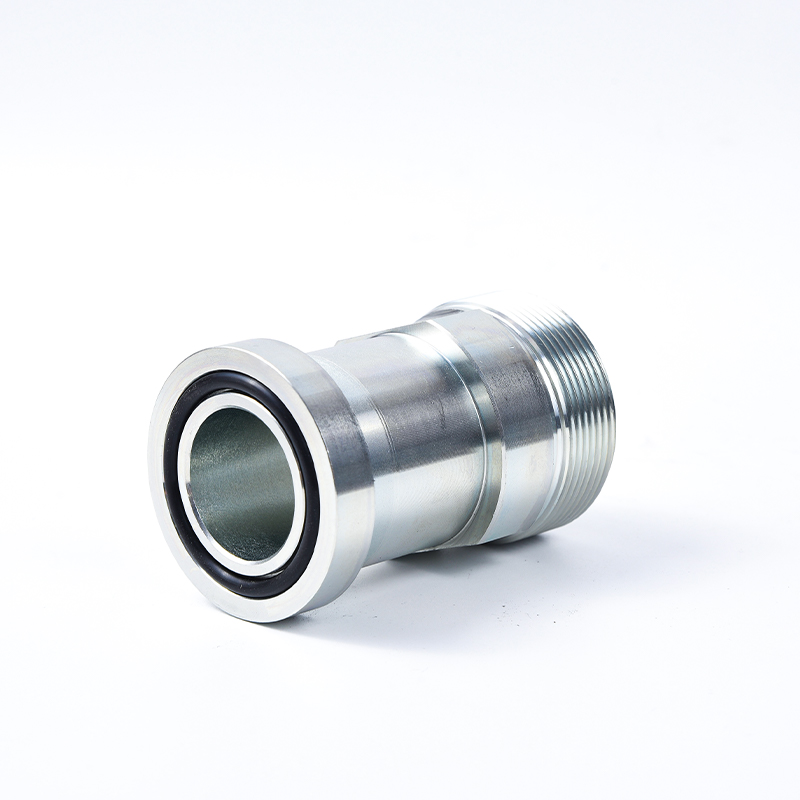

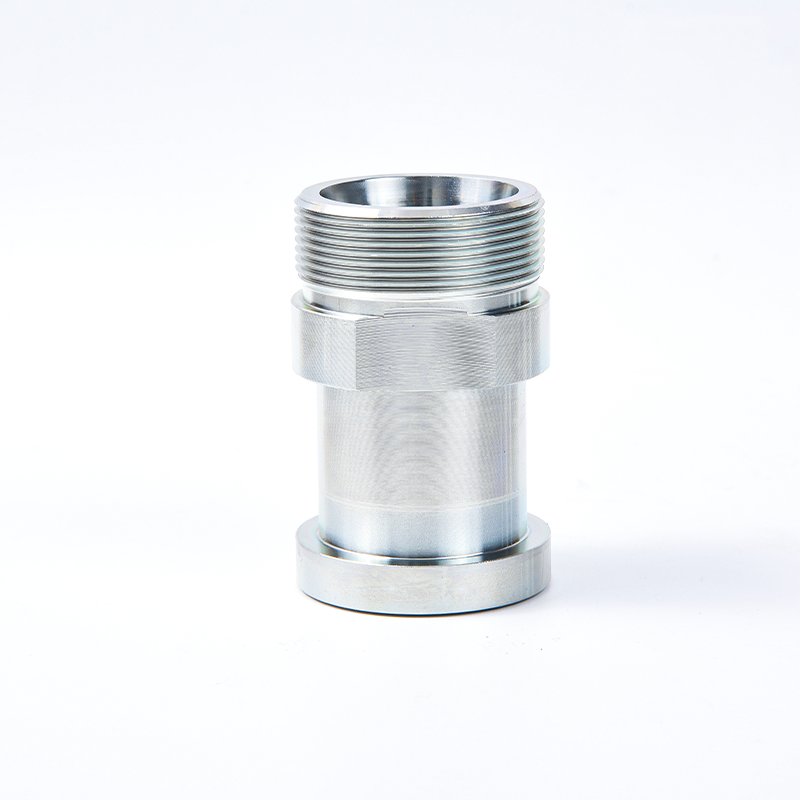

The 1DFS / 1CFL / GFS flange fitting is a high-performance straight-through hydraulic adapter designed for secure connection between metric tube systems and SAE flange interfaces. Engineered for heavy-duty hydraulic applications, it combines a 24° cone female thread on one end with an ISO 6162 SAE flange connection on the other, enabling efficient integration between different hydraulic connection systems.
The threaded end is compatible with formed tube ends, welded tubes, and ferrule connections, while the flange side uses an O-ring face seal together with a split flange clamp to provide secure and leak-free sealing under high operating pressure. This dual-interface design makes the fitting especially suitable for hydraulic circuits requiring reliable sealing, high flow capacity, and easy maintenance.
Manufactured according to DIN 2353, DIN 3861, ISO 8434, SAE J518, and ISO 6162 standards, the fitting ensures global interchangeability and consistent assembly performance in industrial hydraulic systems.
Structural Advantages
Unlike standard threaded hydraulic fittings, flange fittings are designed to handle larger flow volumes and higher mechanical loads. The SAE flange interface distributes clamping force evenly across the sealing surface, reducing localized stress and significantly improving resistance to vibration, pressure pulsation, and hydraulic shock.
The integrated O-ring face seal provides highly reliable static sealing performance, minimizing leakage risks even in demanding operating conditions. Combined with the split flange clamp design, installation and maintenance become more efficient, especially for large-diameter hydraulic lines where conventional threaded fittings may be difficult to assemble.
With maximum working pressure up to 420 bar (6000 PSI), this fitting offers dependable performance in heavy-duty hydraulic power transmission systems.
Technical Specifications
Product Type: Hydraulic Straight Flange Adapter
Connection Type: 24° Cone Female Thread × SAE Flange
Standards: DIN 2353 / DIN 3861 / ISO 8434 / SAE J518 / ISO 6162
Material: Carbon Steel
Sealing Type: O-Ring Face Seal
Surface Treatment: Zinc Plated / Zn-Ni Optional
Maximum Working Pressure: 420 bar (6000 PSI)

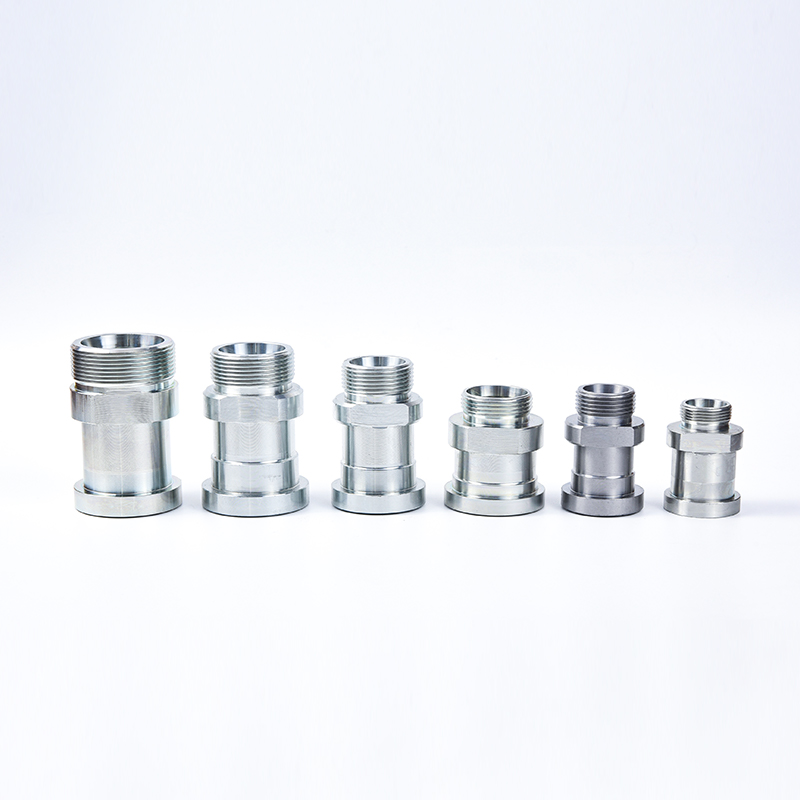

Available Series: Light Series (06L–42L), Heavy Series (06S–38S)
Applicable Media: Hydraulic Oil, Industrial Fluids
Description

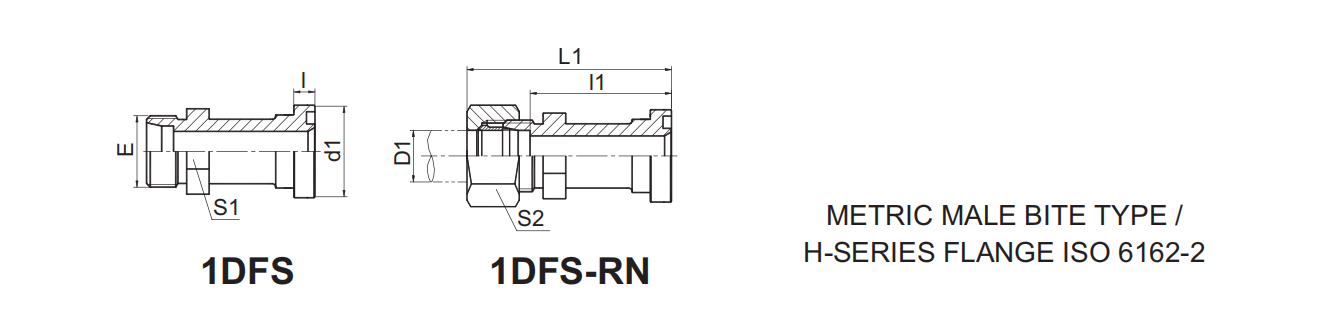

| PART NO. | THREAD | FLANGE SIZE | Tube outer diameterD1 | O-RING | DIMENSIONS | MPa |
| TUBE O.D. | d1 | I | l1 | L1 | S1 | S2 |
| 1DFS-24-08 | M24X1.5 | 1/2" | 16 | O210 | 31.7 | 7.8 | 44.5 | 63 | 24 | 3o | 40S |
| 1DFS-24-12 | M24X1.5 | 3/4" | 16 | O214 | 41.3 | 8.8 | 50.5 | 69 | 30 | 30 |
| 1DFS-30-12 | M30X2 | 3/4" | 20 | O214 | 41.3 | 8.8 | 50.5 | 72 | 30 | 36 |
| 1DFS-36-12 | M36X2 | 3/4" | 25 | O214 | 41.3 | 8.8 | 51 | 75 | 30 | 46 |
| 1DFS-36-16 | M36X2 | 1" | 25 | O219 | 47.6 | 9.5 | 60 | 81 | 36 | 46 |
| 1DFS-42-16 | M42X2 | 1" | 30 | O219 | 47.6 | 9.5 | 60.5 | 87 | 36 | 50 |
| 1DFS-42-20 | M42X2 | 1.1/4" | 30 | O222 | 54 | 10.3 | 65.5 | 92 | 41 | 50 |
| 1DFS-52-20 | M52X2 | 1.1/4" | 38 | O222 | 54 | 10.3 | 67 | 98 | 46 | 60 | 31.5S |
| 1DFS-52-24 | M52X2 | 1.1/2" | 38 | O225 | 63.5 | 12.6 | 73 | 104 | 46 | 60 |
| Note: In case if you are interested to order the adapter in complete set with cutting ring and nut , it is necessary to insert suffix "RN" after our part No.，for example 1DFS-52-24RN. |
Applications
The 1DFS / 1CFL / GFS flange fitting is widely used in construction machinery, mining equipment, hydraulic presses, offshore systems, and heavy industrial hydraulic power units. It is particularly suitable for high-flow hydraulic circuits where strong vibration resistance, secure flange sealing, and easy maintenance are essential.
