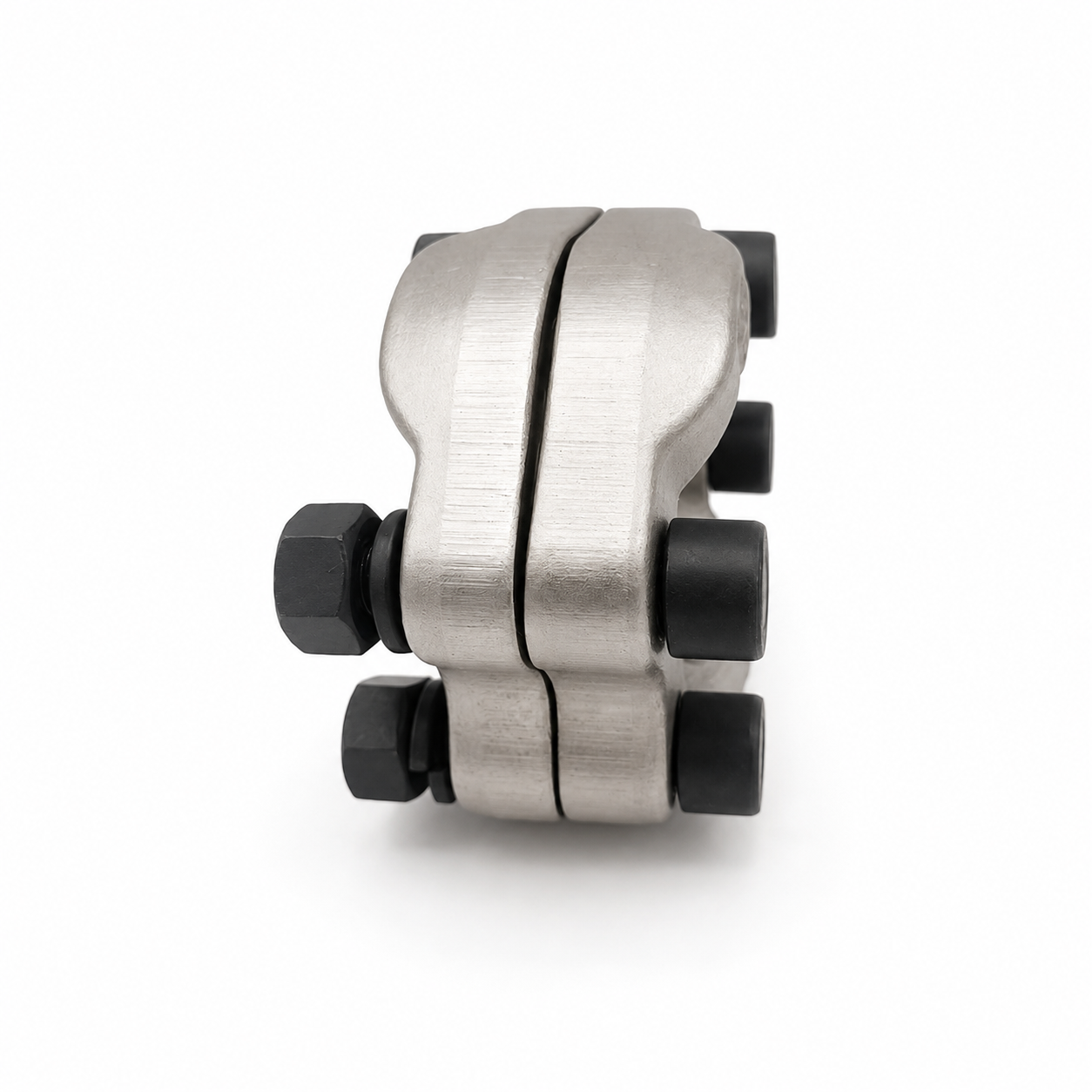

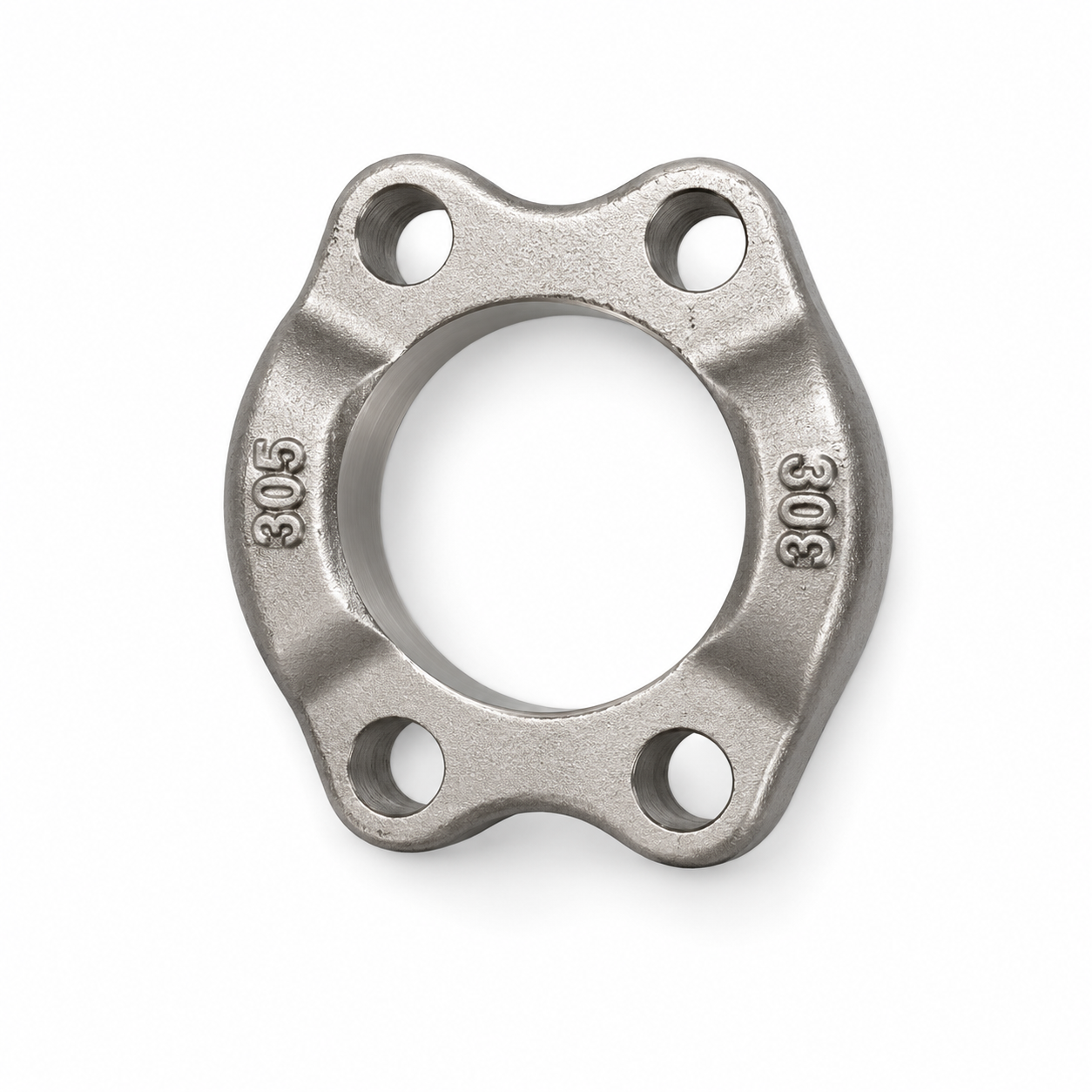

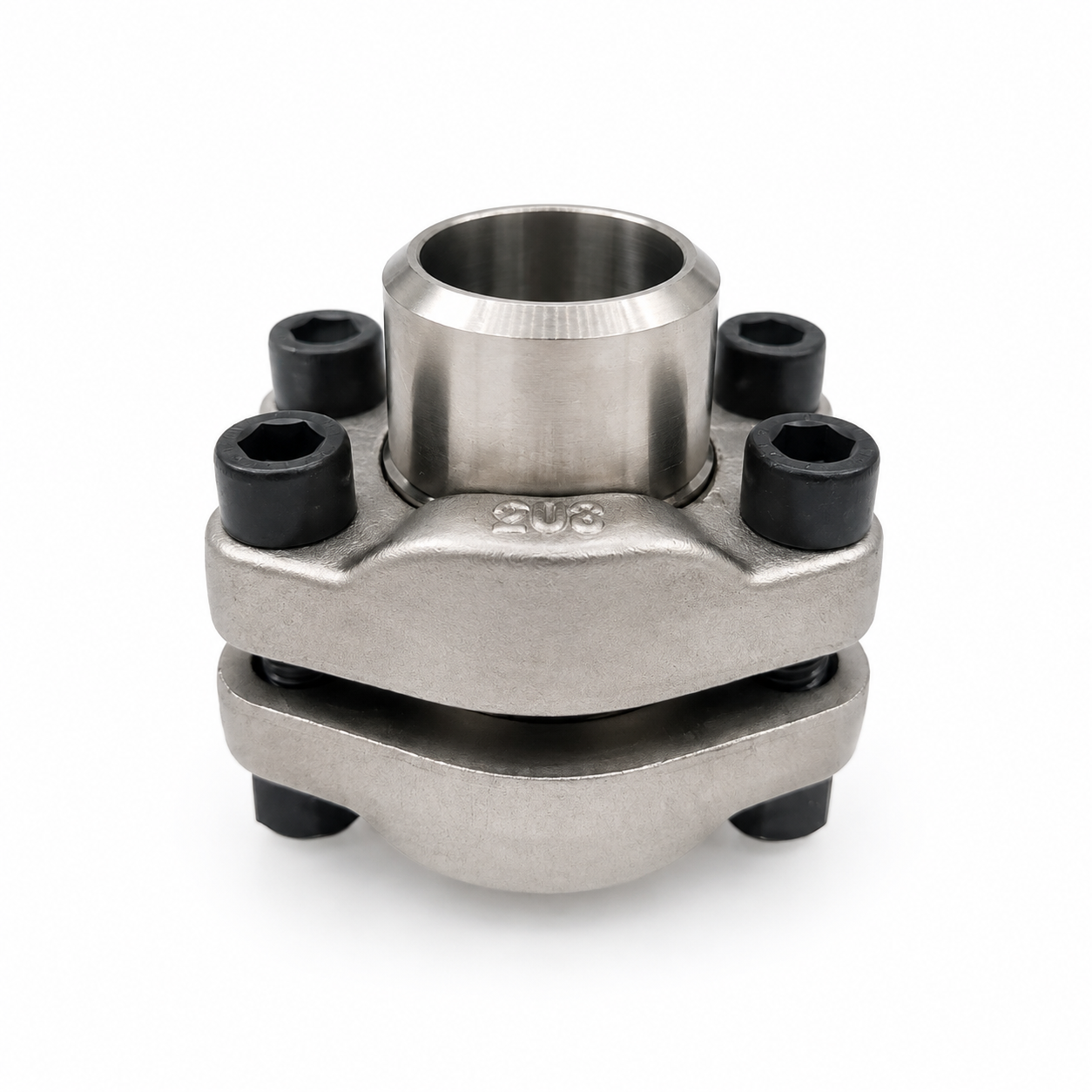

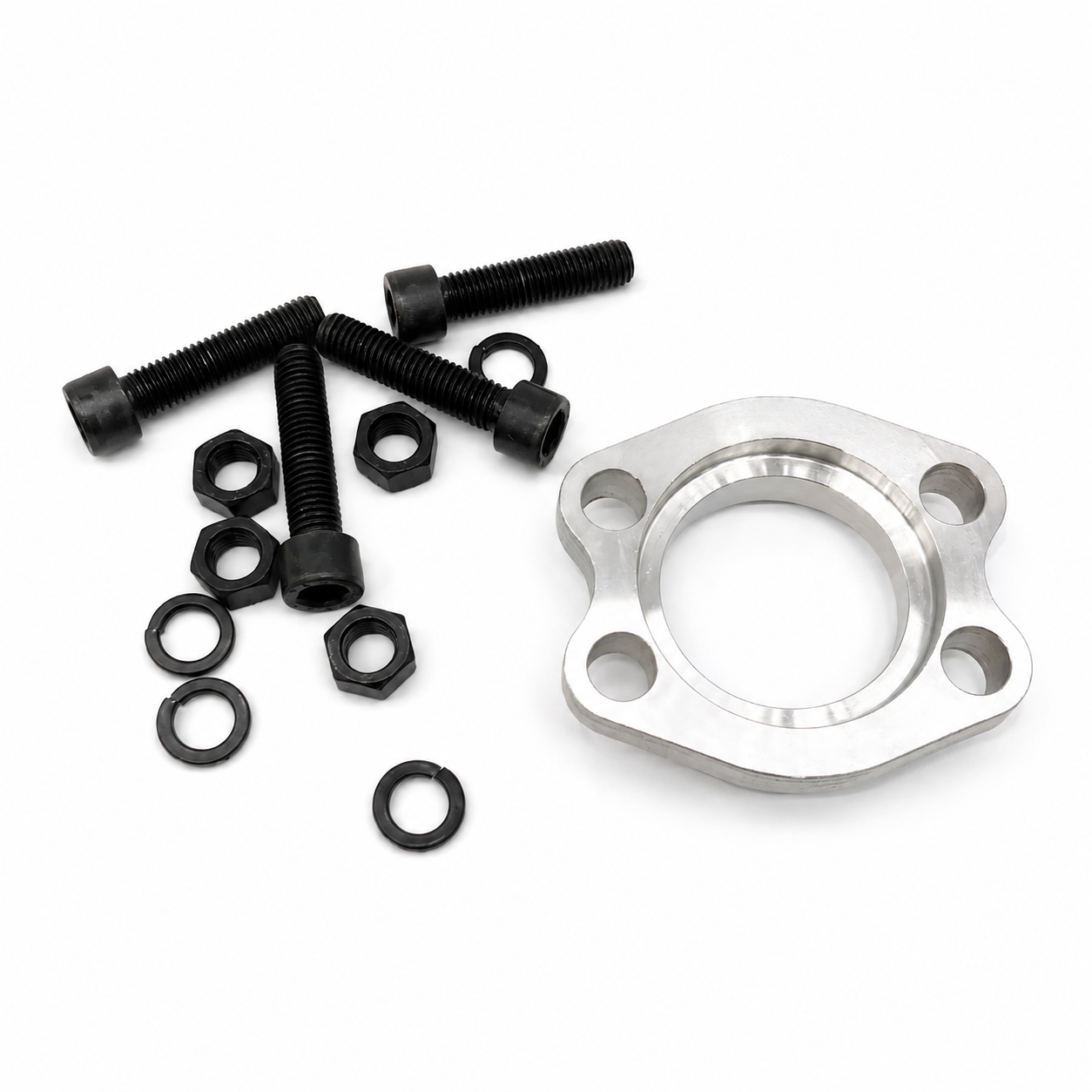

FL-W / FS-W Series SAE Flange Clamp

The FL-W / FS-W Series SAE Flange Clamp is designed for secure installation of SAE hydraulic flange connections, providing strong mechanical support and reliable sealing performance in high-pressure hydraulic systems.

Available in both SAE 3000 PSI and SAE 6000 PSI pressure classes, these flange clamps are manufactured according to SAE flange standards and are suitable for hydraulic piping systems requiring high strength and vibration resistance.

Made from high-quality carbon steel with precision machining, the flange clamps provide excellent durability and stable performance under demanding working conditions. The split clamp design allows easy installation and maintenance while ensuring accurate alignment between hydraulic flange components.

The FL-W series is suitable for SAE Code 61 (3000 PSI) flange systems, while the FS-W series is designed for SAE Code 62 (6000 PSI) high-pressure flange applications.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Overview

The FL-W / FS-W Series SAE Flange Clamp is a precision-engineered hydraulic connection component used to secure SAE flange assemblies in hydraulic systems. The clamp structure provides uniform fastening force, helping maintain proper alignment and sealing between flange heads, adapters, pumps, valves, and other hydraulic components.

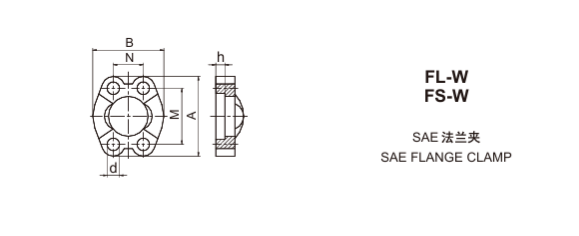

53c6c118-169e-4669-b64a-6b7865c76721

Designed for high-pressure hydraulic applications, this series includes two pressure classes:

FL-W Series: SAE 3000 PSI flange clamp
FS-W Series: SAE 6000 PSI flange clamp

The SAE 3000 PSI version is commonly used for medium-pressure hydraulic circuits, while the SAE 6000 PSI version provides enhanced strength for higher-pressure hydraulic applications.

Manufactured from durable steel materials with precision processing, these flange clamps offer excellent mechanical strength, impact resistance, and long service life. The compact split design simplifies installation and allows convenient maintenance without removing the complete hydraulic assembly.

With accurate dimensions and compatibility with SAE flange systems, the FL-W / FS-W Series provides a reliable connection solution for hydraulic pumps, motors, valves, cylinders, industrial machinery, construction equipment, and mobile hydraulic systems.

NBFK supports standard production as well as OEM customization according to customer requirements.

Features

Designed for SAE hydraulic flange connections
Available in SAE 3000 PSI and SAE 6000 PSI versions
Strong mechanical clamping performance
Split clamp design for easy installation
High strength steel construction
Excellent vibration resistance
Precise machining for accurate assembly
Suitable for high-pressure hydraulic systems
OEM customization available

Specifications

Part No.	Flange Size	DIMENSIONS						Bolt	Pressure (MPa)
Part No.	Flange Size	A	B	d	h	M	N	Bolt	Pressure (MPa)
3000 PSI
FL-08W	1/2"	54	45.6	9	6.2	38.1	17.5	M8×25	34.5
FL-12W	3/4"	65	51.8	11	6.2	47.6	22.2	M10×30
FL-16W	1"	70	58.4	11	7.5	52.4	26.2	M10×30
FL-20W	1-1/4"	79	72.6	11	7.5	58.7	30.2	M10×30	27.6
FL-24W	1-1/2"	94	82.2	13.5	7.5	69.9	35.7	M12×35	20.7
FL-32W	2"	102	96.4	13.5	9	77.8	42.9	M12×35	20.7
FL-40W	2-1/2"	114	108.2	13.5	9	88.9	50.8	M12×40	17.2
FL-48W	3"	135	130.6	16.75	9	106.4	61.9	M16×50	13.8
6000 PSI
FS-08W	1/2"	56	47.2	9	7.2	40.5	18.2	M8×30	42
FS-12W	3/4"	71	60	11	8.2	50.8	23.8	M10×35
FS-16W	1"	81	69.9	13.5	9	57.2	27.8	M12×45
FS-20W	1-1/4"	95	77.2	13.5	9.8	66.6	31.8	M12×45
FS-24W	1-1/2"	113	95	17.5	12	79.3	36.5	M16×55
FS-32W	2"	133	113.8	22	12	96.8	44.5	M20×70
