Product Overview

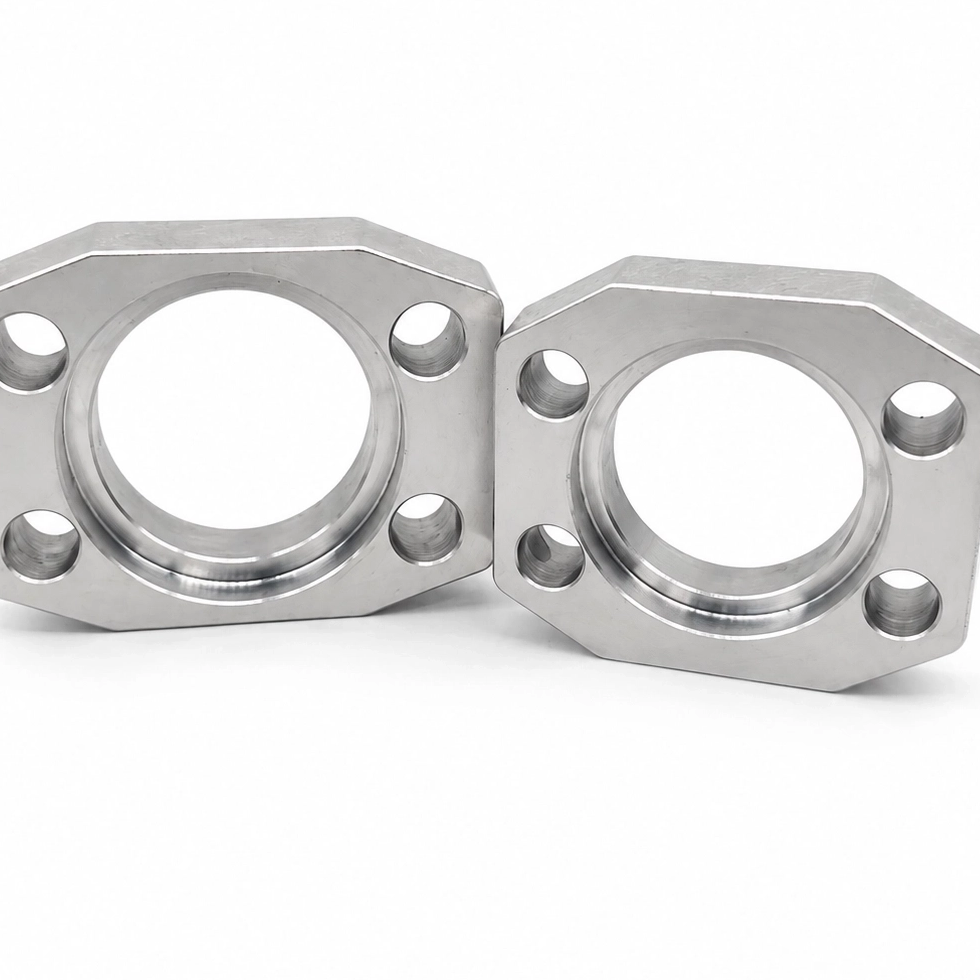

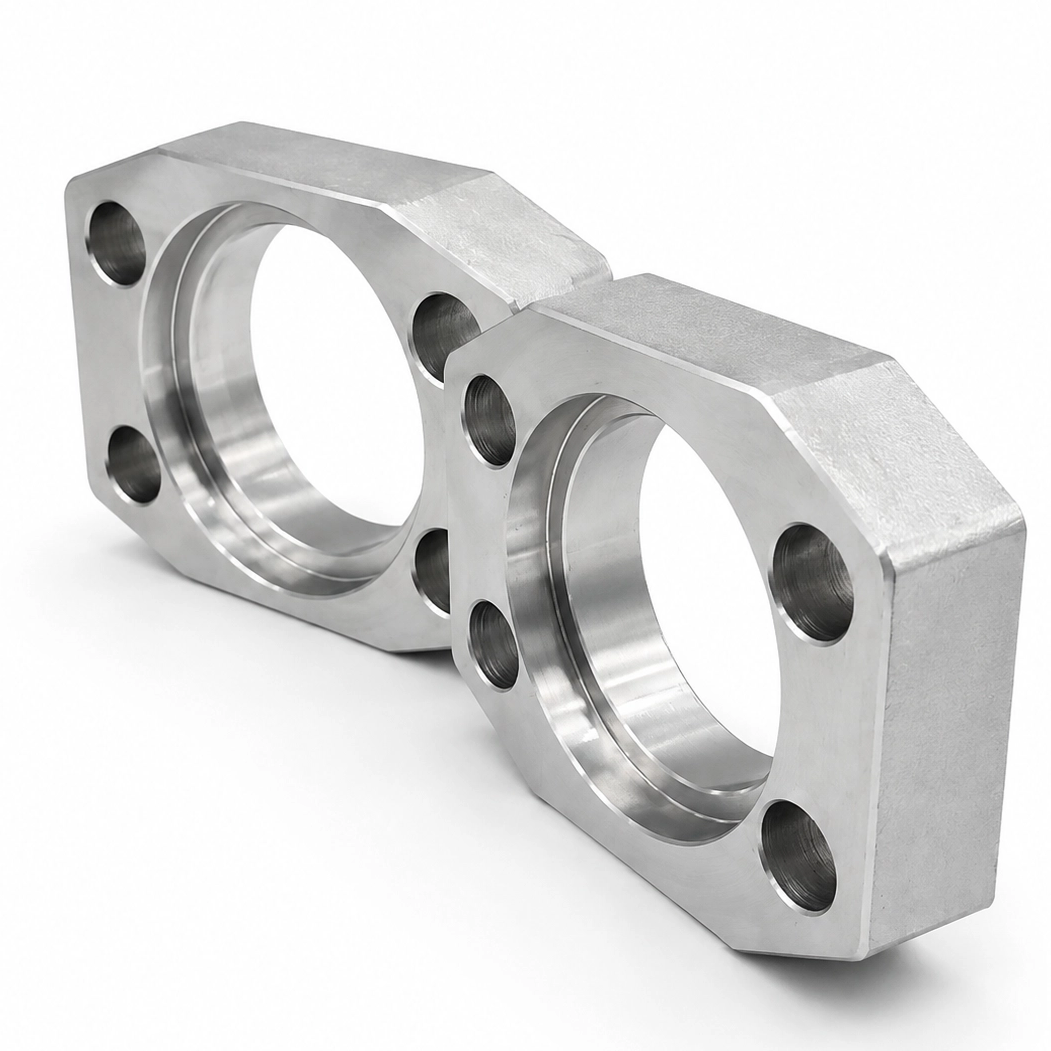

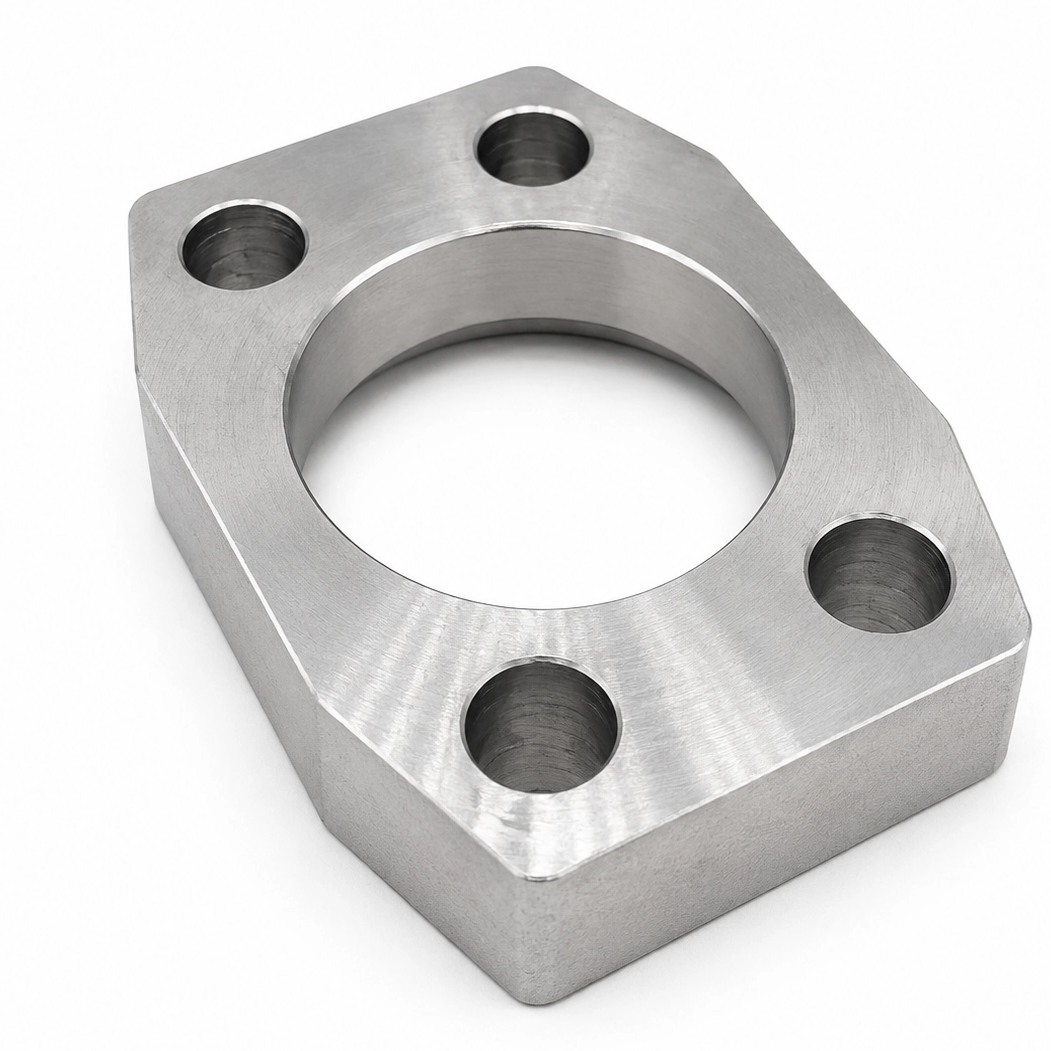

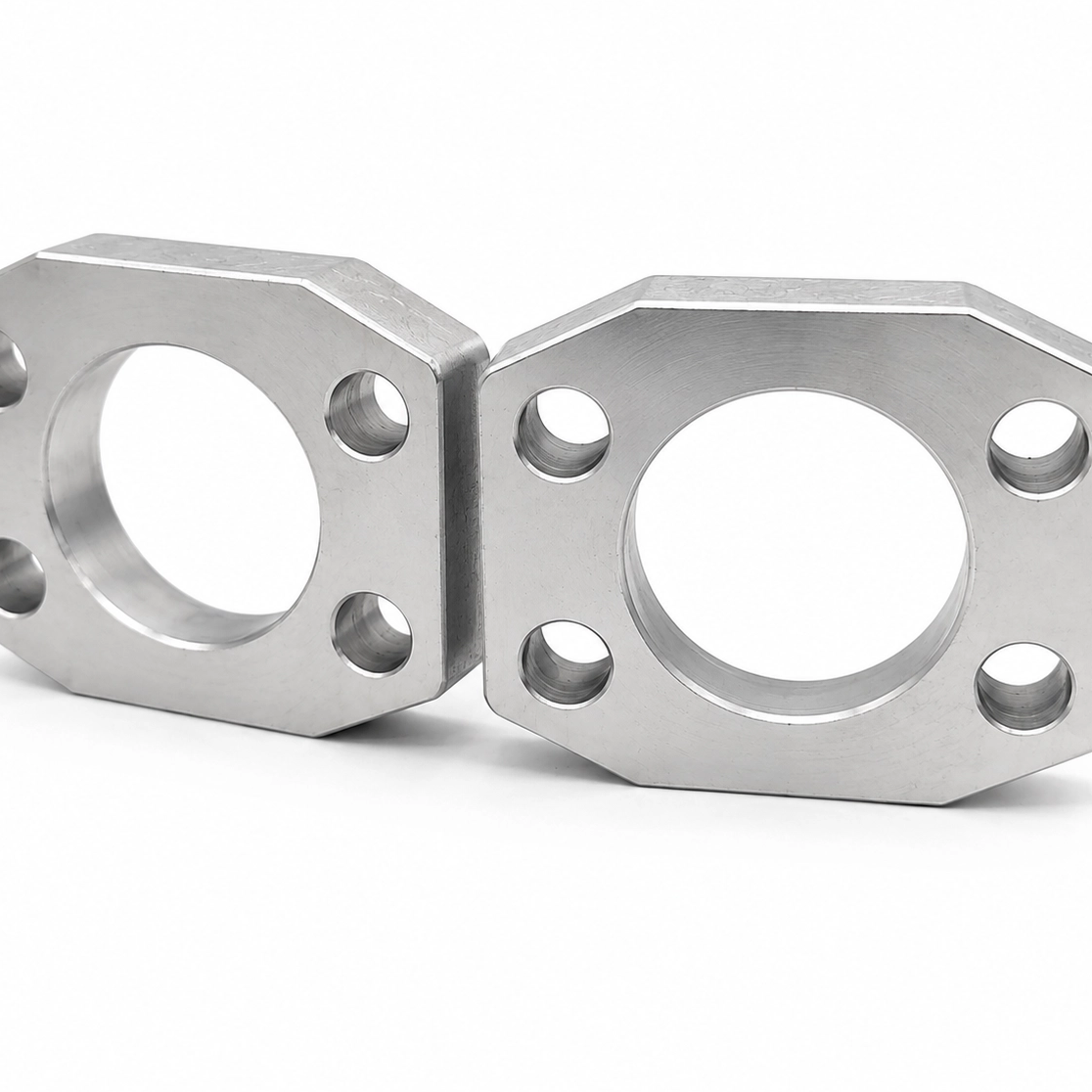

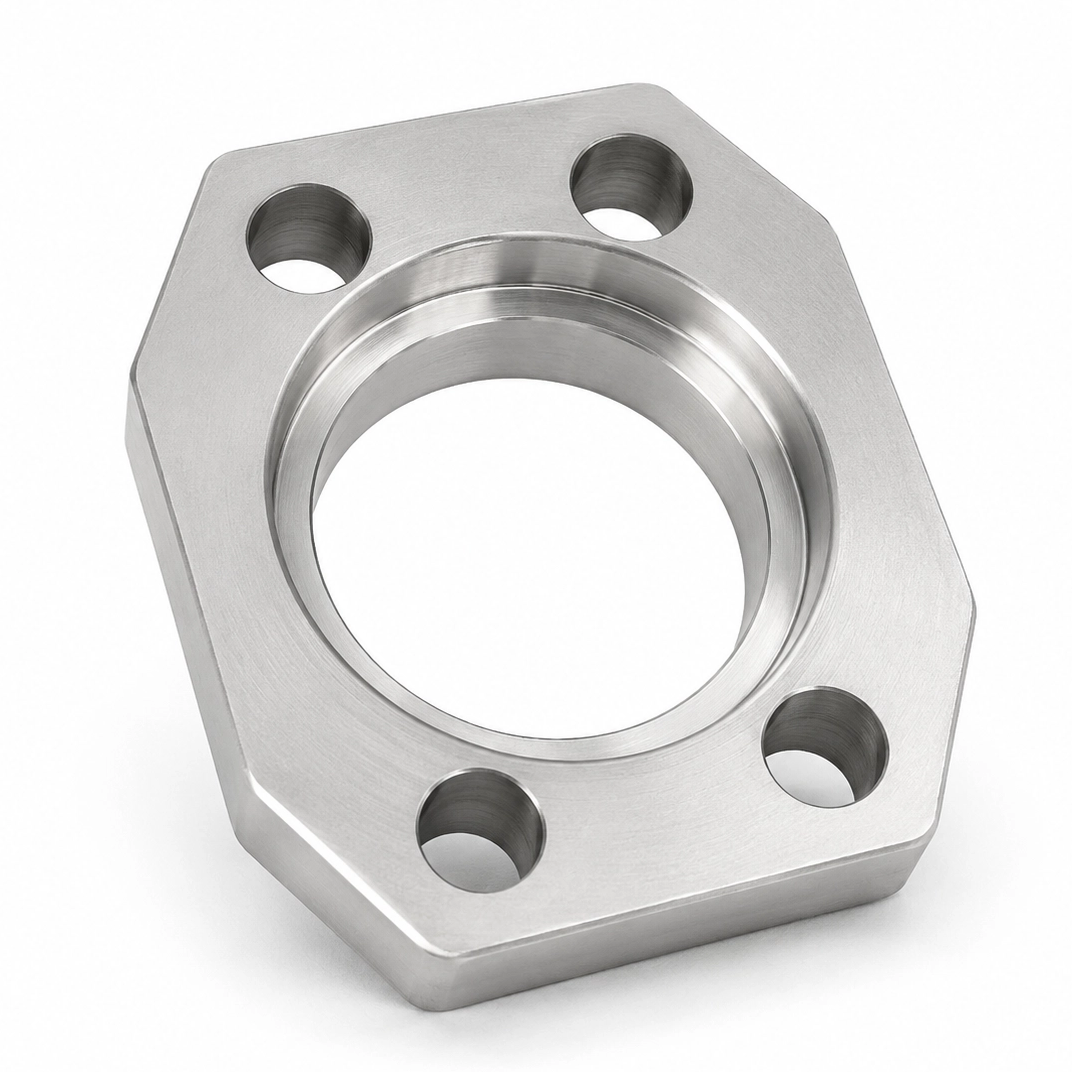

The One-Piece Octagonal Flange is designed as a structural connection component for hydraulic piping and fluid power systems. Unlike multi-piece flange assemblies, its integrated construction combines the main flange body into one component, simplifying the overall connection structure.
The octagonal outer profile provides a compact shape while the four mounting holes allow the flange to be secured to the corresponding connection surface using bolts. The central opening is machined to provide the required fluid passage and connection interface.
The sealing area around the central bore is precision machined to work with the corresponding sealing arrangement. Proper matching of the flange, sealing element and mating component is recommended to achieve the required connection performance.
The one-piece design is suitable for applications where a compact flange connection and straightforward installation structure are preferred. It can be used in hydraulic machinery, industrial equipment, mobile machinery and other hydraulic piping systems.
Features
One-piece integrated flange construction
Octagonal outer profile
Four-bolt mounting pattern
Central bore for hydraulic fluid passage
Precision-machined sealing area
Compact connection structure
Suitable for hydraulic piping systems
Applicable to hydraulic machinery and industrial equipment
Different sizes and configurations available according to requirements
Applications
The One-Piece Octagonal Flange is suitable for hydraulic machinery, construction equipment, industrial hydraulic systems, mobile machinery and general fluid power equipment. It can be used as a flange connection component where a compact one-piece structure and secure bolted mounting are required.
