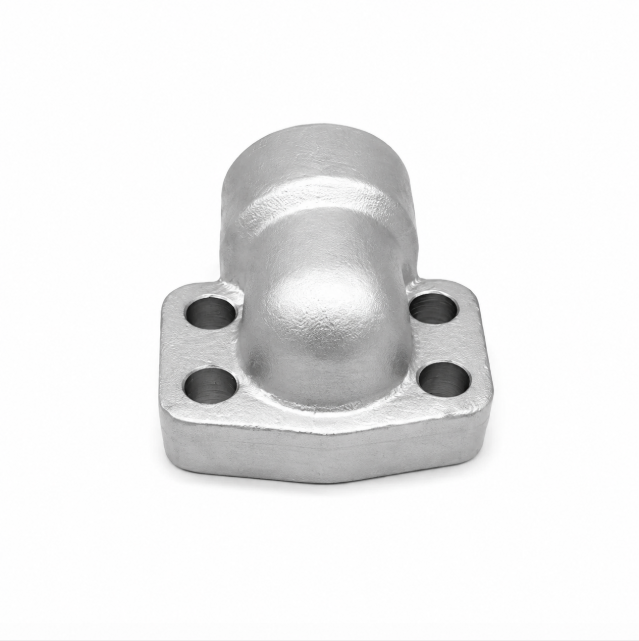

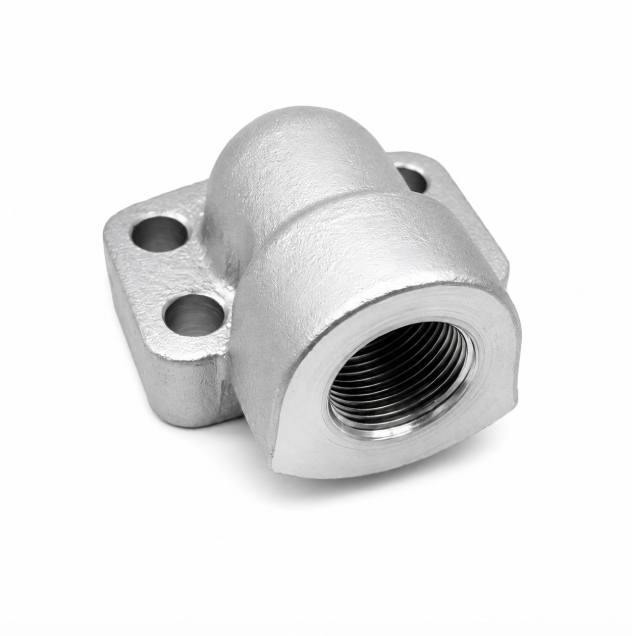

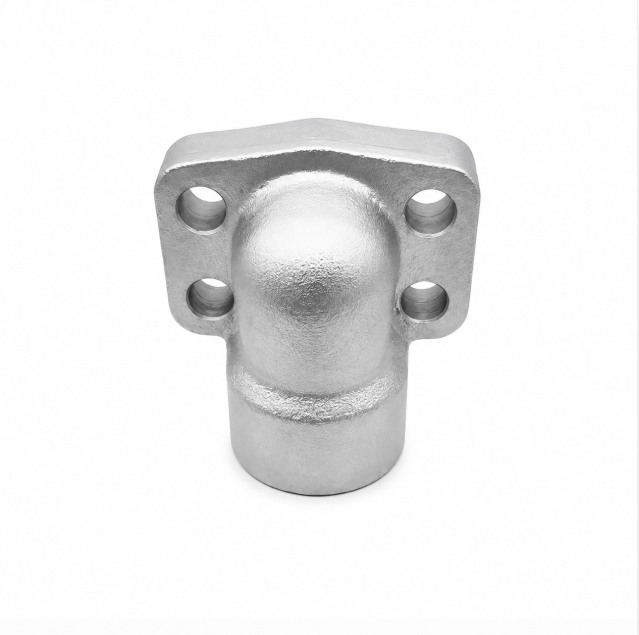

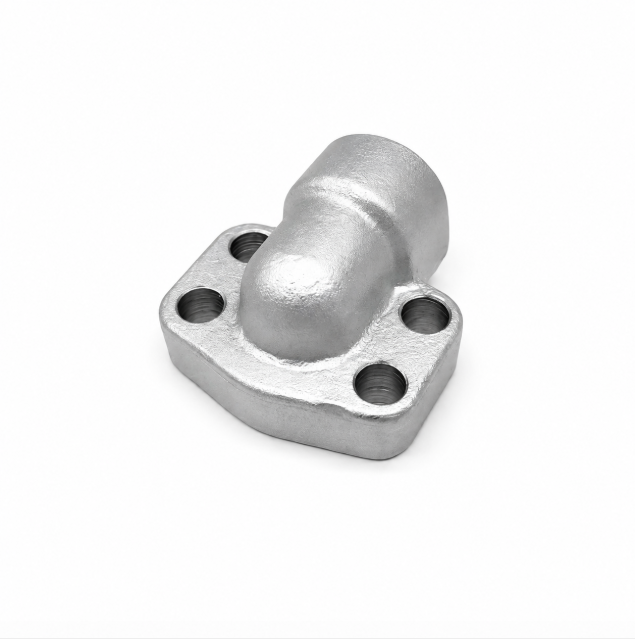

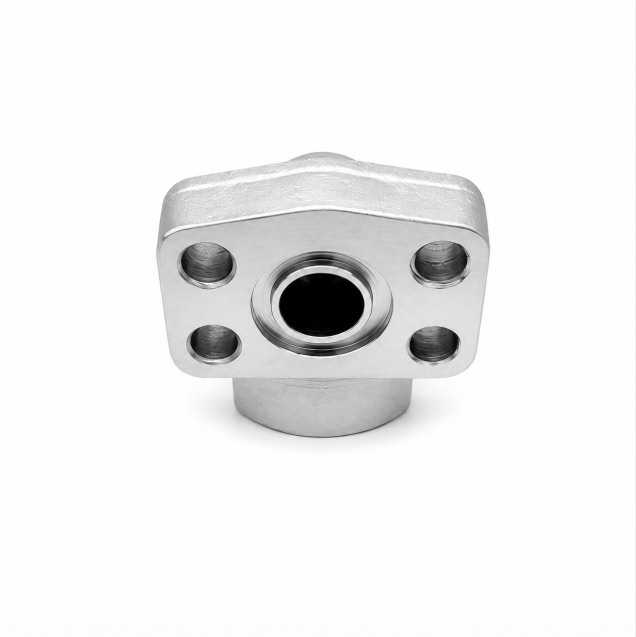

The SAE 90° 4-Bolt Flange to BSPP Female Thread Elbow combines a standard SAE hydraulic flange connection with a BSPP female threaded port, allowing efficient integration between flange-mounted hydraulic components and BSPP threaded piping systems.

The 90° elbow design enables convenient pipeline direction changes while reducing hose bending and saving installation space. The four-bolt flange provides secure mounting and uniform sealing, while the BSPP female thread allows easy connection with compatible BSPP male fittings using the appropriate sealing method.
Manufactured through precision machining, the fitting offers accurate dimensions, smooth internal flow passages, and dependable sealing performance. Available in both SAE 3000 PSI and SAE 6000 PSI pressure classes, it can meet a wide range of hydraulic system requirements.
With high-strength construction and corrosion-resistant surface treatment, this adapter is suitable for continuous operation in construction machinery, agricultural equipment, industrial hydraulic systems, mobile equipment, and fluid power applications.
SAE standard 4-bolt flange connection
BSPP female parallel thread
Compact 90° elbow design
Available for SAE 3000 PSI and 6000 PSI series
Reliable flange sealing performance
Precision-machined internal flow passage
High-strength carbon steel or stainless steel construction
Corrosion-resistant zinc-plated finish
OEM and custom specifications available

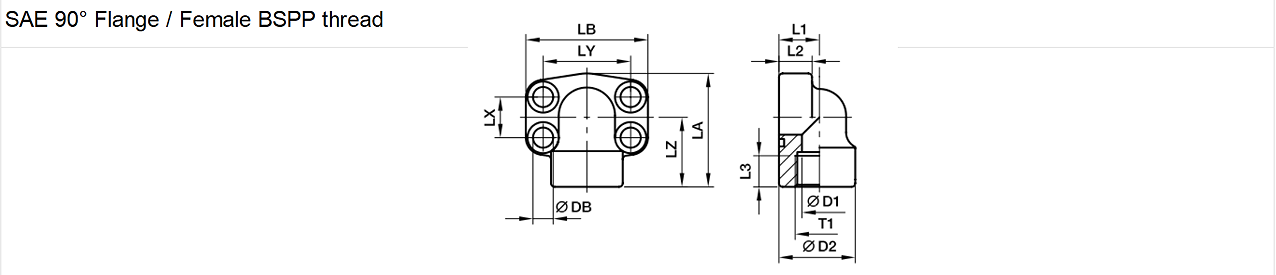

| 3000 PSI | ||||||||||||||||
| SAE (in.) | IS0 (DN) | T1 | D1 | D2 | L1 | L2 | L3 | LA | LB | LX | LY | LZ | DB | screws | PN (bar) | |
| (metr.) | (unc.) | |||||||||||||||
| 1/2 | 13 | G1/2 | 13 | 34.0 | 18 | 16 | 16 | 59 | 57 | 17 1/2 | 38 1/9 | 36 | 9 | M8×30 | 5/16×1 1/4 | 348 |
| 3/4 | 19 | G3/4 | 19 | 38.5 | 22 | 18 | 19 | 63 | 68 | 22 2/7 | 47 3/5 | 38 | 10 1/2 | M10×35 | 3/8×1 1/2 | 348 |
| 1 | 25 | G1 | 25 | 44.5 | 28 | 19 | 19 | 68 | 74 | 26 1/5 | 52 2/5 | 41 | 10 1/2 | M10×35 | 3/8×1 1/2 | 348 |
| 1 1/4 | 32 | G1 1/4 | 31 | 53.5 | 30 | 22 | 22 | 84 | 81 | 30 1/5 | 58 5/7 | 50 | 10 1/2 | M10×35 | 7/16×1 1/2 | 278 |
| 1 1/2 | 38 | G1 1/2 | 38 | 62.5 | 36 | 25 | 24 | 97 | 95 | 35 5/7 | 69 8/9 | 58 | 13 1/2 | M12×45 | 1/2×1 3/4 | 210 |
| 2 | 51 | G2 | 50 | 77.0 | 41 | 25 | 26 | 109 | 105 | 42 8/9 | 77 4/5 | 65 | 13 1/2 | M12×45 | 1/2×1 3/4 | 210 |
| 2 1/2 | 64 | G2 1/2 | 60 | 89.0 | 50 | 25 | 30 | 127 | 115 | 50 4/5 | 88 8/9 | 77 | 13 1/2 | M12×45 | 1/2×1 3/4 | 175 |
| 6000 PSI | ||||||||||||||||
| 1/2 | 13 | G 1/2 | 13 | 34 | 18 | 16 | 16 | 59 | 57 | 18 1/5 | 40 1/2 | 36 | 8 4/5 | M8×30 | 5/16×1 1/4 | 420 |
| 3/4 | 19 | G 3/4 | 19 | 44 1/2 | 28 | 20 | 22 | 68 | 72 | 23 4/5 | 50 4/5 | 41 | 10 1/2 | M10×35 | 3/8×1 1/2 | 420 |
| 1 | 25 | G 1 | 25 | 53 1/2 | 30 | 24 | 24 | 84 | 82 | 27 4/5 | 57 1/5 | 50 | 13 1/2 | M12×45 | 7/16×1 1/2 | 420 |
| 1 1/4 | 32 | G 1 1/4 | 31 | 62 1/2 | 36 | 25 | 25 | 97 | 95 | 31 4/5 | 66 3/5 | 58 | 15.0** | M14×50 | 1/2×1 3/4 | 420 |
| 1 1/2 | 38 | G 1 1/2 | 38 | 77 | 51 | 26 | 28 | 109 | 110 | 36 1/2 | 79 2/7 | 65 | 17 | M16×55 | 5/8×2 1/4 | 420 |
| 2 | 51 | G 2 | 50 | 87 | 45 | 35 | 34 | 133 | 134 | 44 1/2 | 96 4/5 | 75 | 21 | M20×70 | 3/4×2 3/4 | 420 |
