1DFS 1CFL GFS ISO6162 Flange fitting

Name: 1DFS 1CFL GFS ISO6162 Flange fitting
Rating: 5.0 (68 reviews)

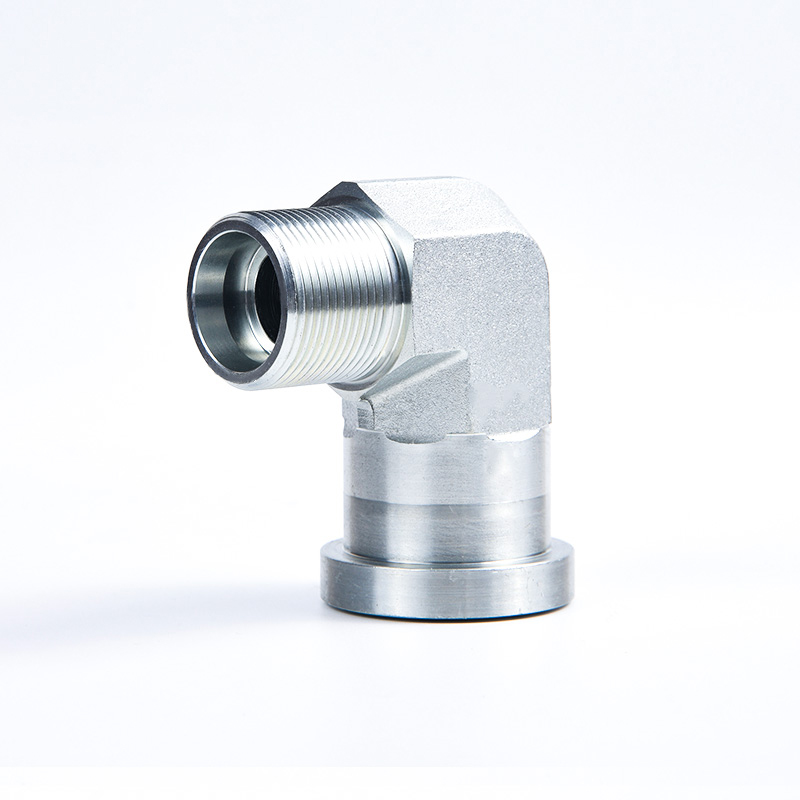

1DFS9 1CFL9 WFS 90° flanged right-angle coupling with 24° tapered female thread on one end for forming to pipe ends, welded pipe, ferrule connections, SAE flange face on one end with O-ring seal and split flange clamps (SAE J 518 ISO6162-1/2), pressure range up to 420 bar/6000 PSI, according to international standards: DIN2353 3861/ISO8434, available in Standard tube diameters 24° taper light connection (DIN2353) 06L-42L, 24° taper heavy connection (DIN2353) 06S-38S.

Quantity:



Inquire Add to Basket

Description

Description

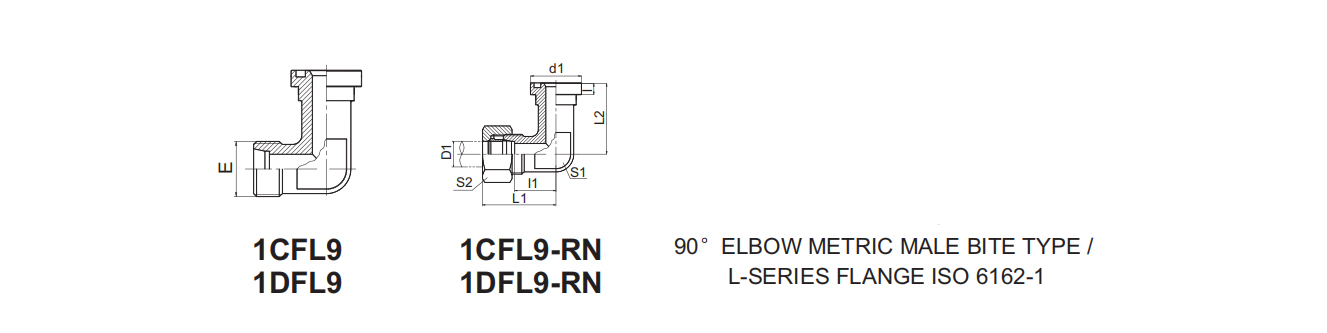

PART NO	THREAD	FLANGE SIZE	Tube outer diameterD1	O-RING	DIMENSIONS							Pressure Level MPa
PART NO	THREAD	FLANGE SIZE	TUBEO.D.	O-RING	d1	I	I1	L1	L2	S1	S2	Pressure Level MPa
1CFL9-22-08	M22X1.5	1/2"	15	O210	30.2	6.7	29	44	36	24	27	31.5L
1CFL9-26-12	M26X1.5	3/4"	18	O214	38.1	6.7	31.5	48	42	30	32	31.5L
1CFL9-30-12	M30X2	3/4"	22	O214	38.1	6.7	33.5	50	42	30	36	16 L
1CFL9-36-16	M36X2	1"	28	O219	444	8	36.5	53	45	36	41
1CFL9-45-20	M45X2	1.1/4"	35	O222	50.8	8	46.5	68	5o	41	50
1CFL9-52-24	M52X2	1.1/2"	42	O225	60.3	8	47	70	55	50	60
1DFL9-24-08	M24X1.5	1/2"	16	O210	3o2	6.7	29.5	48	36	24	3o	35S
1DFL9-30-12	M30X2	3/4"	20	O214	38.1	6.7	32.5	54	42	30	36
1DFL9-36-12	M36X2	3/4"	25	O214	38.1	6.7	33	57	42	30	46
1DFL9-42-16	M42X2	1"	30	O219	444	8	36.5	63	45	36	50
1DFL9-36-20	M36X2	1.1/4"	25	O222	50.8	8	43	67	5o	41	46	28S
1DFL9-42-20	M42X2	1.1/4"	30	O222	50.8	8	43.5	70	50	41	50
1DFL9-52-20	M52X2	1.1/4	38	O222	50.8	8	43	74	50	41	60
1DFL9-52-24	M52X2	1.1/2	38	O225	60.3	8	48	79	55	50	60	21S
Note: In case if you are interested to order the adapter in complete set wth cutting ring and nut, itis necessary to insert suffx "RN" after our part No.，for example 1DFL9-52-24RN.

Ningbo Fuke Hydraulic Machinery Co., Ltd.

Ningbo Fuke Hydraulic Machinery Co., Ltd. is a specialized company dedicated to the production and research and development of hydraulic fluid connectors and control valves. The company mainly provides hydraulic joints, high-precision hydraulic valve blocks, high-pressure ball valves, and single-phase valves that meet ISO, DIN, and SAE standards. As well known 1DFS 1CFL GFS ISO6162 Flange fitting suppliers in China, The company has experienced hydraulic system designers, who can provide customers with relevant technical support and all hydraulic accessories solutions to improve customer procurement efficiency.

The company earnestly implements the 1S09001:2000 quality system, and its products are widely used in metallurgical industry, drilling platform equipment manufacturing, construction machinery, wind power generation, petrochemical industry, machine tool manufacturing and other fields.

The company also OEM/ODM and wholesale 1DFS 1CFL GFS ISO6162 Flange fitting in bulk.
