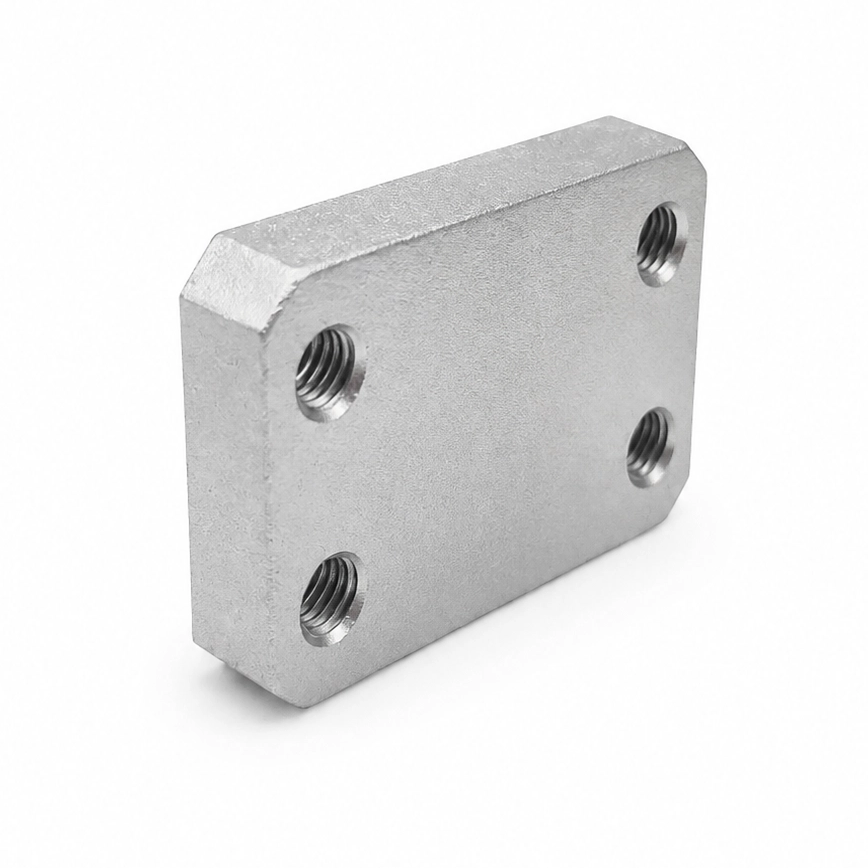

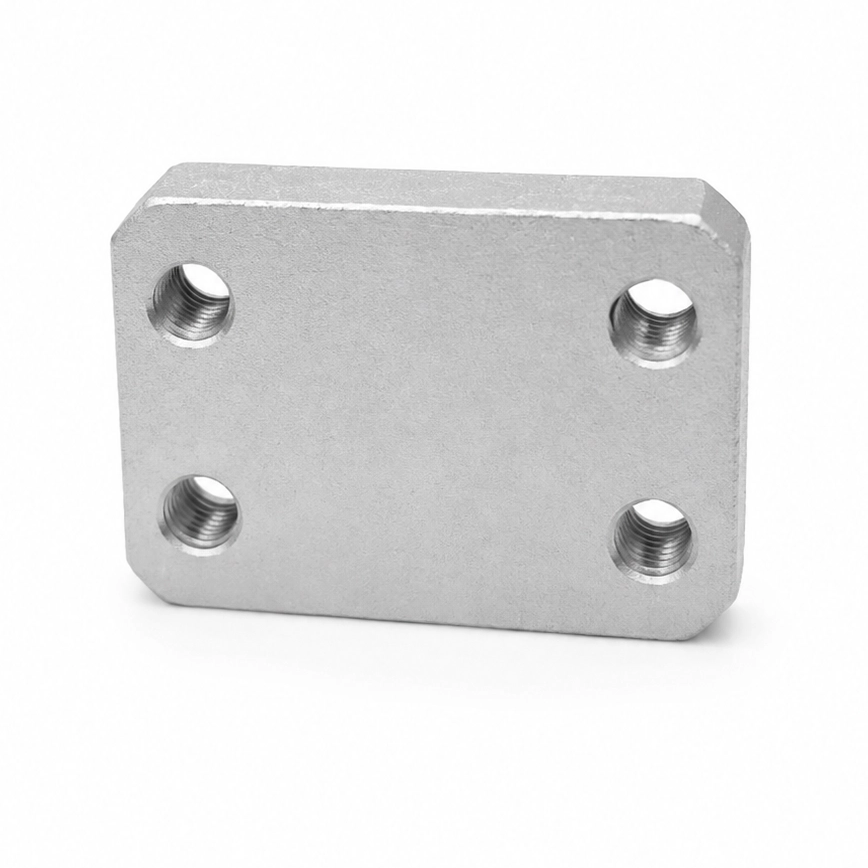

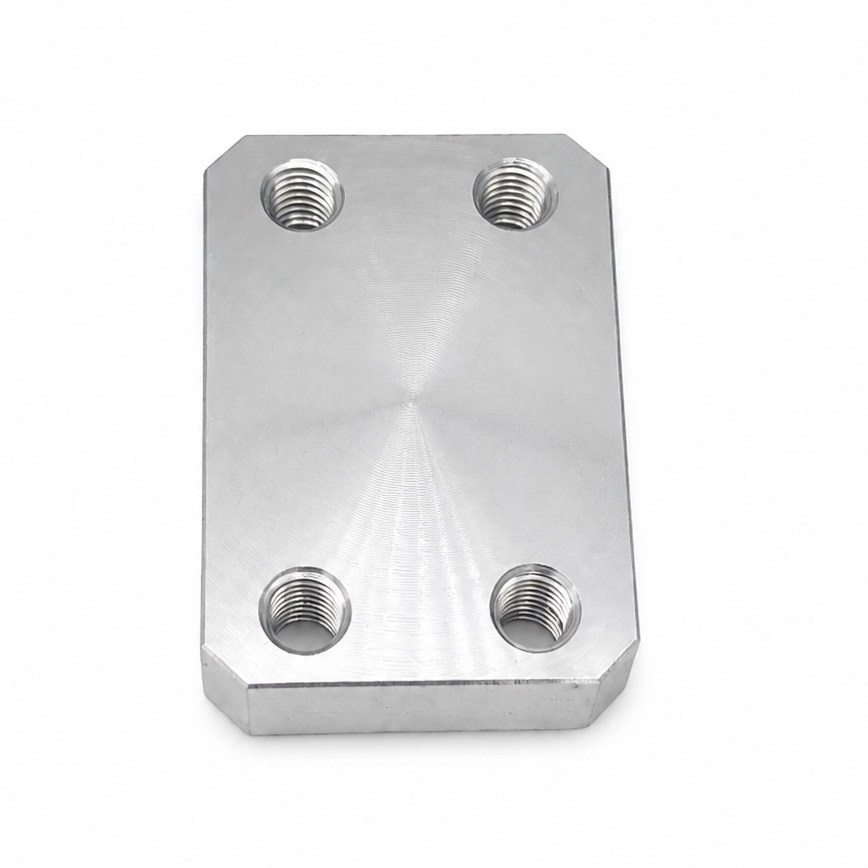

Product Overview
The Square Flange Clamp Plate is designed for use with hydraulic flange connection systems where a secure and stable bolted connection is required. The square plate structure provides a practical mounting interface while keeping the overall component compact.
The four mounting holes are positioned around the central area of the plate, allowing the component to be fastened evenly during assembly. The threaded holes can accommodate corresponding mounting bolts and help maintain the position of the connected hydraulic components.
The machined central surface provides a flat contact area for assembly. Combined with the symmetrical hole arrangement, the design is suitable for hydraulic equipment where consistent installation and reliable mechanical fastening are required.
NBFK can provide different dimensions and machining configurations according to hydraulic system requirements, drawings, or customer specifications.
Features
Square plate design for hydraulic flange assembly
Four symmetrically positioned mounting holes
Threaded mounting holes for secure fastening
Compact structure for hydraulic equipment installation
Precision-machined surfaces for assembly
Suitable for hydraulic flange connection systems
Available in different sizes and configurations
OEM and customized machining available
Applications
Square Flange Clamp Plates are used as components of hydraulic flange assemblies in hydraulic machinery, industrial equipment, fluid power systems, construction machinery, and other applications requiring secure bolted hydraulic connections.
They can be supplied according to customer drawings, flange dimensions, thread specifications, and application requirements, making them suitable for both standard hydraulic equipment and customized hydraulic assemblies.
