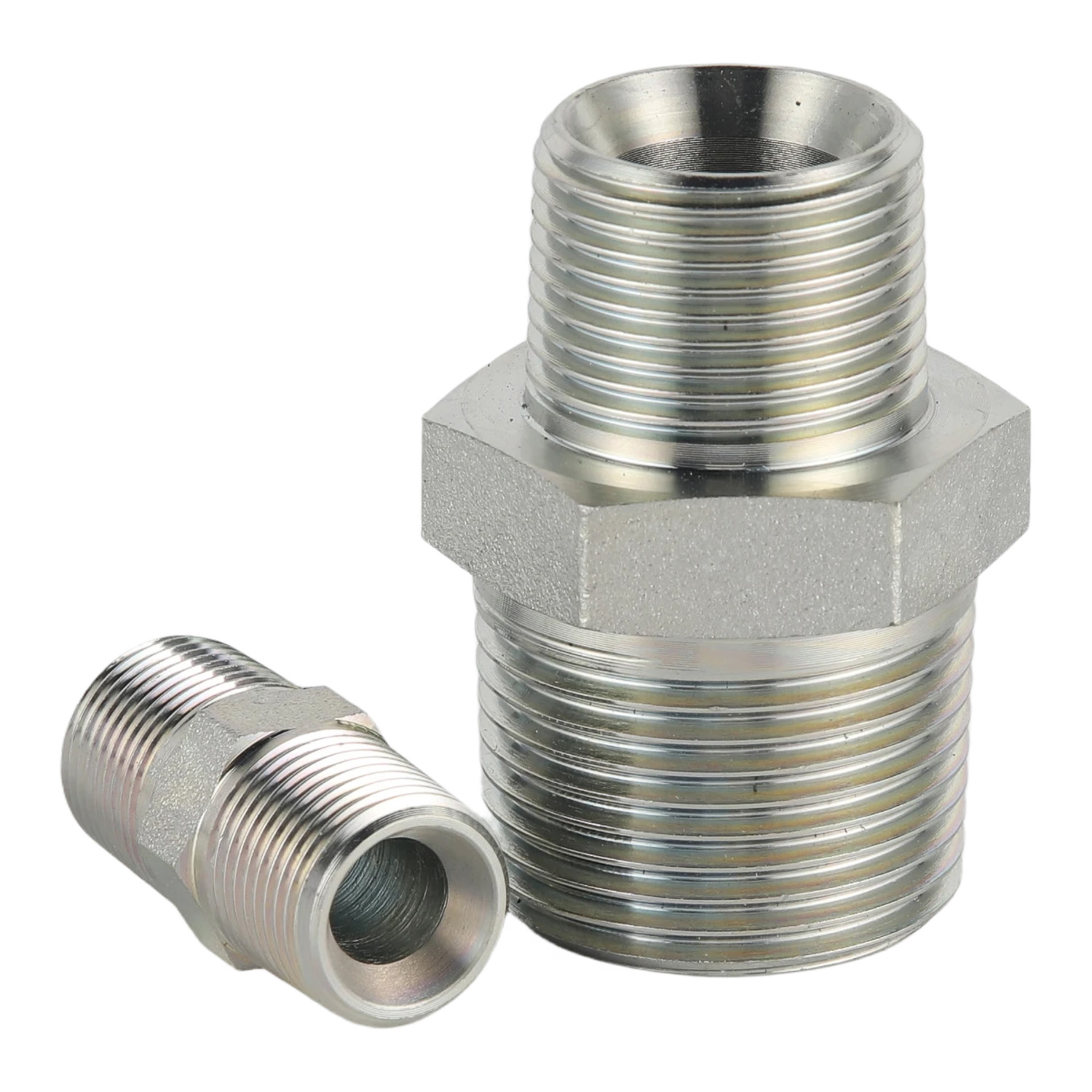

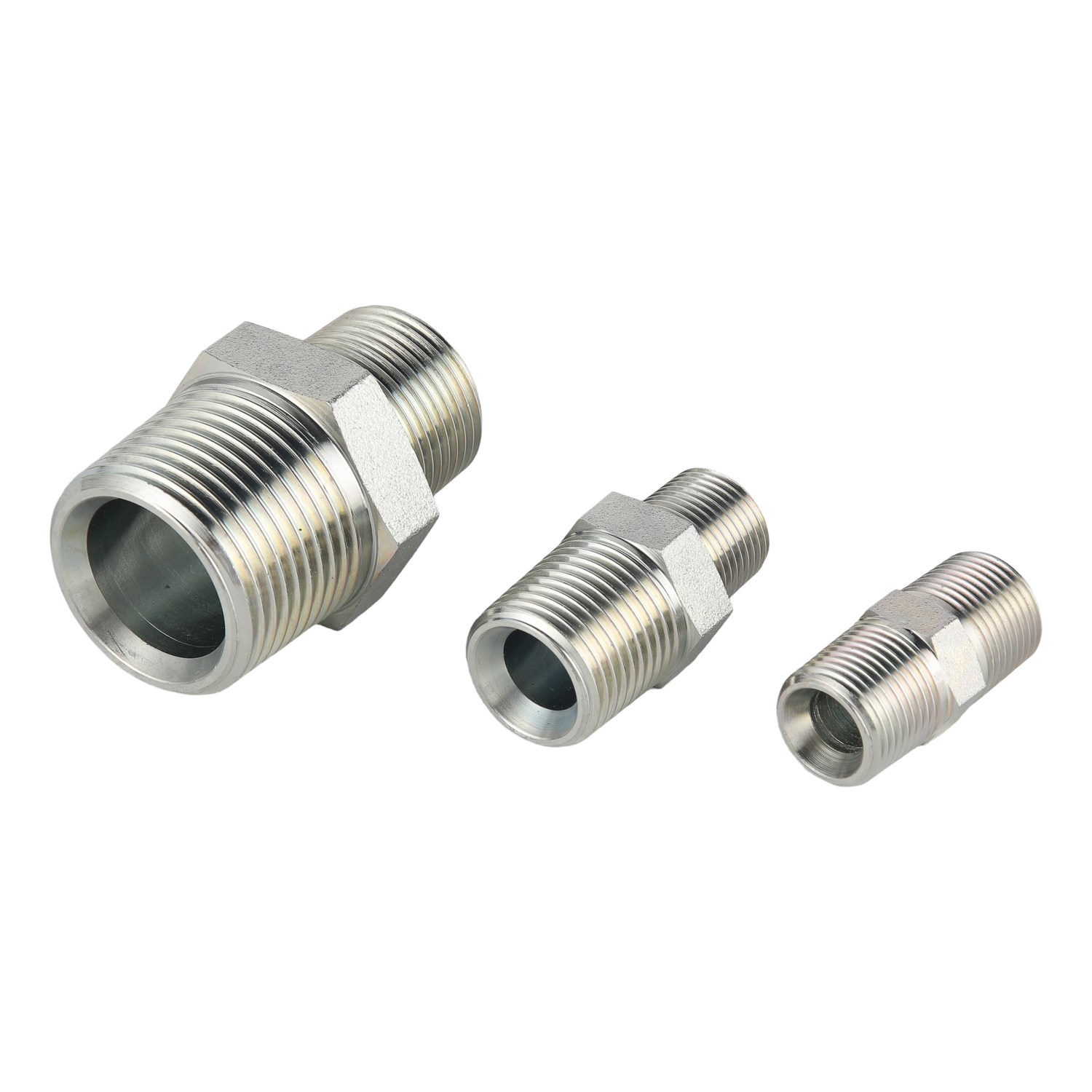

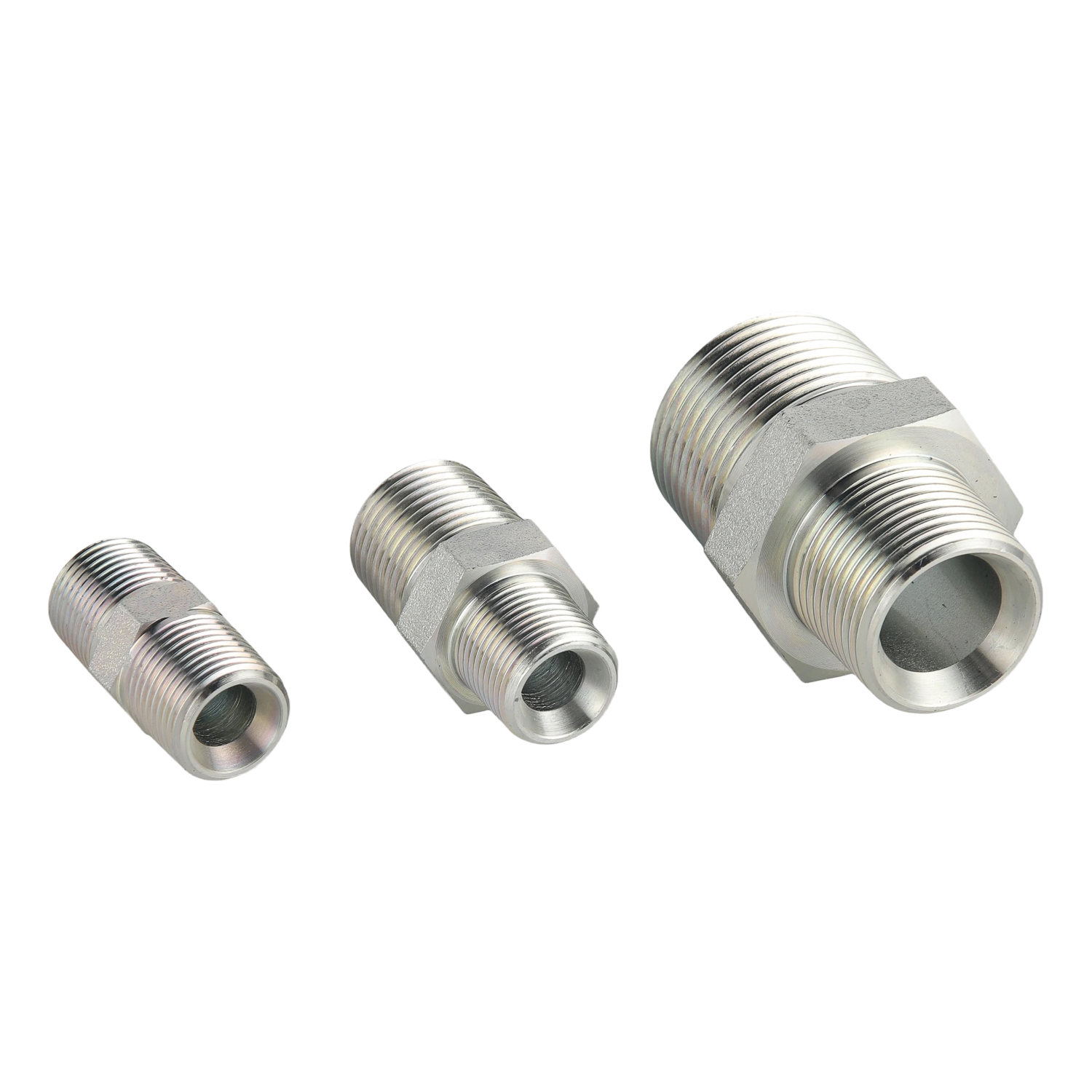

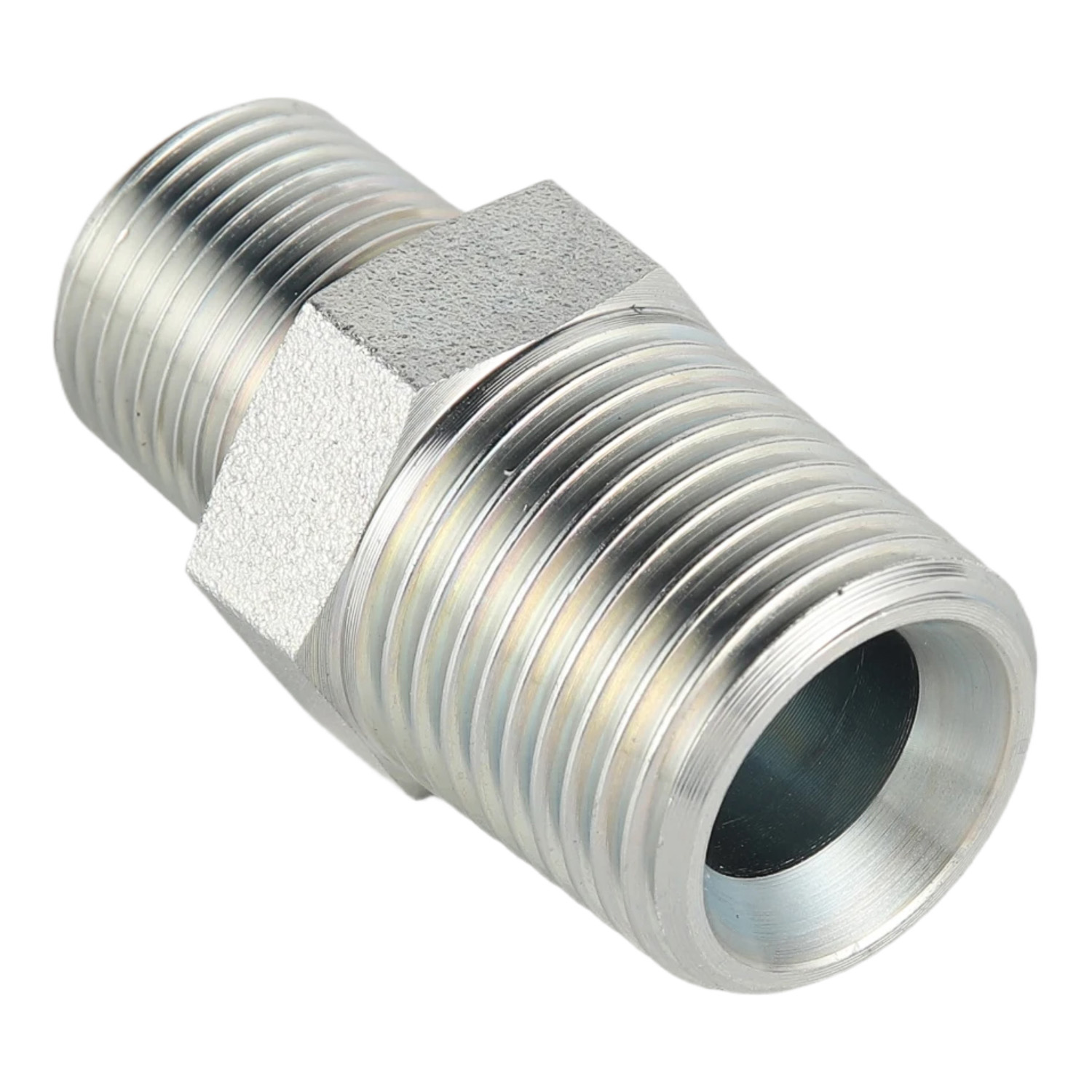

The 1T-SP Series BSPT Male Equal Adapter is designed to connect two BSPT female threaded ports with identical thread sizes in hydraulic and industrial piping systems. Both ends feature precision-machined BSPT male tapered threads that achieve reliable metal-to-metal sealing through thread interference, eliminating the need for additional sealing washers.
Its straight equal adapter configuration provides a simple and efficient solution for extending pipelines or connecting threaded hydraulic components while maintaining stable sealing performance under demanding operating conditions.
Manufactured from premium forged carbon steel, the fitting offers excellent mechanical strength and resistance to high working pressures. Zinc-plated surface treatment enhances corrosion resistance and extends service life in industrial environments. The hexagonal body design allows quick installation and secure tightening using standard wrenches.
Available in thread sizes ranging from 1/16" to 2", the 1T-SP series supports a wide variety of hydraulic and industrial applications. Customized dimensions and specifications are also available to satisfy OEM and special project requirements.
BSPT male tapered threads on both ends
Equal straight adapter configuration
Metal-to-metal tapered thread sealing
Precision forged carbon steel construction
High mechanical strength and pressure resistance
Hexagonal body for easy installation
Zinc-plated surface for improved corrosion resistance
Available in standard and customized thread sizes

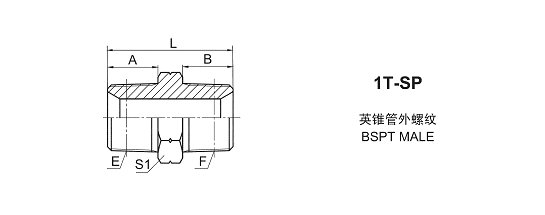

| PART NO. | T H R E A D | DIMENSIONS | |||||||
| E | F | A | B | L | S1 | ||||
| 1T-02SP | R1/8"X28 | R1/8"X28 | 10 | 10 | 26 | 12 | |||
| 1T-02-04SP | R1/8"X28 | R1/4"X19 | 10 | 14.5 | 30.5 | 14 | |||
| 1T-02-06SP | R1/8"X28 | R3/8"×19 | 10 | 15 | 31 | 17 | |||
| 1T-04SP | R1/4"X19 | R1/4"X19 | 14.5 | 14.5 | 34 | 14 | |||
| 1T-04-06SP | R1/4"X19 | R3/8"X19 | 14.5 | 15 | 35 | 17 | |||
| 1T-04-08SP | R1/4"X19 | R1/2"X14 | 15 | 20 | 43 | 22 | |||
| 1T-06SP | R3/8"X19 | R3/8"×19 | 15 | 15 | 36 | 17 | |||
| 1T-06-08SP | R3/8"X19 | R1/2"X×14 | 15 | 20 | 43 | 22 | |||
| 1T-08SP | R1/2"X14 | R1/2"X14 | 20 | 20 | 46 | 22 | |||
| 1T-08-12SP | R1/2"X14 | R3/4"X14 | 20 | 20 | 48 | 27 | |||
| 1T-12SP | R3/4"X14 | R3/4"×14 | 20 | 20 | 48 | 27 | |||
| 1T-12-16SP | R3/4"×14 | R1"X11 | 20 | 25.5 | 55.5 | 36 | |||
| 1T-16SP | R1"X11 | R1"X11 | 25.5 | 25.5 | 61 | 36 | |||
| 1T-16-20SP | R1"X11 | R1.1/4"X11 | 25.5 | 26.5 | 64.5 | 46 | |||
| 1T-20SP | R1.1/4"X11 | R1.1/4"X11 | 26.5 | 26.5 | 65.5 | 46 | |||
| 1T-20-24SP | R1.1/4"X11 | R1.1/2"X11 | 26.5 | 26.5 | 67 | 50 | |||
| 1T-24SP | R1.1/2"X11 | R1.1/2"X11 | 26.5 | 26.5 | 67 | 50 | |||
| 1T-24-32SP | R1.1/2"X11 | R2"X11 | 26.5 | 30 | 71.5 | 65 | |||
| 1T-32SP | R2"X11 | R2"X11 | 30 | 30 | 75 | 65 | |||
The 1T-SP Series BSPT Male Equal Adapters are widely used in hydraulic power units, construction machinery, agricultural equipment, industrial automation systems, oil and gas equipment, water treatment systems, and general fluid transmission pipelines. Their tapered BSPT thread design provides secure and dependable connections for medium and high-pressure hydraulic applications.
