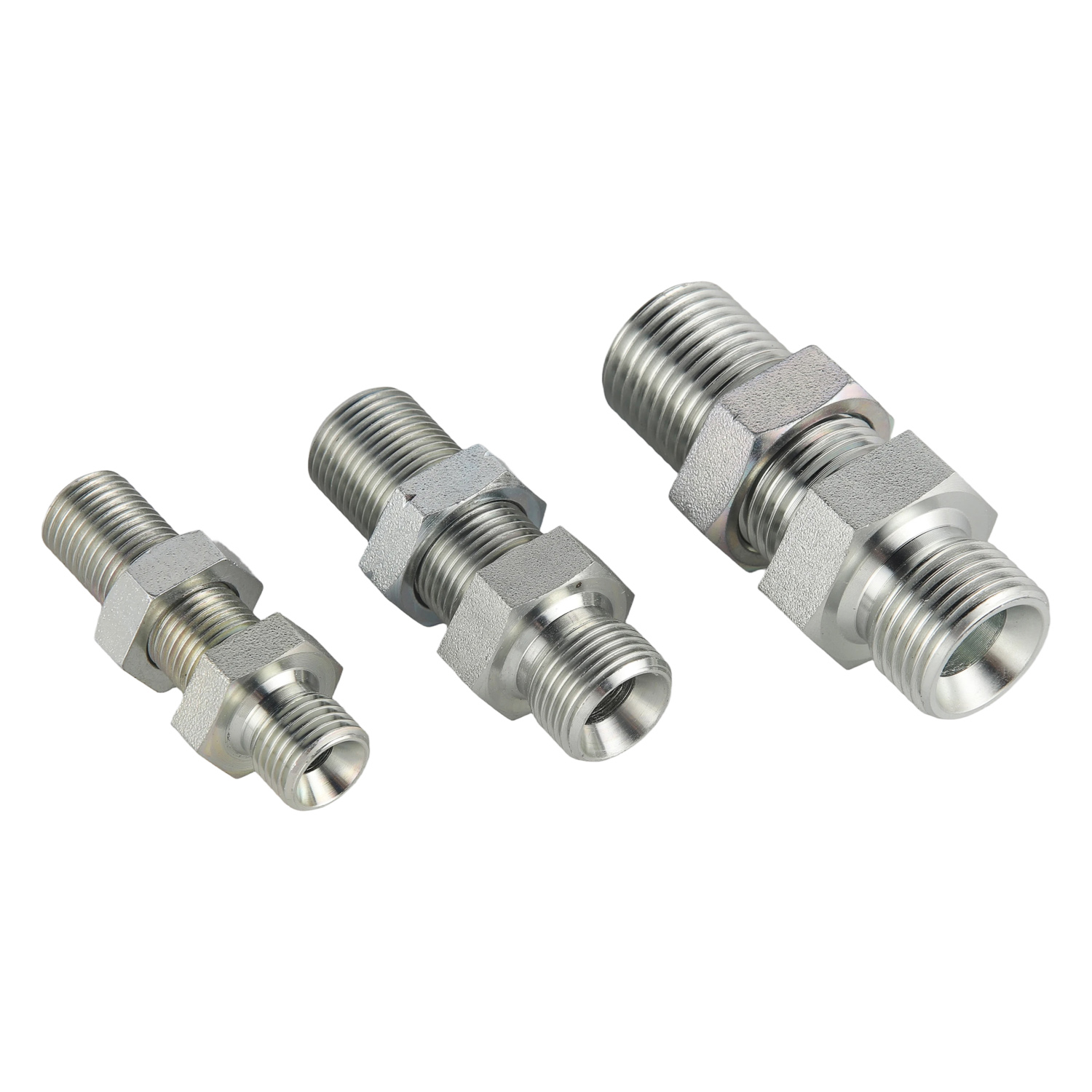

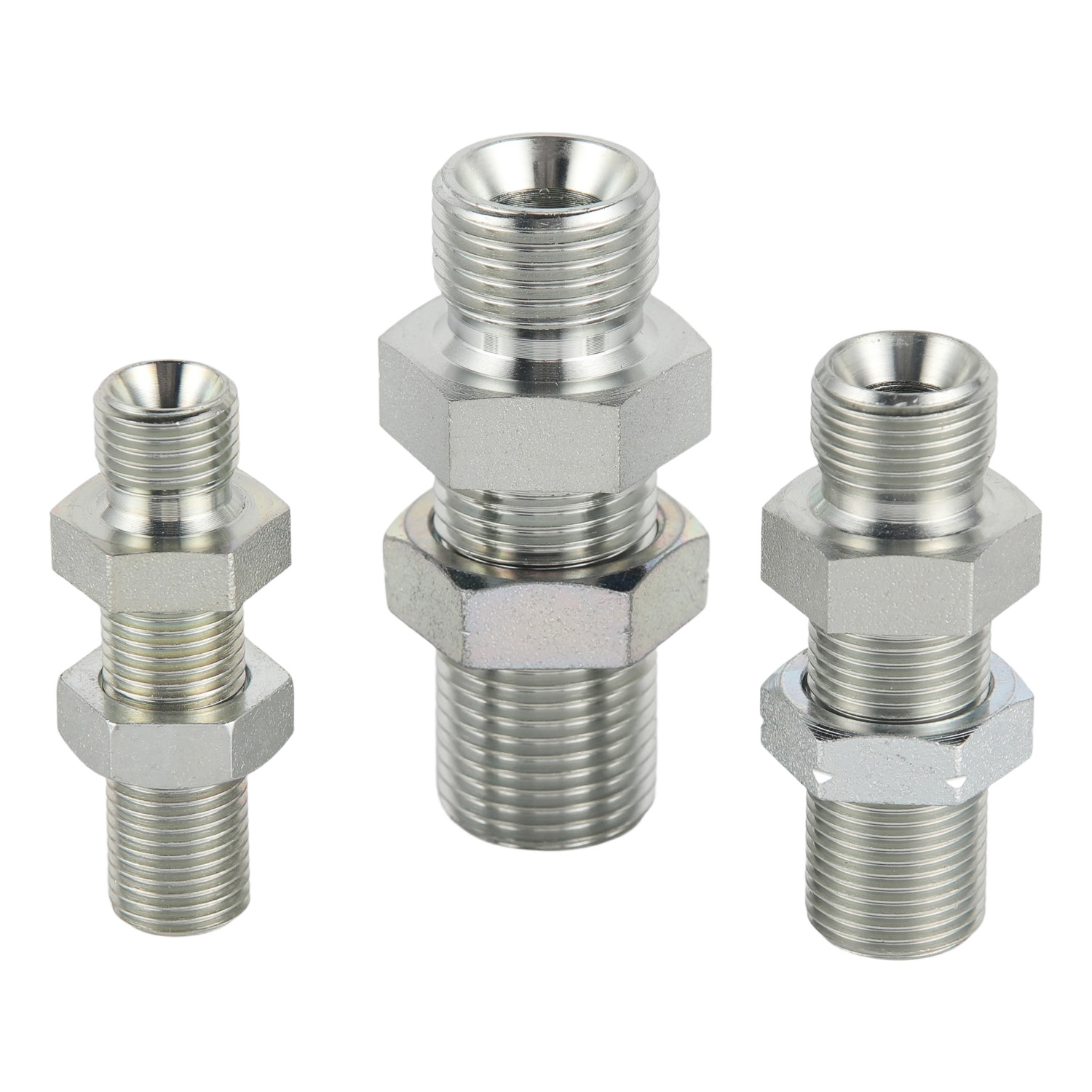

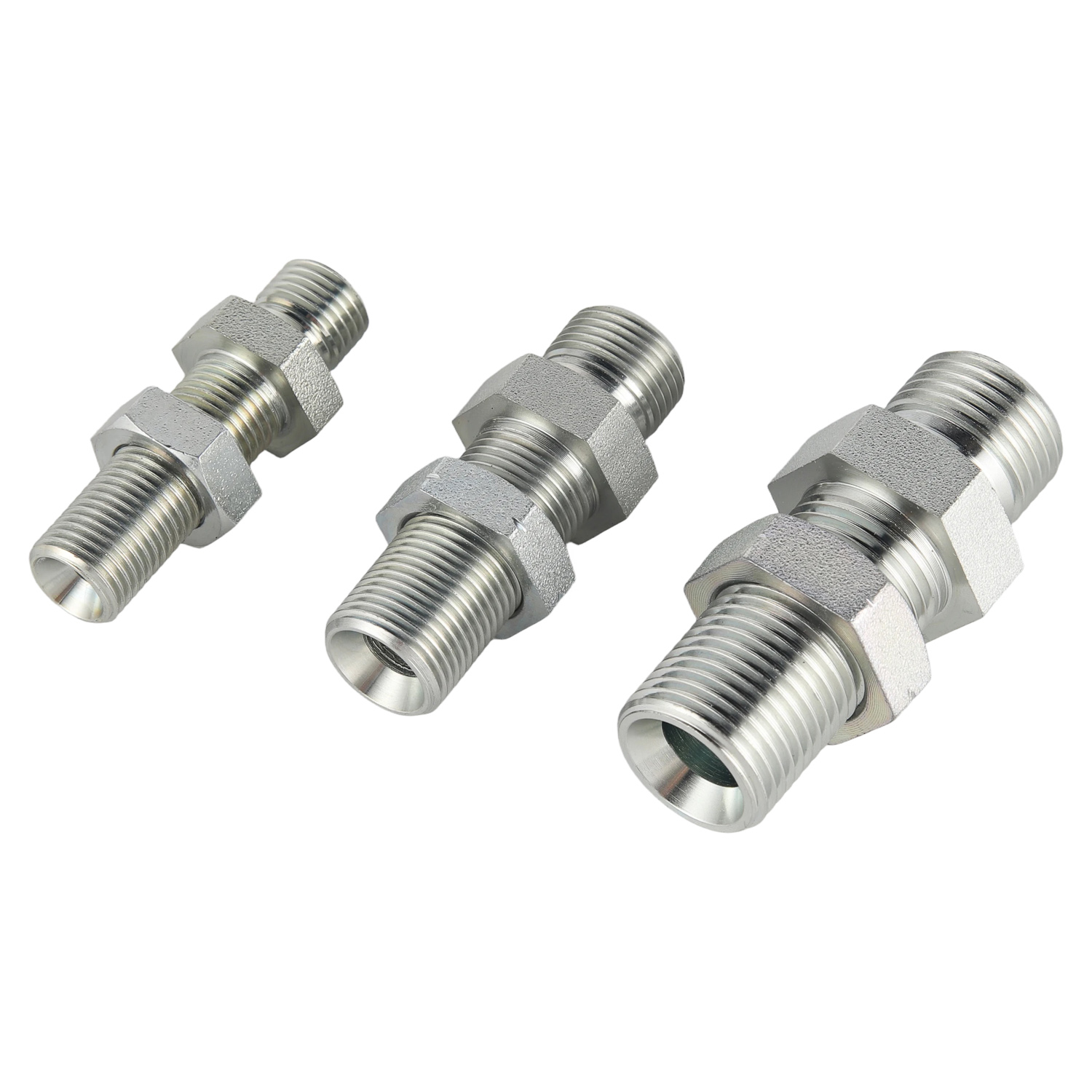

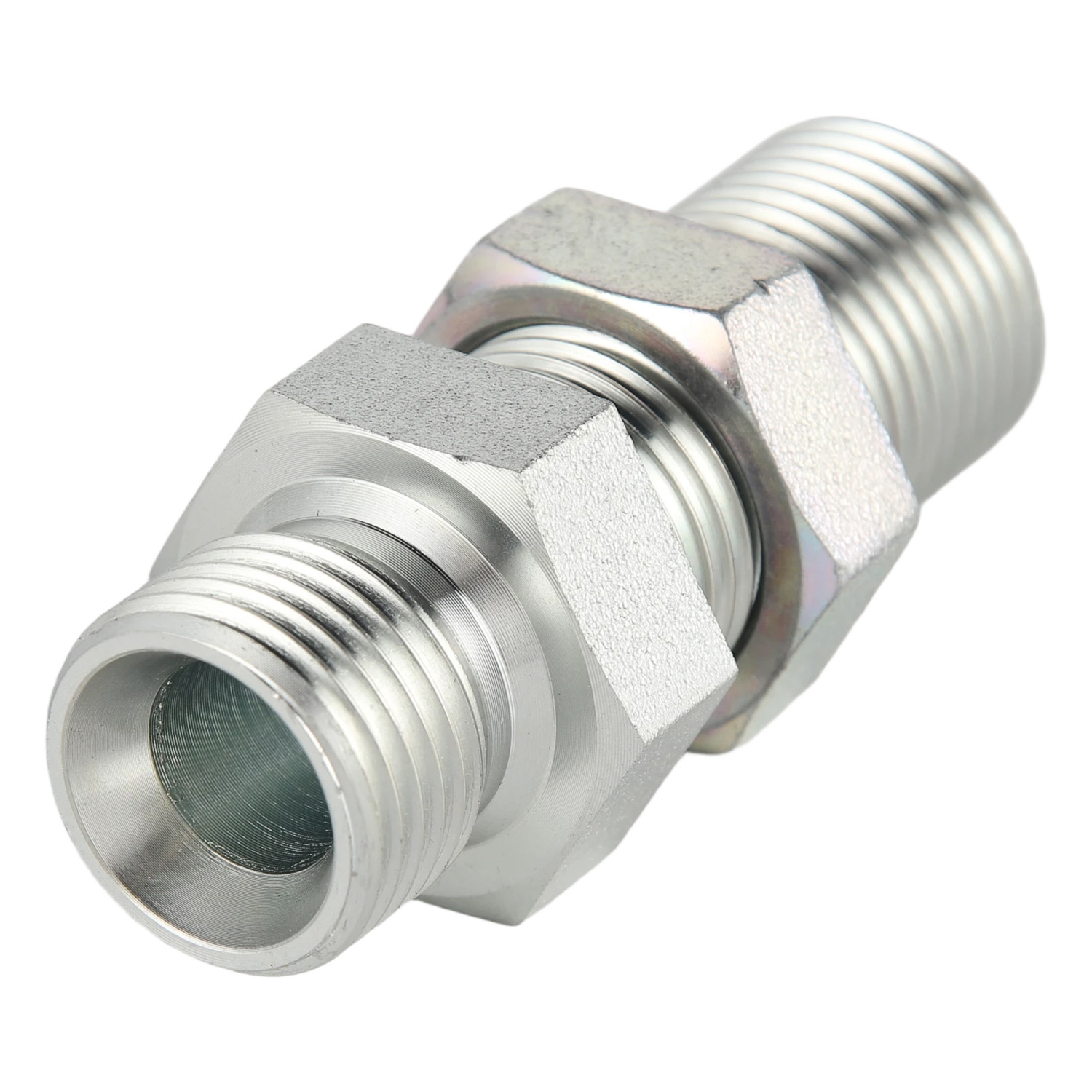

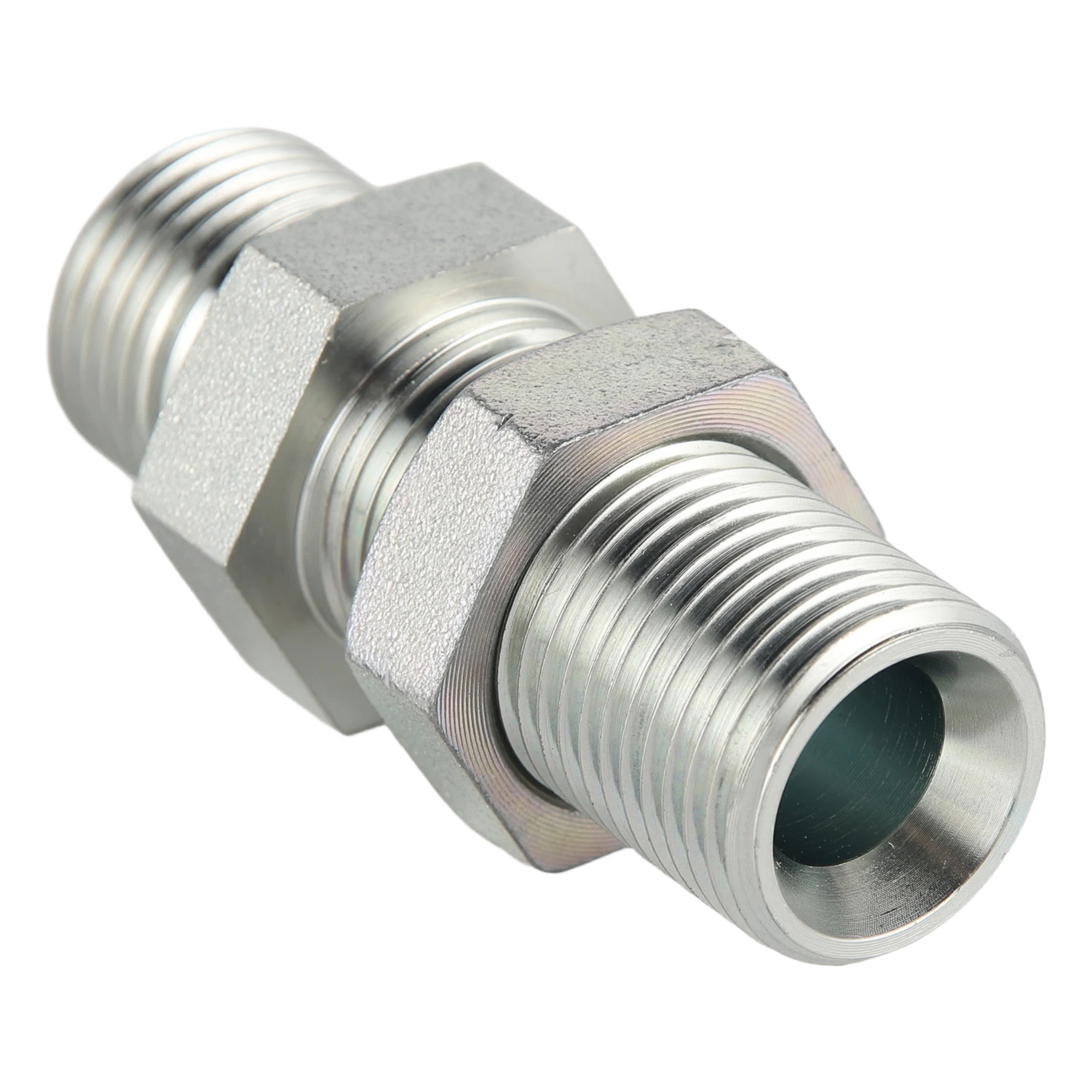

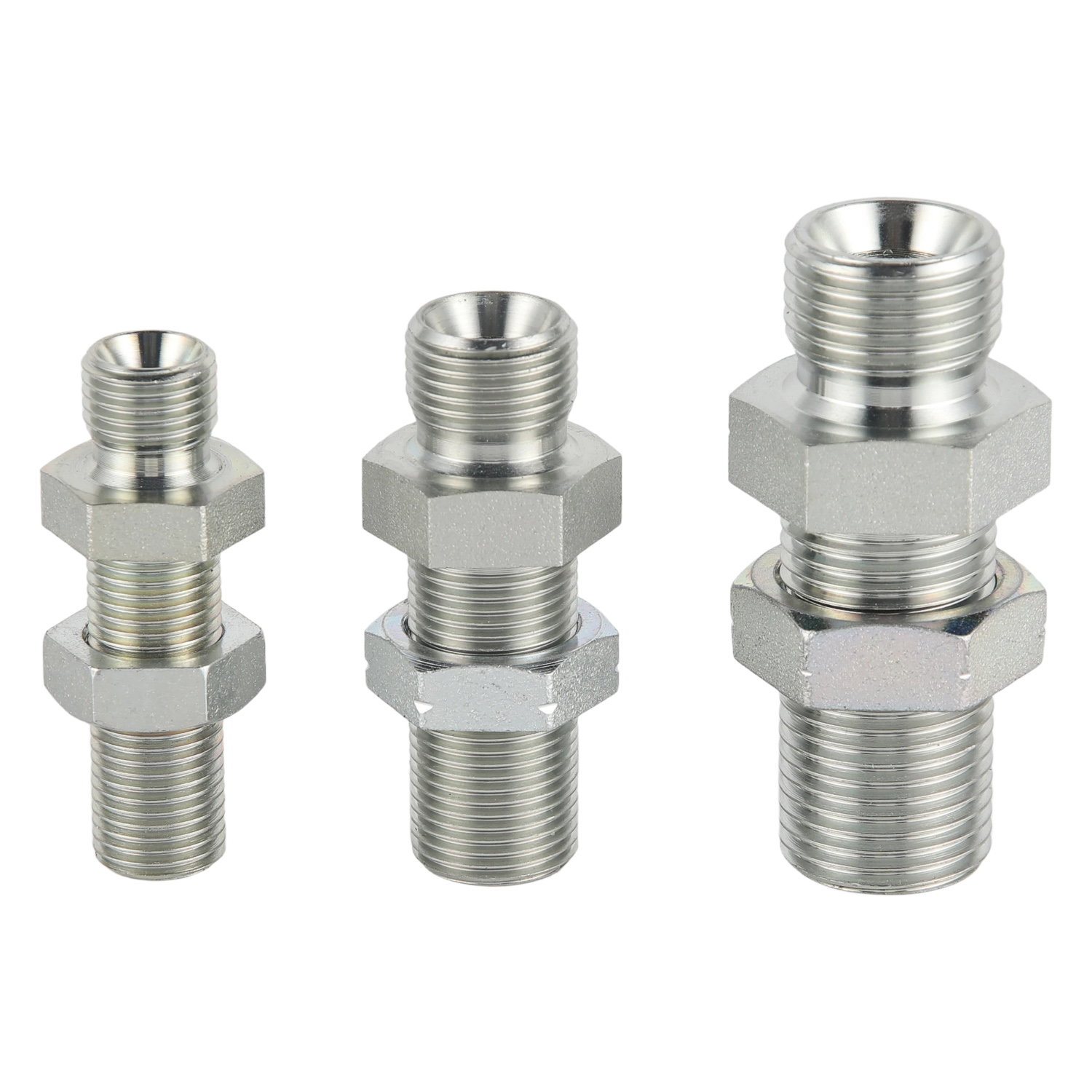

The 6B / 6B-LN Series BSP Male 60° Seat Bulkhead Fittings are designed for hydraulic systems requiring a secure connection through panels or equipment walls. The fitting features a BSP male thread with a precision-machined 60° cone seat, providing reliable metal-to-metal sealing when connected with matching BSP female fittings.
The bulkhead configuration enables installation through mounting plates, hydraulic tanks, manifolds, or machine housings, creating a stable and organized pipeline connection. The threaded body design ensures accurate positioning, while the optional lock nut version (6B-LN) improves fixing stability during installation.
Manufactured from premium carbon steel or stainless steel, the fitting provides excellent pressure resistance, mechanical strength, and long service life. Surface treatment enhances corrosion protection, making it suitable for demanding industrial environments.
The 6B series is widely used in hydraulic equipment, mobile machinery, industrial automation systems, fluid control systems, and general piping applications where reliable panel mounting connections are required.
BSP male thread with 60° cone seat
Bulkhead design for panel and wall mounting
Reliable metal-to-metal cone sealing
Available with lock nut version (6B-LN)
Precision-machined threads and sealing surfaces
Strong mechanical structure and durability
Carbon steel and stainless steel material options
Suitable for hydraulic and industrial fluid systems

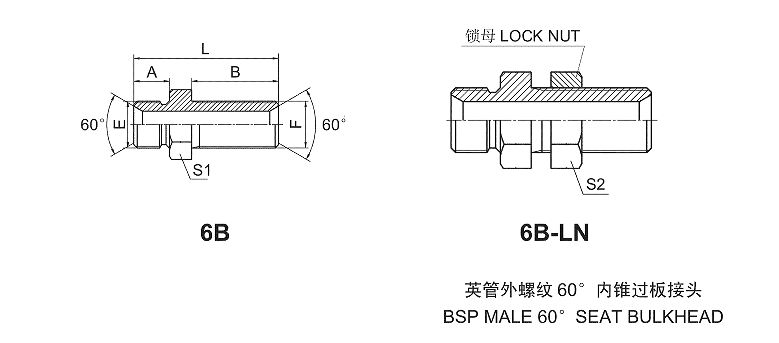

| PART NO. | T H R E A D | DIMENSIONS | |||||||
| E | F | A | B | L | S1 | S2 | |||
| 6B-02 | G1/8"X28 | G1/8"X28 | 10 | 33 | 49 | 14 | 14 | ||
| 6B-04 | G1/4"X19 | G1/4"X19 | 12 | 35 | 53 | 19 | 19 | ||
| 6B-06 | G3/8"X19 | G3/8"X19 | 13.5 | 35 | 56.5 | 22 | 22 | ||
| 6B-08 | G112"X14 | G112"X14 | 16 | 39 | 65 | 27 | 27 | ||
| 6B-10 | G5/8"X14 | G518"X14 | 17.5 | 40 | 67.5 | 30 | 30 | ||
| 6B-12 | G3/4"X14 | G3/4"X14 | 18.5 | 42 | 71.5 | 32 | 32 | ||
| 6B-16 | G1"X11 | G1"X11 | 20.5 | 50 | 84 | 41 | 41 | ||
| 6B-20 | G1.1/4"X11 | G1.1/4"X11 | 20.5 | 52 | 89.5 | 50 | 50 | ||
| 6B-24 | G1.1/2"X11 | G1.1/2"X11 | 23 | 55 | 93 | 55 | 55 | ||
| 6B-32 | G2"X11 | G2"X11 | 25.5 | 55 | 97.5 | 70 | 70 | ||
| Note: In case if you are interested to order the adapter in complete set with lock nut it is necessary to insert sufix "LN" after our part no.,for example 6B-16LN,The lock nut no. is 8B. | |||||||||
The 6B / 6B-LN Series BSP Male 60° Seat Bulkhead Fittings are widely used in hydraulic power units, construction machinery, agricultural equipment, industrial automation systems, hydraulic tanks, manifolds, and fluid control equipment. Their bulkhead mounting structure provides a reliable solution for connecting pipelines through panels while maintaining secure sealing performance.
